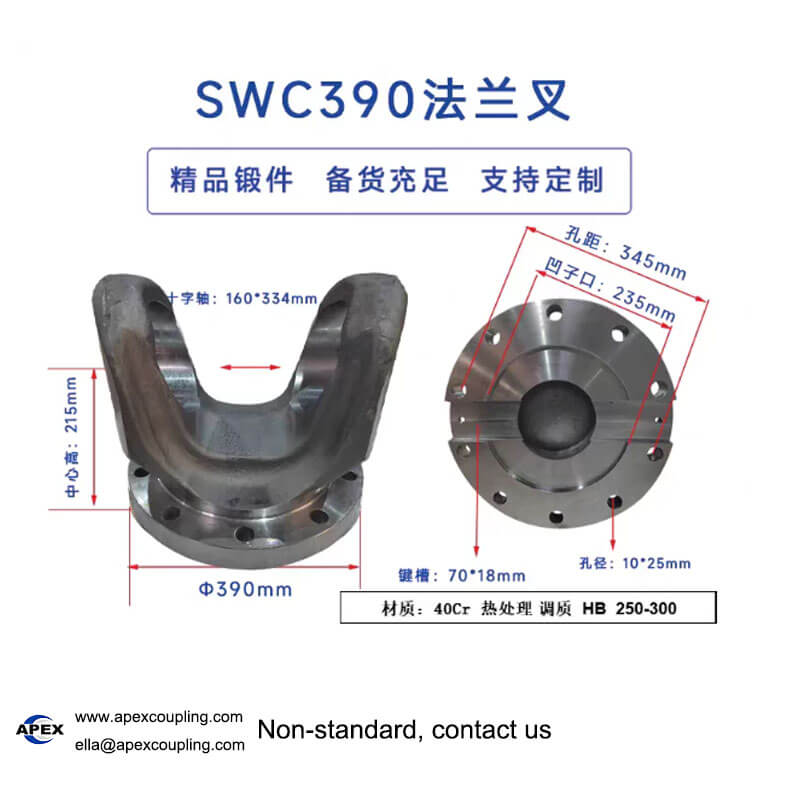

Heavy-Duty Flange Yokes for SWC Cardan Shafts
Apex Coupling offers high-quality flange yokes designed for SWC series cardan shafts, manufactured from premium 40Cr steel with quenched and tempered heat treatment to HB250-300 hardness for superior strength and wear resistance. Our flange yoke product range covers SWC65 through SWC250 specifications, featuring precision-machined Cross Shaft bearing holes, standard bolt patterns, and keyway options to suit various industrial drive applications.
Â
Available Specifications:

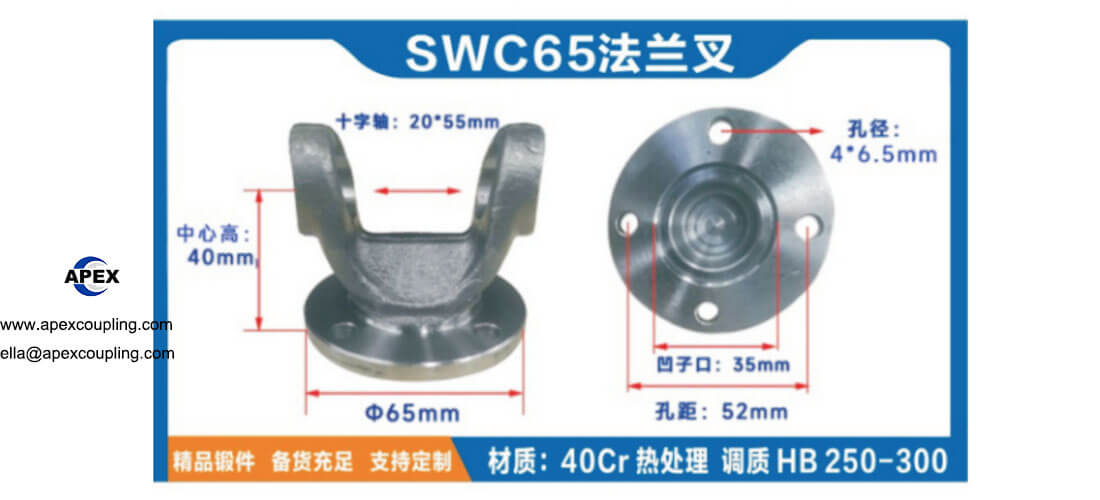

SWC65 Flange Yoke: Cross shaft 20×55mm, center height 40mm, flange diameter Φ65mm, bolt hole spacing 52mm, 4×Φ6.5mm mounting holes
SWC180 Flange Yoke: Cross shaft 75×152.5mm, center height 114mm, flange diameter Φ180mm, 8×Φ17mm mounting holes, keyway 28×8mm
SWC200 Flange Yoke: Cross shaft 75×152.5mm, flange diameter Φ200mm, 8×Φ17mm mounting holes
SWC225 Flange Yoke: Cross shaft 90×191mm, center height 120mm, flange diameter Φ225mm, 8×Φ17mm mounting holes
SWC250 Flange Yoke: Cross shaft 95×217mm, center height 140mm, flange diameter Φ250mm, 8×Φ19mm mounting holes, keyway 40×12.5mm
Â
All flange yokes feature precision-forged construction with ample stock availability and full customization support. Backed by 8 years of OEM experience, 4.9/5 store rating, and 96.4% on-time dispatch rate, Apex Coupling ensures reliable supply for global B2B customers. Contact us for standard or custom flange yoke solutions.

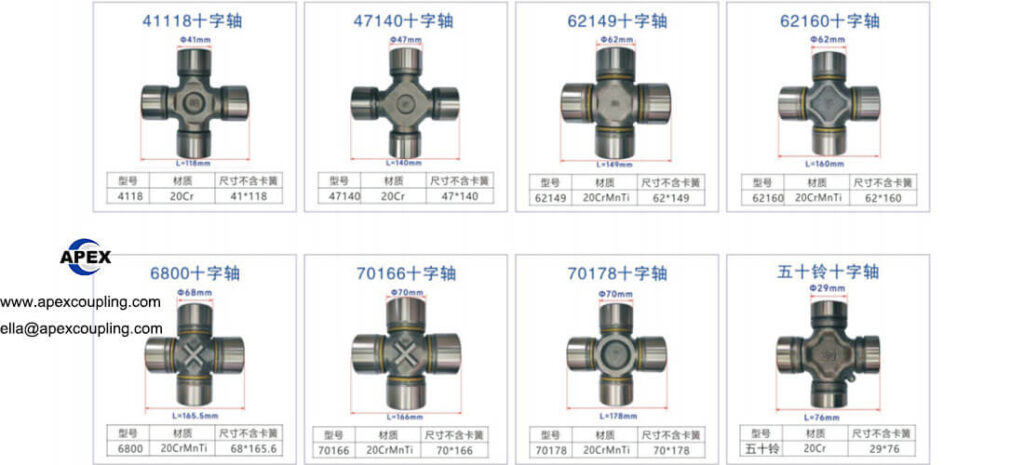

Precision Cross Shafts for Cardan Shafts & Universal Joints

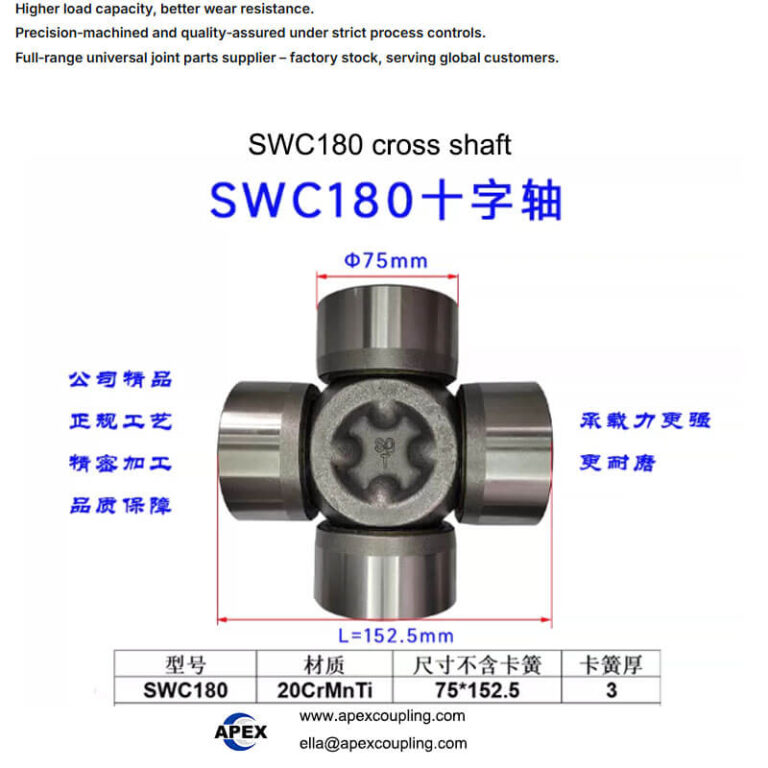

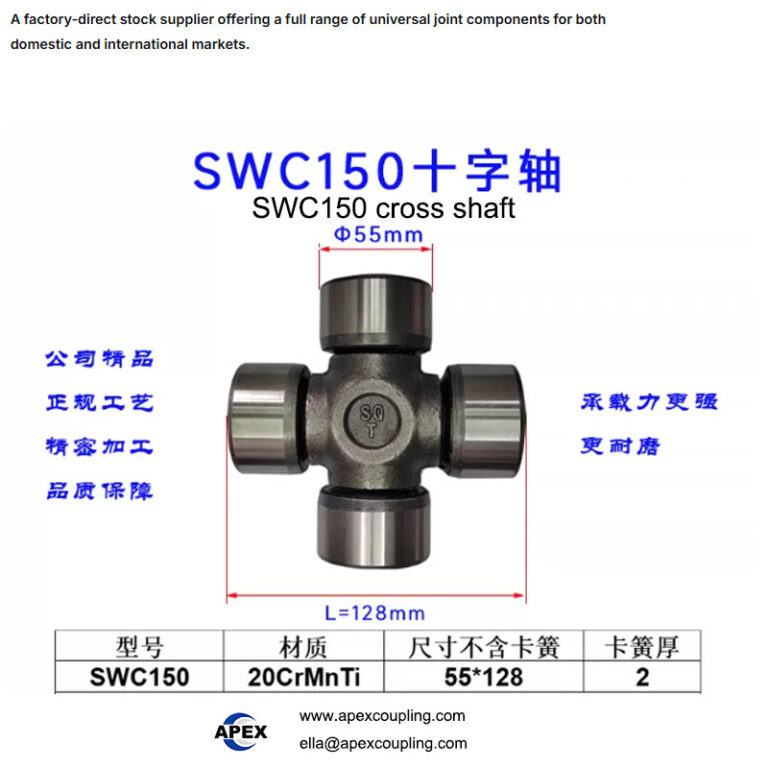

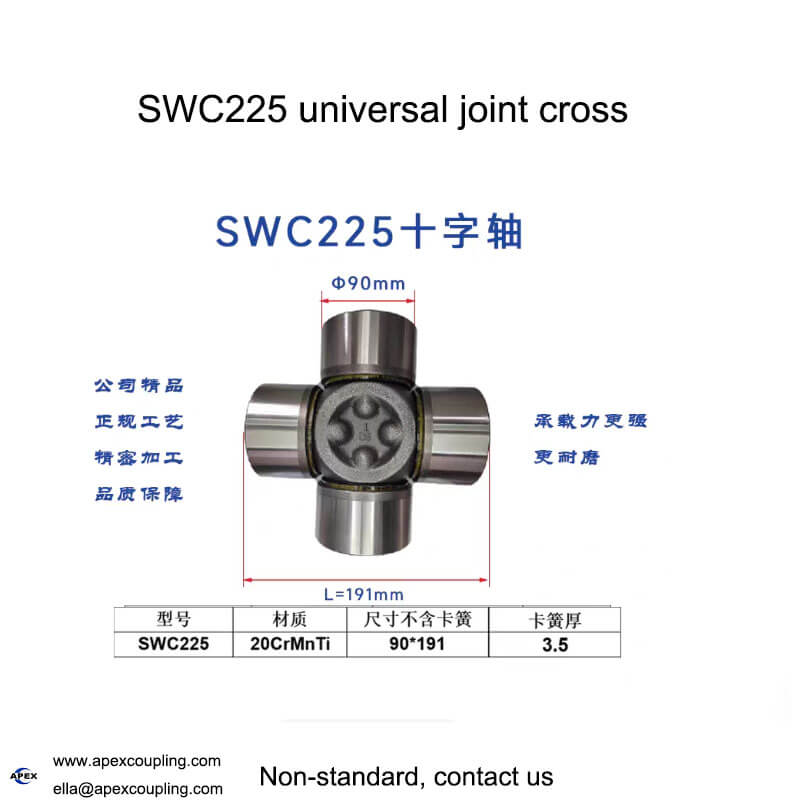

Apex Coupling manufactures high-precision cross shafts (universal joint crosses) for cardan shafts and industrial drive systems. Available in 20Cr and 20CrMnTi alloy steel with carburizing heat treatment for exceptional surface hardness and core toughness, our cross shafts deliver reliable performance under high-torque and high-angle operating conditions.
Â
Available Models & Specifications:
| Model | Material | Diameter | Length (without circlip) |
|---|---|---|---|
| 0017 Cross Shaft | 20Cr | Φ48mm | 116.4mm |
| 0082 Cross Shaft | 20CrMnTi | Φ57mm | 144mm |
| 0092 Cross Shaft | 20CrMnTi | Φ57mm | 152mm |
| 0125 Cross Shaft | 20CrMnTi | Φ52mm | 133mm |
| 130 Cross Shaft | 20Cr | Φ32mm | 93mm |
| 212 Cross Shaft | 20Cr | Φ30mm | 88mm |

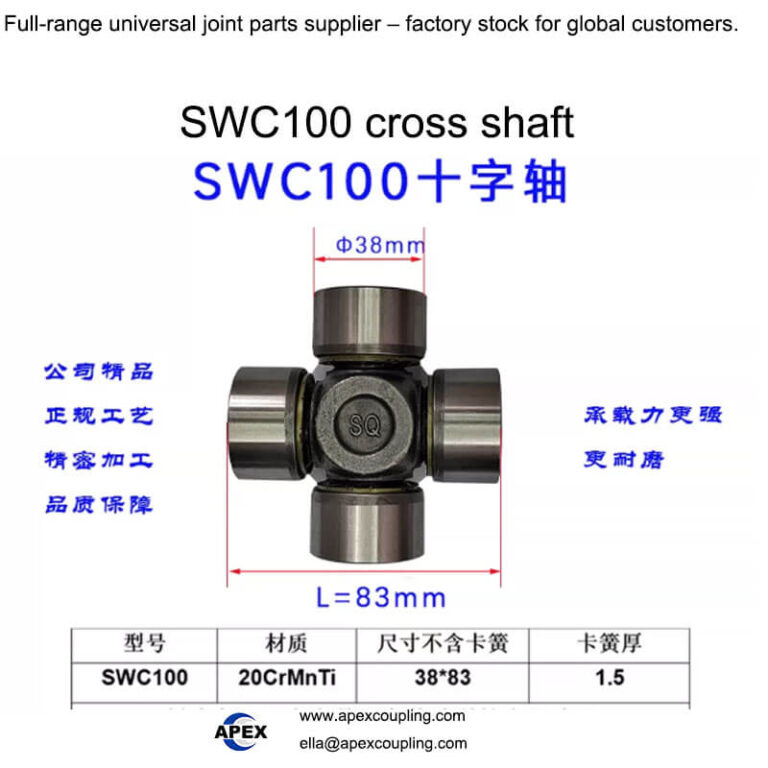

| SWC100 Cross Shaft | 20CrMnTi | Φ38mm | 83mm |
| SWC120 Cross Shaft | 20CrMnTi | Φ45mm | 101mm |
Our cross shafts feature precision-ground trunnions for accurate bearing fit and extended service life. With ample stock availability and full customization support, we provide tailored solutions for various cardan shaft models. Backed by 8 years of OEM experience, 4.9/5 store rating, and 96.4% on-time dispatch rate, Apex Coupling is your trusted partner for universal joint components.
Weld Yokes Manufacturer | Cardan Shaft Weld Yokes | Apex Coupling
Durable Weld Yokes for Cardan Shaft Assemblies
Â
Apex Coupling offers robust weld yokes designed for cardan shaft assemblies and industrial drive connections. Manufactured from high-strength alloy steel with precision machining, our weld yokes provide reliable welding interfaces for custom shaft length requirements and heavy-duty applications.
Â
Available Specifications:

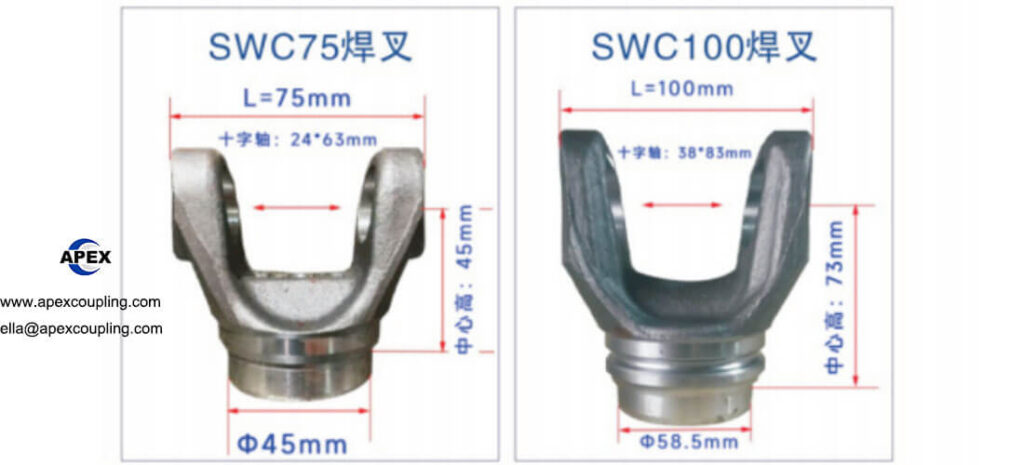

SWC65 Weld Yoke: Length L=65mm, cross shaft 20×55mm, center height 38mm, flange diameter Φ45mm
SWC75 Weld Yoke: Length L=75mm, cross shaft 24×63mm, flange diameter Φ45mm
SWC100 Weld Yoke: Length L=100mm, cross shaft 38×83mm, flange diameter Φ58.5mm
Our weld yokes feature precision-machined bearing journals and standardized welding interfaces for easy integration with cardan shaft tubing. With ample stock availability and full customization support, we can accommodate special length requirements and non-standard specifications. Backed by 8 years of OEM experience, 4.9/5 store rating, and 96.4% on-time dispatch rate, Apex Coupling delivers quality weld yoke solutions for global industrial customers.
