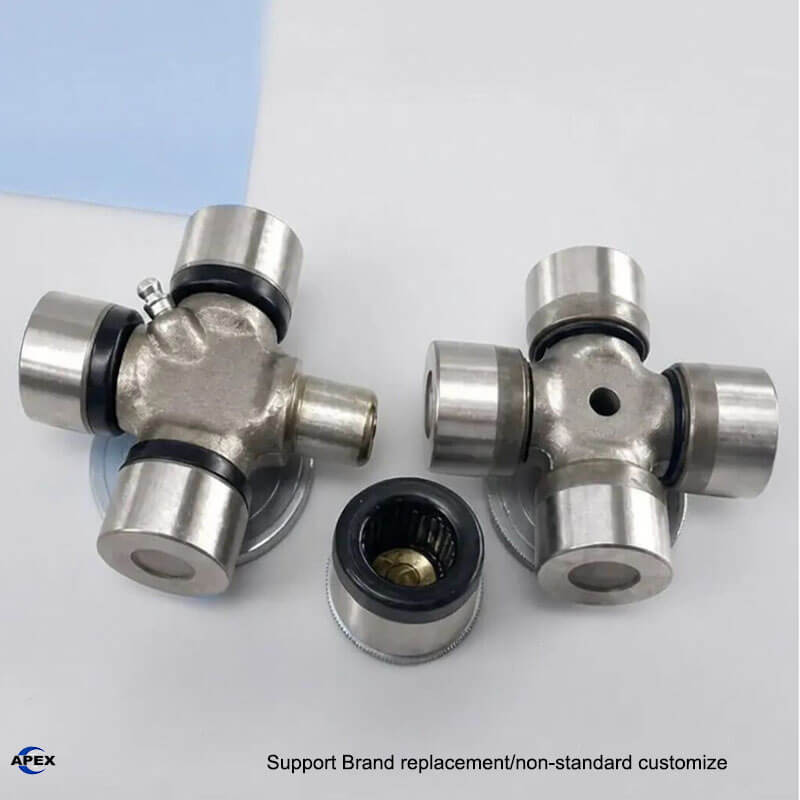

32*93 Precision Industrial Motor Universal Joint Cross Journal Assembly

Heavy-Duty Replacement Cross Spider Bearing Kit for Motors & SWC Cardan Drive Shafts

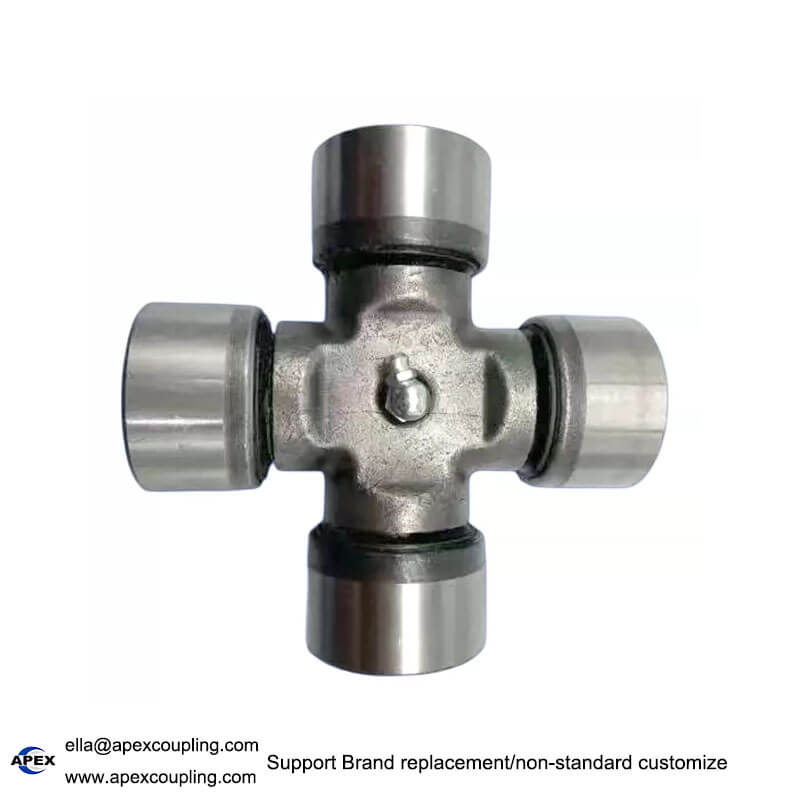

The 32*93 mm Industrial Universal Joint Cross Journal Assembly (also known as a universal cross spider kit) is a precision-engineered transmission component designed for electric motors, heavy industrial machinery, and SWC series Cardan drive shafts. Precision-manufactured from high-strength forged steel and finished on advanced CNC grinding machines, this 32*93 mm cross spider kit delivers high concentricity, superior fatigue resistance, and low-noise operational smoothness. Engineered to handle intense torque spikes, severe impact loads, and continuous multi-axis rotation, it serves as a reliable core replacement unit for industrial drive lines.

Key Advantages & Features

• High-Strength Forged Steel Material: Drop-forged from dense, premium alloy steel with a micro-refined grain structure, providing outstanding tensile strength and wear resistance under extreme loading conditions.
• CNC Precision Grinding: Bearing journal surfaces are CNC-ground to strict dimensional tolerances, ensuring excellent needle bearing fit, zero vibration, and high operational speed.
• High Speed & Low Operational Noise: Tight tolerance matching and smooth rotational balance drastically reduce mechanical friction loss, acoustic noise, and heat generation.

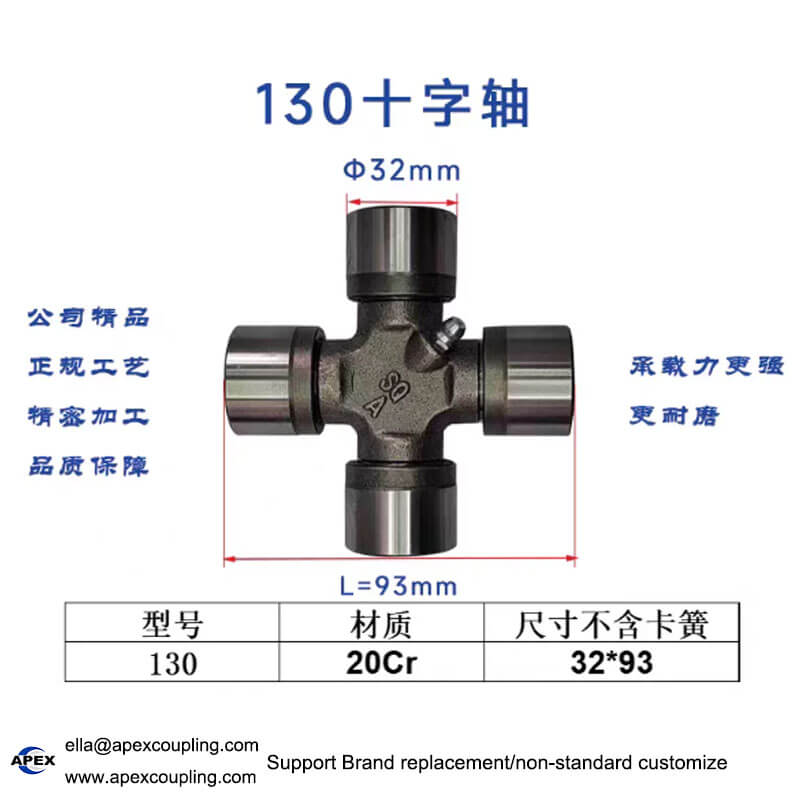

• Interchangeable Dimensional Standard: Machined to exact 32 mm journal diameter x 93 mm overall length standards, ensuring high drop-in interchangeability across standard industrial drive couplings.
• Wide Application Range: Versatile design covers light conveyer drives as well as heavy-duty metallurgical machinery, compensating for dynamic angular and axial displacements.
• Grease Lubricated Longevity: Built-in grease channels allow simple re-lubrication, extending cross journal service life and minimizing equipment maintenance downtime.

Technical Specifications

Applications & Machinery Compatibility

The 32*93 universal joint cross journal spider kit is widely utilized across versatile industrial motor transmissions and heavy driveline systems, including:

• Industrial Motor & Gearbox Drives: AC/DC electric motor drives, reduction gearboxes, and power transfer shafts.

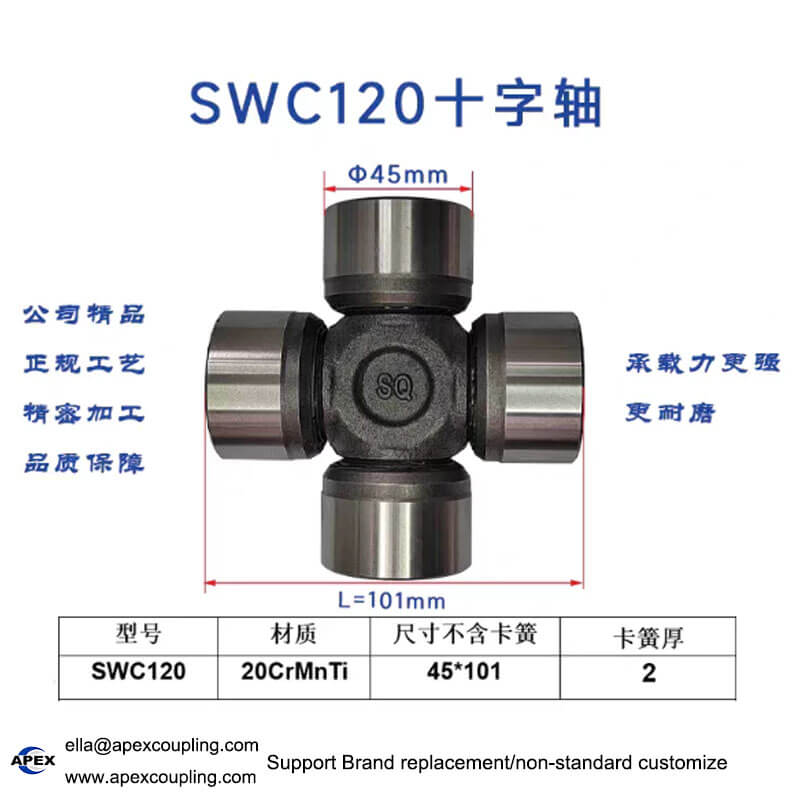

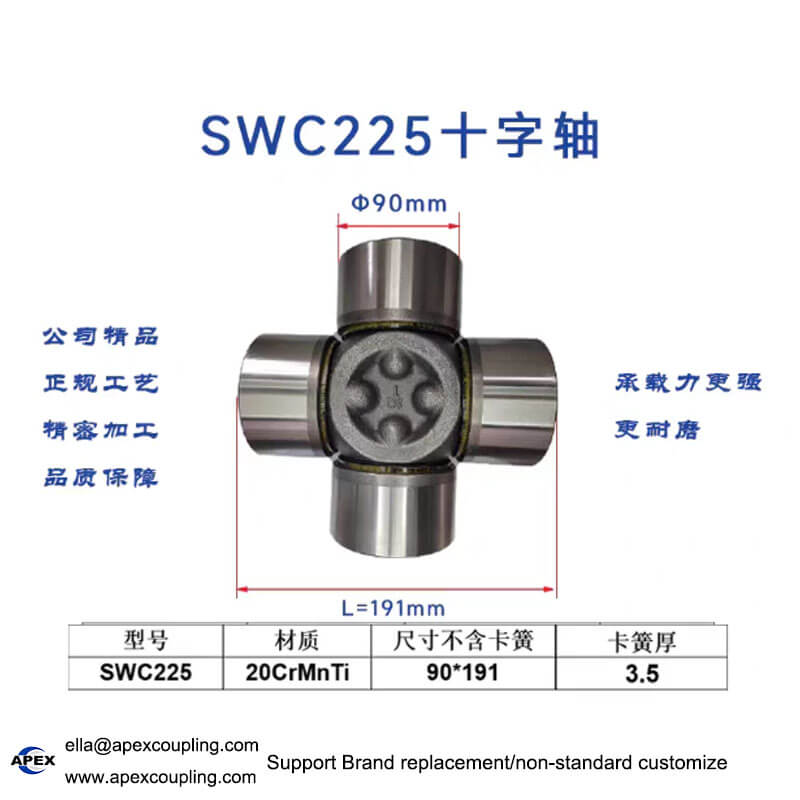

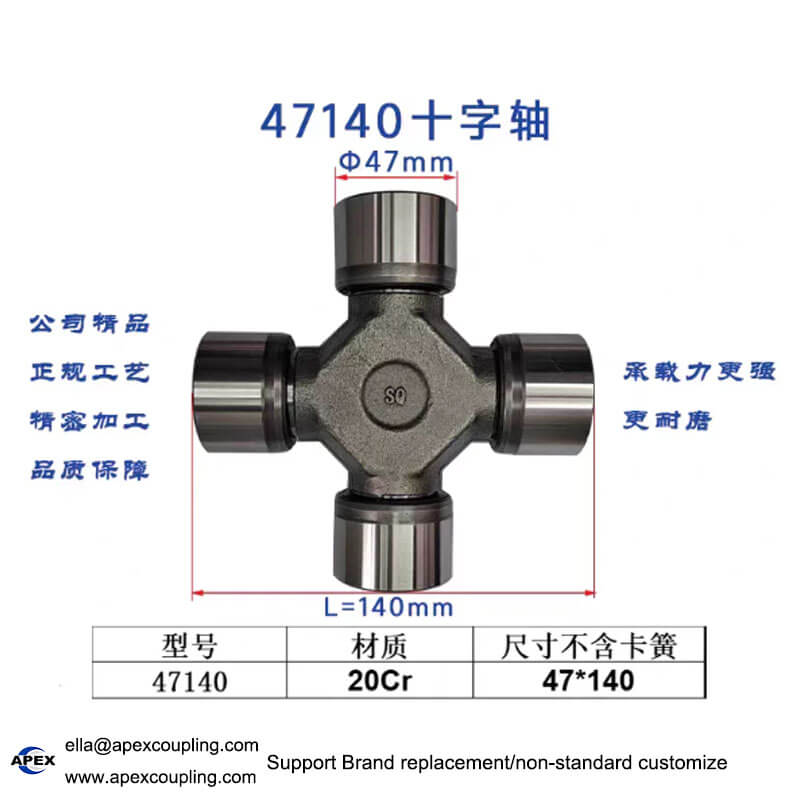

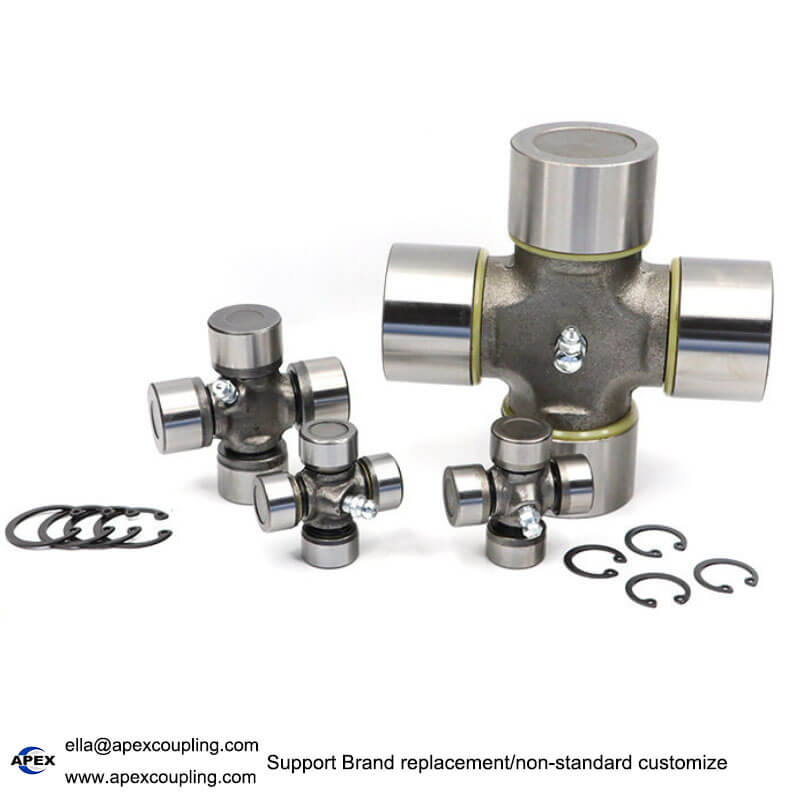

• SWC Cardan Shaft Maintenance: Direct replacement cross kit for SWC series telescopic and fixed cardan drive shafts.
• Metallurgical & Steel Mill Machinery: Roller tables, straighteners, continuous casting equipment, and heavy conveyers.
• Mining & General Equipment: Crushers, industrial fans, paper processing lines, and specialized transport drivelines.

Custom Sizing & OEM Direct Supply

At ApexCoupling, as a direct source manufacturer, we maintain extensive stock for standard 32*93 cross spider kits while providing fast turnaround for custom non-standard orders according to customer technical drawings.

Custom Options Include:

• Custom journal diameter and overall length dimensions (beyond standard 32*93 sizes).
• Custom inner bore diameters, keyway configurations, and spline profiles.
• Special heat treatment procedures for extreme torque or high-temperature environments.
• Private laser logo branding, custom packaging, and volume wholesale discounts.

To request a fast quote, please specify your required cross journal size (such as 32*93), shaft bore/keyway specifications, equipment model, and order quantity.

How to Order / Get a Fast Quote

Looking for reliable 32*93 industrial universal joint cross journal assemblies or custom Cardan spider kits? Contact our engineering sales team today!

• Email: ella@apexcoupling.com
• WhatsApp / WeChat: +86 13437856962
• Website: www.apexcoupling.com
• MOQ: 1 Piece (Sample testing, batch orders, and bulk OEM supplies fully supported)
