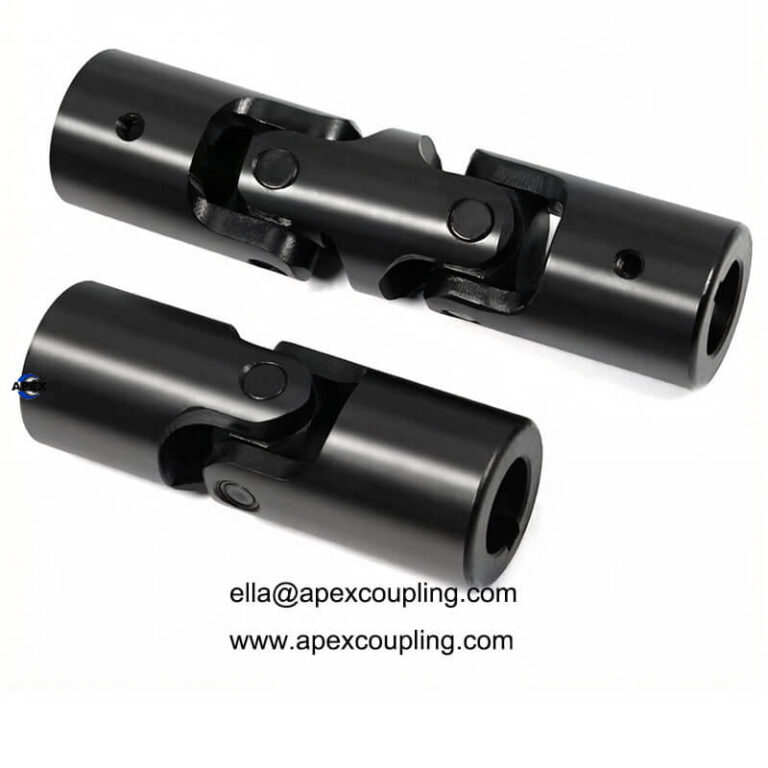

precision universal joint coupling
Cross shaft
Apexcoupling Universal joint cross
DFCG stainless steel coupling
SWC180 Universal Joint Cross Bearing
shaft cross
automotive universal joint

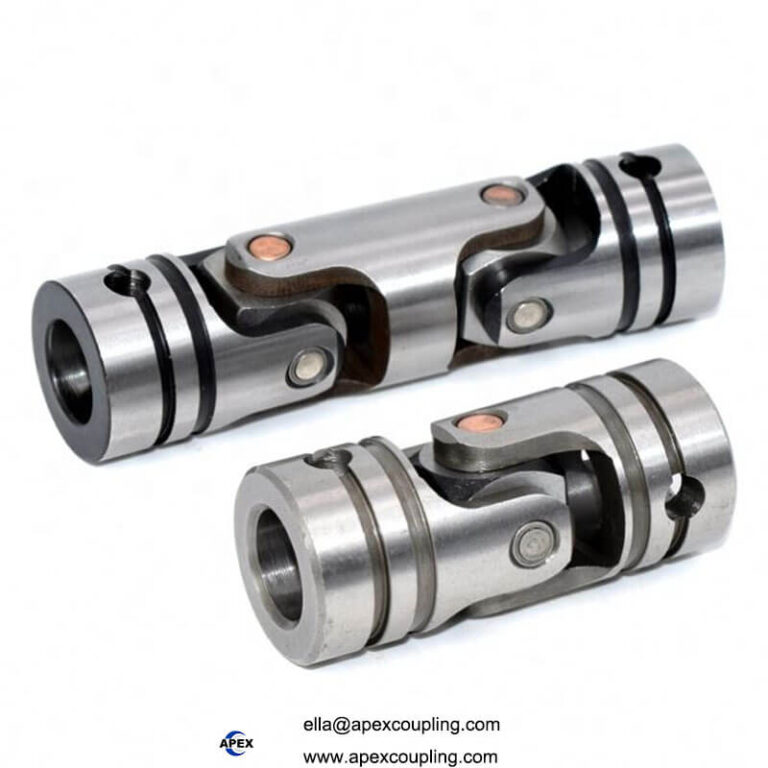

single double cardan joint
forged steel universal joint cross
universal joint spider
Isuzu universal joint cross
universal joint cross bearing
SWC universal joint shaft
driveshaft couplings
double universal joint coupling
needle bearing universal joint
90 degree universal joint
CPKCA universal joint
ML series plum elastomeric pad
star type flexible coupling

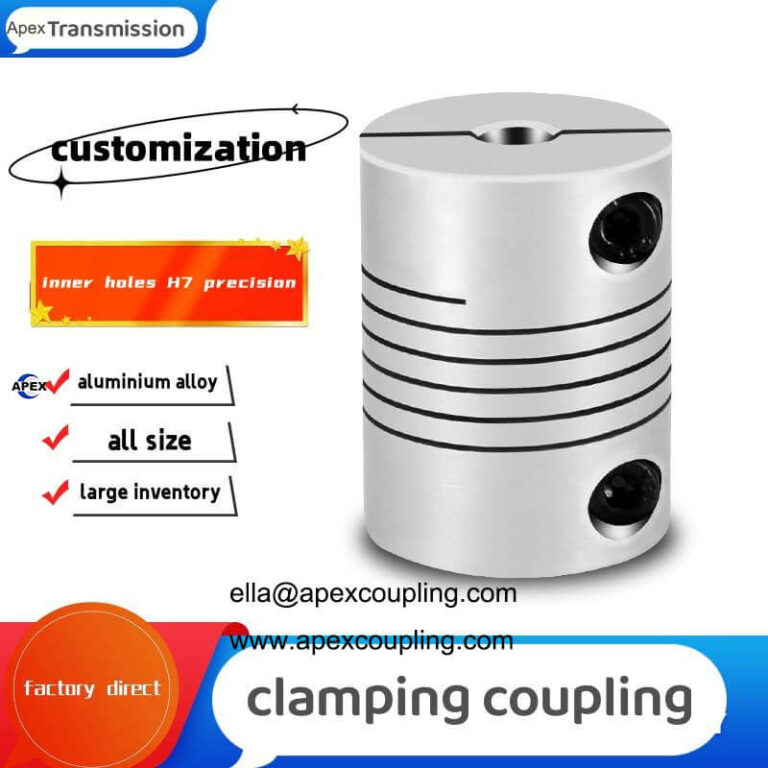

zero backlash clamping coupling
heavy duty cardan shaft
telescopic universal joint
custom universal joint
MT coupling spider KTR GS GR replacement spider
telescopic cross universal joint
Customized telescopic universal joint coupling
gs jaw coupling
flexible bellows coupling

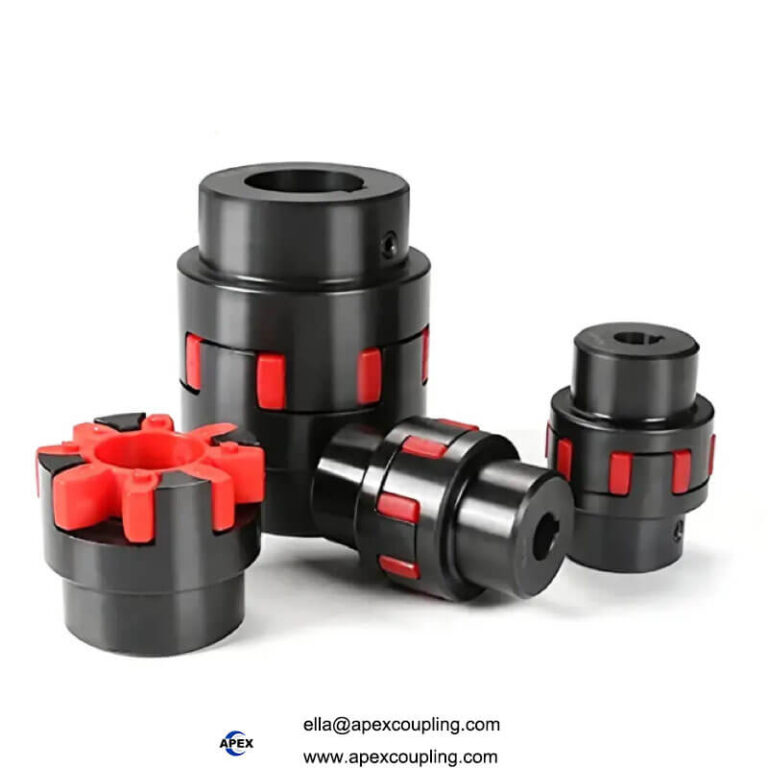

ROTEX GS coupling replacement apexcoupling
telescopic Cardan joint,

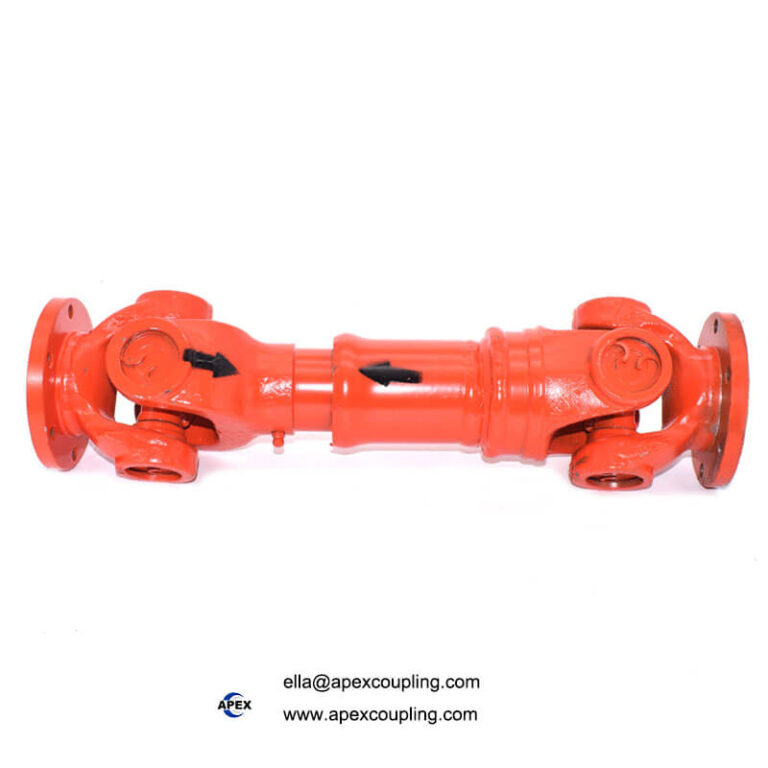

SWC-WD cardan shaft
gr38 coupling
ML coupling insert
Rotex coupling spider

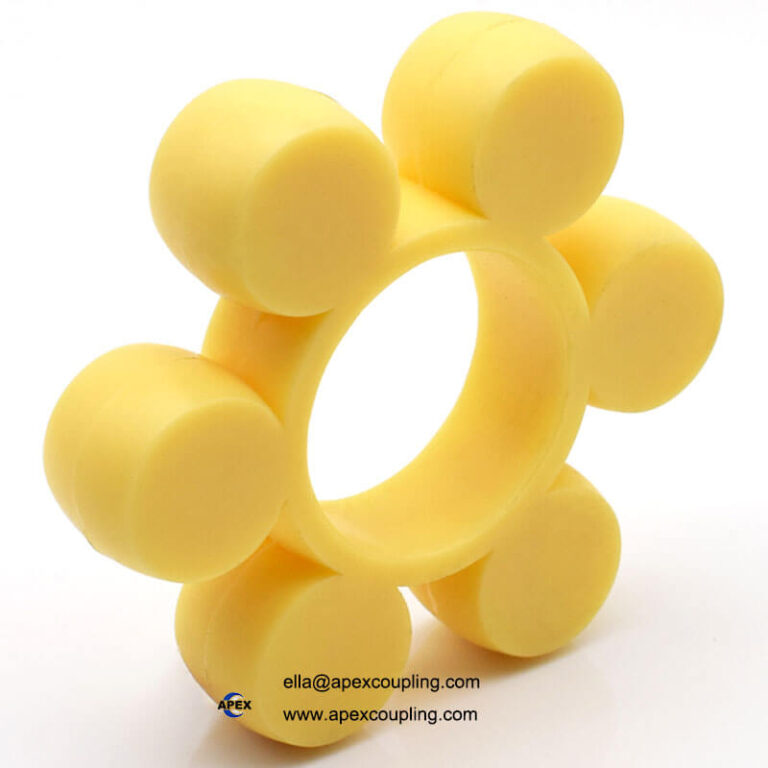

DFG plum blossom coupling
custom universal joints
universal shaft coupling
High Angle Double Cardan Joint Coupling
keyless shaft locking device
single taper locking assembly
FL-F locking assembly
heavy duty locking assembly
shaft hub locking assembly
keyless locking assembly
locking assembly

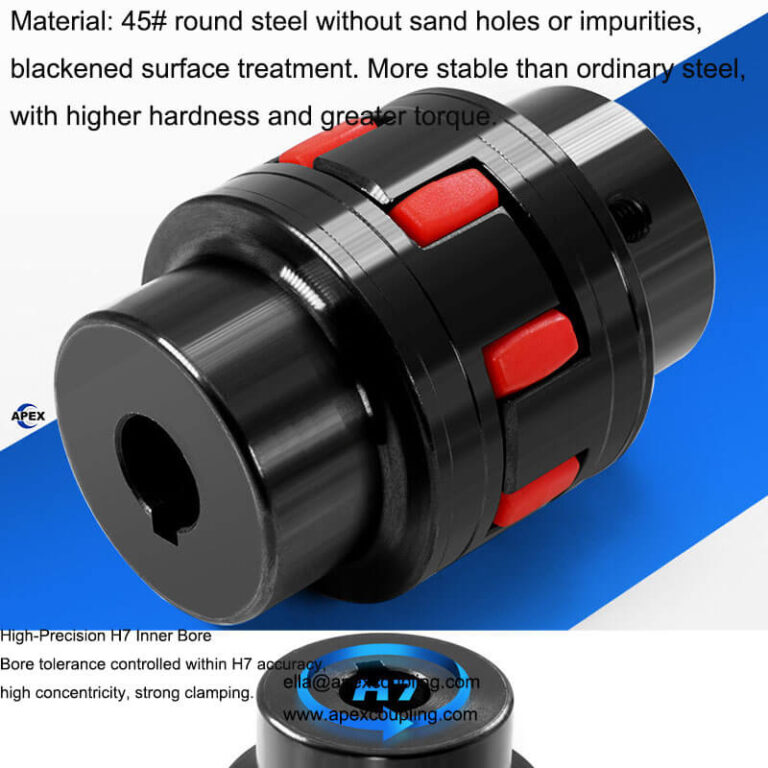

hytrel spider coupling
cardan shafts
keyless locking assembly
keyless locking assembly

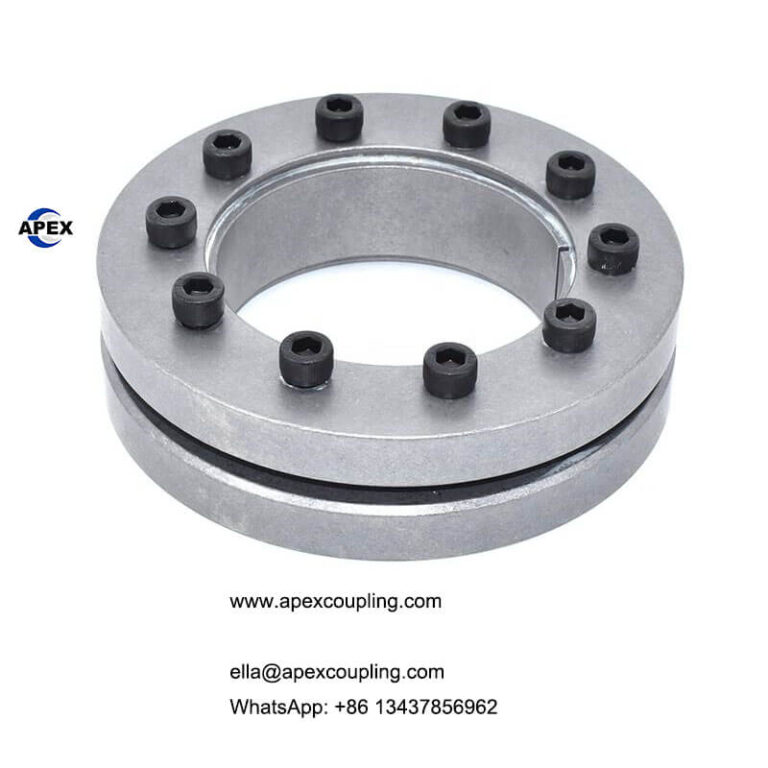

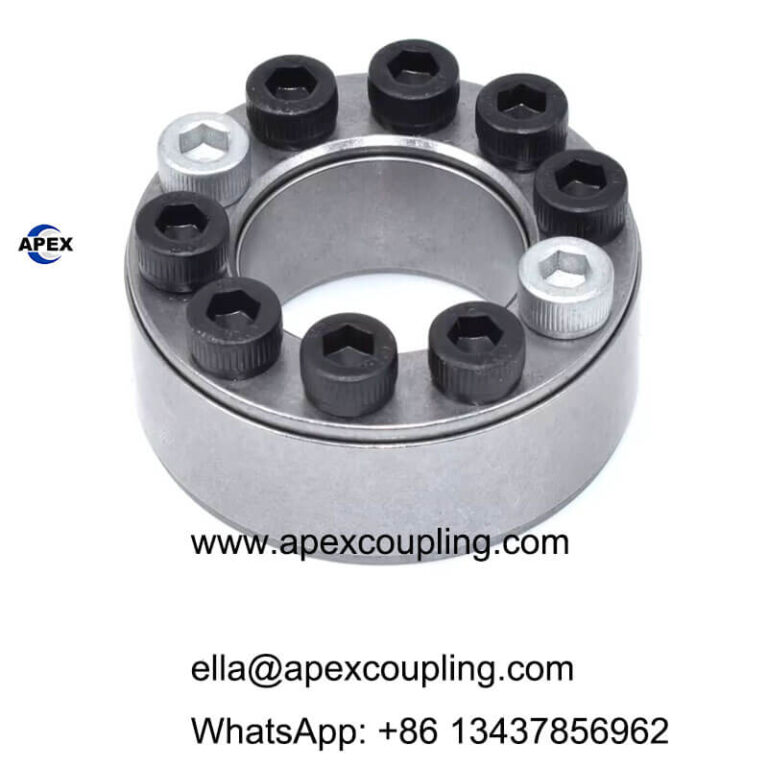

keyless locking device
KC chain coupling with cover
SWC universal joint shaft
star elastic coupling

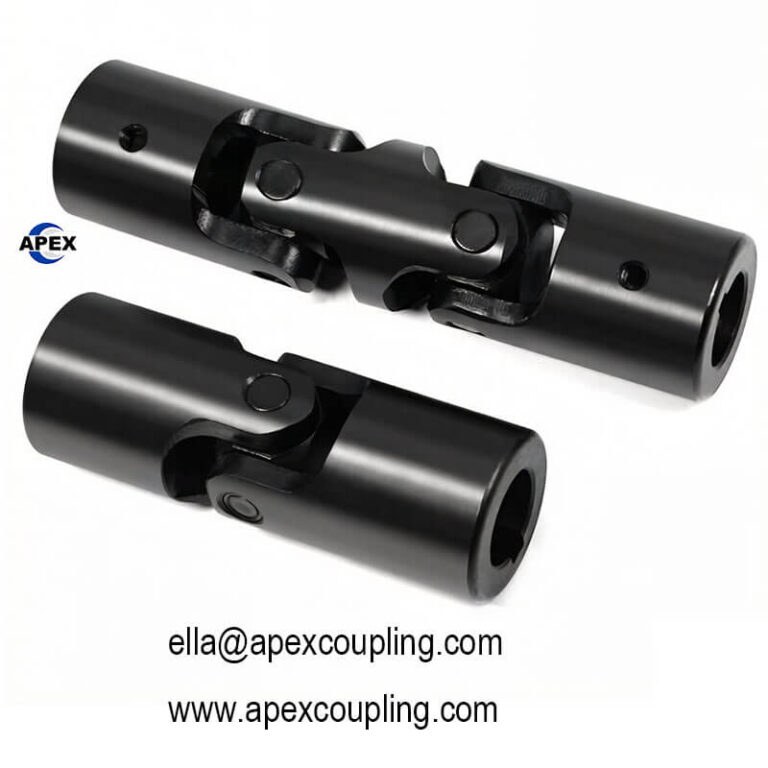

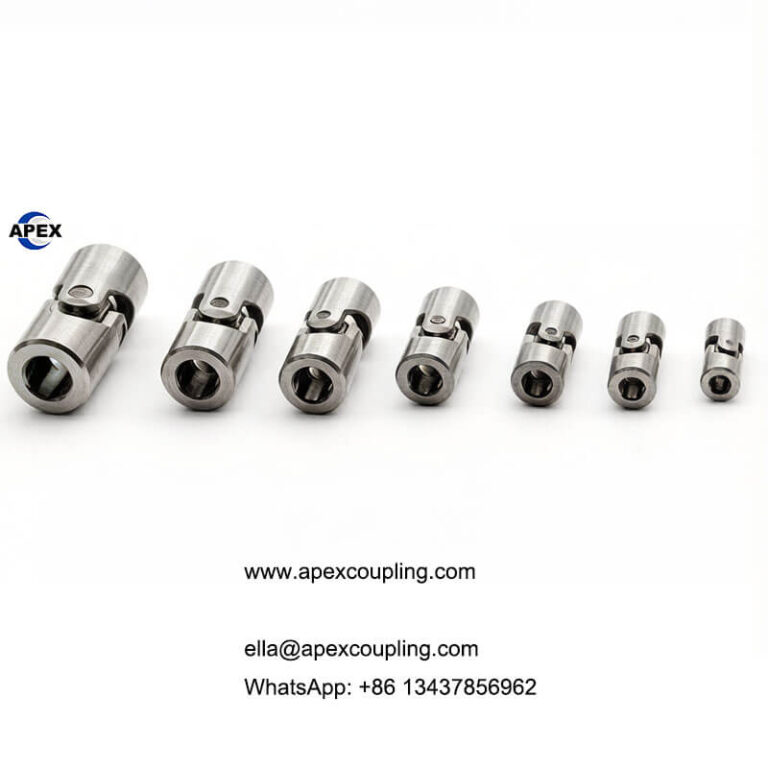

small universal joint coupling
L035-L276 coupling
set screw diaphragm coupling

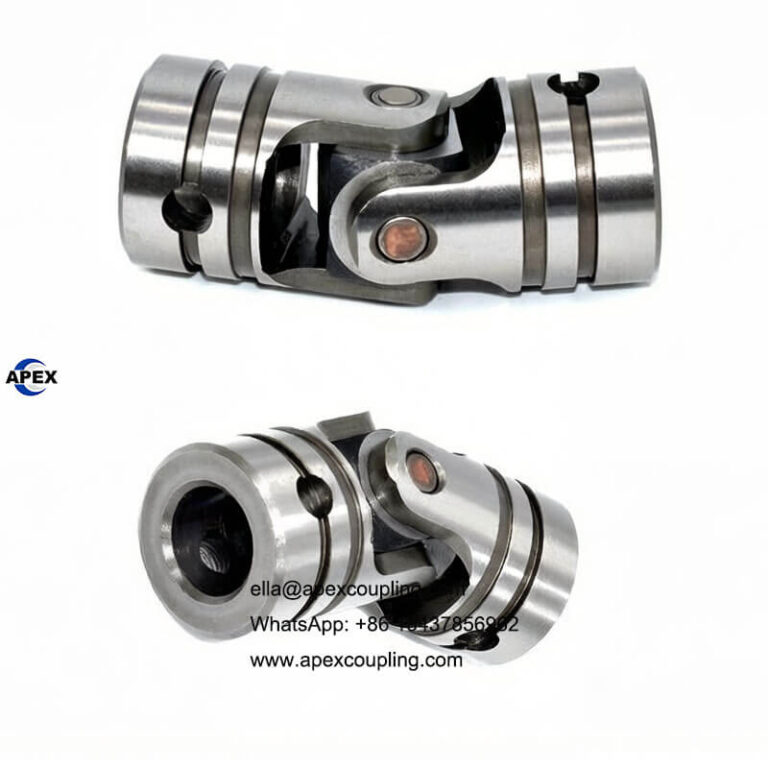

universal joint coupling
small universal joint coupling

ABOUT US

Flexible Jaw Coupling, Disc/Diaphragm coupling, Tyre Coupling, Chain Coupling, Grid coupling, Gear coupling, Locking assembly, Rubber mat, coupling insert,
Belt Pulleys, Precision Coupling, Rigid Coupling, Universal joint, Universal joint coupling, Industrial cardan shaft, Pump Coupling, Coupling Parts, OEM ODM Coupling manufacturer.

WHAT WE DO

About Apex Coupling: Your Trusted Partner for Precision Coupling Solutions
Welcome to Apex Coupling, your premier source for high-performance, custom-engineered shaft couplings for the global market.

Since our inception, we have been dedicated to solving complex power transmission challenges by providing reliable, precision-made coupling solutions tailored to your exact specifications.

APPLICATION

  1. To Transmit Power: The universal function across all industries.
  2. To Accommodate Misalignment: Flexible couplings (jaw, disc, beam, Oldham) are essential for this.
  3. To Absorb Shock & Vibration: Elastomeric couplings (like jaw couplings with a spider insert) are excellent for this.
  4. To Allow for Axial Movement: Beam couplings and bellows couplings can accommodate this.
  5. To Connect or Disconnect Drives: Clutches are a form of coupling that can be engaged and disengaged.

What Couplings We Do?

2012

Founded In

10+

Coupling Export Experience

80+

Exporting Country

160+

Cooperative Companies

What application uses a flexible couplings?

Of course. Flexible couplings are used in a vast range of applications where their primary function is to transmit torque between two shafts while accommodating for misalignment and/or absorbing shock and vibration.

Here is a breakdown of the key applications, categorized by the primary benefit they provide:

1. Applications Requiring Misalignment Compensation

This is the most common reason for using a flexible coupling. Perfect, permanent alignment between two connected shafts (e.g., a motor and a pump) is almost impossible to achieve and maintain.

  • Pump Systems: The classic application. Connects an electric motor to a pump (centrifugal, positive displacement). Flexible couplings accommodate the inevitable parallel and angular misalignment, protecting both the motor and pump bearings.

  • Compressors and Fans: Similar to pumps, these are ubiquitous in HVAC systems, industrial plants, and power generation.

  • Conveyors: Long conveyor systems are prone to settling and misalignment. Flexible couplings connect the drive motor to the conveyor rollers, ensuring smooth operation despite shifting foundations.

  • Machine Tools: In CNC machines, milling machines, and lathes, couplings connect servomotors to ball screws and lead screws. They accommodate minor misalignments while providing high torsional stiffness for precise positioning.

2. Applications Requiring Vibration Damping and Shock Absorption

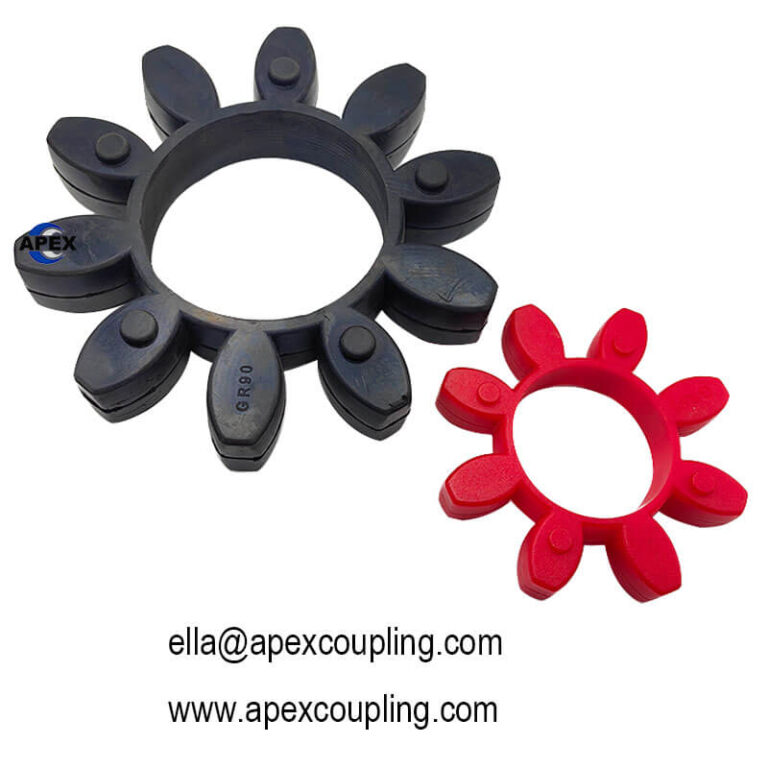

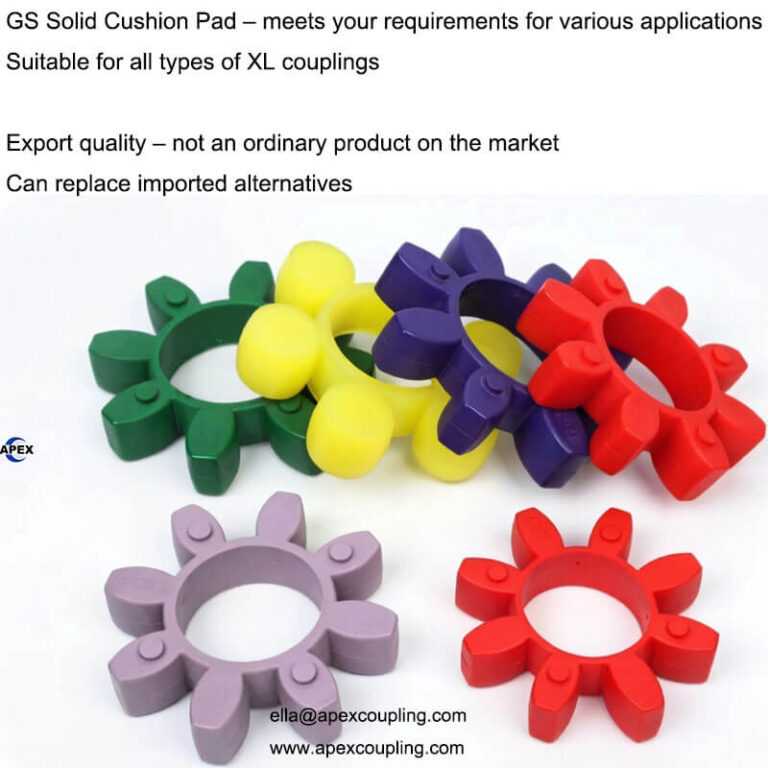

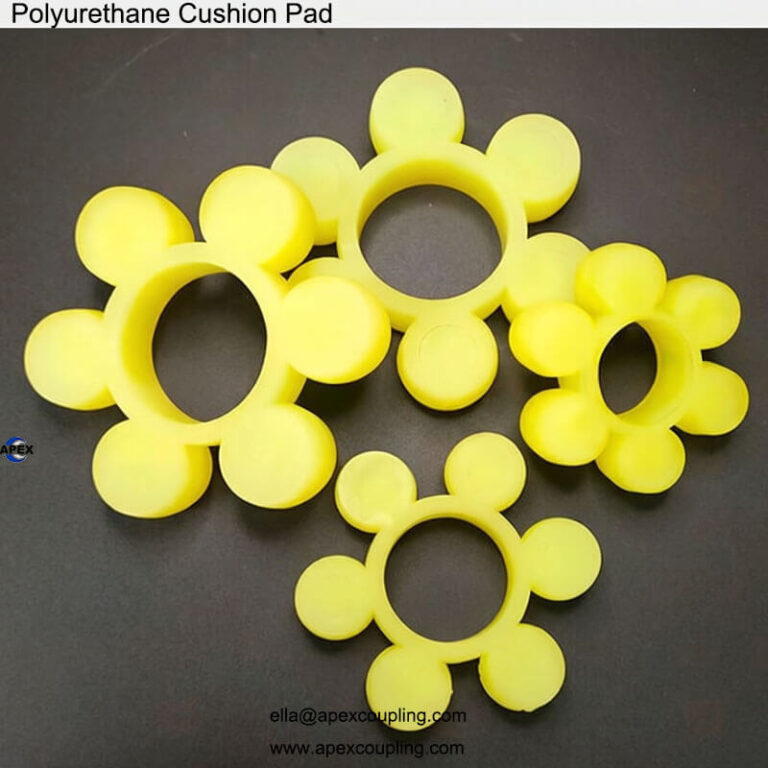

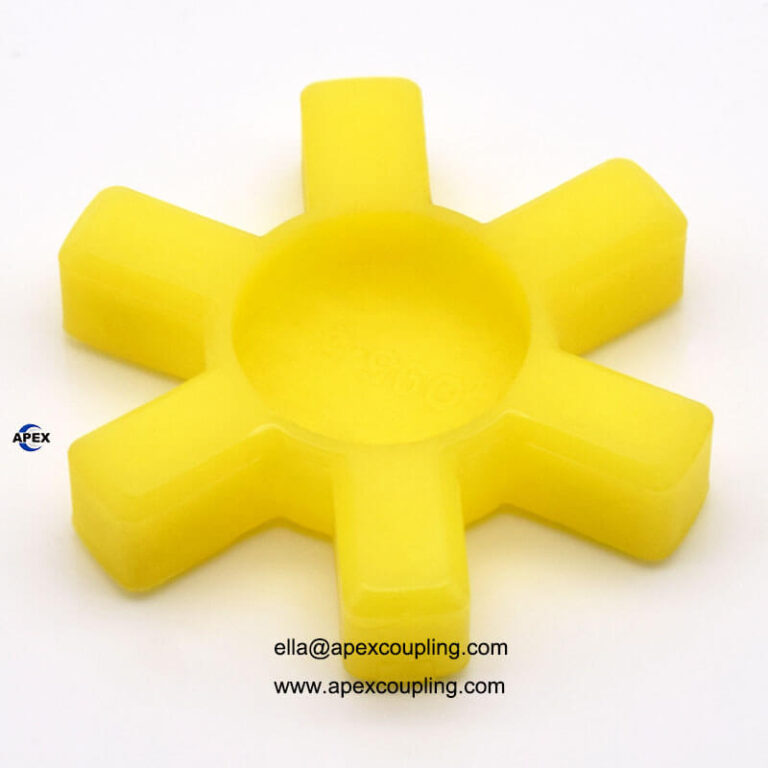

Some couplings use elastomeric elements (like polyurethane or rubber “spiders”) to absorb energy.

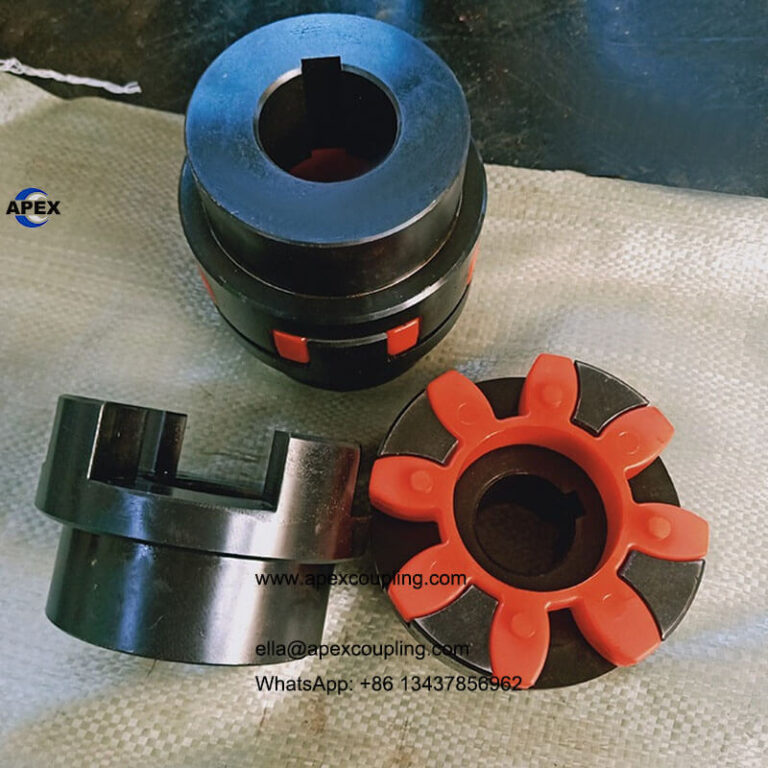

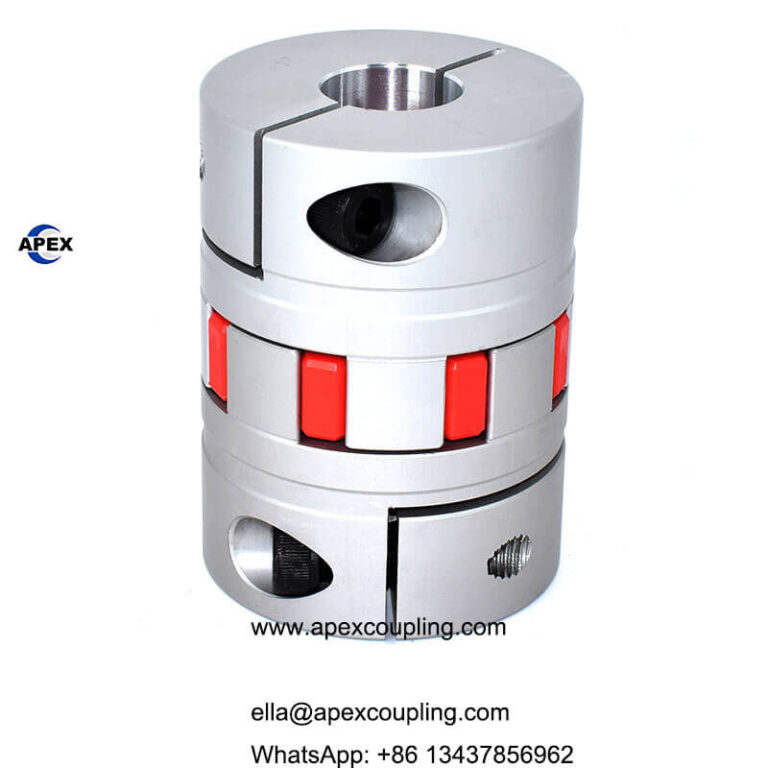

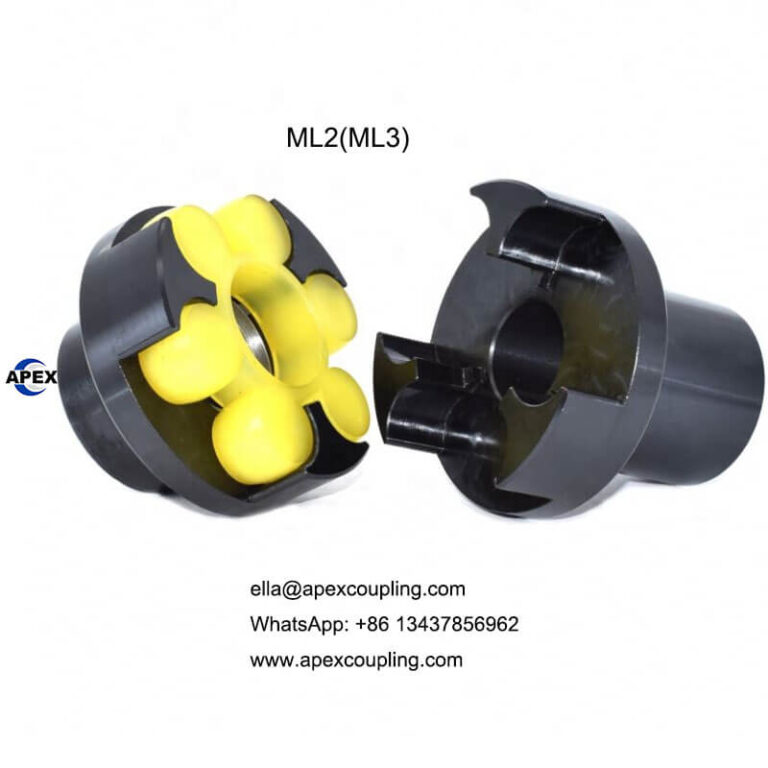

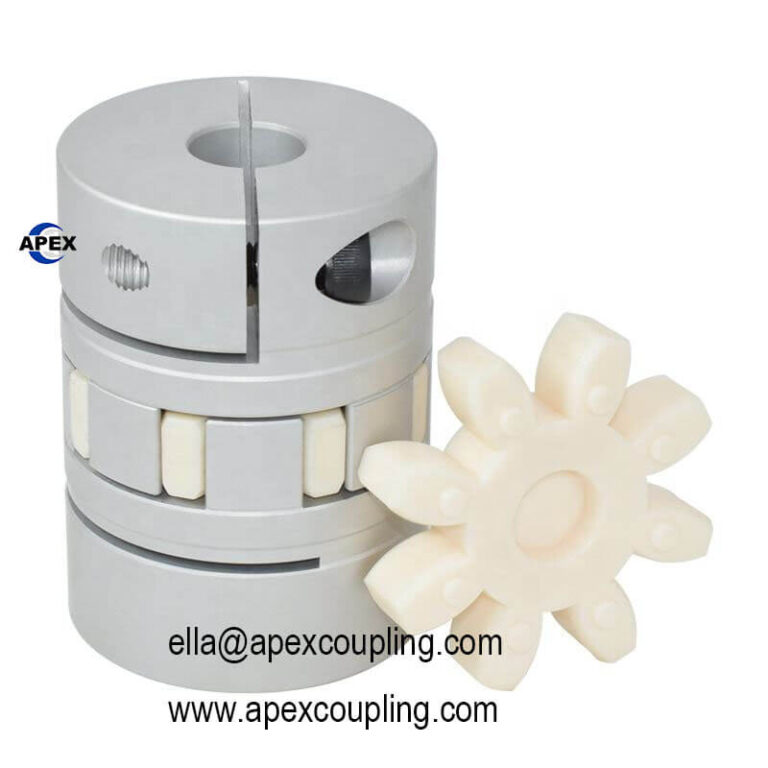

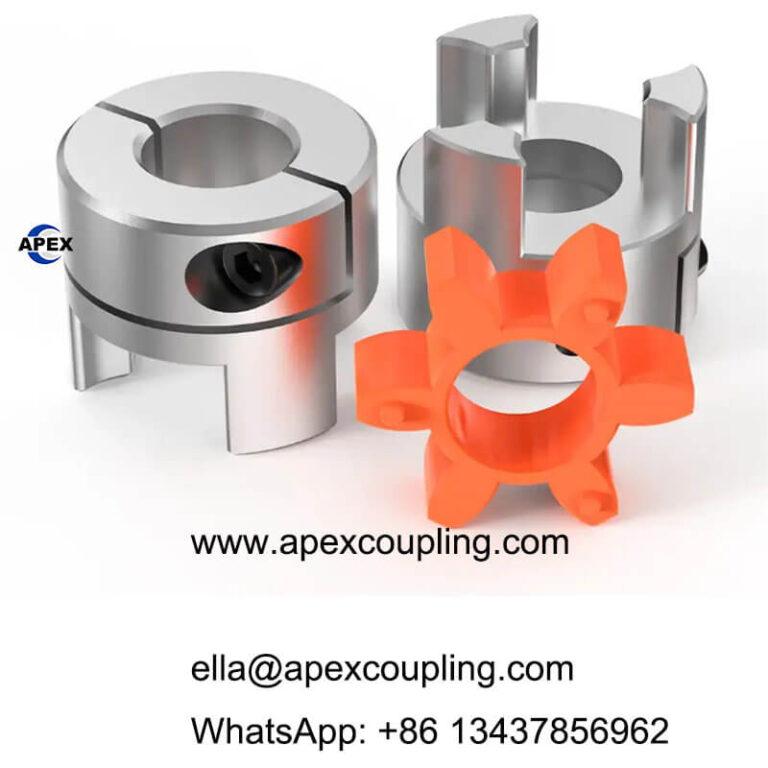

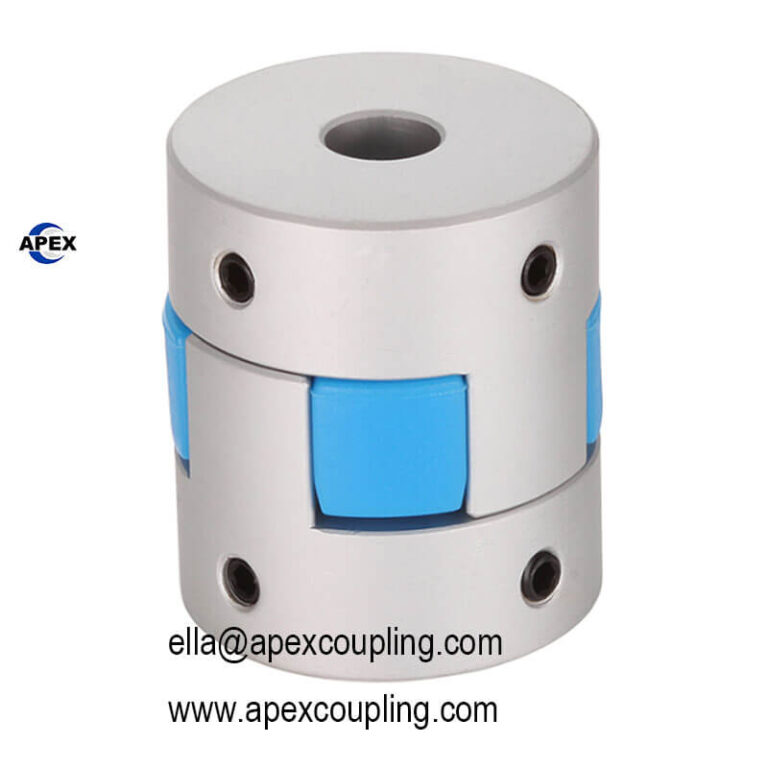

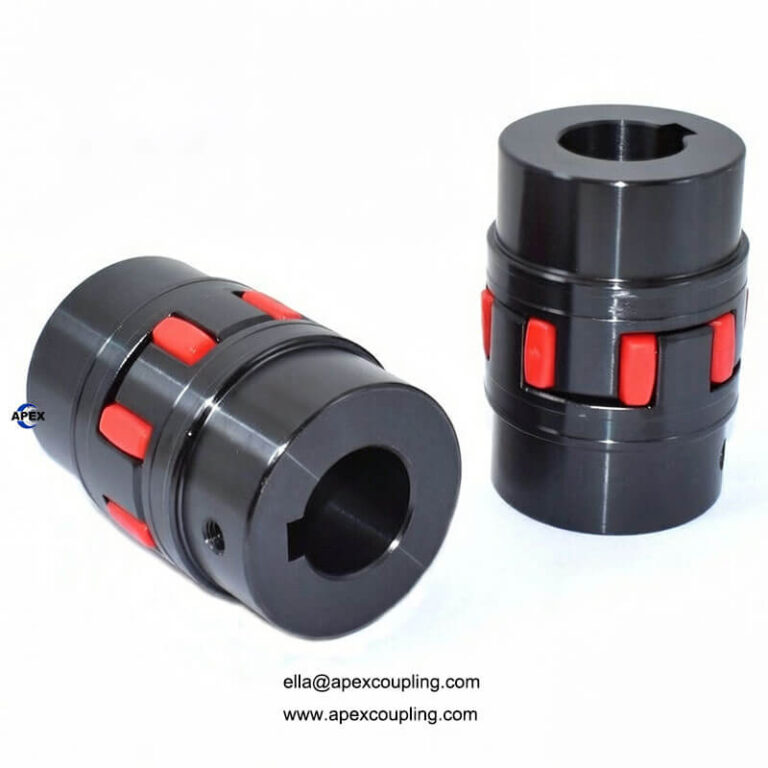

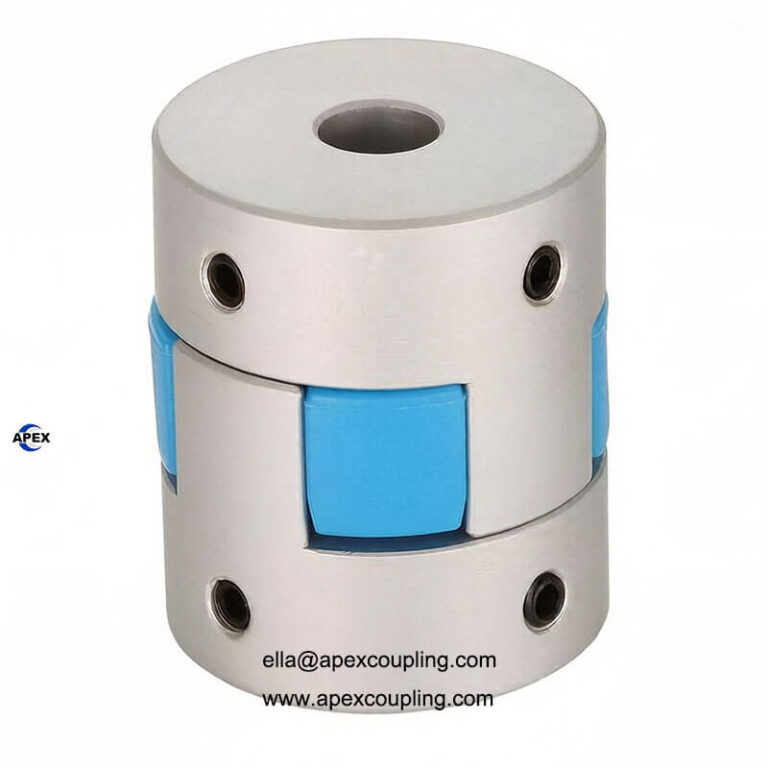

  • Crushing and Grinding Equipment: Machinery like crushers, hammer mills, and pulverizers generate severe shock loads. Elastomeric couplings (e.g., Jaw Couplings) absorb these shocks, protecting the drive motor and other components.

  • Extruders and Injection Molding Machines: The process of pushing plastic or metal through a die creates pulsating loads. Flexible couplings help smooth out the torque transmission.

  • Marine Propulsion Systems: Couplings are used between the engine and the propeller shaft to dampen torsional vibrations from the engine and the propeller’s interaction with the water.

3. Applications Requiring High-Speed and High-Precision

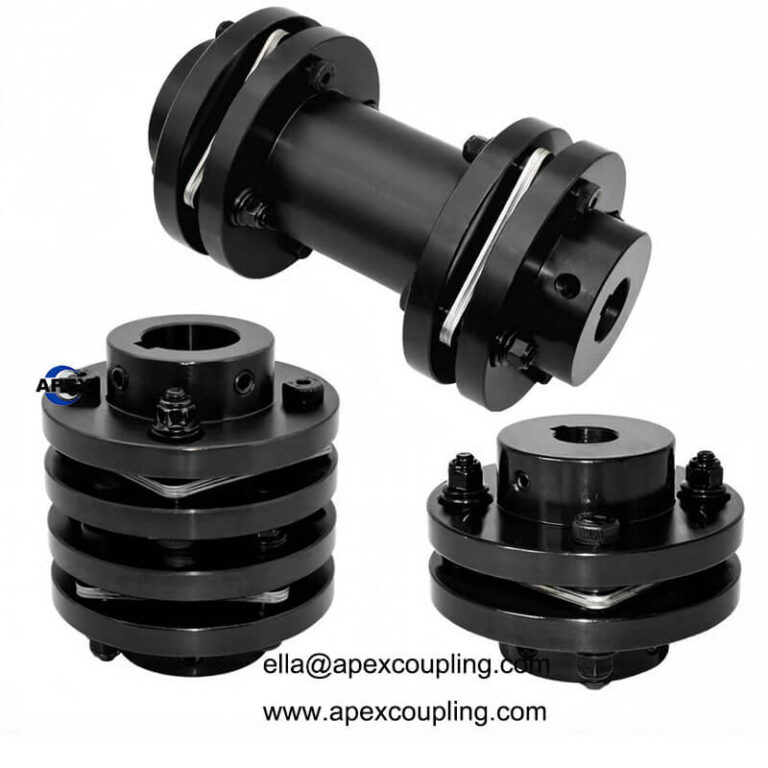

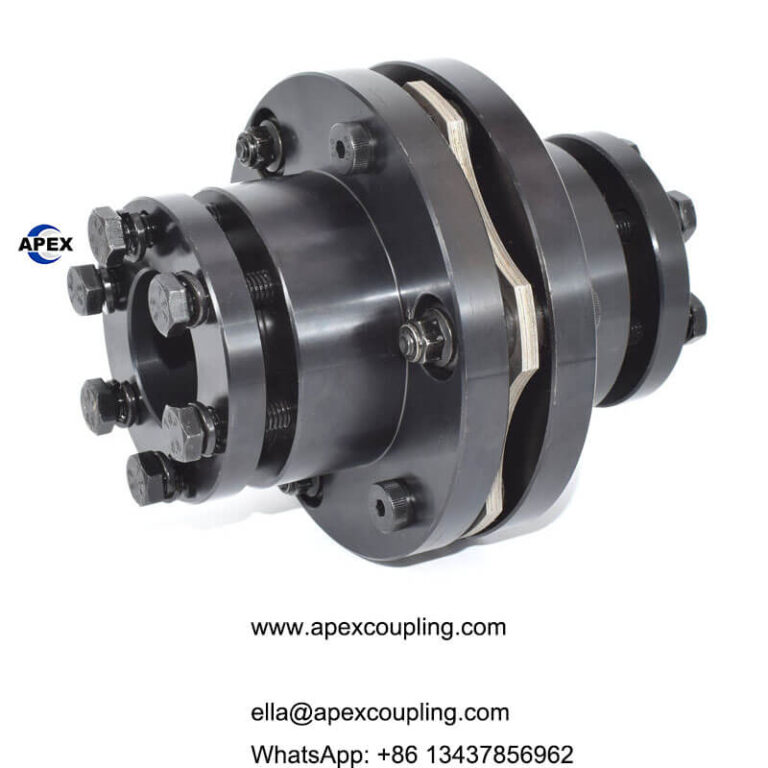

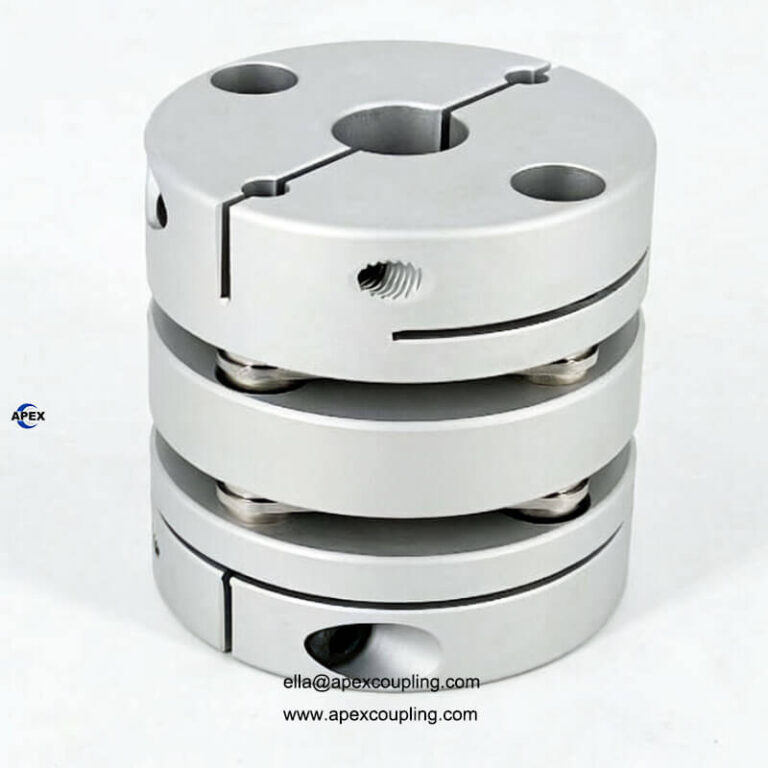

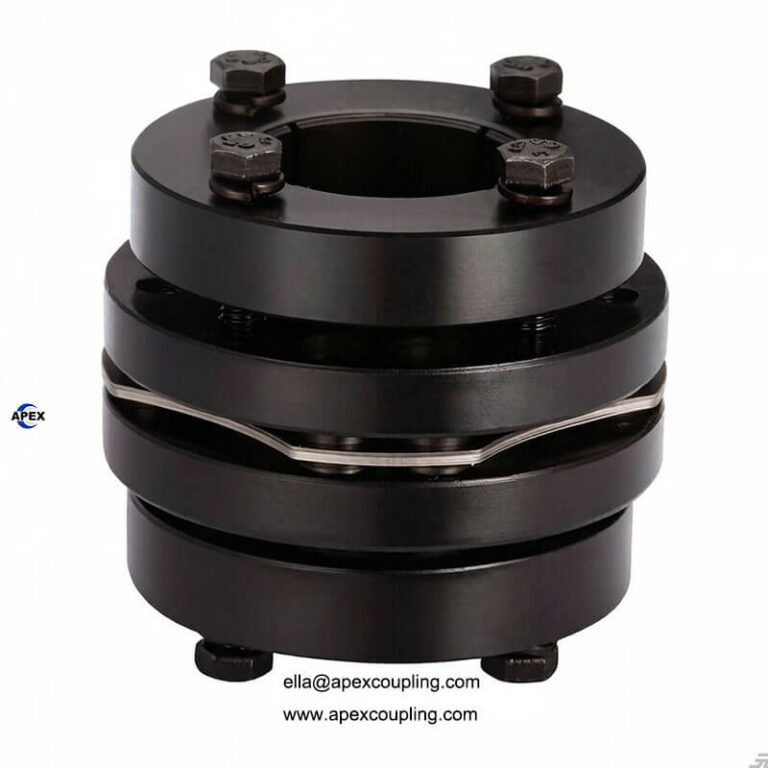

These applications often use metallic flexible couplings like Bellows or Disc couplings.

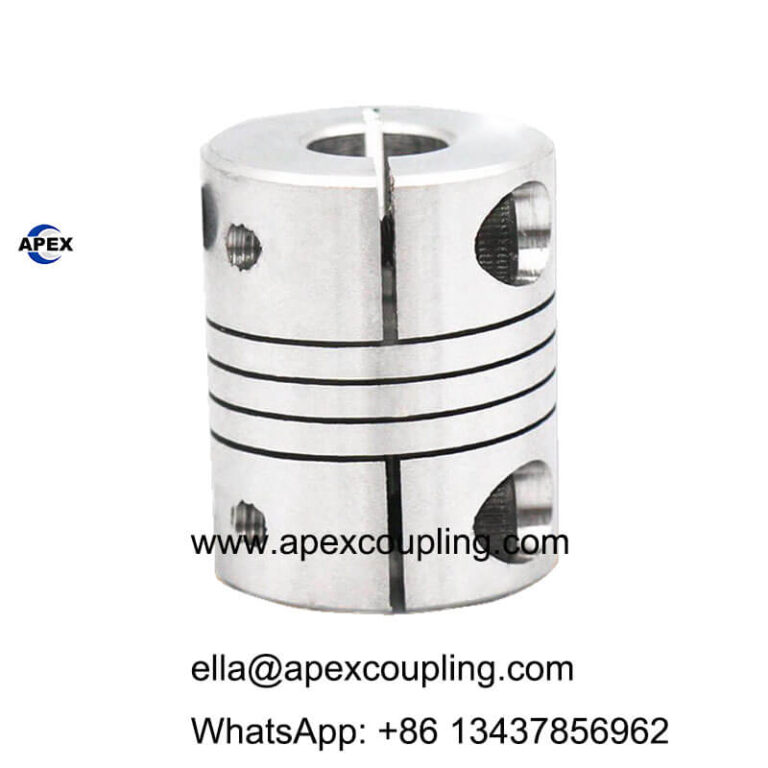

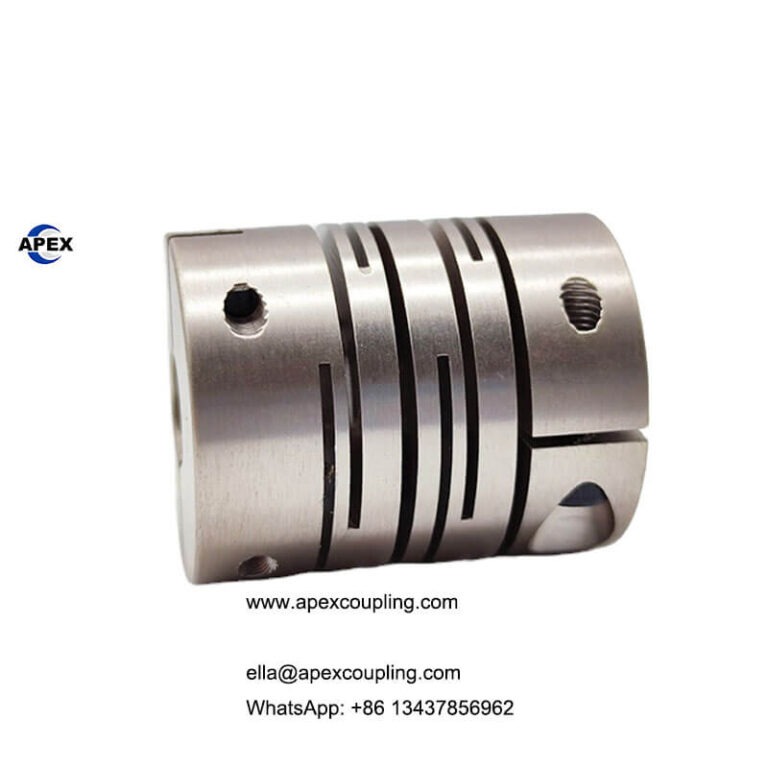

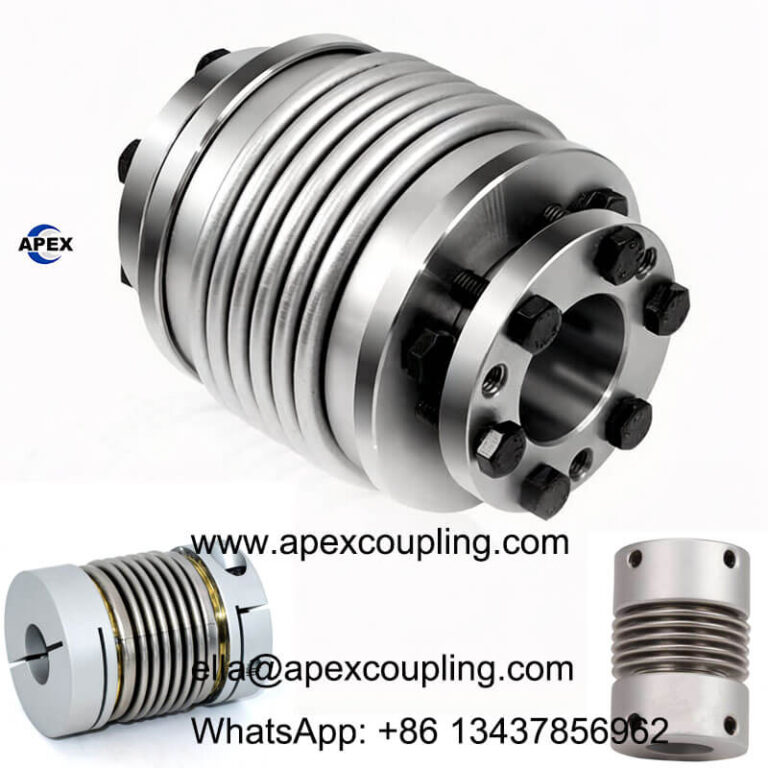

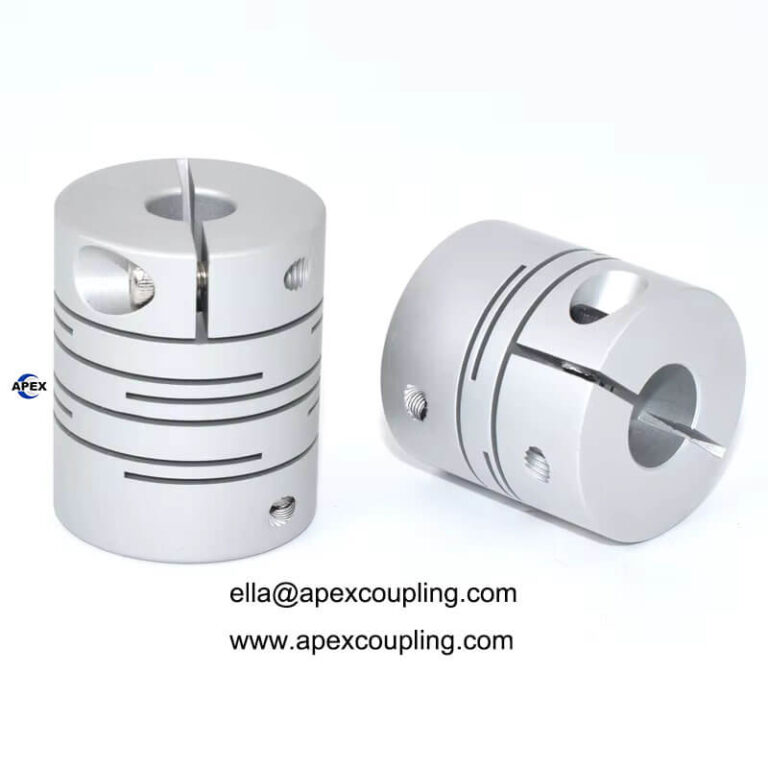

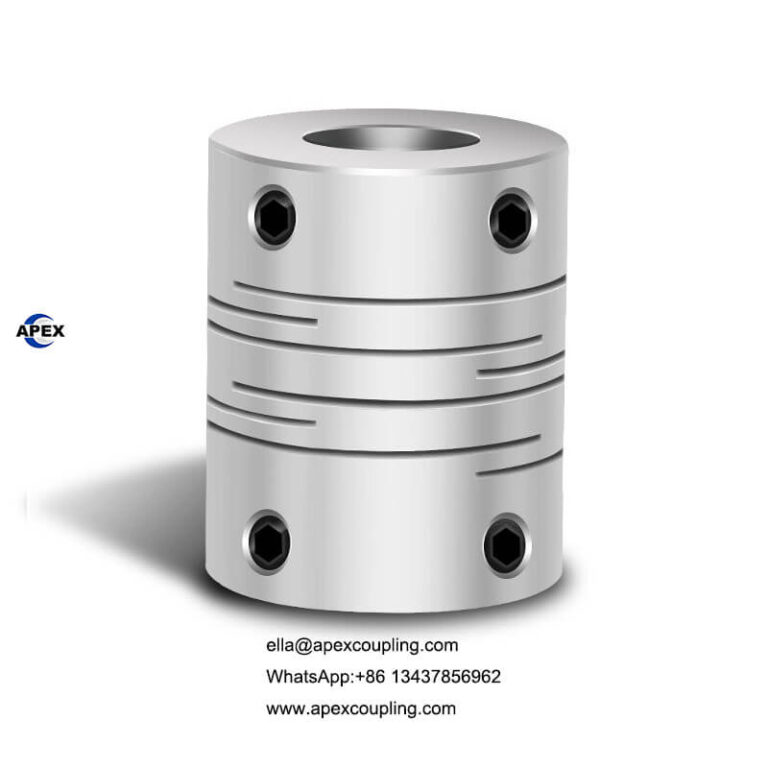

  • Servo Motors: Widely used in robotics, automated assembly, and precision manufacturing. Bellows Couplings and Beam Couplings are popular here because they offer zero backlash, high torsional stiffness, and can accommodate misalignment without introducing significant forces.

  • Aerospace and Defense: Actuators for flight control surfaces, instrumentation, and gyroscopes use small, precise, and reliable flexible couplings.

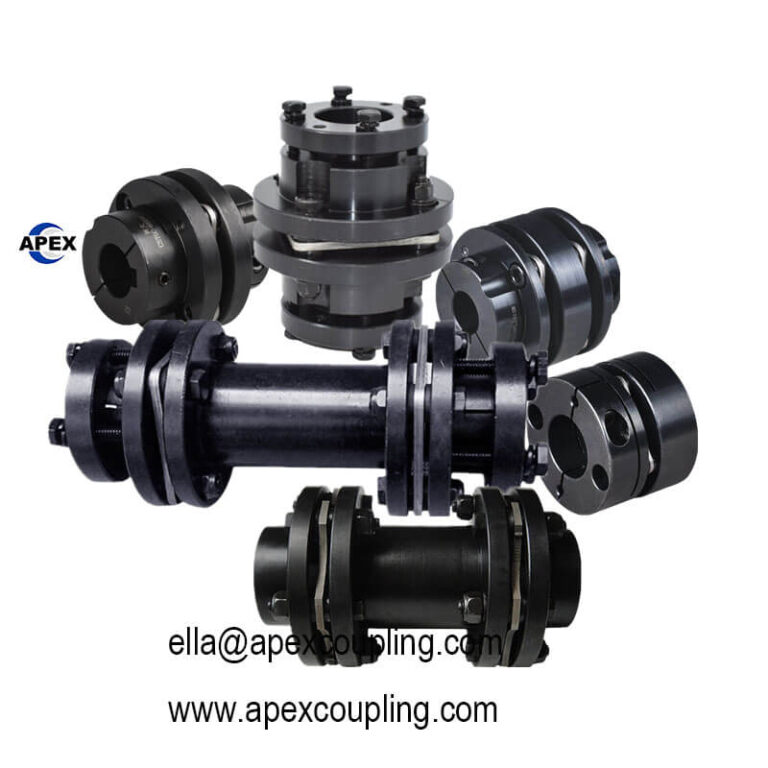

  • Turbomachinery: High-speed equipment like turbines and compressors in power generation and the oil & gas industry use Disc Couplings or Metallic Grid Couplings that can handle high speeds, high temperatures, and precise alignment requirements.

4. Applications with Special Requirements

  • Food & Beverage and Pharmaceutical: These industries require couplings that are easy to clean and resistant to corrosion and bacterial growth. Stainless Steel Bellows or Disc Couplings are common, often with compliant hygienic (e.g., 3-A) designs.

  • Chemical Processing: Applications involve exposure to corrosive chemicals, requiring couplings made from special materials like stainless steel or Hastelloy.


Summary Table of Applications



Application AreaExample MachinesPrimary Coupling FunctionTypical Coupling Types
General IndustryPumps, Fans, Compressors, ConveyorsMisalignment CompensationJaw, Gear, Grid, Disc
Precision AutomationCNC Machines, Robotics, Servo DrivesPrecision, Zero Backlash, MisalignmentBellows, Oldham, Beam, Disc
Heavy-Duty & MiningCrushers, Mixers, ExtrudersShock Load AbsorptionJaw (Elastomeric), Grid
High-SpeedTurbines, Centrifuges, High-Speed SpindlesHigh-Speed Stability, MisalignmentDisc, Bellows
Special EnvironmentsFood Processing, Chemical Pumps, MarineCorrosion Resistance, Hygiene, Vibration DampingStainless Steel Bellows/Disc, Marine Couplings

In short, if you have a motor driving a rotating shaft, and there is any potential for misalignment, vibration, or shock, a flexible coupling is almost certainly a critical component of the system.
