SWC225 Universal Joint Cross Spider Assembly|90 X 191 mm 20CrMnTi Journal Cross Kit
Model Number
Check below, custom
- Phone : +86 13431039760
- Wechat : +86 13431039760
- Whatsapp : +86 13431039760
- Email : ella@apexcoupling.com
Product Description
High-Strength Industrial Component: SWC225 Universal Joint Cross Spider Assembly
The Apexcoupling SWC225 Universal Joint Cross Spider Kit (90 X 191 mm) is precision-engineered as a direct-fit replacement cross journal for heavy-duty cardan drive shafts, vehicledrivetrains, industrial motor couplings, and commercial transport shafts. Forged from high-grade 20CrMnTi alloy steel and treated with carburizing heat processes, this spider journal kit
delivers maximum wear resistance and high dynamic load capacity under continuous multi-
angle torque transmission.

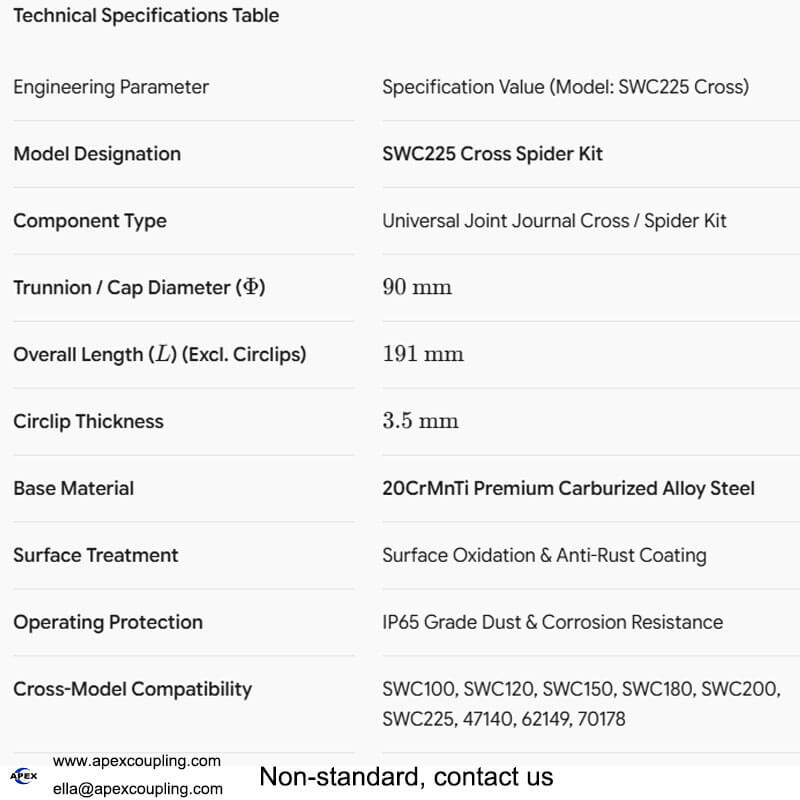

Featuring a cap journal diameter of outer meter OD 90 mm and an overall width of 191 mm (excluding circlips), the SWC225 cross includes 3.5 mm retaining circlips for secure seating inside yoke
bearing bores. Protected by a specialized surface oxidation treatment, this cross journal resists
corrosion, dust, and moisture in demanding field applications.
Core Product Advantages & Features
20CrMnTi Alloy Steel Forging: High-tensile carburized alloy steel structure providesexceptional surface hardness, fatigue resistance, and impact toughness under extreme
torque shock.
90 X 191 mm Precision Specifications: Precision-ground trunnion surfaces ensure
accurate fitting inside SWC225 series universal joint yokes.
3.5 mm Snap Ring Retainers: Includes heavy-duty retaining circlips to maintain axialstability under high rotational speeds.
Oxidation Anti-Corrosion Finish: Surface oxidation treatment prevents rust andextending component life in outdoor or high-humidity environments.
Angular Misalignment Compensation: Delivers smooth rotational power transfer while
absorbing angular misalignment and vibration between driving and driven shafts.
Complete Series Availability: Available in standard and custom dimensions acrossSWC100, SWC120, SWC150, SWC180, SWC200, and SWC225 series.
| Model | Note |
|---|---|
| 0017 Cross Shaft | Confirm dimensions with customer service |
| 0082 Cross Shaft | Confirm dimensions with customer service |
| 0092 Cross Shaft | Confirm dimensions with customer service |
| 0125 Cross Shaft | Confirm dimensions with customer service |
| 130 Cross Shaft | Confirm dimensions with customer service |
| 212 Cross Shaft | Confirm dimensions with customer service |
| SWC100 Cross Shaft | Confirm dimensions with customer service |
| SWC120 Cross Shaft | Confirm dimensions with customer service |
| SWC150 Cross Shaft | Confirm dimensions with customer service |
| SWC180 Cross Shaft | Confirm dimensions with customer service |
| SWC200 Cross Shaft | Confirm dimensions with customer service |
| SWC225 Cross Shaft | Confirm dimensions with customer service |
| 41118 Cross Shaft | Confirm dimensions with customer service |
| 47140 Cross Shaft | Confirm dimensions with customer service |
| 62149 Cross Shaft | Confirm dimensions with customer service |
| 62160 Cross Shaft | Confirm dimensions with customer service |
| 6800 Cross Shaft | Confirm dimensions with customer service |
| 70166 Cross Shaft | Confirm dimensions with customer service |
| 70178 Cross Shaft | Confirm dimensions with customer service |
| 五十铃 Cross Shaft (Isuzu) | Confirm dimensions with customer service |
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Product Show

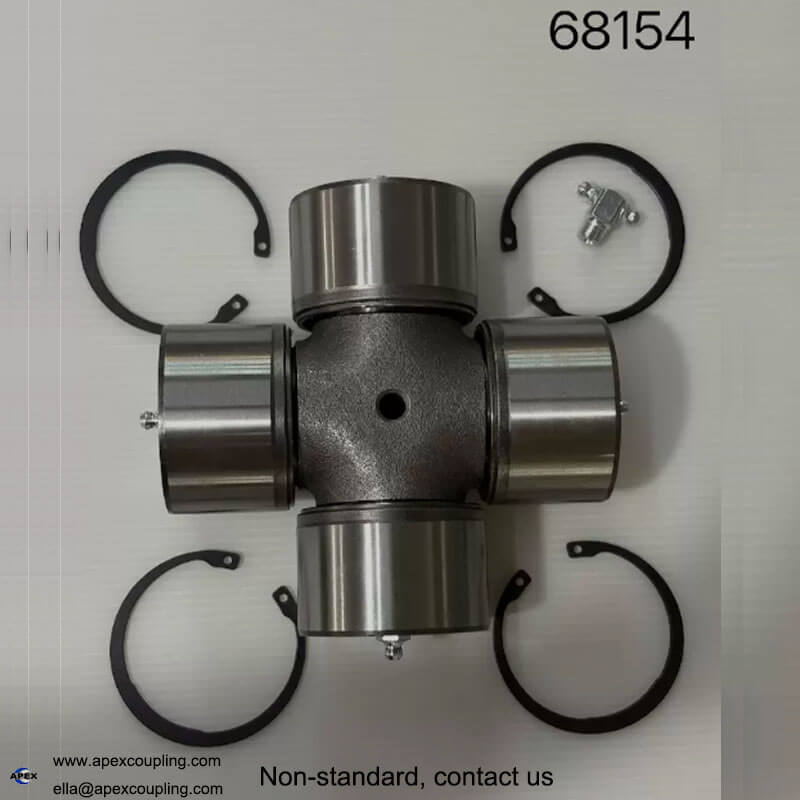

SWC225 universal joint cross
