SWC180 Forged Integral Flange Yoke – 40Cr Quenched & Tempered, Cross Shaft 75×152.5mm for SWC Cardan Shafts

Factory Direct | 40Cr Alloy Steel | Forged Integral Construction | Quenched & Tempered HB250-300 | SWC180 Standard | Cross Shaft 75×152.5mm | 8×M17 Bolt Holes | Keyway 28×8mm | Ample Stock | OEM Customization

The Apexcoupling SWC180 Forged Integral Flange Yoke is a high-strength replacement component designed for SWC series cardan shafts and universal joint drive systems. Manufactured from premium 40Cr alloy steel using a one-piece forged integral construction, this flange yoke delivers superior strength, durability, and fatigue resistance compared to welded or multi-piece alternatives. The quenched and tempered heat treatment achieves a hardness of HB250-300, providing an optimal balance of strength and toughness for heavy-duty industrial applications.

Precision-machined to SWC180 specifications with a cross shaft bearing hole of 75×152.5mm, a flange diameter of Φ180mm, 8×M17 mounting holes, and a keyway of 28×8mm, this flange yoke is a direct fit for SWC180 series universal joints. With ample stock availability and full customization support, the SWC180 flange yoke is the ideal replacement part for mining equipment, metallurgical machinery, rolling mills, conveyors, and heavy industrial drive systems.

✅ Forged integral construction – eliminates bolt connection weak points for superior reliability. 40Cr alloy steel – quenched & tempered HB250-300 for optimal strength and toughness. SWC180 standard dimensions – cross shaft 75×152.5mm, flange Ø180mm, 8×M17 holes, keyway 28×8mm. Precision-machined bearing holes – ensures accurate bearing fit and long service life. Ample stock – ready for immediate shipment. OEM customization – custom sizes, materials, and keyways available.

Key Technical Specifications

SWC180 Flange Yoke – Detailed Dimensions

📐 All dimensions are in millimeters (mm). Custom dimensions and specifications available upon request.

Product Structure

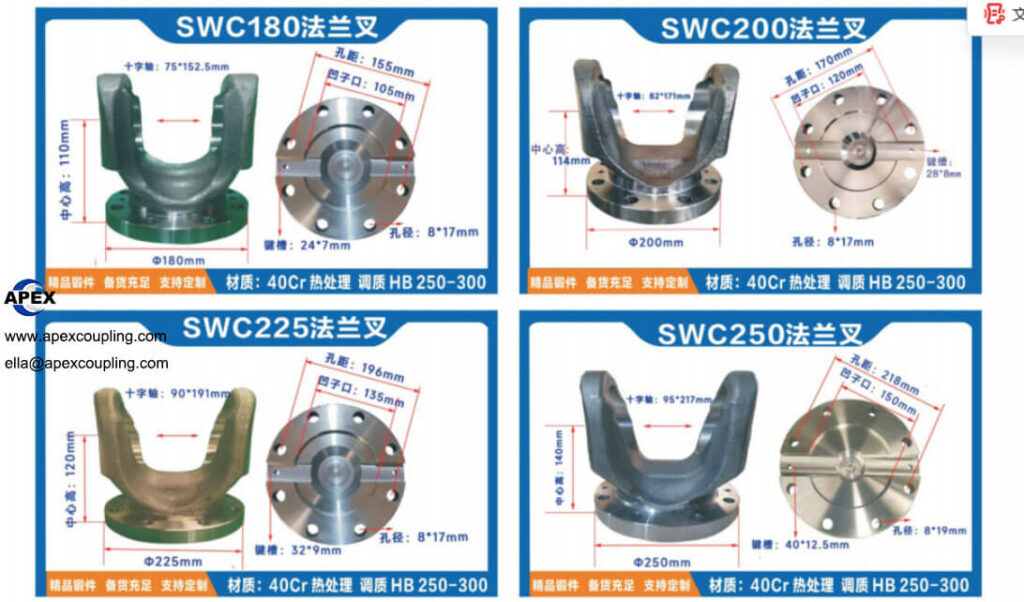

1. Integral Forged Fork Head – One-piece forged construction without bolt connections – eliminates the weak point found in welded or bolted designs, dramatically improving reliability and service life.

2. Cross Shaft Bearing Bores – Precision-machined bearing holes (75×152.5mm) for accurate cross shaft fit and extended bearing life.

3. Flange Mounting Surface – Precision-ground flange face with 8×M17 bolt holes for secure flange connection.

4. Keyway 28×8mm – Precision-machined keyway for positive torque transmission.

5. 40Cr Alloy Steel – High-strength material with quenched & tempered heat treatment (HB250-300) for superior wear resistance and fatigue strength.

💡 How it works: The SWC180 flange yoke serves as the critical connection point between the cardan shaft cross shaft and the driven equipment flange. The integral forged design transfers torque from the cross shaft through the fork arms to the flange mounting face. The 40Cr material with quenched & tempered heat treatment provides the strength to withstand heavy shock loads, while the precision-machined bearing bores ensure smooth rotation and long service life. The 8×M17 bolt pattern securely mounts the yoke to mating flanges in mining, metallurgical, and heavy industrial drive systems.

Applications

• Mining Equipment – Conveyor drives, crushers, feeders

• Metallurgical Machinery – Rolling mills, continuous casting lines

• Steel Mills – Main drive and auxiliary transmissions

• Heavy Industrial Drives – High-torque power transmission

• Cranes & Hoists – Lifting and material handling equipment

• Paper Machinery – Paper production equipment

• Construction Equipment – Heavy machinery drives

• Petroleum Equipment – Oil and gas machinery

Why Choose Apex Coupling for SWC180 Flange Yokes?

FAQ

Q: What material is used for the SWC180 flange yoke?
A: The SWC180 flange yoke is manufactured from 40Cr alloy steel with quenched & tempered heat treatment to HB250-300 hardness.

Q: What are the dimensions of the SWC180 flange yoke?
A: Cross shaft bearing: 75×152.5mm, center height: 110mm, flange diameter: Φ180mm, 8×Φ17mm bolt holes, keyway 28×8mm.

Q: Is this a direct replacement for SWC180 cardan shafts?
A: Yes. The SWC180 flange yoke is manufactured to SWC series standards and is a direct replacement for SWC180 cardan shaft flange yokes.

Q: Can I get a custom flange yoke?
A: Yes. We offer OEM customization – custom sizes, materials (42CrMo, 35CrMo, etc.), keyways, and surface finishes.

Q: What is the lead time?
A: Stock items ship immediately. Custom orders typically require 7-15 days.

Request a Quote

Send us your required specifications (SWC180 standard or custom), quantity, and any customization requirements. Our engineers will provide a quotation within 24 hours.
