Product Overview

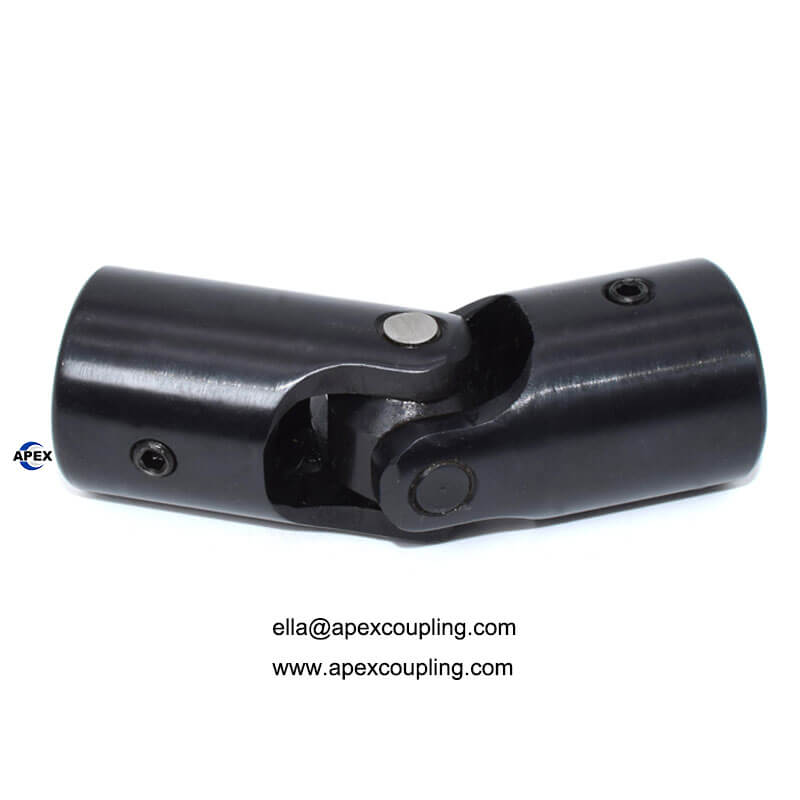

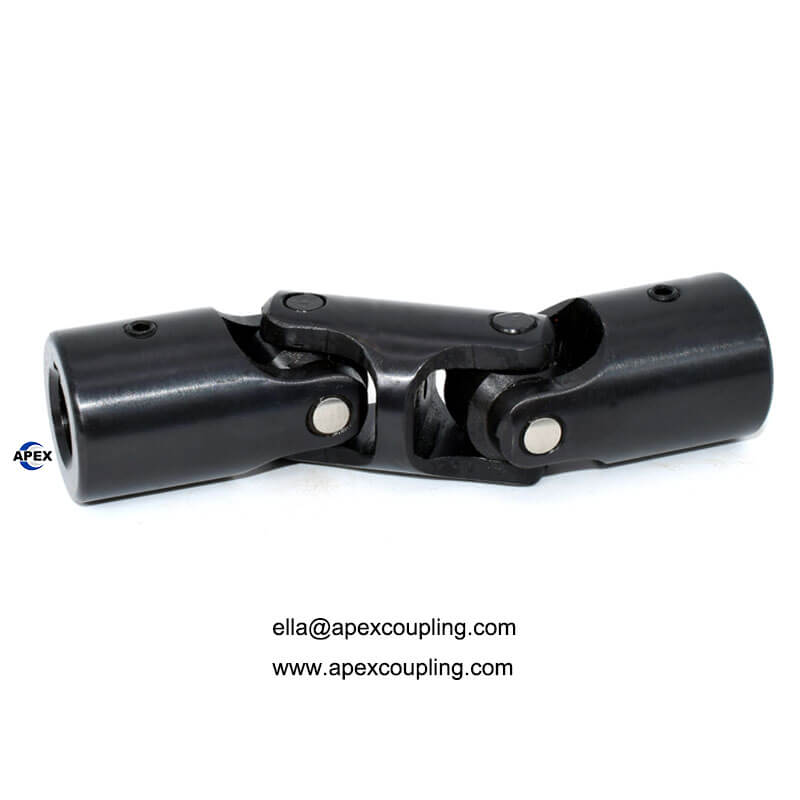

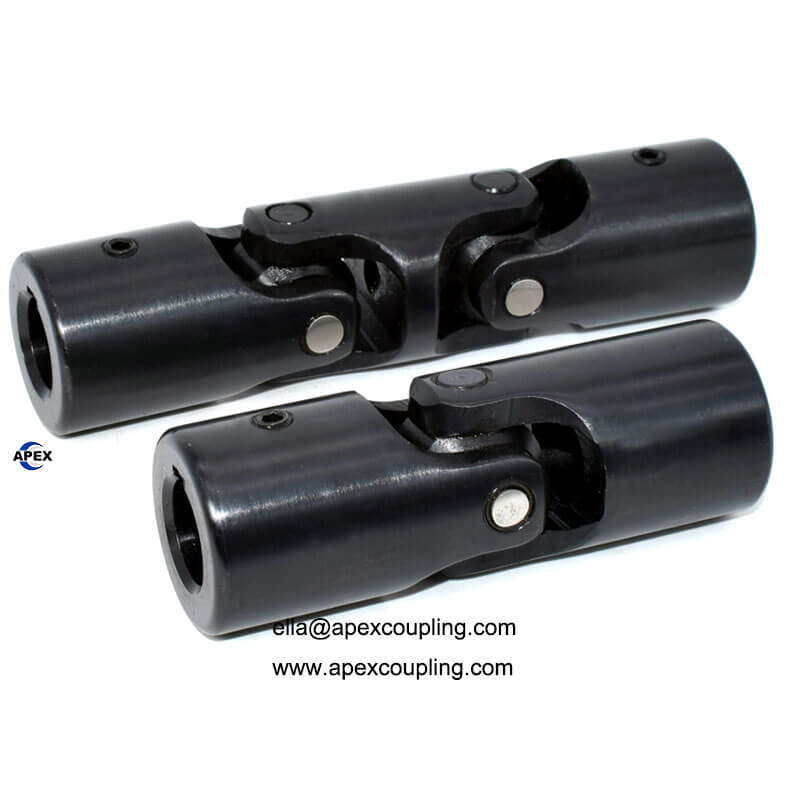

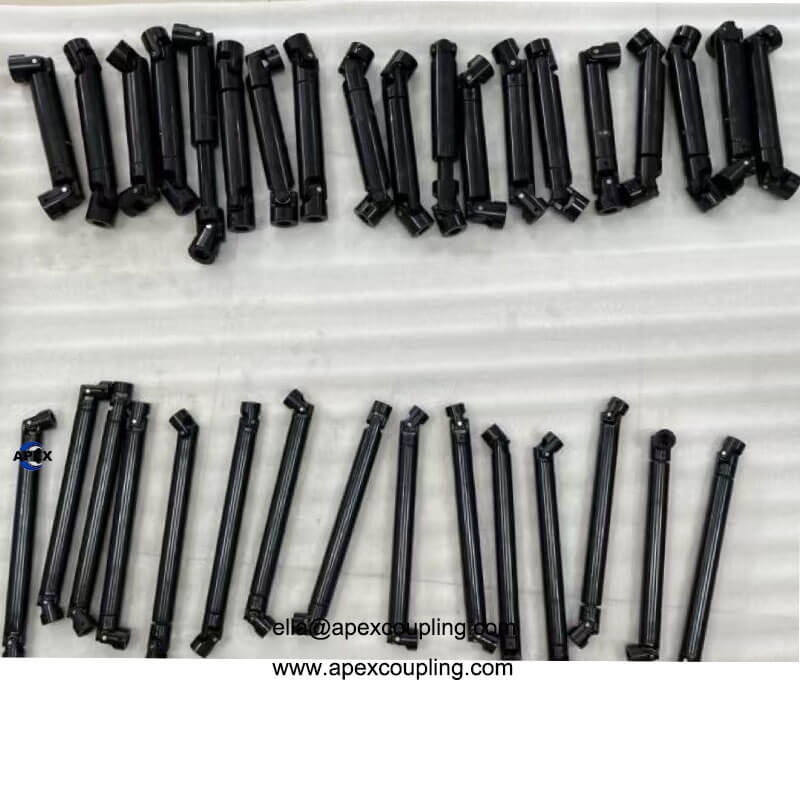

The WX and WXD series are small cross‑axis universal couplings designed for applications that require both angular flexibility and high torque transmission in a compact package. Manufactured from 42CrMo alloy steel, this double universal joint features a pin & block structure that allows a maximum working angle of 45° between shafts – significantly higher than typical single‑joint couplings. The double joint configuration consists of two universal joints connected by a center shaft, which not only accommodates larger angular misalignments but also delivers nearly constant angular velocity, reducing vibration and wear on connected equipment.

With a nominal torque range of 11.2 N·m to 1120 N·m, bore diameters from 10 mm to 42 mm, and overall lengths from 60 mm to 244 mm, the WX/WXD series is suitable for a wide variety of machinery: textile machines, food & beverage equipment, construction works, energy & mining, farms, restaurants, and retail automation. Standard finishing bore tolerance is H7, and the center hole can be supplied with keyway, square, hexagon, spline, or any custom profile per your drawing. Shaft fixing methods include keyway or setscrew.

Whether you need a standard size or a fully customized double universal joint (OEM, ODM, OBM), Apex Coupling delivers precision, durability, and fast lead times.

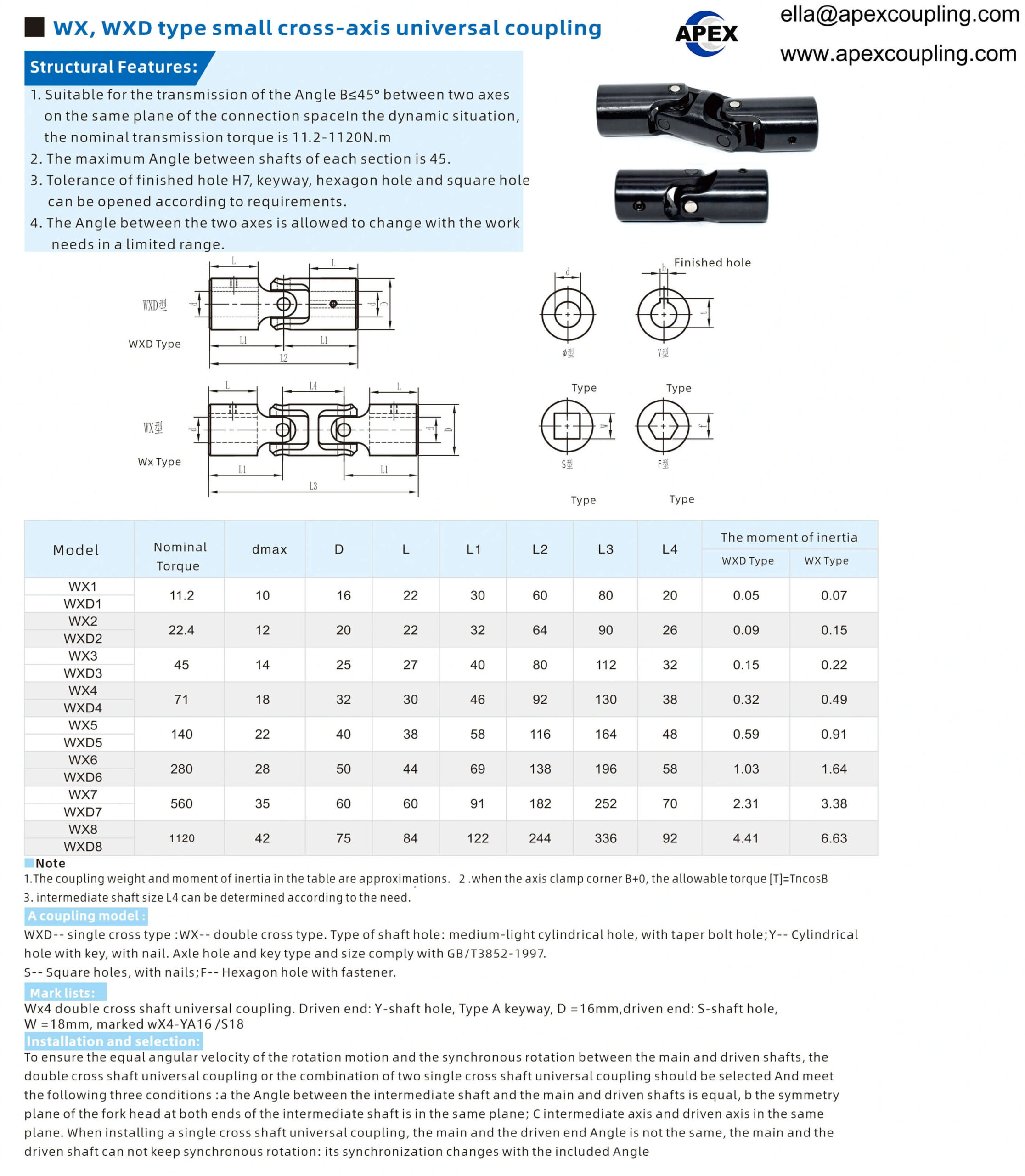

Key Technical Specifications

Key Features & Benefits

• 45° Maximum Working Angle – Each joint section can operate up to 45°, allowing the double universal joint to handle extreme misalignments that would damage rigid or single‑joint couplings.

• High Torque Capacity – From 11.2 N·m up to 1120 N·m, covering light‑duty textile spindles to heavy construction equipment.

• 42CrMo Alloy Steel – Offers excellent strength, fatigue resistance, and wear properties. Heat‑treated for durability under cyclic loads.

• Double Joint Design – Provides constant velocity (CV) characteristics, smoothing out speed fluctuations and reducing stress on motors and bearings.

• H7 Bore Tolerance – Ensures a precise, concentric fit on your shaft, minimising runout and vibration.

• Customizable Bore Configurations – Standard round with keyway, square, hexagon, splined, or any special profile – all available as OEM/ODM.

• Pin & Block Construction – Simple, reliable, and easy to maintain. Lubrication points are accessible for long service life.

• Wide Industry Suitability – From textile machines and food & beverage shops to farms, construction works, energy & mining, restaurants, and retail.

Typical Applications

• Textile Machines – Spinning frames, weaving looms, and finishing lines where shafts are offset.

• Food & Beverage Shops – Conveyors, mixers, and packaging equipment requiring washdown‑compatible couplings (stainless steel optional).

• Construction Works – Portable crushers, concrete mixers, and vibratory compactors.

• Energy & Mining – Conveyor drives, slurry pumps, and ventilation fans.

• Farms & Agriculture – Augers, feed mixers, hay balers, and PTO‑driven implements.

• Restaurant & Retail Equipment – Commercial kitchen mixers, dough kneaders, and vending machines.

• General Machinery – Printing presses, woodworking equipment, and automated assembly lines.

Quality Assurance & Certifications

Every WX/WXD double universal joint is manufactured under an ISO9001:2015 certified quality system. Incoming 42CrMo material is verified by chemical analysis, and each finished joint is 100% inspected for bore diameter (H7 tolerance), angular freedom, and torque transmission. BV (Bureau Veritas) certification is available for shipments requiring third‑party inspection. For custom bores (square, hex, spline), we use precision broaching or wire EDM to ensure exact geometry.

Why Choose Apex Coupling for Your Double Universal Joint Needs?

• Full Customization – Bore diameter (10‑42mm or larger), overall length, hole profile (keyway, square, hex, spline), and even private branding.

• Low MOQ & Fast Sample – Start with just 1 piece; sample lead time 7‑10 days.

• Engineering Support – Our team helps you calculate the required torque, angle, and length for your specific machinery.

• Global Export Experience – Supplying to over 80 countries, with reliable logistics.

• Large Stock of Standard Sizes – WX/WXD common sizes ready for immediate dispatch.

Request a Quote

Need a custom double universal joint for your textile machine, construction equipment, or food processing line? Contact our sales manager Ella today.
