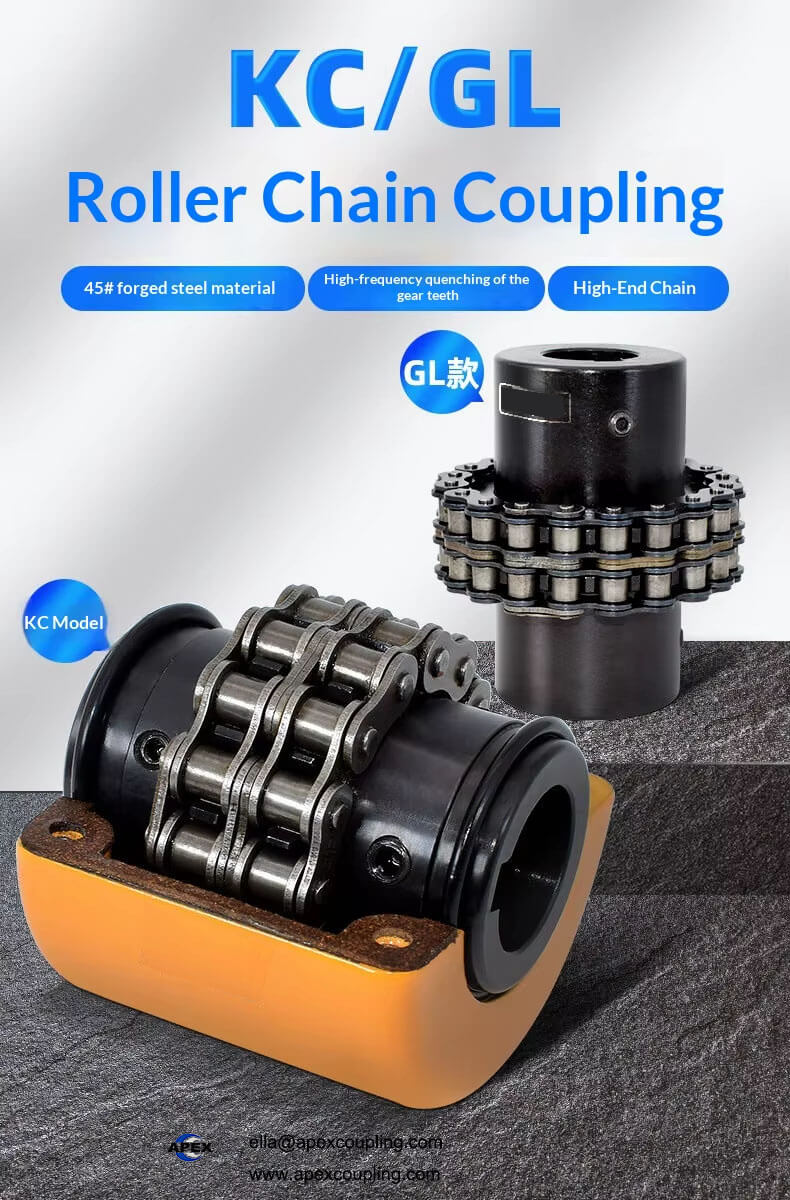

KC Chain Coupling with Steel Sprockets and Cover

Product Overview

The KC chain coupling is a mechanical power transmission component designed to connect two rotating shafts through steel sprockets and a roller chain. Its simple construction makes it a practical option for industrial machinery that requires reliable torque transmission and convenient maintenance.

Apex Coupling supplies KC chain coupling solutions for machinery manufacturers, distributors and industrial maintenance buyers. Standard configurations and customized dimensions can be reviewed according to shaft sizes, installation requirements and operating conditions.

A chain coupling typically consists of two sprockets mounted on the connected shafts and a roller chain engaging with both sprockets. A compatible protective cover can help shield the chain assembly from external contamination and reduce exposure to moving components.

Key Features of KC Chain Coupling

Steel Sprockets

The coupling uses steel sprockets designed for industrial transmission applications. The supplied product information specifies 45# steel and high-frequency quenching of the sprocket teeth for applicable configurations. Confirm the material grade and heat treatment for the exact model.

Reliable Chain Transmission

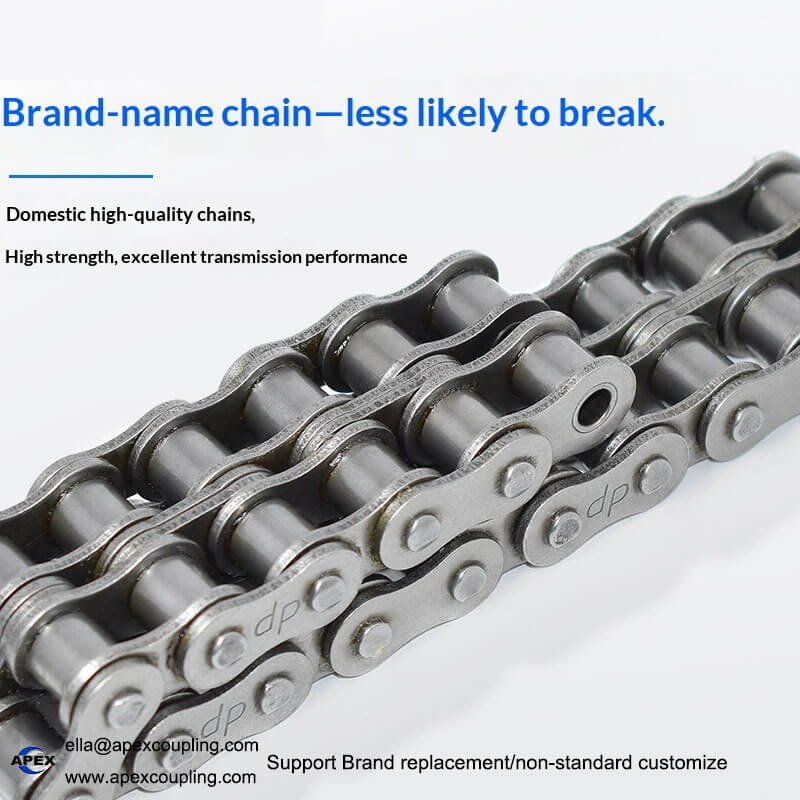

The roller chain engages with the sprockets to transfer rotary motion from the driving shaft to the driven shaft. Correct chain and sprocket compatibility is essential for reliable operation.

Simple Structure

The straightforward construction supports convenient assembly, inspection and maintenance. Depending on the installation, the chain may be removed for servicing without moving the connected shafts.

Heat-Treated Sprocket Teeth

High-frequency quenching can improve surface hardness and wear resistance when correctly applied to the selected component. Actual service life depends on material, heat treatment, loading, alignment and maintenance.

Protective Cover Option

A compatible cover can help protect the chain assembly from external contaminants and limit access to moving parts. Confirm the cover dimensions and configuration when ordering.

Customized Dimensions

Apex Coupling supports requests for non-standard dimensions, subject to technical review. Shaft bores, sprocket dimensions, chain specifications and installation space should be confirmed before production.

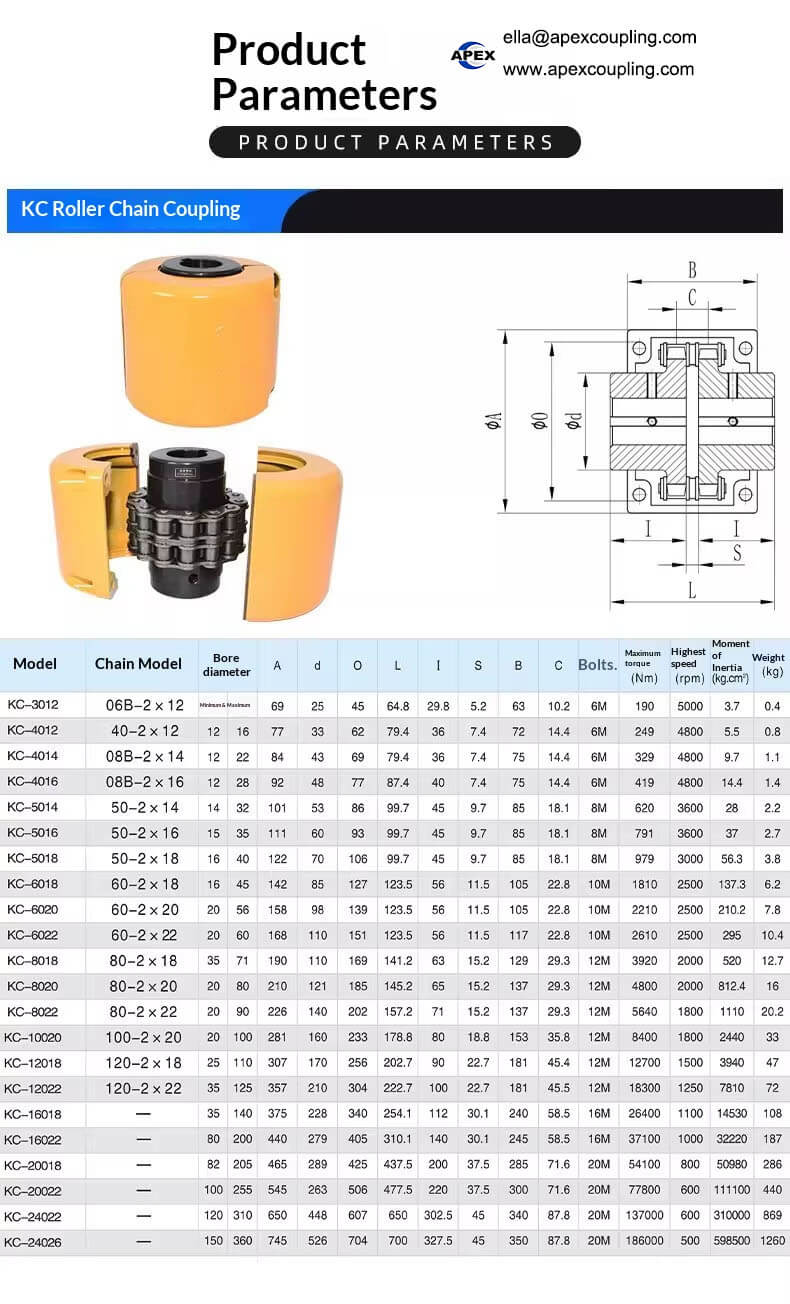

Technical Specifications

Technical note: The available product information does not confirm a universal torque rating, maximum speed or complete bore range. These values should be verified against the technical drawing for the exact model before publication or ordering.

How Does a KC Chain Coupling Work?

A KC chain coupling transfers rotation through the engagement of a roller chain with two sprockets. One sprocket is mounted on the driving shaft and the other on the driven shaft.

When the driving shaft rotates, its sprocket moves the chain, which drives the second sprocket. This arrangement transmits mechanical power between the connected shafts.

Correct selection depends on the required torque, rotational speed, shaft dimensions, chain specification, alignment and installation conditions. The coupling should not be selected by bore diameter alone.

Material and Heat Treatment

The supplied product description identifies 45# steel as a material option and describes high-frequency quenching of the sprocket teeth.

Appropriate material selection and heat treatment can contribute to wear resistance and reliable performance. However, the actual properties depend on the component design, manufacturing process and treatment specifications.

For demanding applications, provide the operating load, speed, duty cycle and working environment so that the suitable configuration can be evaluated.

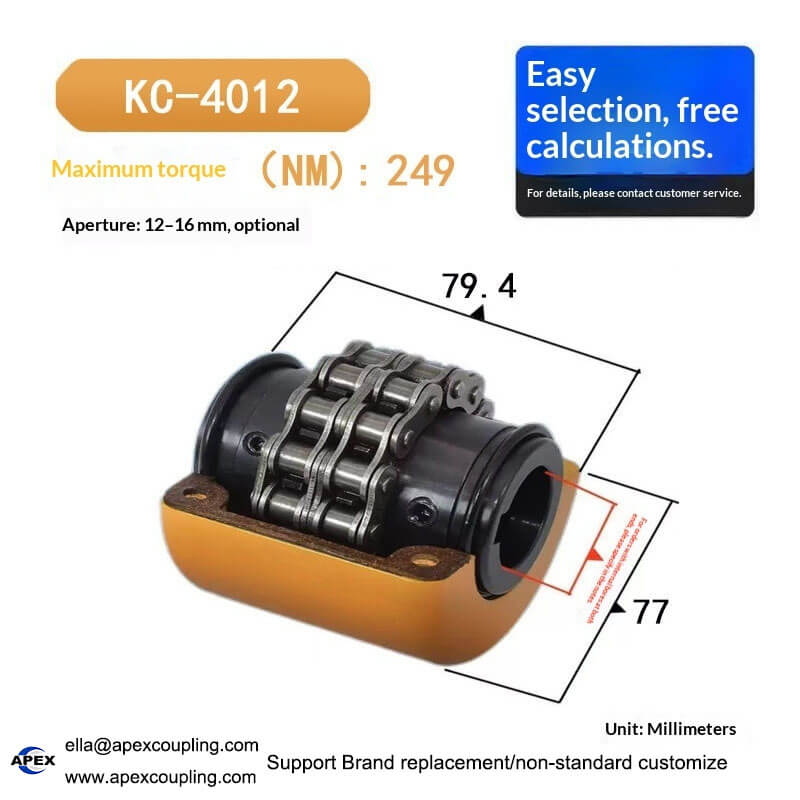

KC Chain Coupling with Cover

A protective cover is useful when the application requires additional protection around the chain and sprockets. It can help limit direct exposure to dust and other contaminants and reduce access to rotating components.

When ordering a KC chain coupling with cover, confirm:

• Cover dimensions and mounting method

• Available installation clearance

• Chain and sprocket configuration

• Access needed for inspection and maintenance

• Environmental protection requirements

The cover must not interfere with moving parts. Install appropriate guarding and follow the equipment manufacturer’s safety instructions.

Installation and Maintenance

Proper installation and maintenance help support the performance of a KC chain coupling.

Before installation, check that the sprockets, chain and shaft connections are compatible. Verify the shaft alignment and fastening requirements, and ensure that the chain is installed according to the manufacturer’s instructions.

During maintenance, inspect the chain and sprocket teeth for abnormal wear, damage or other signs of deterioration. Check the mounting components and follow the recommended maintenance procedure for the selected model.

Before performing maintenance, isolate the equipment and prevent unexpected startup. Never inspect or service a moving chain assembly.

Applications of KC Chain Coupling

KC chain couplings may be considered for compatible industrial power transmission applications, including:

• General industrial machinery

• Conveyor and material-handling equipment

• Gear motor drive systems

• Packaging and processing machinery

• Industrial mechanical drives

• OEM equipment with customized shaft connections

• Maintenance and replacement applications

The correct coupling size depends on the actual torque, speed, shaft dimensions, installation layout and operating environment.

How to Select the Right KC Chain Coupling

Before ordering, prepare the following information:

1. Exact model: Confirm the KC series and model number.

2. Shaft bore diameters: Specify the bore required at each shaft end.

3. Operating torque: Provide normal torque and any starting or shock loads.

4. Rotational speed: State the required RPM.

5. Sprocket dimensions: Confirm sprocket size and tooth configuration.

6. Chain specification: Verify the compatible roller chain.

7. Installation space: Provide the available length, outside diameter and clearance.

8. Protective cover: Confirm whether a cover is required.

9. Customization: Supply a technical drawing for non-standard dimensions.

Accurate specifications help reduce selection errors and improve compatibility with the connected equipment.

KC Chain Coupling Manufacturer – Apex Coupling

Apex Coupling supplies industrial coupling products for equipment manufacturers, distributors and maintenance buyers. We support standard product selection and non-standard customization based on confirmed technical requirements.

For a quotation, please provide the coupling model, shaft bore sizes, required torque, operating speed, installation dimensions and protective cover requirements.

Contact Apex Coupling

Website: https://www.apexcoupling.com/
Email: ella@apexcoupling.com
WhatsApp: +86 13437856962

Frequently Asked Questions

What is a KC chain coupling?

A KC chain coupling is a mechanical coupling that transmits rotation between two shafts through sprockets and a roller chain.

What are the advantages of a KC chain coupling?

Its main characteristics include a simple structure, steel sprockets, convenient assembly and serviceability. Suitability depends on the selected model and operating conditions.

Is a cover available for a KC chain coupling?

A covered configuration is included in the supplied product description. Confirm the compatible cover and dimensions for the exact model.

Can the bore size be customized?

Customized dimensions may be available. Provide the required shaft bore diameters and installation drawing for confirmation.

How do I select a suitable KC chain coupling?

Check the torque, speed, shaft bores, sprocket dimensions, chain specification, installation space and operating environment. Confirm the model-specific technical ratings before ordering.
