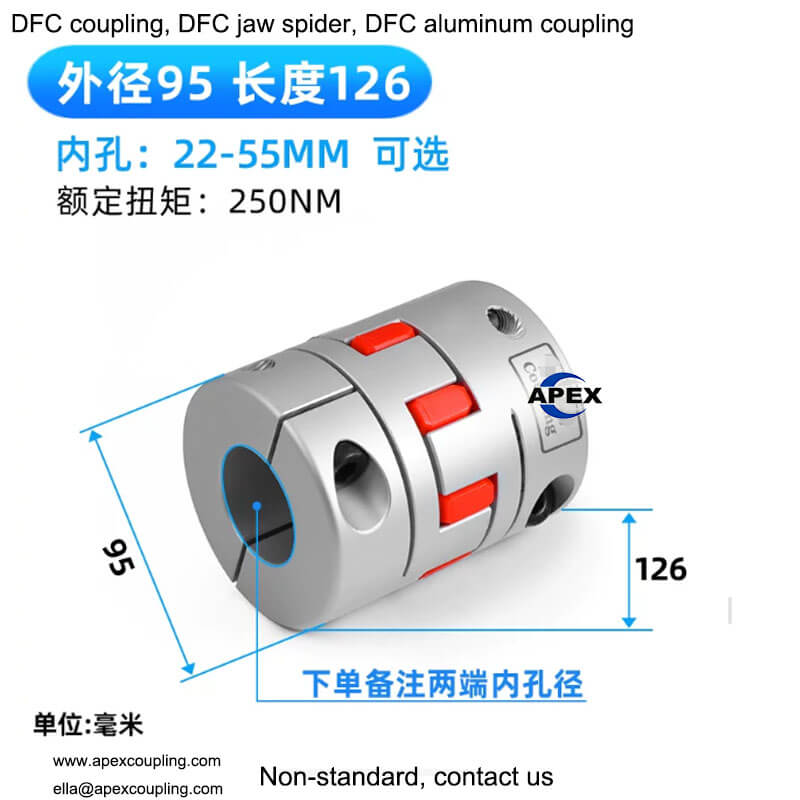

DFC OD95×L126 Aluminum Jaw Spider Coupling – 250N·m Heavy-Duty Zero Backlash Flexible Shaft Coupler for Large Servo Motor & Industrial Power Transmission
Model Number
Check below, custom
| Outer Diameter (mm) | Length (mm) | Bore Range (mm) |
|---|---|---|
| 14 | 22 | 3 – 7 |
| 20 | 25 | 4 – 10 |
| 20 | 30 | 4 – 10 |
| 25 | 30 | 4 – 12 |
| 25 | 34 | 4 – 12 |
| 30 | 35 | 5 – 16 |
| 30 | 40 | 5 – 16 |
| 35 | 50 | 6 – 19 |
| 40 | 50 | 8 – 24 |
| 40 | 55 | 8 – 24 |
| 40 | 66 | 8 – 24 |
| 45 | 55 | 8 – 25 |
| 45 | 66 | 8 – 25 |
| 55 | 78 | 12 – 30 |
| 65 | 90 | 14 – 40 |
| 80 | 114 | 19 – 45 |
| 95 | 126 | 22 – 55 |
- Phone : +86 13431039760
- Wechat : +86 13431039760
- Whatsapp : +86 13431039760
- Email : ella@apexcoupling.com
Product Description
DFC OD95×L126 Aluminum Jaw Spider Coupling – 250N·m Heavy-Duty Zero Backlash Flexible Shaft Coupler for Large Servo Motor & Industrial Power Transmission
The DFC OD95×L126 aluminum jaw spider coupling is a heavy-duty, high-torque flexible shaft coupler engineered for large servo motors, high-power industrial drives, and heavy-duty automation equipment. With a substantial 95 mm outer diameter, 126 mm overall length, and an impressive 250 N·m rated torque capacity, this DFC spider coupling handles the most demanding power transmission tasks while maintaining the zero-backlash precision required for modern motion control systems.
Machined from aerospace-grade aluminum alloy on 5-axis CNC centers with H6 bore precision, the DFC OD95 jaw coupling combines lightweight strength with exceptional torsional rigidity. The German-imported polyurethane spider dampens shock, absorbs vibration, and compensates for significant misalignment – all while delivering zero rotary clearance for exact positioning in high-inertia reversing applications.
With a bore range from 22 mm to 55 mm and the ability to machine different bore sizes on each hub, this coupling seamlessly connects large servo motors to gearboxes, ball screws, pumps, and compressors. As a source factory manufacturer, Apexcoupling.com provides the DFC heavy-duty aluminum coupling with full customization, abundant inventory, and fast global delivery.
DFC OD95×L126 Specifications
| Parameter | Specification |
|---|---|
| Model | DFC (Jaw / Spider Type) |
| Body Material | High-Strength Aluminum Alloy (Aerospace Grade) |
| Spider Material | German-Imported Polyurethane (PU) |
| Surface Treatment | Anodized Oxidation (Anti-Corrosion) |
| Outer Diameter (D) | 95 mm |
| Overall Length (L) | 126 mm |
| Bore Range (d) | 22 mm – 55 mm (Optional, Both Ends) |
| Rated Torque (Tn) | 250 N·m |
| Bore Tolerance | H6 Precision |
| Fixing Method | Keyway + Clamping Screw (12.9 Grade) |
| Backlash | Zero |
| Compensation | Radial, Angular, Axial |
| Protection Class | IP65 |
| Standard | ISO Certified |
| Weight | ≈ 1.5–2.5 kg |
Both ends can have different bore sizes (e.g., 25 mm × 40 mm, 30 mm × 55 mm). Non-standard OD, length, and bore combinations fully supported.
