DFC Series CNC Machine Flexible Plum Coupling | Aluminum Alloy & Stainless Steel Shaft Coupler (GR Replacement)
Model Number
Check below, custom
DFC-14*22
DFC-20*25
DFC-20*30
DFC-25*30
DFC-25*34
DFC-30*35
DFC-30*40
DFC-35*32
DFC-35*50
DFC-40*50
DFC-40*55
DFC-40*66
DFC-45*55
DFC-50*55
DFC-55*49
DFC-55*78
DFC-65*80
DFC-65*90
DFC-105*140
DFC-120*160
- Phone : +86 13431039760
- Wechat : +86 13431039760
- Whatsapp : +86 13431039760
- Email : ella@apexcoupling.com
Product Description

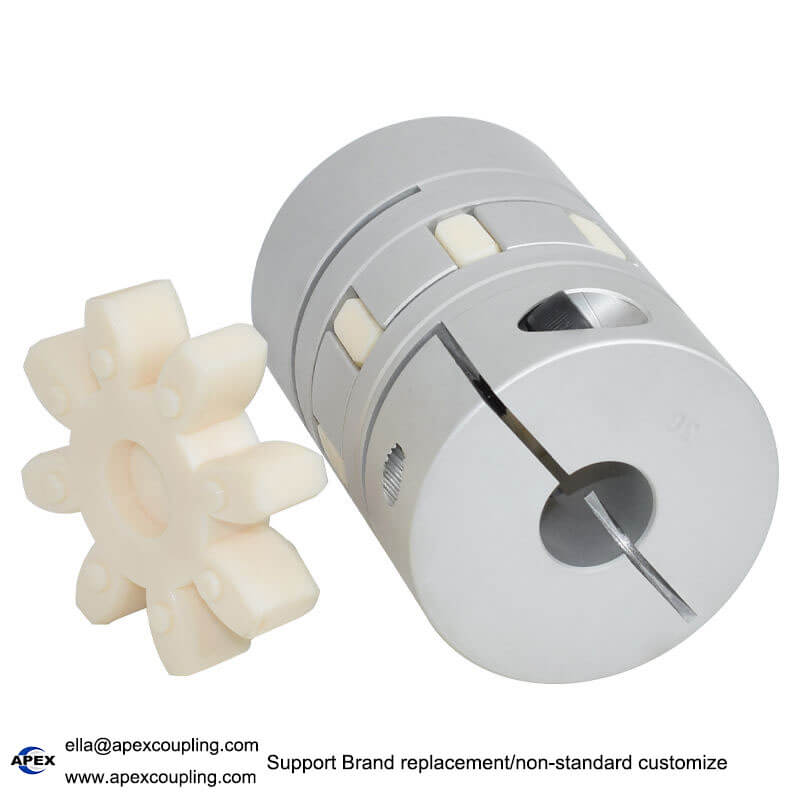

DFC Series High-Precision CNC Machine Flexible Plum Shaft Coupling
Â
Economy Clamping Type Plum Blossom Coupler for Servo Motors & CNC Automation (GR Interchangeable)
The DFC Series Flexible Plum Coupling is a high-precision, economical shaft coupling engineered for CNC machine tools, servo motors, stepper drives, and factory automation equipment[cite: 14]. Constructed with lightweight high-strength aluminum alloy or stainless steel hubs and a durable polyurethane elastic spider insert[cite: 14], this coupling features a secure clamping structure that ensures zero-backlash power transmission[cite: 14]. Designed as a cost-effective, direct replacement solution for standard GR series couplings, the DFC series excels in dampening operational vibrations, compensating for angular/radial misalignments, and maintaining high concentricity at continuous rotational speeds[cite: 14].
Key Advantages & Features
- High-Strength Lightweight Construction: Hubs are precision CNC-machined from anodized aluminum alloy or stainless steel, offering low rotational inertia, high strength, and excellent corrosion resistance[cite: 14].
- Zero-Backlash Clamping Hub Structure: Screw-clamping design distributes holding force evenly around the motor shaft, preventing shaft slipping, damage, or wear under frequent forward/reverse positioning[cite: 14].
- GR Series Direct Interchangeability: Dimensions match standard GR spider couplings, providing a seamless drop-in replacement for worn machine tool shaft couplers.

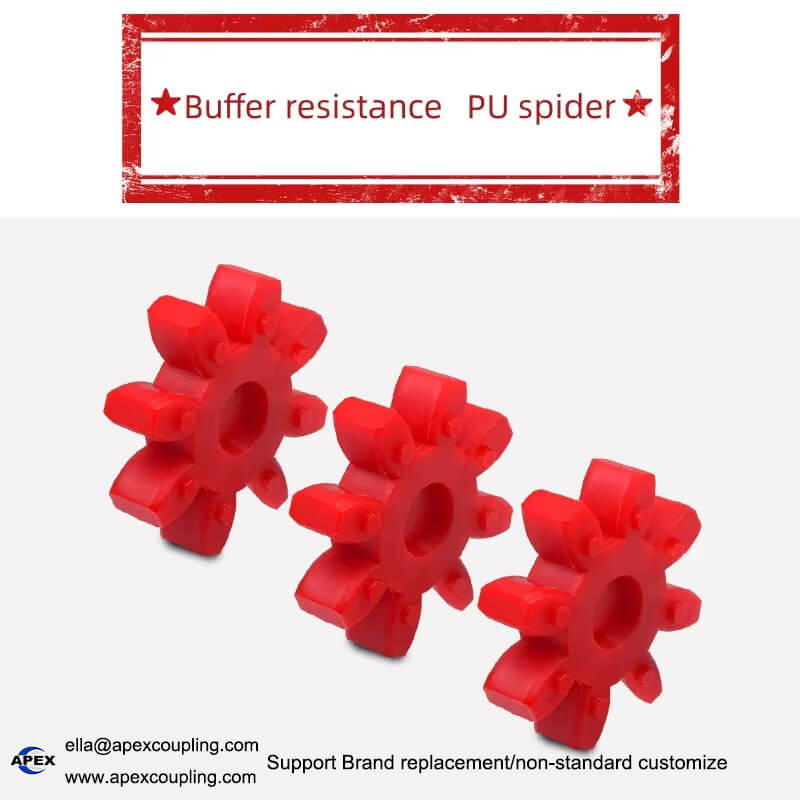

- Polyurethane Vibration-Dampening Insert: Elastic plum blossom spider cushion effectively absorbs shock loads, reduces acoustic noise, and extends machine spindle bearing life[cite: 14].
- Superior Angular & Parallel Misalignment Compensation: Protects delicate encoders, servo motors, and lead screws by compensating for minor shaft installation offsets[cite: 14].
- Anodized Surface Treatment: Hub surface undergoes optional anodization for enhanced wear resistance, neat aesthetics, and long-term durability[cite: 14].

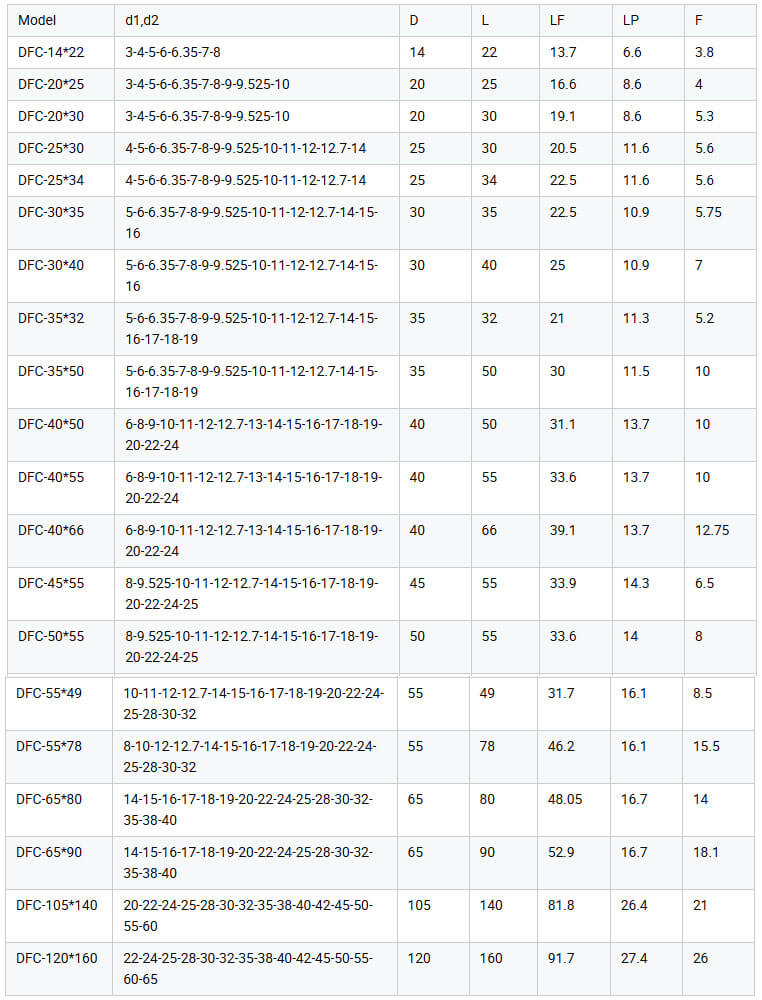

Technical Specifications & Model Chart
| Parameter | Specification Details |
|---|---|
| Product Series / Name | DFC Series CNC Flexible Plum Coupling (GR Replacement)[cite: 14] |
| Structure Type | Clamping Hub Structure / Jaw & Spider Elastic Coupling[cite: 14] |
| Body Material | Anodized Aluminum Alloy / Stainless Steel / Carbon Steel[cite: 14] |
| Spider Cushion Material | High-Damping Polyurethane (PU) Insert[cite: 14] |
| Standard DFC Model Options | DFC-14*22, DFC-20*25, DFC-20*30, DFC-25*30, DFC-25*34, DFC-30*35, DFC-30*40, DFC-35*32, DFC-35*50, DFC-40*50, DFC-40*55, DFC-40*66, DFC-45*55, DFC-50*55, DFC-55*49, DFC-55*78, DFC-65*80, DFC-65*90, DFC-105*140, DFC-120*160 |
| Inner Shaft Bore Profiles | Customizable Round Bore, Keyway, or D-Shape Shaft Bores[cite: 14] |
| Surface Finishing | Anodizing (Clear, Red, Blue, Black, Natural Metal)[cite: 14] |
| Quality Certification | ISO9001, BV Certified Quality Management[cite: 14] |
Applications & Machinery Compatibility
The DFC series plum flexible shaft coupling is widely used across precision automation and motion control drive systems[cite: 14], including:
- CNC Machine Tools & Automation: CNC milling centers, CNC lathes, engraving machines, and multi-axis gantry systems[cite: 14].
- Motion Control & Robotics: AC/DC servo motors, stepper motors, precision lead screw drives, and robotic arms[cite: 14].
- Light Industrial Machinery: Packaging machinery, 3D printers, medical equipment, and semiconductor handlers[cite: 14].
- Metallurgy & Construction Works: Light auxiliary drives, conveyor systems, and general industrial power transmission lines[cite: 14].
Customization & OEM Wholesale Support
At ApexCoupling, we provide comprehensive OEM, ODM, and OBM manufacturing services with competitive wholesale pricing directly from our factory[cite: 14].
Custom Capabilities Include:
- Custom inner bore sizes (metric and imperial shaft diameters)[cite: 14].
- Special keyways, DIN/ANSI standards, and custom clamping bolt configurations[cite: 14].
- Custom spider insert shore hardness levels (92 Sh-A, 98 Sh-A, or 64 Sh-D)[cite: 14].
- Custom surface anodizing colors, laser logo branding, and retail carton packaging[cite: 14].
To request a fast quotation, please specify your required DFC model size (e.g., DFC-30*35), inner bore diameters (d1 x d2), quantity, and custom specifications[cite: 14].
How to Order / Get a Fast Quote
Looking for reliable DFC series CNC machine flexible plum couplings or custom GR replacement shaft couplers[cite: 14]? Contact our engineering sales team today!
- Email: ella@apexcoupling.com
- WhatsApp / WeChat: +86 13437856962
- Website: www.apexcoupling.com
- MOQ: 1 Piece (Sample testing, batch orders, and bulk OEM supplies supported)[cite: 14]

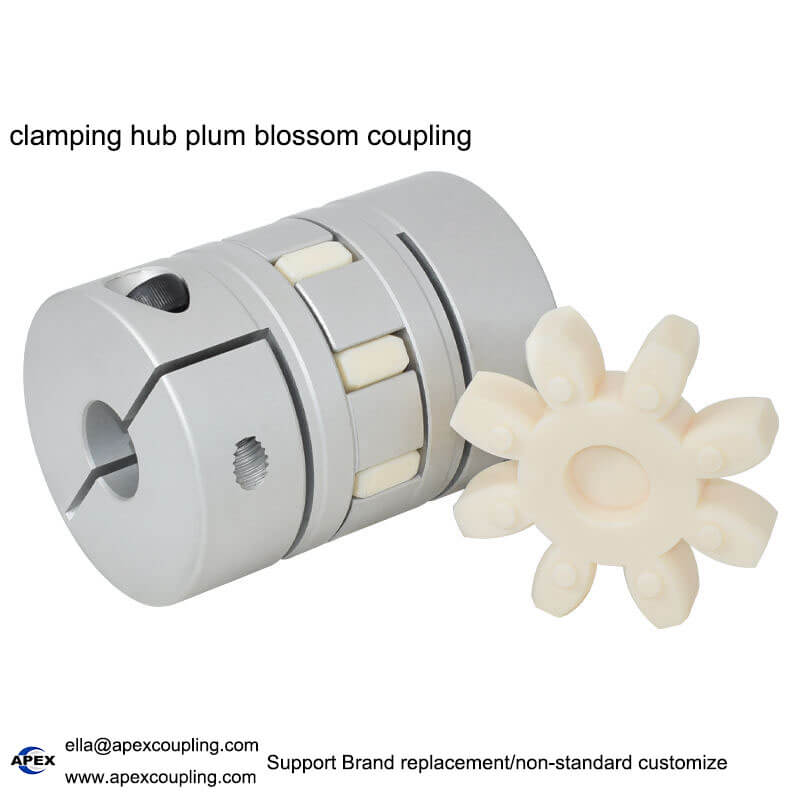

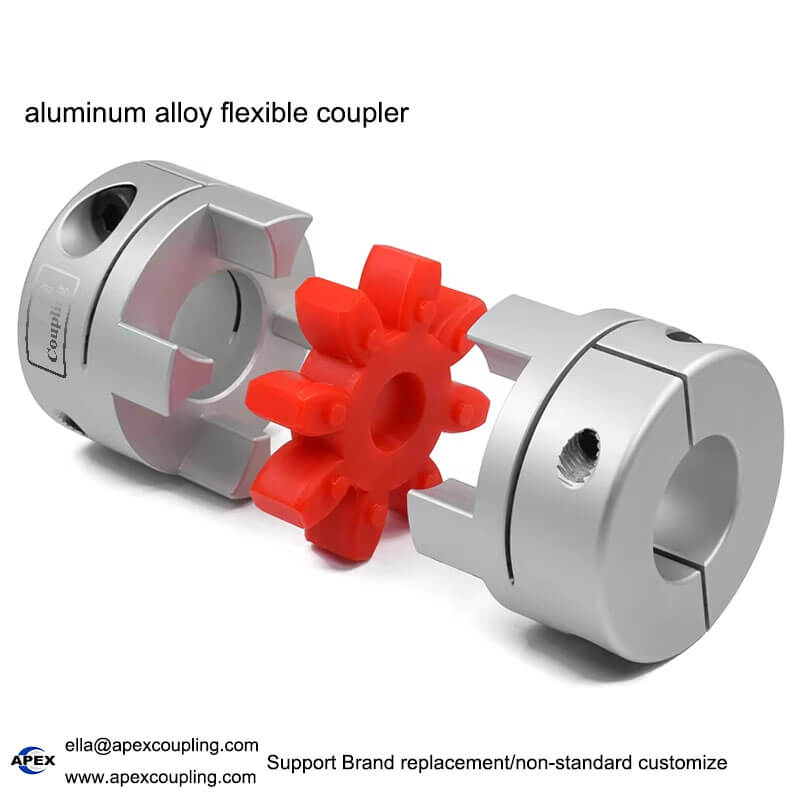

clamping hub plum blossom coupling, aluminum alloy flexible coupler, servo motor plum spider coupling, DFC-20*25 DFC-30*35 coupling
Product Show

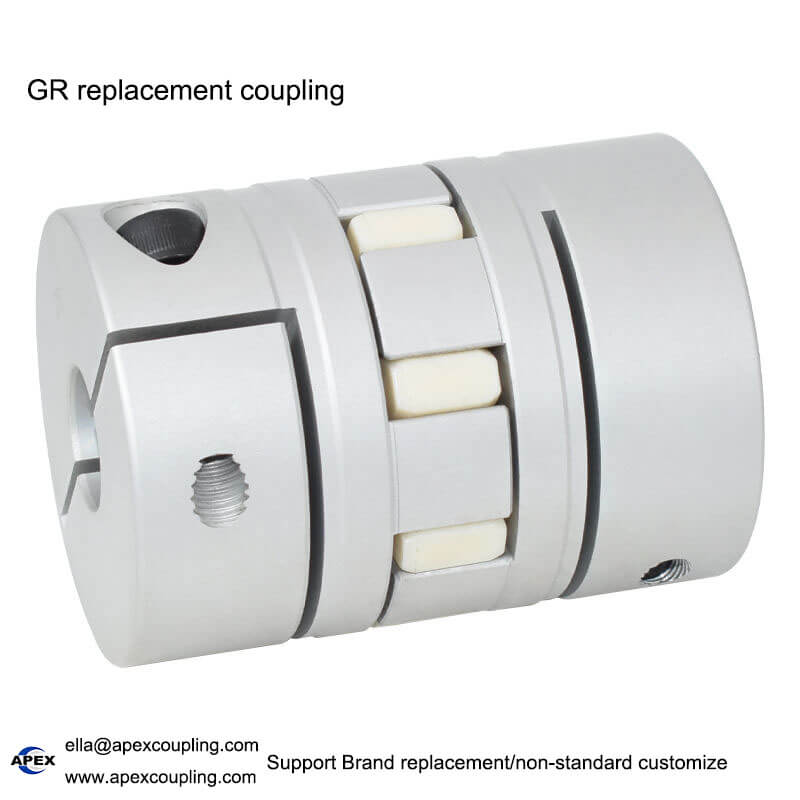

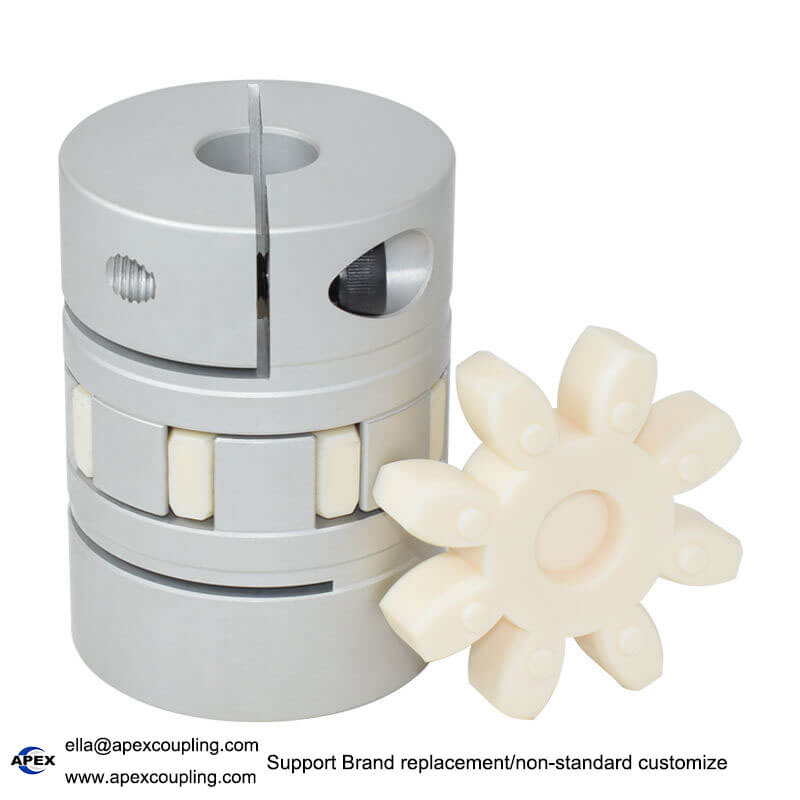

DFC plum coupling, CNC flexible shaft coupling, GR replacement coupling
