Introduction In high-power industrial drives, the coupling is the critical link that ensures power flows safely from the motor to the machine. While gear couplings were once the industry standard, the DJM Keyway Diaphragm Coupling has become the superior choice for modern heavy-duty applications.

1. Eliminating the Maintenance Headache Traditional gear couplings require consistent lubrication to prevent wear between the teeth. The DJM series is maintenance-free. Because it accommodates misalignment through the elastic deformation of 304 stainless steel discs, there are no sliding parts to wear out and no grease to replenish.

2. The Power of the Reamed Hole Bolt One of the key engineering features of our DJM coupling is the use of Reamed Hole fitment for the bolts. Unlike standard loose-fit bolts, these are precision-ground to fit perfectly in the flange holes. This creates a friction-locked connection that ensures zero backlash even under reversing loads and high-impact shocks.

3. Cost-Effective Performance and Damping The DJM series offers a significantly better price-to-performance ratio compared to gear or grid couplings. Beyond the initial cost, its ability to act as a “mechanical fuse” and dampen vibrations protects your expensive motor and gearbox bearings, potentially saving thousands in unplanned downtime.

4. 45# Steel: Rigidity and Reliability By using 45# quality round steel ground to H7 precision, Apexcoupling ensures that every DJM unit provides high concentricity. This is essential for high-speed applications like generators, industrial fans, and centrifugal pumps, where even minor imbalances can lead to catastrophic failure.

Power without the noise. Precision without the maintenance. ⚙️⛓️

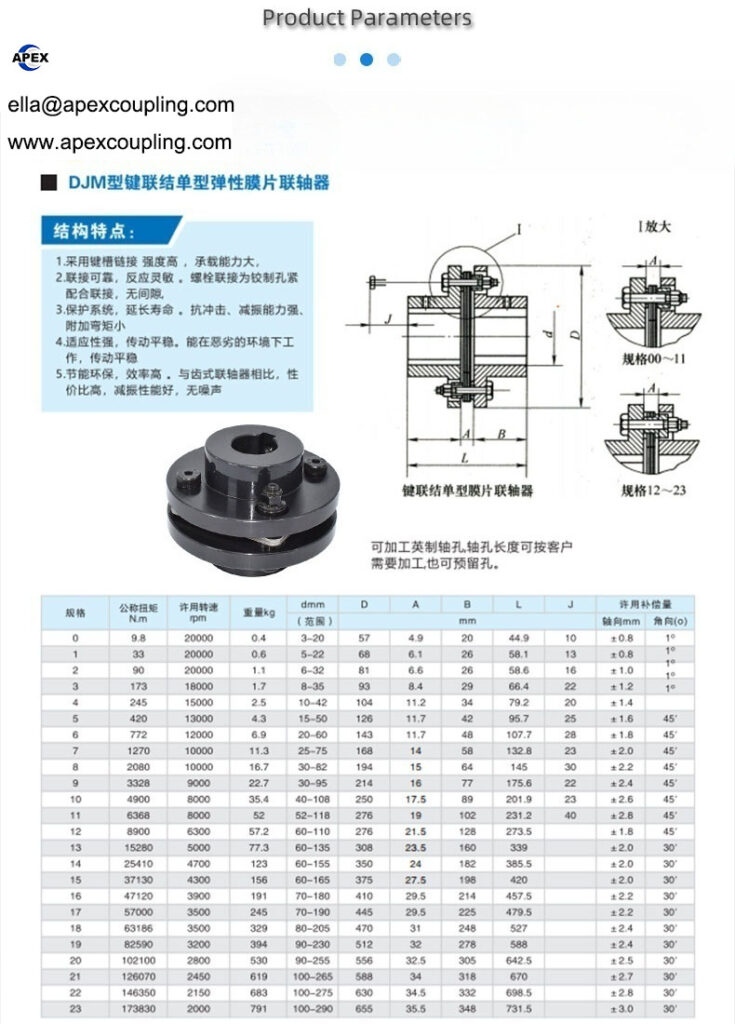

Introducing the Apexcoupling DJM Series Keyway Diaphragm Couplings. When your heavy-duty drive systems demand high torque and zero backlash, the DJM series delivers with forged strength and stainless steel flexibility.

✅ High Torque Capacity: 45# quality steel hubs for maximum torsional rigidity. ✅ Maintenance Free: No lubrication required—save time and reduce operational costs. ✅ Precision Connection: H7 bore accuracy and reamed hole bolts for a zero-backlash fit. ✅ Extreme Protection: 304 Stainless Steel disc packs absorb shocks and dampen vibrations. ✅ Custom Ready: Full factory support for non-standard lengths and specialized keyway specs.

Trusted in Metallurgy, Power Generation, and Mining for its reliability in the harshest environments.

Get a technical quote from the manufacturing experts today! 📥🌍

Inquiry: www.apexcoupling.com
