XL Star Flexible Spider Coupling (45# Steel)

PRODUCTS

CONTACT US

XL Series Star Flexible Spider Coupling | 45# Round Steel Heavy-Duty Jaw Coupling for Air Compressors & Servo Motors

Model Number
Check below, custom

Product Description

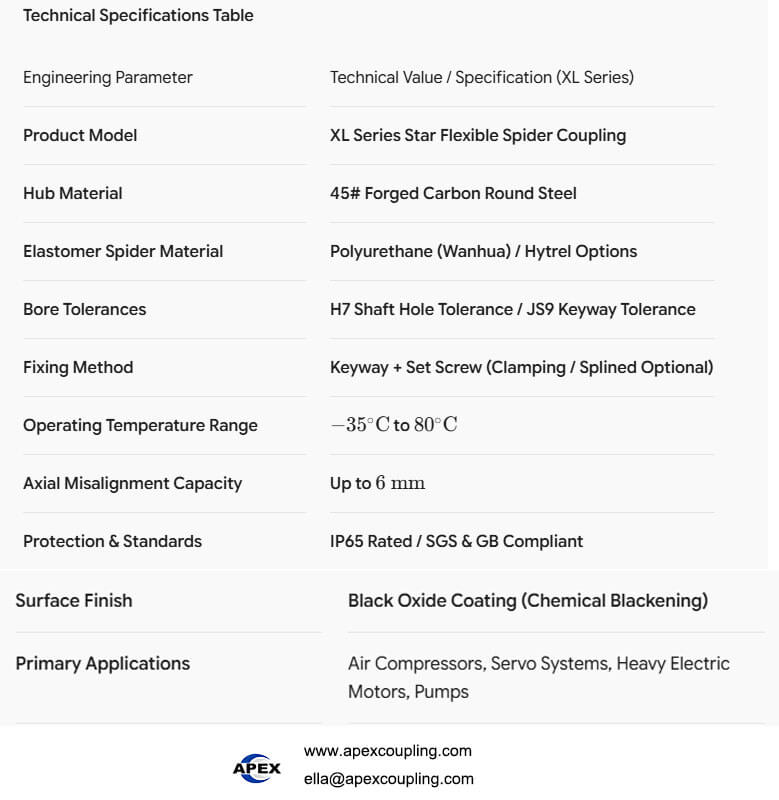

High-Torque & Shock-Absorbing Power Transmission: XL Series 45# Steel Star Flexible Coupling

The Apexcoupling XL Series Star Flexible Spider Coupling is engineered for demanding industrial power transmission, heavy-duty air compressors, electric motors, servo systems, and high-load mechanical drives. Constructed from precision-machined 45# high-grade round steel with a protective black oxide finish, this flexible jaw coupling delivers exceptional torsional strength, high torque capacity, and backlash-free power transmission.

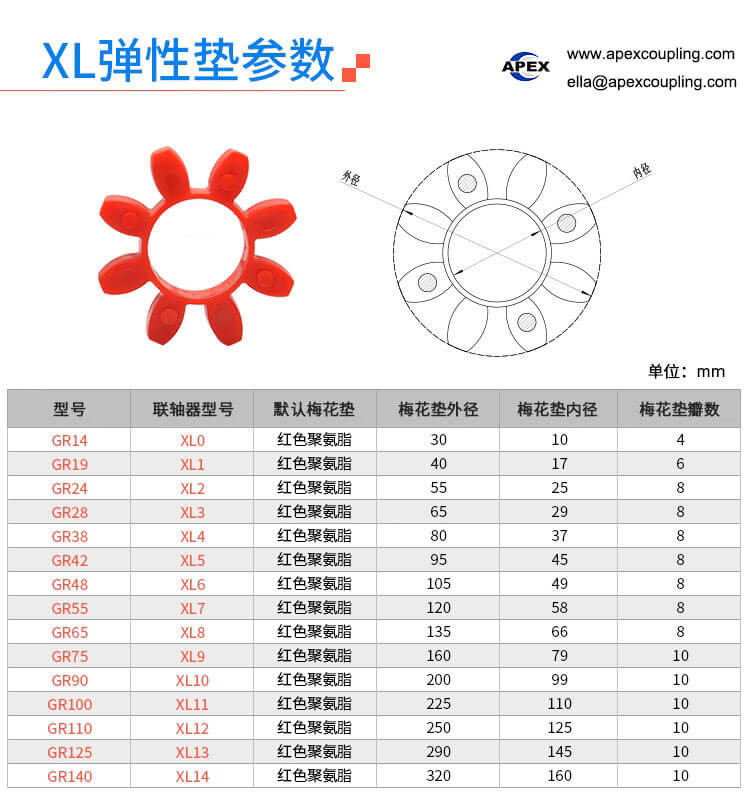

Equipped with a wear-resistant polyurethane star elastomer spider (Wanhua polyurethane or
Hytrel optional), the XL coupling operates in working temperatures ranging from -35° C to 80° C. The precision-machined hub features H7 bore tolerances and JS9 keyway tolerances with set screw clamping (custom clamping, splined, or taper lock bore options available). The
elastomeric spider dampens torsional vibration, absorbs dynamic shock loads, and compensates for axial misalignment up to 6 mm, protecting motor shafts and air compressor air ends from premature fatigue.

Core Product Advantages & Features

45# Round Steel Construction: Machined from high-density 45# carbon round steel for
maximum torsional rigidity and load resistance under continuous high torque.
Premium Polyurethane Elastomer Insert: Resistant to oil, ozone, and chemical wear, providing vibration dampening and shock absorption across -35° C to 80° C.

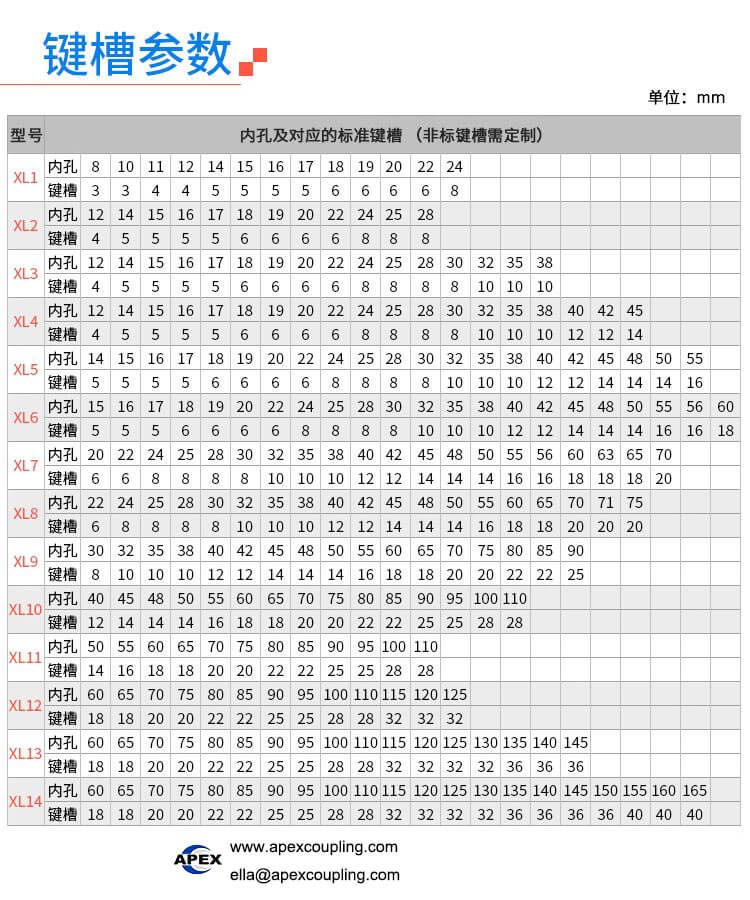

Precision Shaft Hole Processing: Standardized H7 inner bore tolerance and JS9 keywaytolerance ensure precise concentric alignment and reduced shaft runout.

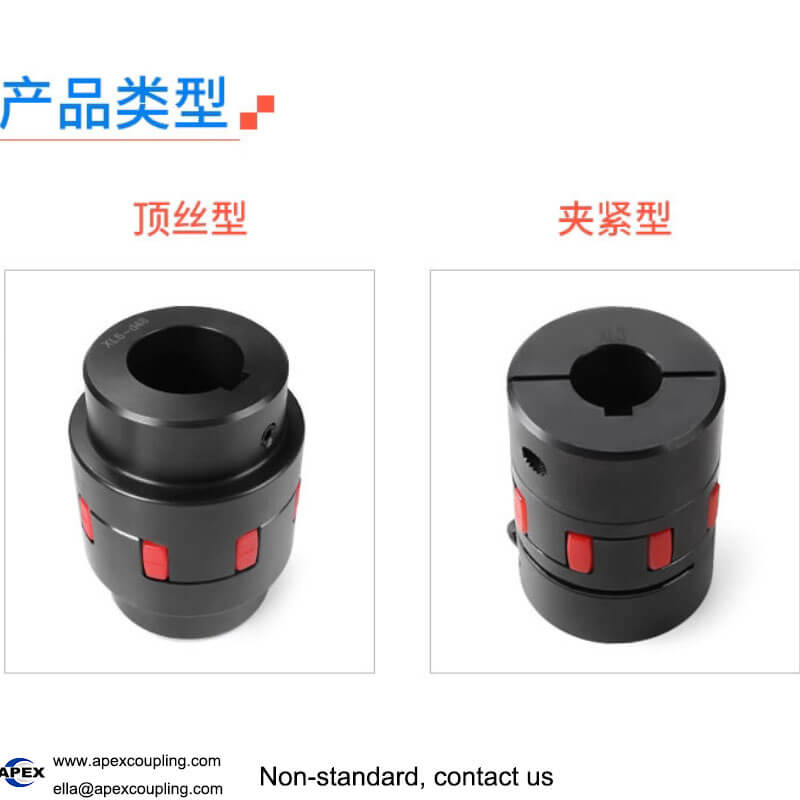

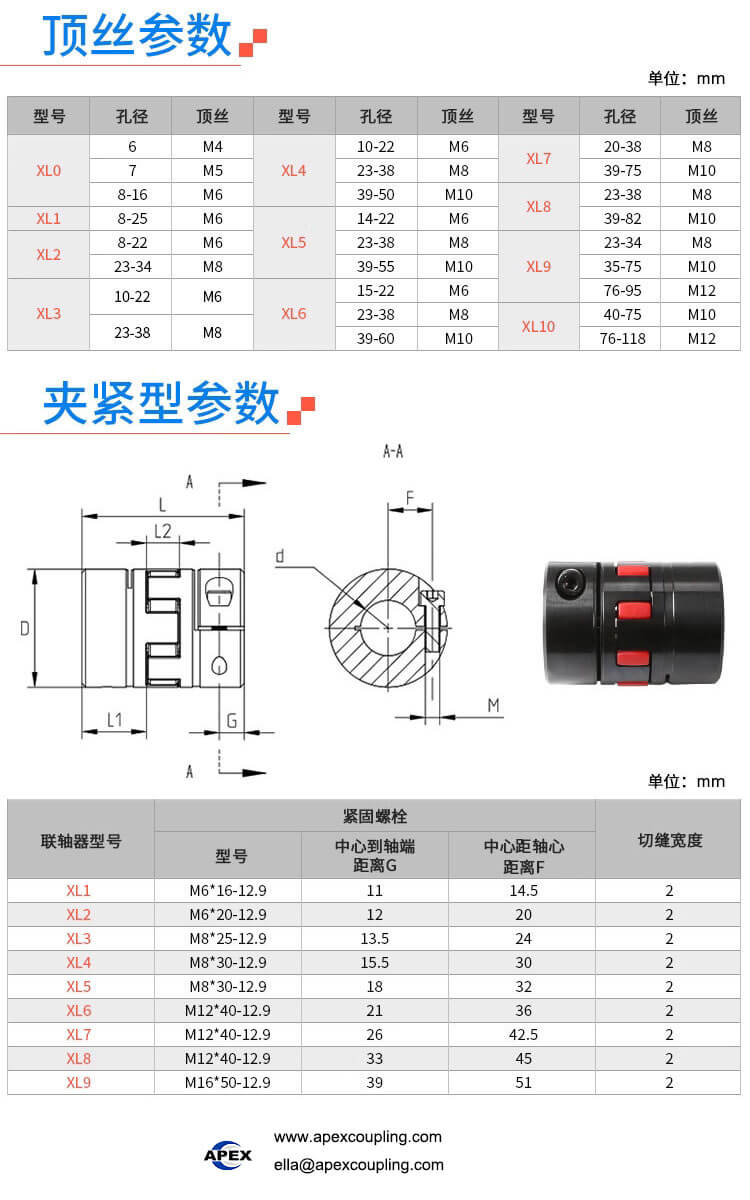

Flexible Mounting Configurations: Standard keyway with set screws, with options for
clamping hubs, splined bores, and custom hub lengths.
Protective Black Oxide Finish: Corrosion-resistant blackening treatment protects hubs in
humid, oily air compressor and industrial plant environments.
Full OEM & Customization Support: Custom non-standard bore diameters, keyway slots,hub lengths, and tailored drawings/samples supported.

Model	Type	Outer Diameter (mm)	Length (mm)	Inner Diameter Range (mm)
XL0	Standard	30	35	6–16
XL1	Standard	40	66	6–19
XL1	Clamping	40	66	10–22
XL2	Standard	55	78	8–24
XL2	Clamping	55	78	8–28
XL3	Standard	65	90	8–28
XL3	Clamping	65	90	12–38
XL4	Standard	80	114	10–38
XL4	Clamping	80	114	12–45
XL5	Standard	95	126	10–42
XL5	Clamping	95	126	14–50
XL6	Standard	105	140	10–48
XL6	Clamping	105	140	15–55
XL7	Standard	120	160	15–55
XL7	Clamping	120	160	20–70
XL8	Standard	135	185	15–65
XL8	Clamping	135	185	22–75
XL9	Standard	160	210	20–75
XL9	Clamping	160	210	35–85
XL10	Standard	200	245	30–90
XL10	Clamping	200	245	40–105
XL11	Standard	225	270	30–115
XL12	Standard	255	295	40–125
XL13	Standard	290	340	40–145
XL14	Standard	320	375	40–160
XL15	Standard	370	425	60–180

XL star flexible coupling, ML jaw coupling, air compressor shaft coupling, 45 steel star spider coupling, high torque flexible coupling, polyurethane spider insert.
