Engineering Guide to SWC Series Heavy-Duty Flange Universal Joint Shafts

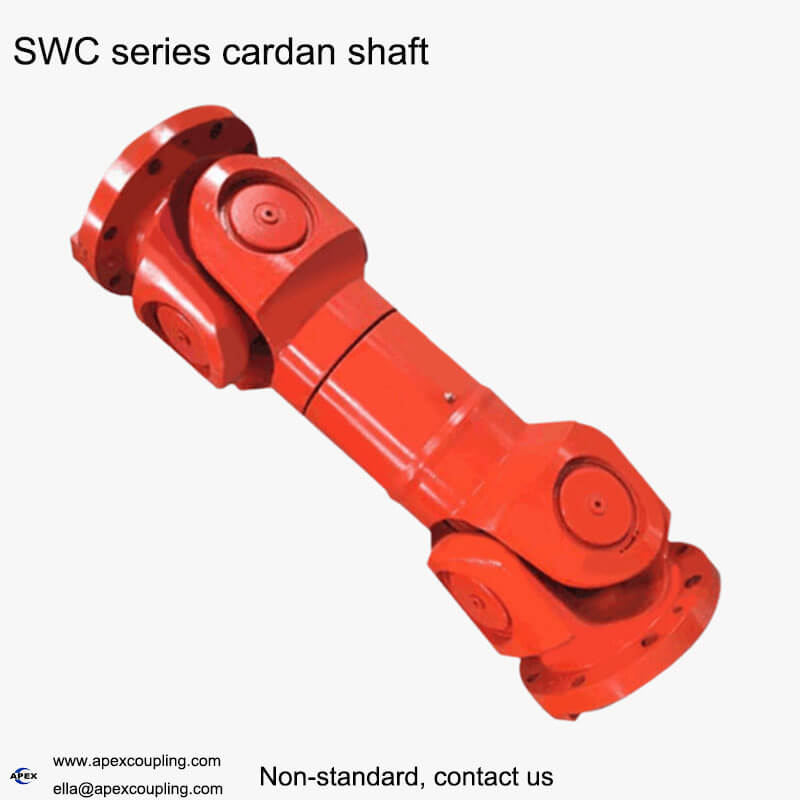

Introduction Heavy industrial machinery operating under continuous load, dynamic shock, and significant shaft misalignment requires high-torque cardan universal joint couplings. The SWC Series Heavy-Duty Cardan Shaft is designed for heavy-duty drive systems where torsional rigidity and long service life are essential requirements.
Â
1. Structural Configurations of the SWC Series Depending on layout spatial constraints and stroke requirements, SWC series cardan shafts are manufactured in six primary structural types:
BF Type: Standard Telescopic Flange Type
DH Type: Short Telescopic Welded Type
CH Type: Long Telescopic Welded Type
WH Type: Non-Telescopic Welded Type
WF Type: Non-Telescopic Flange Type
WD Type: Ultra-Short Non-Telescopic Type
3. Direct Factory Customization at Apexcoupling Apexcoupling provides complete manufacturing support for SWC series cardan shafts, custom companion flanges, and cross journal bearing replacement kits. All components are machined to strict ISO standards with full inspection documentation.
For engineering assistance, CAD drawings, or pricing inquiries, contact ella@apexcoupling.com or connect with our team on WhatsApp: +86 13437856962.
