Heavy-Duty Universal Joint Shafts – Selection Guide for Industrial Drives
1. Introduction
In heavy industrial applications—from steel mills to mining equipment—universal joint shafts must withstand extreme torque, shock loads, and continuous operation. Selecting the right shaft is critical for reliability and uptime. This guide covers the key factors to consider when specifying a heavy-duty universal joint shaft.

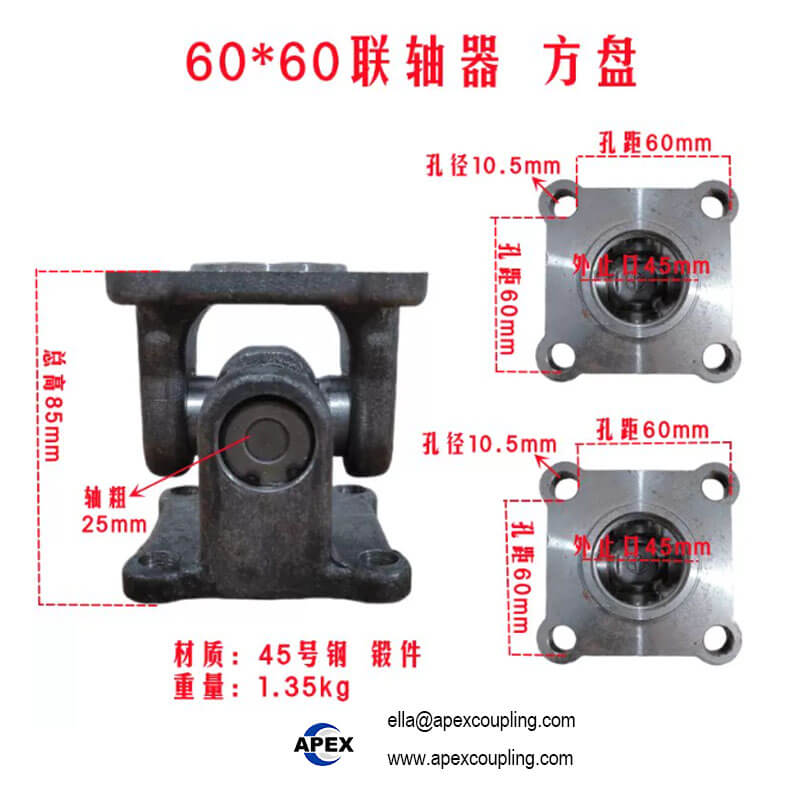

2. What is a Heavy-Duty Universal Joint Shaft?
A heavy-duty universal joint shaft (also called a cardan shaft or drive shaft) transmits torque between two shafts that are not in a straight line. It consists of:
Yokes (fork ends) – forged steel for strength
Cross trunnion – the pivoting cross that allows angular movement
Bearings – needle or sliding, depending on speed and load
Mounting flanges or hubs – for connection to equipment
3. Key Selection Criteria
| Factor | Consideration |
|---|---|
| Torque | Match shaft rating to application peak torque |
| Speed | Check maximum rpm and balancing requirements |
| Operating Angle | Each joint handles up to 45°; multiple joints for larger angles |
| Environment | Corrosive, abrasive, or high-temperature environments require special materials |
| Maintenance | Access for lubrication (if required) |
| Mounting | Flange, keyed, or splined connections |
4. Forged Steel vs. Cast Steel
| Property | Forged Steel | Cast Steel |
|---|---|---|
| Strength | Higher | Lower |
| Deformation Resistance | Better | Moderate |
| Fatigue Life | Longer | Shorter |
| Cost | Higher | Lower |
| Best For | Heavy-duty, shock loads | Light to medium duty |
Recommendation: For high-intensity industrial operations, always choose forged steel yokes.
5. Installation Best Practices
Align shafts as closely as possible before installation
Do not exceed maximum operating angle
Ensure proper flange bolt torque
Lubricate joints per maintenance schedule (typically every 100 hours)
Check for vibration after installation—balance if needed
6. Maintenance Tips
Regular inspection for wear on cross trunnion and bearings
Replace worn bearings before they damage the cross
Keep joints lubricated (if grease fittings provided)
Monitor vibration and noise—early signs of imbalance or wear
7. Why Apexcoupling WD Series
Forged steel construction for maximum durability
Precision machining for accurate fit and smooth operation
Dynamic balancing for low vibration
Factory-direct pricing and customization
Large inventory for fast delivery
8. Conclusion
For heavy-duty industrial drives, a forged steel universal joint shaft is the reliable choice. Consider torque, speed, angle, and environment when specifying. Contact Apexcoupling for assistance with your application.
