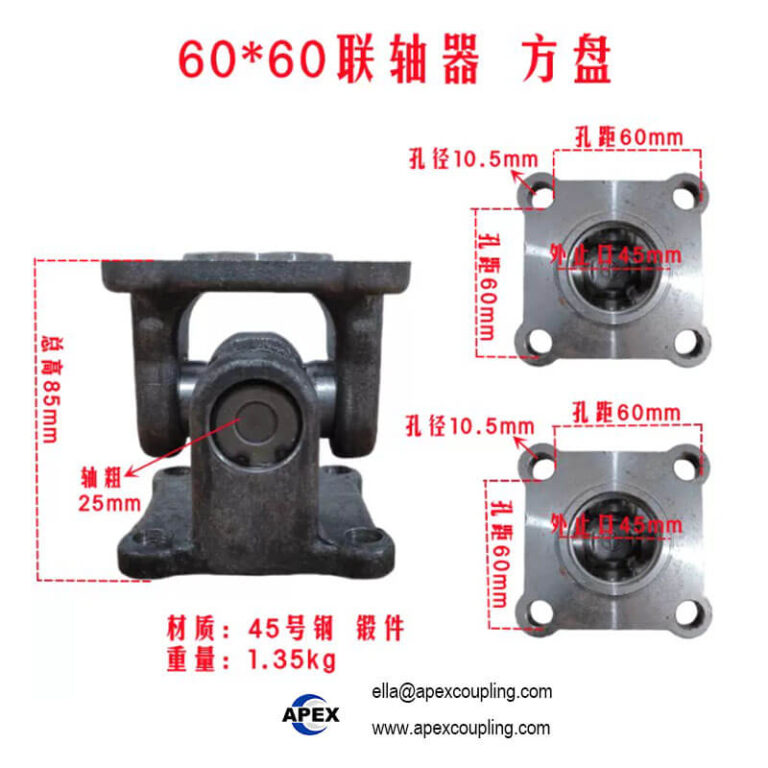

Introduction In heavy industrial processing mills, marine propulsion systems, mining conveyors, and crane transport equipment, drive shafts must continuously deliver dynamic torque between misaligned motor drives and driven gearboxes. The SWC-WD Series Heavy-Duty Universal Joint Shaft is engineered to absorb substantial angular deflections while delivering steady, high-efficiency mechanical power.

[Prime Mover / Motor] === (SWC-WD Flange) === [20CrMnTi Cross Joint] === (Seamless Tube) === [Driven Gearbox]
                                    ---> Absorbs 15°- 25° Angular Offset

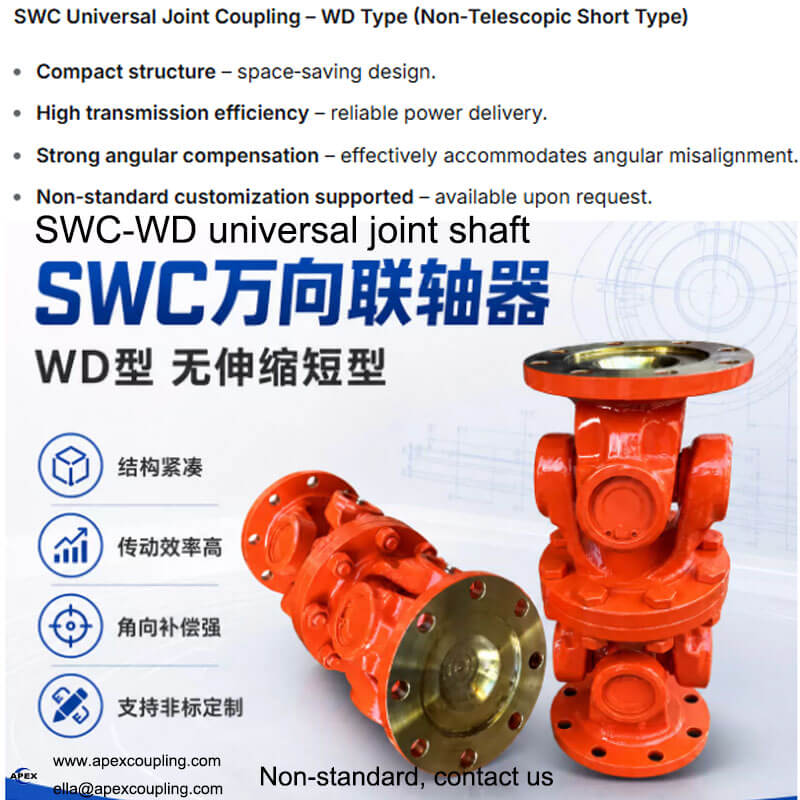

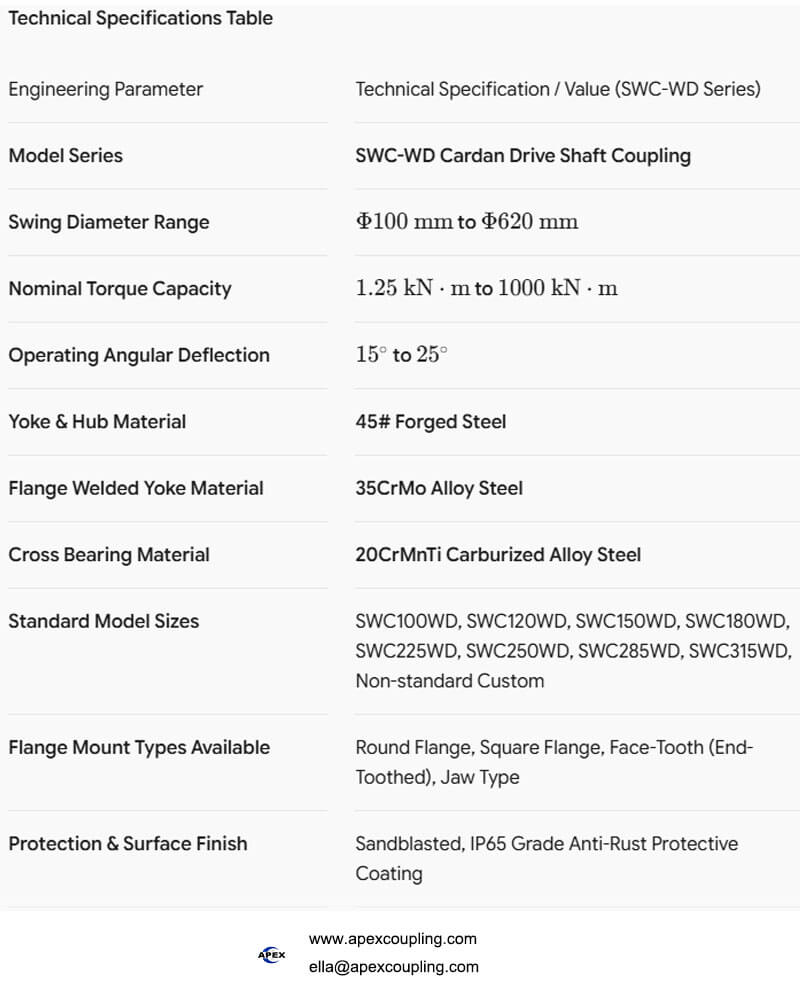

1. Material & Structural Advantages of SWC-WD Couplings The durability of an SWC-WD shaft lies in its multi-alloy forged construction:

• Monoblock Forged Yokes (45# Steel): Ensures structural rigidity under heavy dynamic fatigue.

• Robotic Automated Welding Joints (35CrMo Flange): Provides smooth, defect-free weld seams between the flange yokes and seamless drive tubes.

• Quenched Spline & 20CrMnTi Cross Assembly: Reduces rotational backlash and extends cross bearing operational life.

2. Key Application Sectors for SWC-WD Series

                  ┌─── Lifting & Crane Equipment
                  ├─── Mining & Coal Machinery
SWC-WD Series ────┼─── Marine Propulsion Systems
                  ├─── Paper & Rubber Processing Mills
                  └─── Heavy Metallurgical Rolling Lines

3. Inspection & Maintenance Checklist for Heavy Industrial Drive Shafts To maintain smooth operation and prevent unexpected drivetrain failure, maintenance technicians should follow this routine checklist:

• Lubrication Maintenance: Regularly apply grease via the integrated cross-journal lubrication nipple to clear debris and protect needle bearings.

• Weld & Flange Inspection: Inspect 35CrMo welded seams and flange mounting bolts for tightness and fatigue cracks during planned overhauls.

• Spline Backlash Check: Monitor cold-rolled spline shaft clearance to ensure minimal rotational play under load reversing cycles.

4. Custom Engineering & Sourcing at Apexcoupling Apexcoupling provides a complete range of standard SWC-WD sizes (SWC100WD through SWC315WD) as well as fully customized shaft lengths, torque capabilities, and specialized companion flanges (round, square, face-tooth, and jaw-type).

For technical engineering drawings, CAD files, or quotation requests, contact ella@apexcoupling.com or chat with our engineering team on WhatsApp: +86 13437856962.
