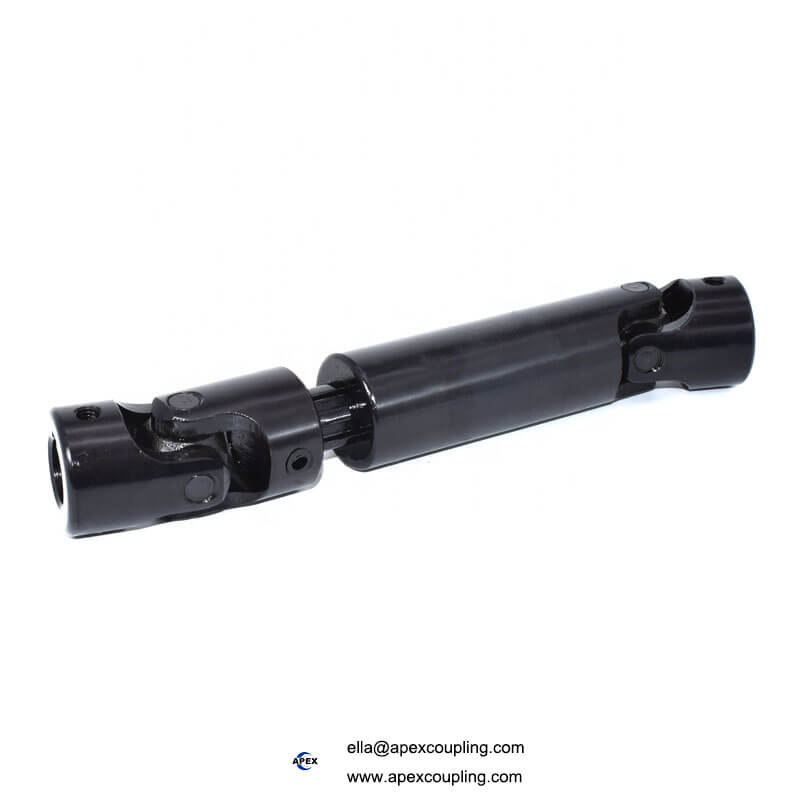

Dynamic Linear Travel & High-Angle Torque: WSP Retractable Small Cross Shaft Universal Coupling

The Apexcoupling WSP Type Retractable Small Cross Shaft Universal Joint is a highly versatile, non-standard mechanical solution engineered to meet the strict structural demands of industrial machinery, particularly within high-precision production environments. Designed specifically to connect greater shaft spacing where traditional fixed-length couplings fail, this premium telescopic universal joint combines a high-torque flexible articulation head with an internal sliding spline framework. This configuration allows the drive assembly to extend and retract dynamically along its axis during operation, absorbing variable distances while maintaining uninterrupted, smooth torque transmission across food & beverage processing gear, agricultural machinery, and heavy industrial drivetrains.

As detailed in the technical profile in cardan shaft, the WSP series is precision-crafted in Guangdong, China using high-grade 42CrMo Alloy Steel (42crmo). It supports an expansive outer diameter range of 22–150 mm and an inner diameter range of 10–95 mm, allowing for configurations like a massive 100mm Bore Diameter and 300mm standard length. With full compliance under ISO9001 and BV certification, this high-quality universal coupling safely accommodates massive operating angles up to 45° per section and is backed by a flexible 1 PC MOQ for ultimate sourcing agility.

Core Product Advantages / Unique Selling Points

• Retractable Telescopic Design: Seamlessly bridges variable, long-distance shaft spacing by expanding and contracting under load along its integrated sliding spline axis.

• Expansive 45° Operating Deflection: The precision small cross shaft assembly allows a maximum rotational angle of 45° for each section, offering exceptional spatial routing flexibility.

• H7 Precision Bore Engineering: Delivered with a standard finished hole tolerance of H7. The hub interface can be customized with keyways, hexagon holes, or square holes based on your specific drive system requirements.

• Premium 42CrMo Metallurgy: Forged from structural 42crmo alloy steel to deliver high torsional yield strength, robust shock load absorption, and reliable durability.

• Rigorous Certification Standards: Fully certified under ISO9001 and BV certification protocols, ensuring strict trace metallurgy and strict tolerances for food, beverage, and energy sectors.

• Highly Flexible Outer & Inner Envelopes: Built to custom prints with outer diameters ranging from 22mm to 150mm and inner diameters spanning 10mm to 95mm.

• Broad Industrial Deployment: Purpose-built for Food & Beverage Shops, Machinery Repair Shops, Farms, Construction Works, and Energy & Mining setups.

• Low Prototyping Baseline (1 PC MOQ): Facilitates seamless equipment repair, direct prototyping, and customized retrofits with a 1 PC minimum order quantity.

• Complete Factory OEM Customization: Supported by our comprehensive OEM, ODM, and OBM production pipelines to accommodate non-standard engineering blueprints.

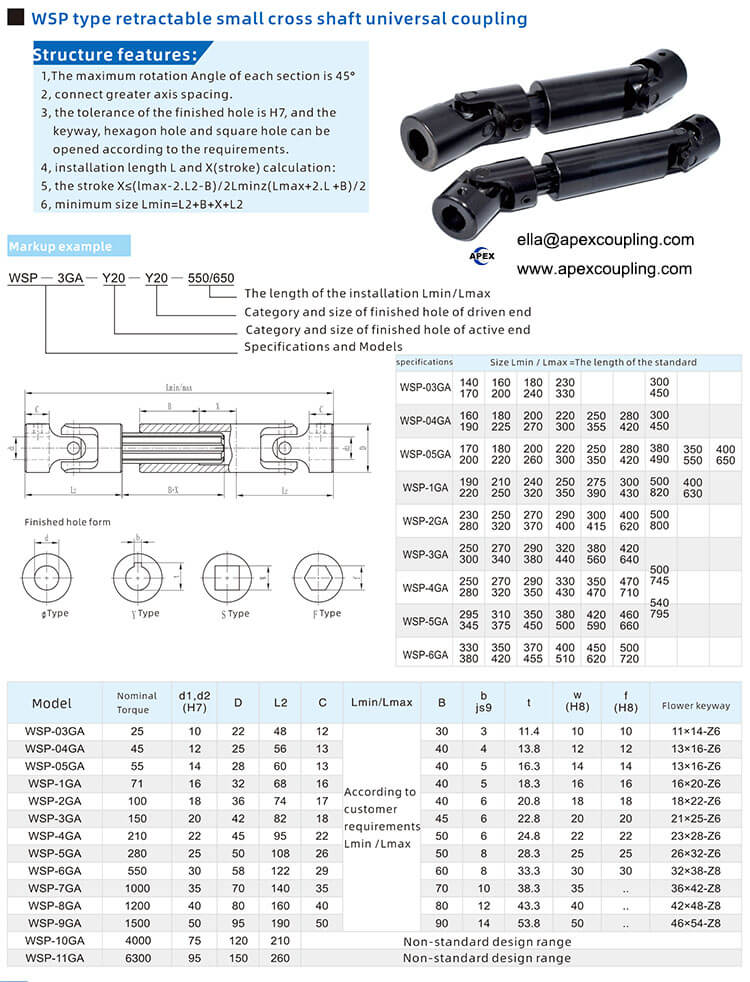

Technical Specifications Table
