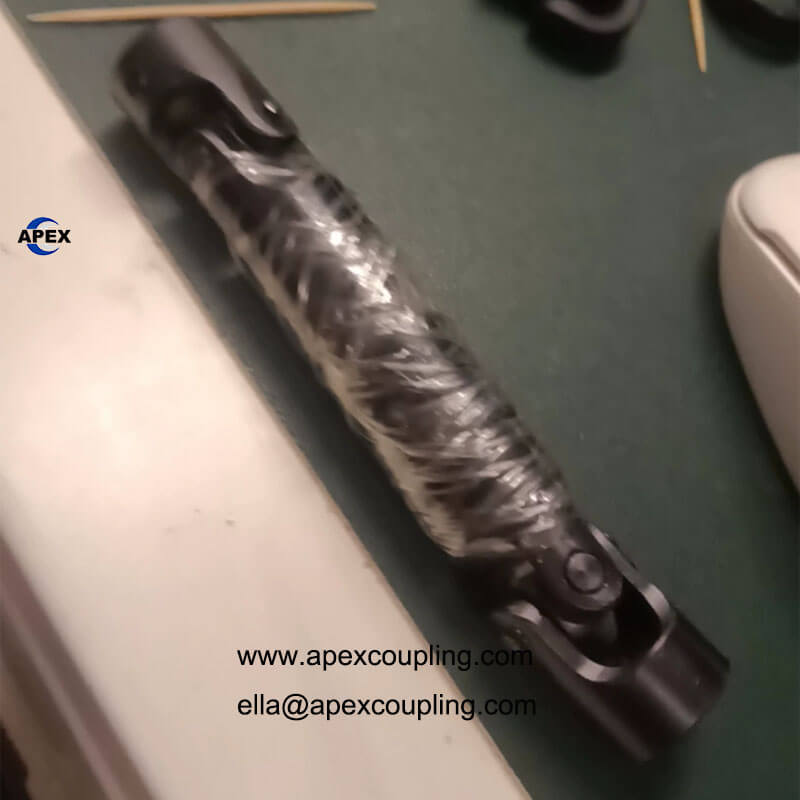

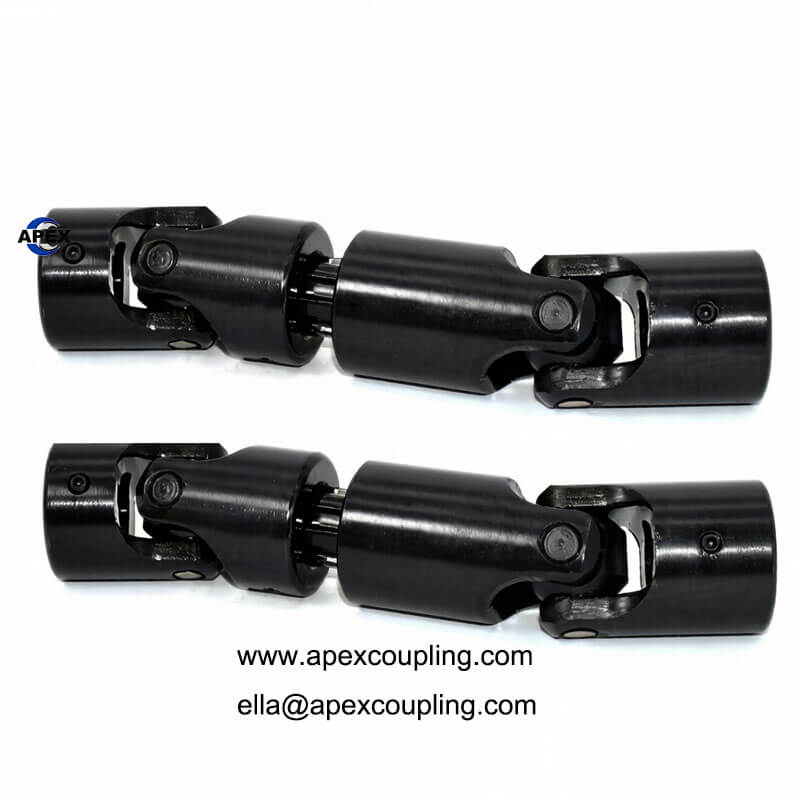

Advanced Telescopic Transmission for Variable Distances

The WSP Series Telescopic Universal Joint is engineered for industrial applications requiring torque transmission over varying shaft distances. Manufactured in strict accordance with the JB/T5901-1991 standard, these joints combine a precision spline structure with high-strength 42CrMo alloy steel, offering a robust solution for CNC machinery, printing equipment, and automated production lines.

Key Performance Features

• Dynamic Telescopic Stroke: Features a precision-machined spline interface that allows for smooth expansion and contraction (Stroke X) during operation, ideal for machines with moving components.

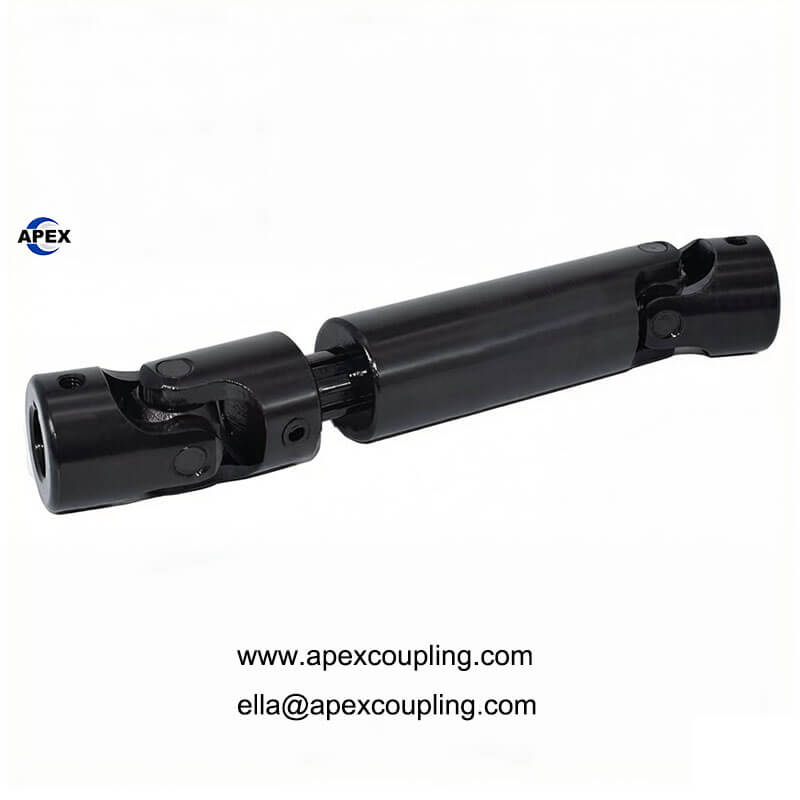

• High-Strength 42CrMo Steel: Treated with advanced heat processes, our 42CrMo forks provide exceptional fatigue resistance and impact toughness, outlasting standard carbon steel alternatives.

• 45° Maximum Angular Offset: Each joint section supports a working angle of up to 45°, providing the flexibility needed for extreme misalignment compensation.

• H7 Precision Bore Standards: Internal bores are machined to H7 tolerance as standard. We also offer customization for Keyways, Hexagonal bores, and Square bores to fit your specific drive shaft.

• Smooth & Low Noise Operation: High-precision assembly and tight clearances result in synchronized rotation with minimal vibration, even at peak speeds.

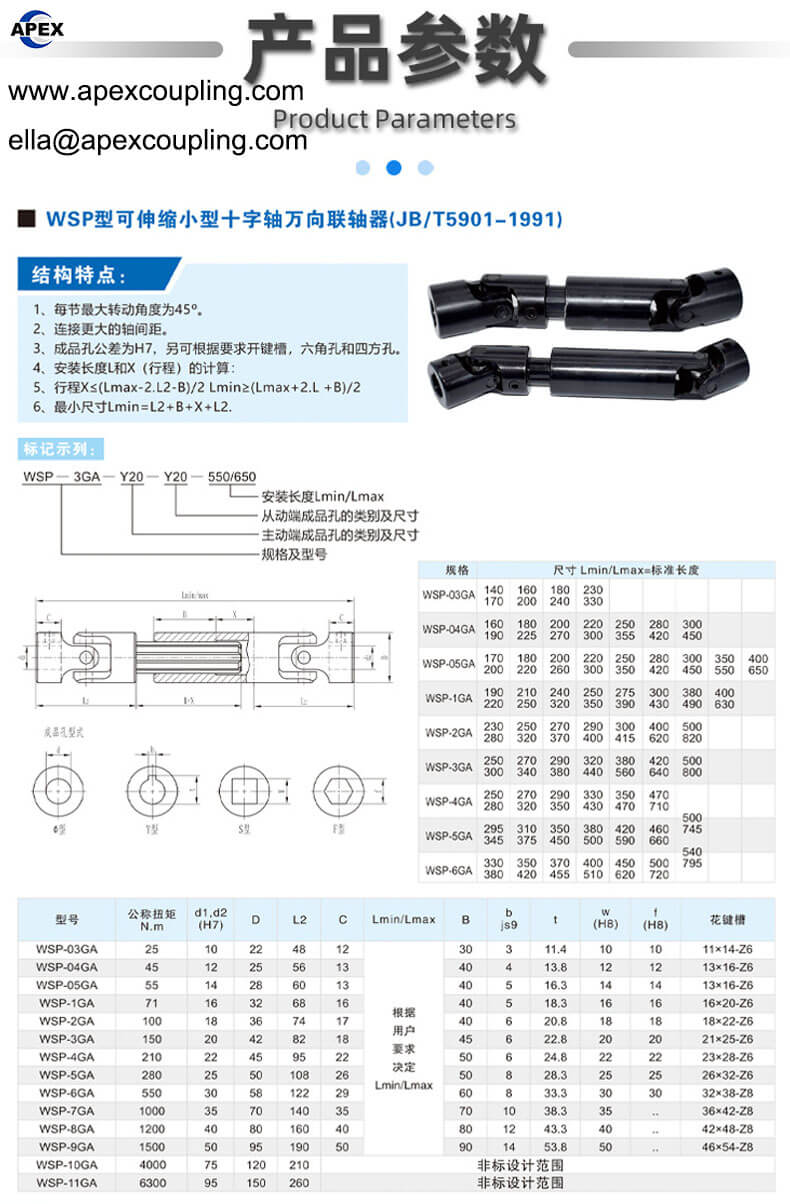

Technical Specifications
