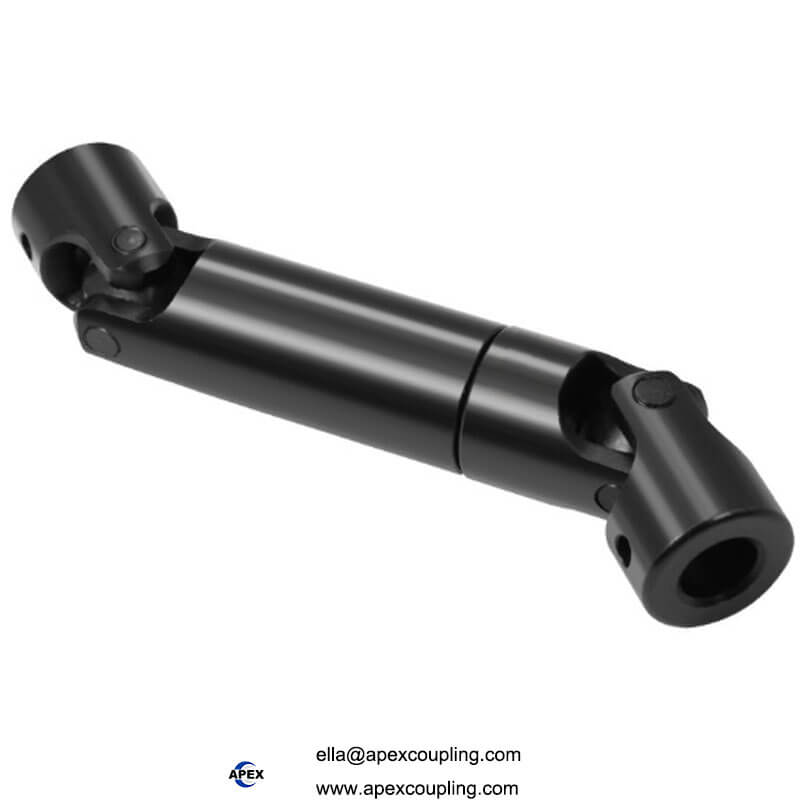

German-Standard Engineering: WSP High-Precision Mini Telescopic Universal Joint

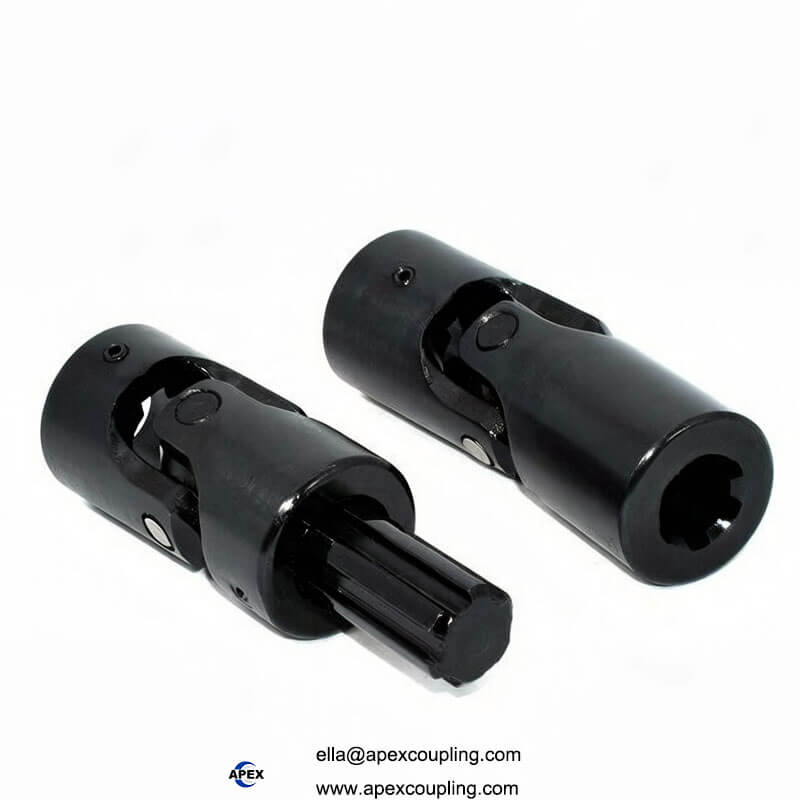

The WSP Series High-Precision Mini Cross Universal Joint Coupling represents a substantial technological advancement in micro and small-scale mechanical power transmission. Benchmarked directly against premium German manufacturing standards, the WSP universal joint coupling utilizes an upgraded component architecture combining high-strength yokes, precision-ground cross-pins, and an integrated riveted structure. This configuration eliminates pin dislocation, ensures minimal internal clearance, and delivers an exceptionally long service life—outperforming standard commercial joints five to one. It is highly effective for precise test instrumentation, automated pharmaceutical lines, micro-actuators, robotic arms, and high-speed telescopic drive networks.

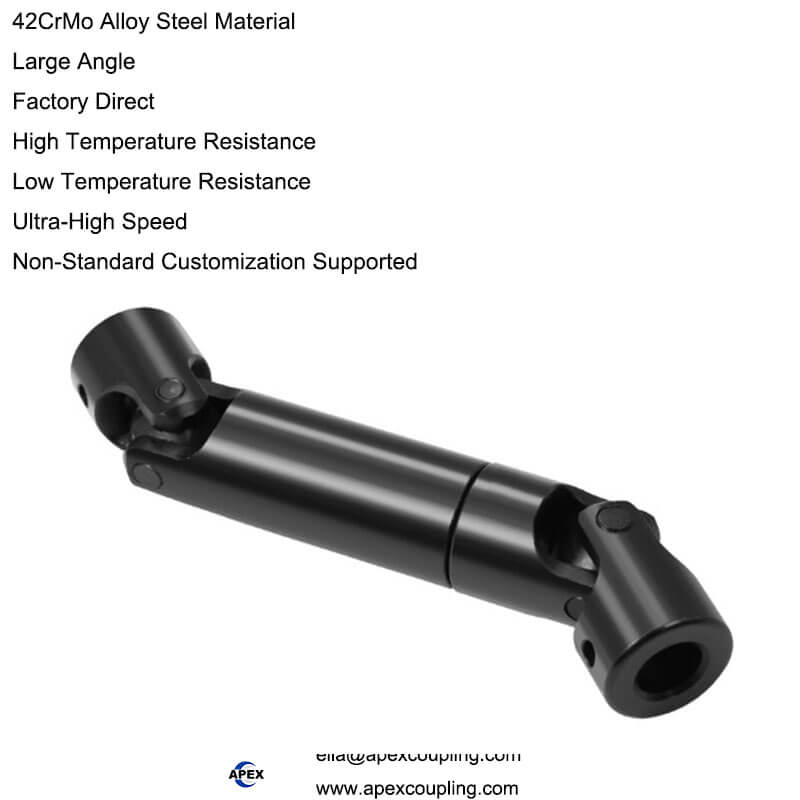

Engineered to operate reliably under extreme environmental demands, this expandable shaft assembly maintains structural integrity across severe temperature fluctuations (handling both extreme high and low temperature bounds) and ultra-high-velocity rotations. The primary joint forks are forged from premium 42CrMo alloy steel, while the vital internal pivot pins are machined from premium bearing steel hardened to HRC 55-60, and the central articulation components are treated to HRC 48-52 for maximum shock toughness and wear resistance.

Core Product Advantages / Unique Selling Points

• Upgraded 42CrMo Alloy Steel Forks: Forged with premium 42CrMo alloy steel to ensure maximum mechanical strength, high torque density, and strong structural stability.

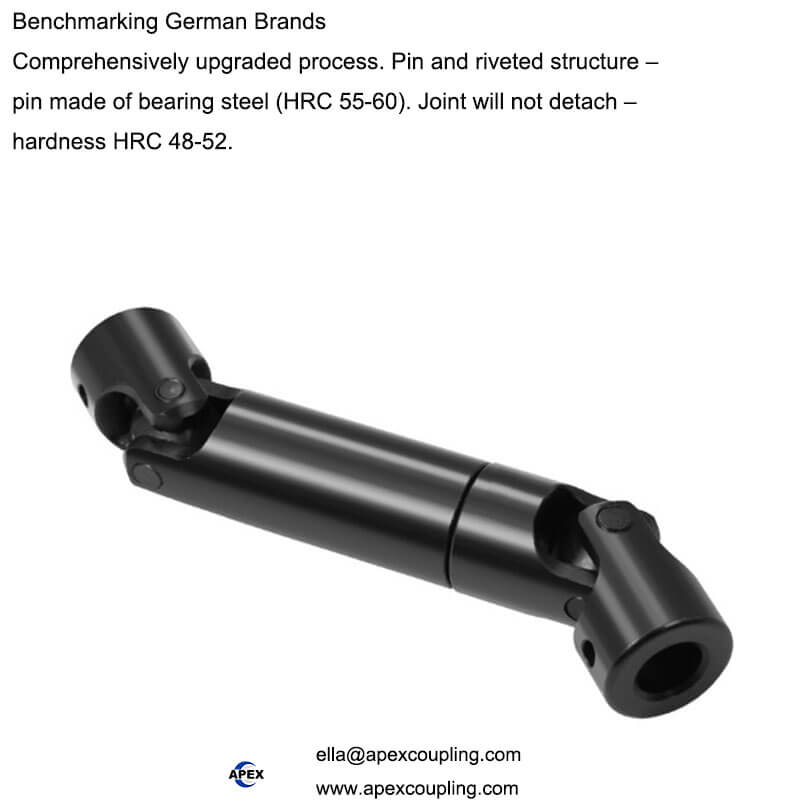

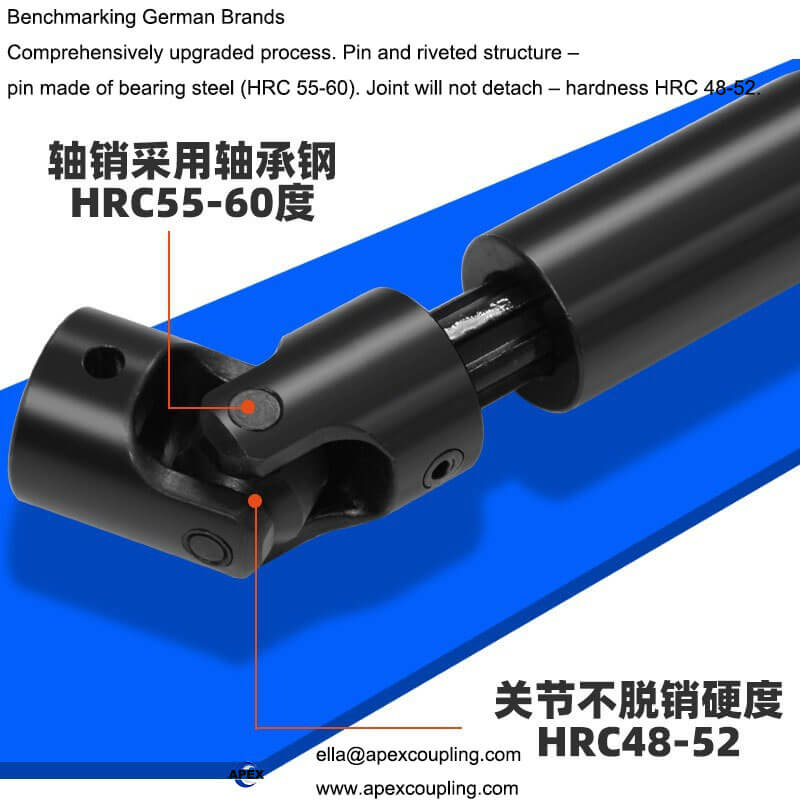

• German-Standard Riveted Pin Layout: Pivot pins are machined from high-grade bearing steel hardened to HRC 55-60, utilizing an advanced riveted structure that permanently prevents pin dislocation under heavy workloads.

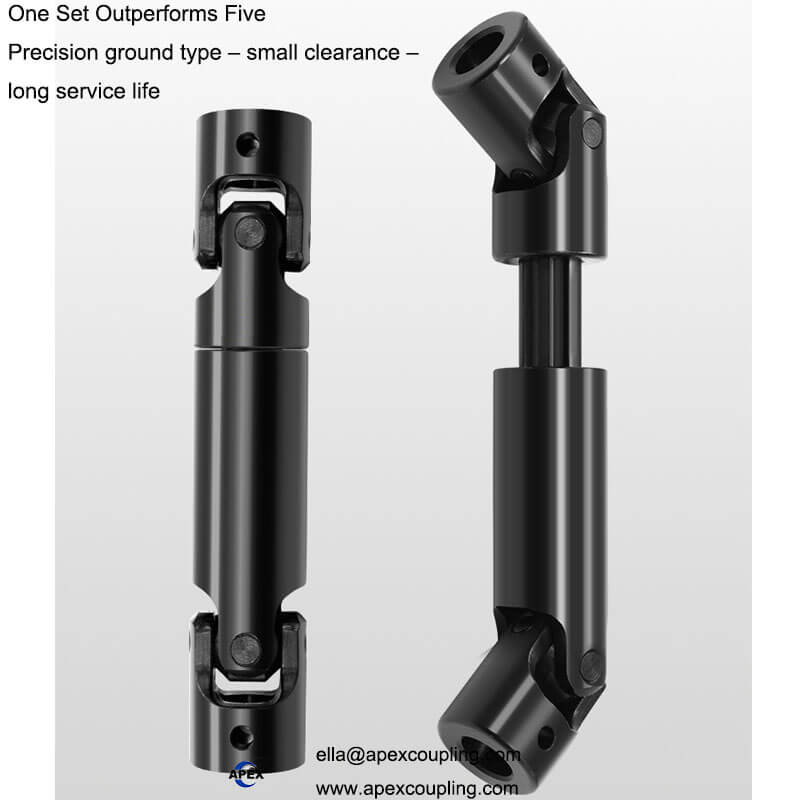

• Precision-Ground Core for Long Service Life: Tight internal tolerances and precision-ground components minimize backlash and play, delivering smooth, well-balanced transmission that lasts up to five times longer than standard alternatives.

• Dynamic Single, Double, and Telescopic Options: Available in single-joint, double-joint, and expandable telescopic shaft configurations to easily solve complex parallel offsets and large angular variations.

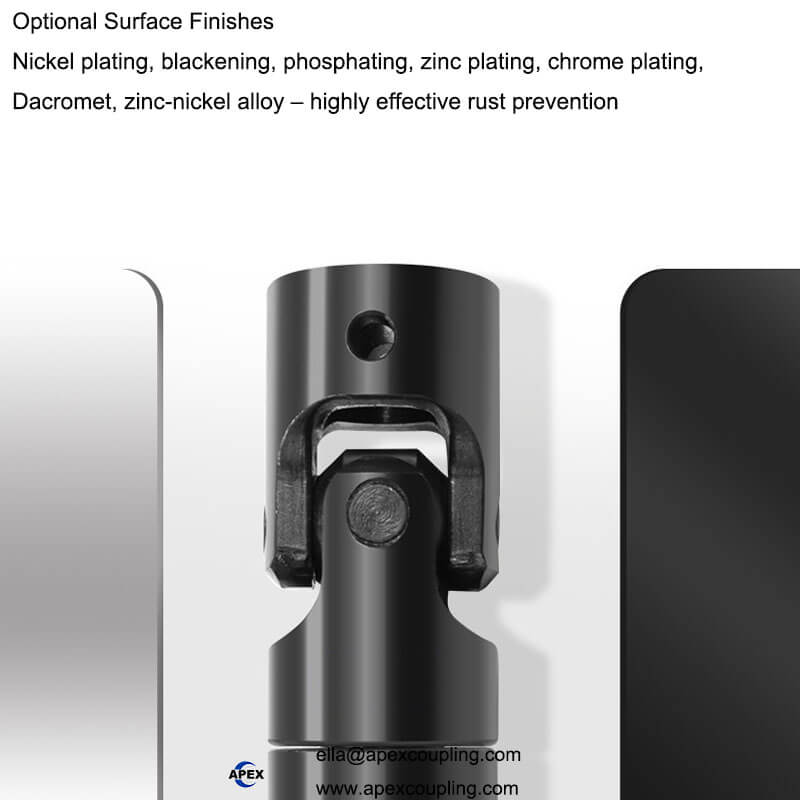

• Comprehensive High-Efficiency Anti-Rust Finishes: To protect against corrosion in harsh operating environments, surfaces can be customized with professional nickel plating, black oxide phosphating, zinc plating, chrome plating, Dacromet, or specialized zinc-nickel alloy coatings.

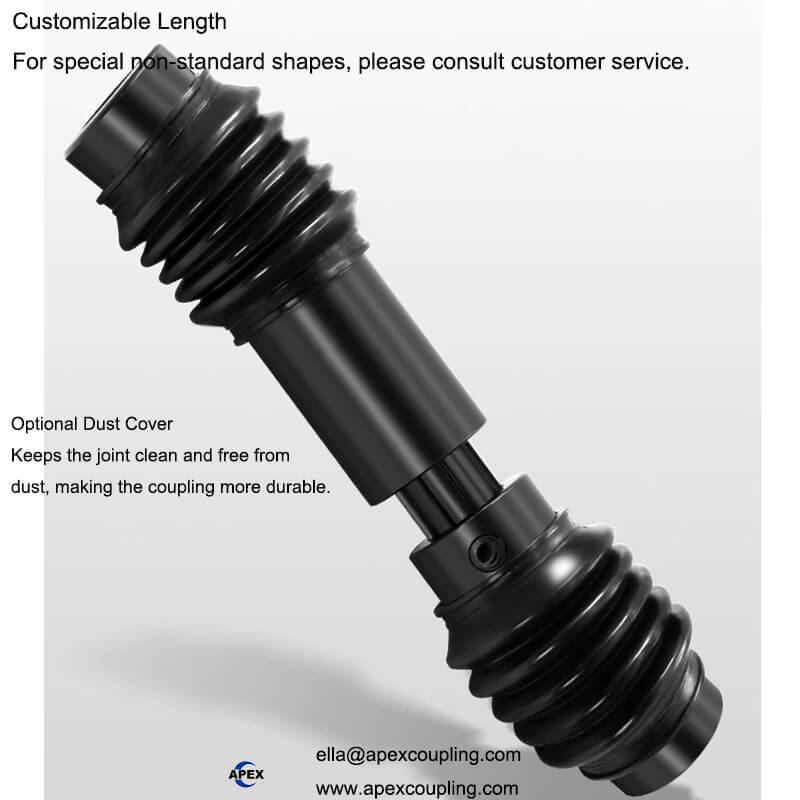

• Optional Protective Dust Boots: Can be equipped with specialized dust sleeves to seal the joint against dirt, debris, and moisture, keeping internal bearings clean and further extending component life.

• Direct Factory Custom Sourcing: As detailed in our product specifications in image_85528c.png, Apexcoupling provides complete OEM and ODM support for non-standard lengths, unique bore geometries, stainless steel profiles, and custom hardware configurations built to your technical prints.

Technical Specifications Table
