WJ/WJS Ball-Joint Universal Joint Coupling Manufacturer

Apexcoupling is a professional manufacturer of WJ/WJS ball-joint universal joint couplings for precision industrial transmission systems. Designed with a ball-joint structure instead of a conventional cross shaft, these compact universal couplings provide flexible shaft connection, precise rotation, and reliable torque transmission in a wide range of machinery.

The WJ single ball-joint universal coupling and WJS double ball-joint universal coupling are suitable for applications where compact dimensions, flexible angular transmission, and accurate shaft movement are required.

With precision machining, H7 inner bore accuracy, low backlash, and black oxide surface treatment, Apexcoupling provides standard and customized universal joint couplings for machinery manufacturers, distributors, and industrial equipment companies worldwide.

OEM and non-standard customization are supported according to drawings, dimensions, shaft requirements, and application conditions.

What Is a Ball-Joint Universal Coupling?

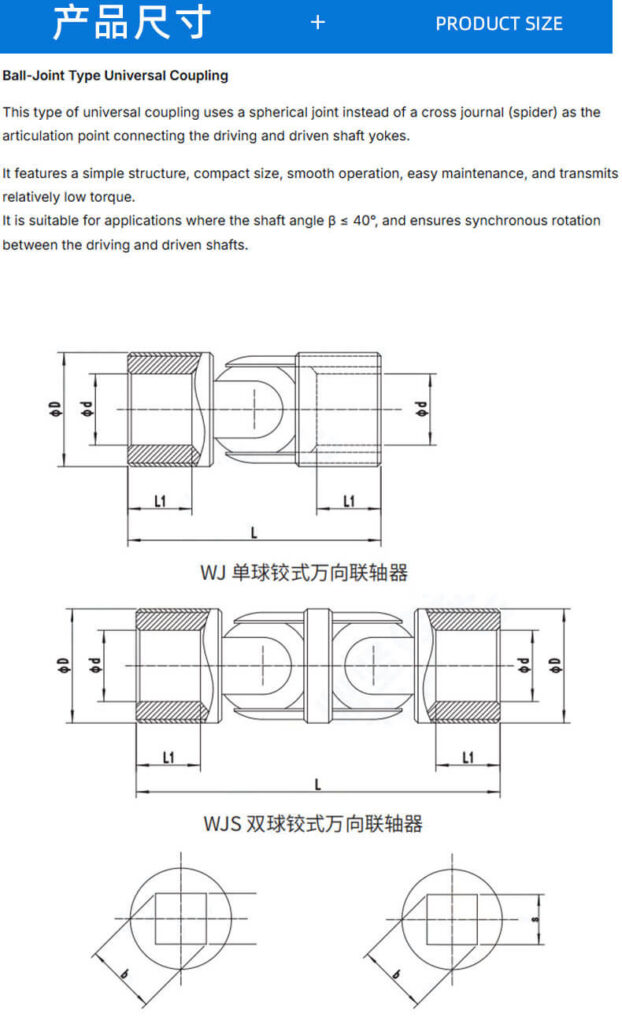

A ball-joint universal coupling uses a spherical component as the articulated connection between the driving and driven shafts instead of a traditional cross-shaped universal joint.

This structural design provides a compact body and flexible operation while simplifying the overall construction.

The WJ/WJS series can accommodate a shaft angle of up to β ≤ 40° and is designed to maintain synchronized rotation between the driving and driven shafts within the specified operating conditions.

Compared with larger conventional universal joint structures, this design is particularly suitable for compact machinery and precision mechanical transmission applications.

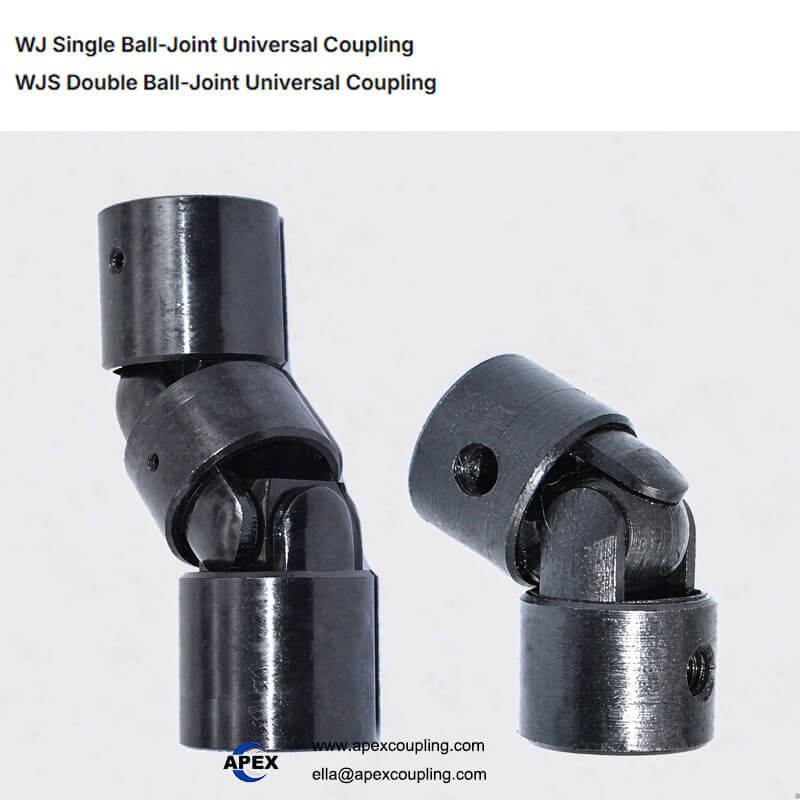

WJ and WJS Universal Joint Coupling Types

WJ Single Ball-Joint Universal Coupling

The WJ universal joint coupling uses a single ball-joint structure and is suitable for compact transmission systems requiring flexible angular movement between connected shafts.

It can be customized according to shaft diameter, bore size, length, outer diameter, torque requirements, and installation conditions.

WJ Features

• Single ball-joint structure
• Compact construction
• Flexible operation
• Precision-machined components
• H7 inner bore available
• Low backlash
• Black oxide surface treatment
• OEM customization available

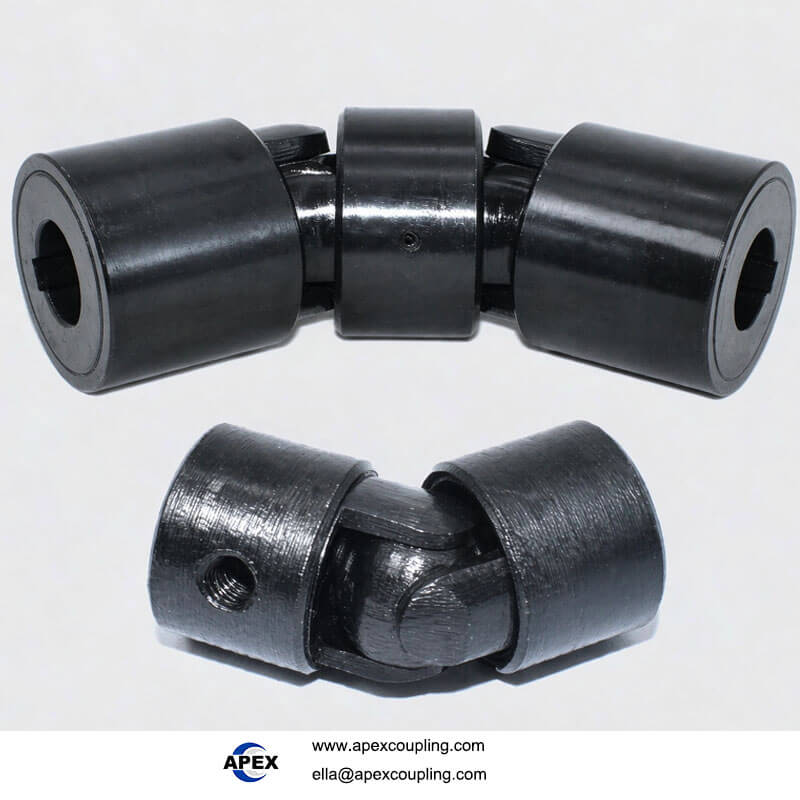

WJS Double Ball-Joint Universal Coupling

The WJS universal joint coupling uses a double ball-joint structure for applications requiring a longer or more flexible transmission arrangement.

The WJS configuration can be customized to match different shaft arrangements and installation requirements.

WJS Features

• Double ball-joint structure
• Flexible shaft transmission
• Compact mechanical design
• High machining accuracy
• Low transmission clearance
• Custom bore and dimensions
• Suitable for precision machinery

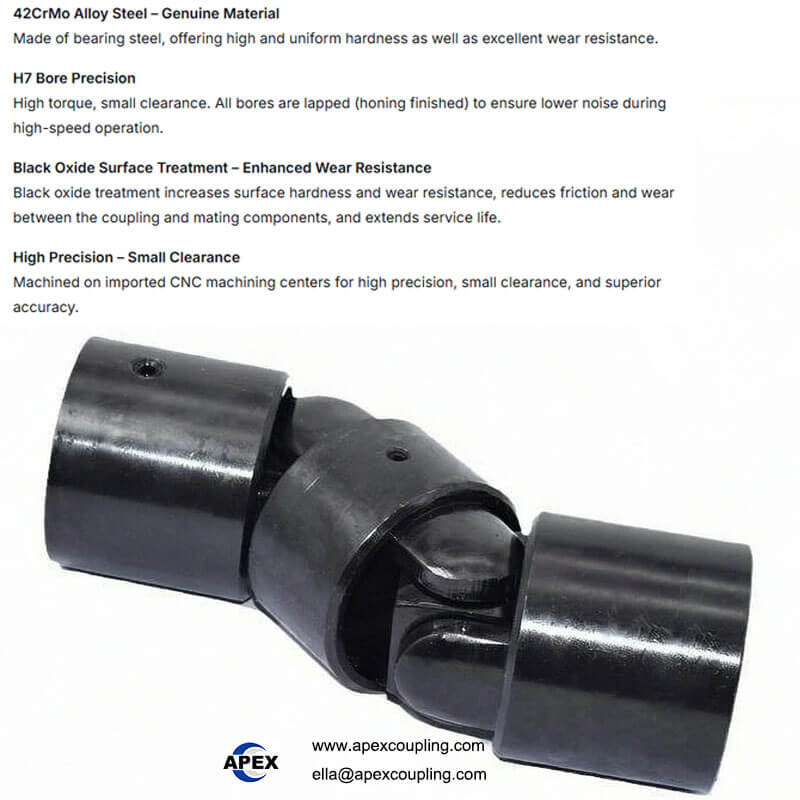

Key Features of WJ/WJS Universal Couplings

1. 42CrMo Alloy Steel Construction

Apexcoupling can manufacture WJ/WJS universal couplings using high-strength 42CrMo alloy steel for demanding industrial applications.

The material provides high mechanical strength and good wear resistance, making it suitable for precision transmission components.

Material selection can also be customized according to the customer’s application and technical requirements.

2. H7 Precision Inner Bore

The inner bore is available with H7 precision, helping provide accurate shaft fitting and stable transmission.

The bore can be customized according to the customer’s shaft diameter and connection requirements.

Available configurations may include:

• Custom bore diameter
• Keyway
• Pin connection
• Set screw
• Special shaft connection
• Drawing-based machining

3. Low Backlash and High Precision

Precision machining helps reduce transmission clearance between components.

The WJ/WJS ball-joint universal coupling is designed for applications where accurate shaft movement and low backlash are important.

This makes it suitable for precision machinery, CNC equipment, automation systems, and other industrial transmission applications.

4. Black Oxide Surface Treatment

The surface of the coupling can be treated with a black oxide finish.

Black oxide treatment improves surface protection and wear resistance while providing a durable industrial appearance.

It can also help reduce surface friction and wear under suitable operating conditions.

5. Compact and Flexible Design

The ball-joint structure provides a compact solution for shaft connection where installation space is limited.

The WJ/WJS series is designed for flexible angular transmission and can operate with a shaft angle of up to 40°, subject to the specific operating conditions and product configuration.

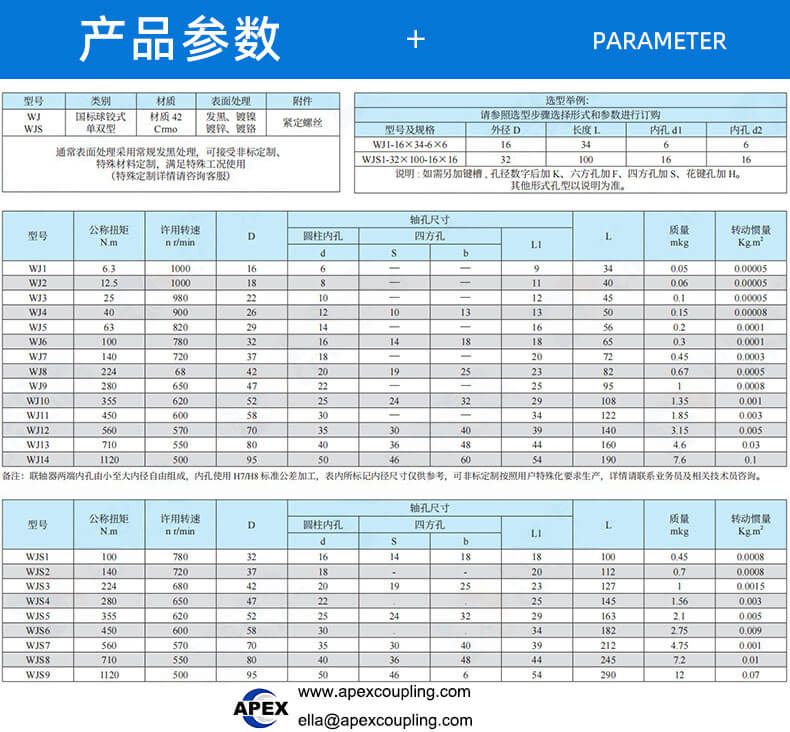

Technical Specifications

Applications

WJ/WJS precision ball-joint universal couplings can be used in a wide range of industrial equipment, including:

CNC Machine Tools

Suitable for precision mechanical transmission systems requiring compact shaft connections and flexible angular movement.

Food Packaging Machinery

The compact universal coupling design can be used in automated food processing and packaging equipment.

Metallurgical Equipment

Suitable for industrial transmission systems operating in demanding manufacturing environments.

Photovoltaic Equipment

Used in mechanical transmission and positioning systems for solar and photovoltaic manufacturing equipment.

Woodworking Machinery

Applicable to various mechanical drive systems used in woodworking equipment.

Chemical Equipment

Can be customized for transmission applications used in chemical processing machinery.

Semiconductor Equipment

The compact structure and precision machining make the WJ/WJS series suitable for selected semiconductor manufacturing equipment.

Printing Machinery

Suitable for flexible shaft transmission in printing and related processing equipment.

Railway Equipment

Custom universal joint coupling solutions can be developed for specific railway mechanical transmission applications.

Custom WJ/WJS Universal Joint Coupling Manufacturer

Different machines require different shaft dimensions, installation spaces, torque requirements, and connection methods.

Apexcoupling provides custom WJ/WJS universal joint couplings based on customer drawings or technical specifications.

We can customize:

• Inner bore diameter
• Outer diameter
• Overall length
• Shaft connection
• Keyway dimensions
• Material
• Surface treatment
• Ball-joint configuration
• Single or double joint structure
• Special non-standard dimensions

If you have a drawing, sample, or existing coupling that needs to be reproduced, send it to our engineering team for evaluation.

Why Choose Apexcoupling?

Source Factory

Apexcoupling is a direct manufacturer of industrial couplings and universal joint transmission components in China.

Precision Manufacturing

Precision machining equipment is used to control dimensions and reduce transmission clearance.

Complete Customization

We support OEM, ODM, and non-standard universal joint coupling production.

Quality Materials

High-strength materials such as 42CrMo alloy steel can be selected according to the application.

Global B2B Supply

We supply industrial customers, machinery manufacturers, distributors, and engineering companies in overseas markets.

Reliable After-Sales Support

We provide technical assistance and product support before and after delivery.

WJ/WJS Universal Joint Coupling FAQ

What is a WJ universal joint coupling?

A WJ universal joint coupling is a single ball-joint universal coupling designed to transmit rotation between shafts operating at an angle. It uses a spherical joint structure rather than a traditional cross shaft.

What is a WJS universal joint coupling?

A WJS universal joint coupling is a double ball-joint version of the WJ series. It is designed for applications requiring a double-joint configuration and flexible angular shaft transmission.

What is the maximum shaft angle?

The WJ/WJS series is designed for shaft angles of up to β ≤ 40°, depending on the specific product configuration and operating conditions.

Can you customize the bore size?

Yes. Apexcoupling supports custom bore diameters, H7 precision bores, keyways, pin holes, and other shaft connection requirements.

What material is used?

42CrMo alloy steel is available for the main coupling structure. Material selection can be customized according to the application and technical requirements.

Do you support OEM orders?

Yes. We support OEM, ODM, and non-standard customization. Customers can provide drawings, samples, dimensions, or technical specifications.

What machinery uses WJ/WJS universal couplings?

They can be used in CNC machine tools, food packaging machinery, metallurgical equipment, photovoltaic equipment, woodworking machinery, chemical equipment, semiconductor equipment, printing machinery, and other industrial transmission systems.

Get a Custom WJ/WJS Universal Joint Coupling Quote

Looking for a WJ/WJS universal joint coupling manufacturer for your industrial equipment?

Apexcoupling provides precision ball-joint universal couplings with H7 bore accuracy, low backlash, compact construction, OEM customization, and factory-direct supply.

Send us your drawing, dimensions, shaft size, or application requirements.

Our engineers can recommend a suitable WJ or WJS configuration and provide a competitive quotation for your project.
