Economical & Reliable Alignment: L-Type Standard Flexible Jaw Spider Coupling

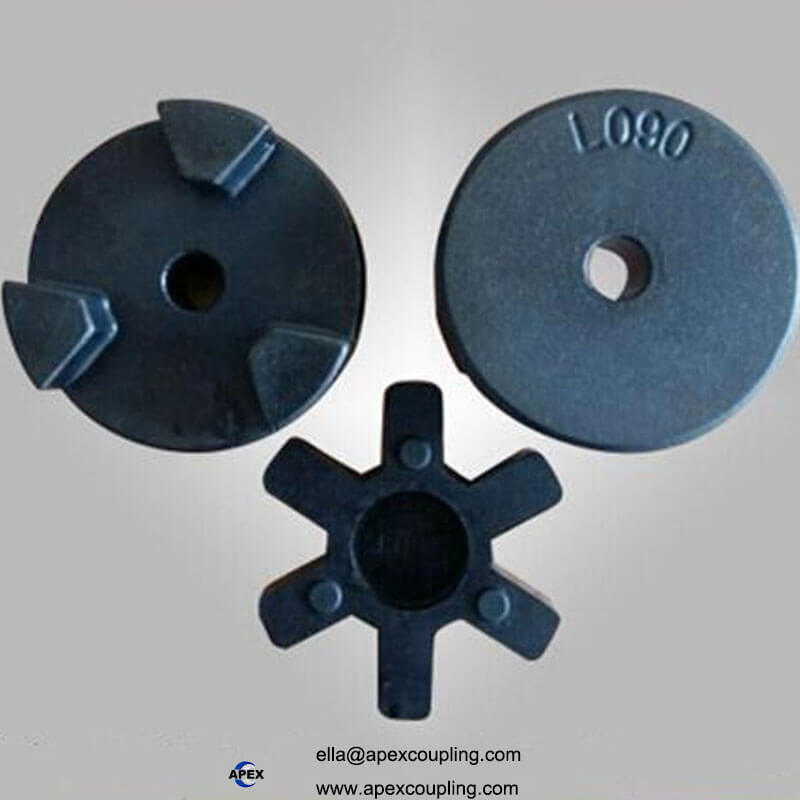

The L-Type Standard Flexible Jaw Coupling Series delivers a highly efficient, cost-effective, and lightweight power transmission solution engineered to absorb shaft misalignments and dampen system vibrations. For light-to-medium industrial equipment setups, utilizing over-engineered or heavy rigid couplers increases system weight and component costs unnecessarily. This L-type elastic coupling provides a practical answer by pairing two precision-formed metallic hubs with a resilient central rubber insert. Designed with a fail-safe jaw and spider geometry, it cushions operational shocks, requires absolutely no lubrication, and simplifies routine inspections—making it an industry favorite for light conveyors, automated assembly lines, wave soldering machinery, and low-load industrial electric motor linkages.

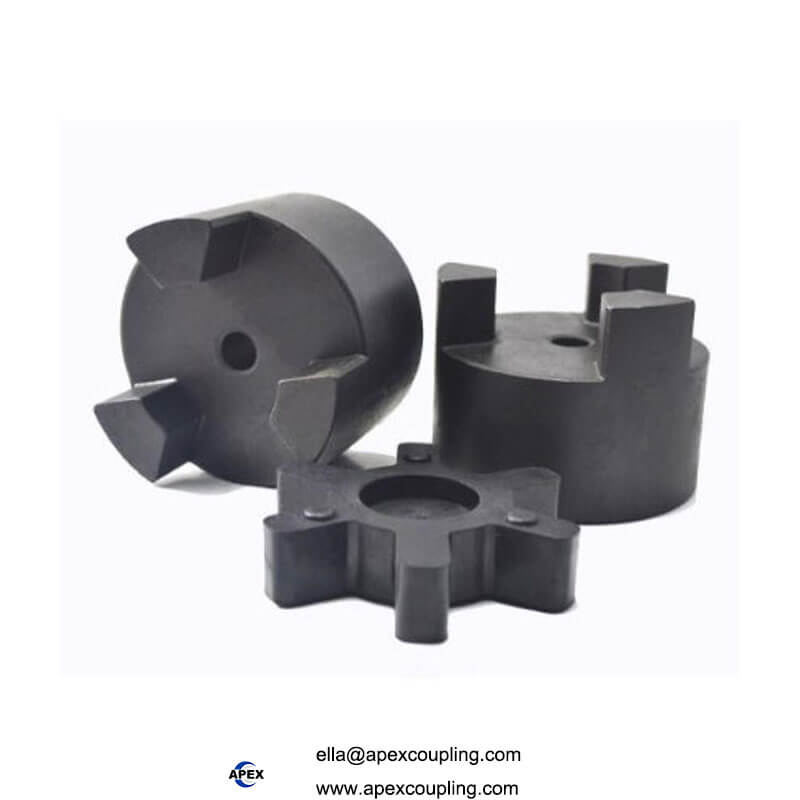

As detailed in the technical profile in image_f48740.png, our standard L flexible jaw coupling features premium Steel hubs produced via an advanced powder metallurgy process. The intermediate cushioning pad is crafted from high-grade NBR (Nitrile Butadiene Rubber) material, which provides superb resistance to oils, grease, and frictional heat. Finished with a protective Black Oxide surface treatment, this compact flexible joint operates seamlessly across an extensive thermal spectrum from -40 to 100°C while providing excellent long-term structural integrity.

Core Product Advantages / Unique Selling Points

• Economical & Highly Practical Build: Offers excellent cost performance and component efficiency, making it highly suitable for high-volume machinery production and budget-conscious plant operations.

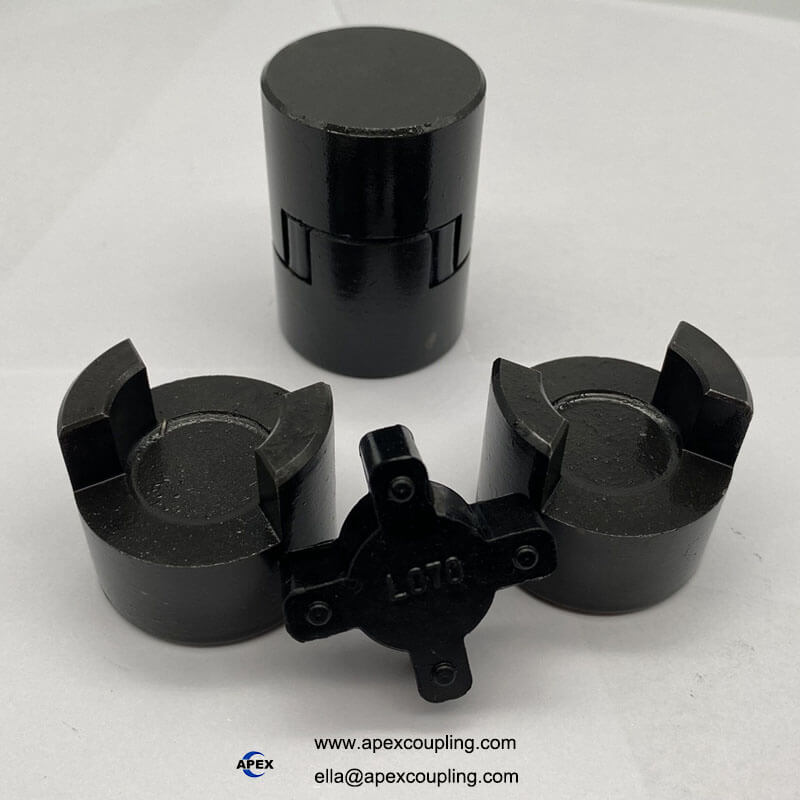

• Premium Powder Metallurgy Steel Hubs: Engineered through an advanced steel powder metallurgy process, ensuring uniform density, excellent dimensional accuracy, and a lightweight footprint.

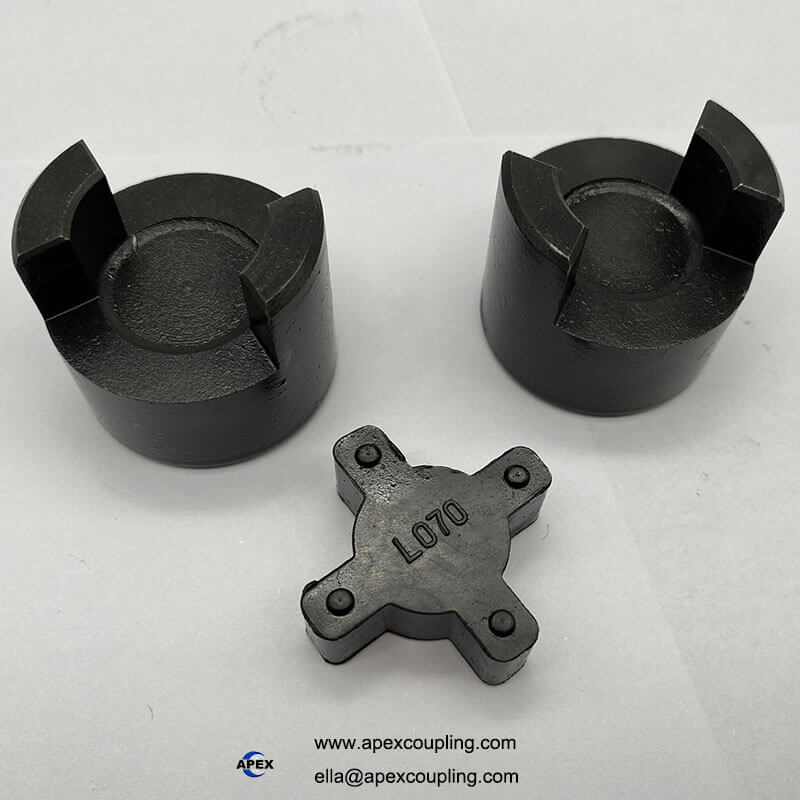

• High-Quality NBR Rubber Insert: The durable NBR elastomer core absorbs torsional shocks, reduces high-frequency vibration, and resists oils, solvents, and aging under continuous loads.

• Lubrication-Free & Low Maintenance: Eliminates the need for ongoing grease or oil maintenance, protecting against product contamination and keeping maintenance labor costs low.

• Easy Assembly & Rapid Inspection: Straightforward jaw architecture allows for quick visual inspection and easy disassembly without requiring total teardown of the driving or driven equipment shafts.

• Wide Temperature Resilience: Specially formulated NBR and treated steel allow the coupling to operate safely in harsh environments spanning from -40°C up to 100°C.

• Direct Factory Sourcing with 1-Set MOQ: Precision manufactured under strict global standards in Guangdong, China, backed by a 1-year warranty and an accessible 1 set Minimum Order Quantity for quick prototyping.

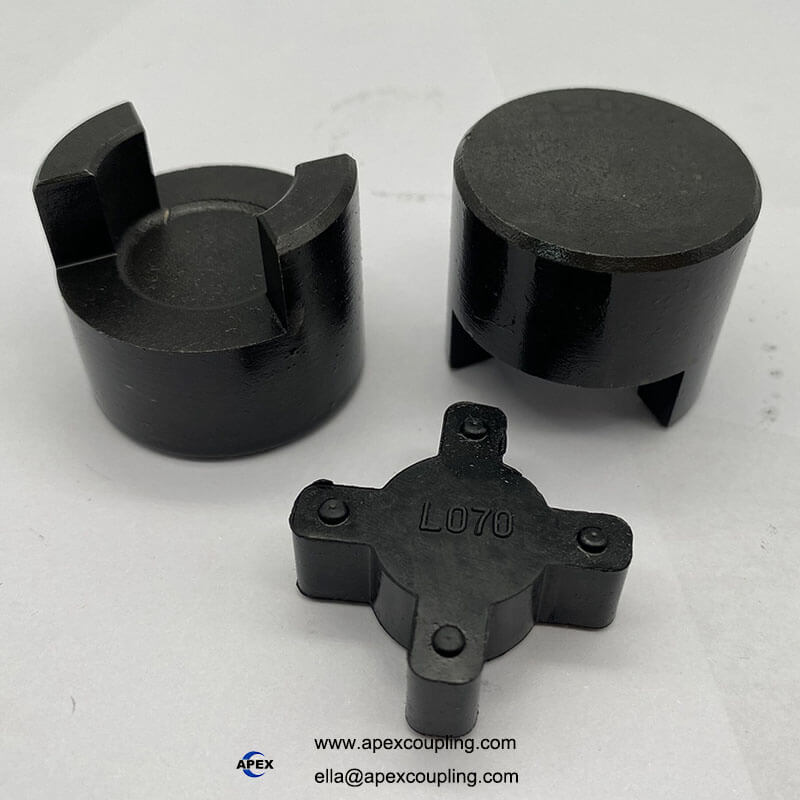

• Complete OEM, ODM, & OBM Support: Benefit from complete manufacturer customization options, including specialized bore diameters, unique keyways, and bespoke dimensions tailored to your technical prints.

Technical Specifications Table
