Maximum Bore, Minimum Inertia: SJM Keyed Double Diaphragm Couplings

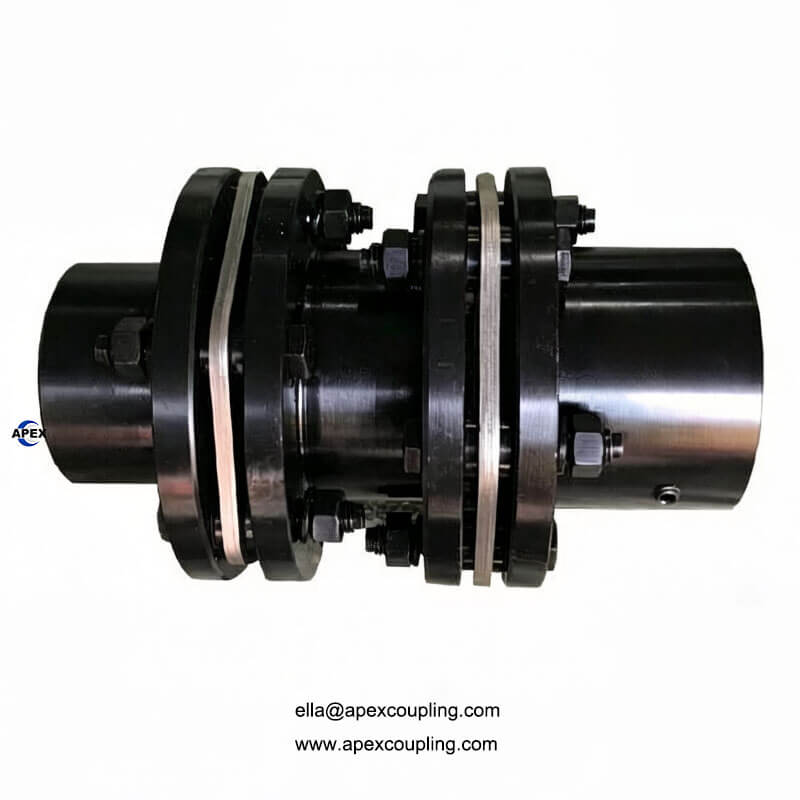

The SJM Series Keyed Double Diaphragm Coupling is engineered for high-precision mechanical synchronization across heavy-duty and high-velocity applications. By utilizing a traditional parallel keyway mechanical locking interface  instead of bulky internal locking assemblies, the SJM series achieves a significantly lower moment of rotational inertia and fits larger maximum shaft diameters within the exact same outer diameter profile. Equipped with premium, high-elastic stainless steel double disc packs, this coupling absorbs severe parallel, angular, and axial offsets, making it the premier choice for CNC feed spindles, high-output chemical pumps, and aggressive reversing motion networks.

Core Product Advantages

• Optimized Low-Inertia Profile: Eliminating internal expansion tapers keeps the mass tightly centered around the axis, minimizing rotational inertia for snappy, power-saving acceleration/deceleration cycles.

• Maximised Large Bore Capacity: At identical outer dimension boundaries, the keyed design yields thicker hub walls, allowing for larger finished bores to accommodate heavy gearboxes or motor outputs.

• Superior Parallel Misalignment Limits: The double-diaphragm spacer configuration accommodates massive eccentric and multi-axis offsets, smoothly bridging drive shafts without loading adjacent bearings with secondary bending stress.

• Strict Zero-Backlash Accuracy: Crafted with premium-stamped stainless steel spring webs to ensure absolute zero-play timing, matching critical precision requirements for high-frequency reversing and sub-micron positioning.

• Solid 45# Defect-Free Metallurgy: Forged entirely from dense, flaw-free 45# carbon steel and treated with industrial anti-oxidant black oxide to ensure extreme yield strength and zero structural fracturing.

• Friction-Free & Wearless Operation: Operates without sliding, rubbing metal joints, or lubricating greases, dropping ambient workshop noise to zero and eliminating ongoing aftermarket maintenance fees.

• Heavy-Duty Industrial Application Pool: Universally integrated into multi-stage compressors, industrial turbines, chemical fluid pumps, textile machinery, power generator systems, and high-RPM testing arrays.

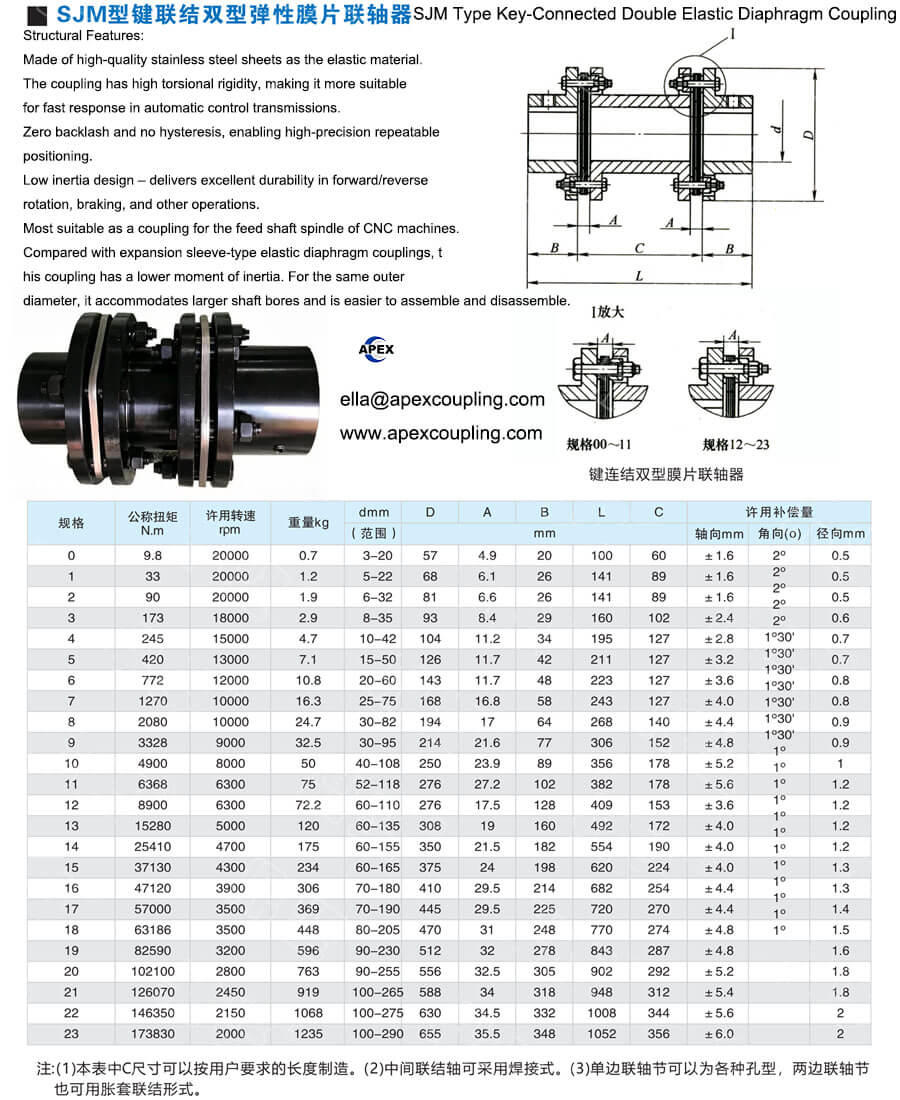

Technical Specifications Table
