ROTEX Type Jaw Spider Coupling – PU 98ShA, Zero Backlash, H7 Bore, OEM Customizable
Model Number
Check below, custom
D30-L35-Bore(6~16)
D40-L66-Bore(6~25)
D55-L78-Bore(8~35)
D65-L90-Bore(10~42)
D80-L114-Bore(10~50)
D95-L126-Bore(10~55)
D105-L140-Bore(10~65)
D120-L160-Bore(15~70)
D135-L185-Bore(15~75)
D160-L210-Bore(20~95)
- Phone : +86 13431039760
- Wechat : +86 13431039760
- Whatsapp : +86 13431039760
- Email : ella@apexcoupling.com
Product Description
ROTEX Type Jaw Spider Coupling – PU 98ShA, Zero Backlash, H7 Bore, OEM Customizable
Factory direct | 304/316 stainless steel, 45# steel, or aluminum | 98ShA PU spider | Zero backlash | H7 bore | 300 N·m | 5000 RPM | Clamp screw design | OEM/ODM
The Apexcoupling ROTEX Type Jaw Spider Coupling (also known as a plum coupling or curved jaw coupling) is a precision flexible coupling designed for high-performance power transmission in demanding industrial applications. Featuring a 98ShA polyurethane spider element, this coupling delivers zero backlash operation, excellent vibration damping, and reliable torque transmission. Available in 304/316 stainless steel, 45# steel, or aluminum, with H7 precision bore and clamp screw fastening, it is the ideal solution for manufacturing plants, food & beverage processing, construction, energy & mining, and general industrial machinery.
✅ Zero backlash – suitable for positive and negative rotation. H7 bore precision for high concentricity. OEM customizable bore sizes available.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Brand | Apexcoupling |
| Model Series | ROTEX Type / Jaw Spider / Plum Coupling |
| Type | Flexible / Elastomeric / Jaw / Spider |
| Structure | Curved jaw (spider type) |
| Body Material Options | 304 stainless steel, 316 stainless steel, 45# carbon steel, or Aluminum alloy |
| Spider Material | Polyurethane (PU) – 98 Shore A hardness |
| Spider Color | Red (standard) |
| Bore Diameter | 50 mm (example) – customizable |
| Rated Torque | 300 N·m |
| Maximum Speed | 5000 RPM |
| Backlash | Zero (zero rotational clearance) |
| Bore Tolerance | H7 (precision fit) |
| Misalignment Compensation | Radial, angular, and axial deviations |
| Vibration Absorption | Yes (PU spider dampens shock and vibration) |
| Fastening Method | Clamping screw (set screw) |
| Design | Detachable – easy installation and maintenance |
| Standard or Nonstandard | Standard with OEM/ODM support |
| Customized support | OEM, ODM |
| Applicable Industries | Manufacturing plants, machinery repair shops, food & beverage factories, home use, retail, construction works, energy & mining |
| Warranty | 1 Year |
| Place of Origin | Guangdong, China |
🔧 Custom bores, keyways, spider hardness, and special materials available. Contact us with your specifications.
Material Options
| Material | Properties | Best For |
|---|---|---|
| 304 Stainless Steel | Excellent corrosion resistance, good strength, hygienic | Food & beverage, chemical, general industry |
| 316 Stainless Steel | Superior corrosion resistance, marine-grade | Marine, pharmaceutical, highly corrosive environments |
| 45# Carbon Steel | High strength, high hardness, wear resistance | Heavy-duty industrial, high torque applications |
| Aluminum Alloy | Lightweight, low inertia, corrosion-resistant | High-speed, precision, low-torque applications |
98ShA PU Spider – Technical Details
The 98 Shore A polyurethane spider is the heart of this coupling:
| Property | Value |
|---|---|
| Material | Polyurethane (PU) |
| Hardness | 98 Shore A |
| Color | Red (standard) |
| Characteristics | High abrasion resistance, high elasticity, excellent damping, oil-resistant, water-resistant |
| Temperature Range | -20°C to 80°C (typical) |
| Backlash | Zero (press-fit with curved jaws) |
💡 The 98ShA spider provides high torsional rigidity while still offering excellent vibration damping and misalignment compensation.
Product Features & Advantages
| Advantage | Benefit |
|---|---|
| Zero Rotational Clearance | No backlash – ideal for positive and negative rotation, servo motors, and precision positioning |
| 98ShA PU Spider | High torsional rigidity with excellent damping, oil/water resistance, and wear resistance |
| H7 Precision Bore | High concentricity, accurate shaft fit, reduces vibration |
| Multiple Material Options | 304SS, 316SS, 45# steel, or aluminum – choose based on your environment and load |
| Clamping Screw Fastening | Secure shaft locking, easy installation and adjustment |
| Misalignment Compensation | Compensates for radial, angular, and axial deviations – protects bearings and seals |
| Detachable Design | Easy installation and maintenance – replace spider without moving hubs |
| High Speed Capability | Up to 5000 RPM – suitable for high-speed machinery |
| OEM/ODM Customization | Custom bores, keyways, spider hardness, and materials available |
| ISO9001 & BV Certified | Quality assured for international buyers |
| CAD Design Support | Engineering drawings provided upon request |
| Professional Selection Support | Free sizing and selection assistance |
Product Structure
Two Hubs – Precision-machined from 304SS, 316SS, 45# steel, or aluminum with curved jaws.
98ShA PU Spider – Red polyurethane elastomer that transmits torque, absorbs shock, and compensates for misalignment.
Clamping Screws – Secure fastening to shafts.
💡 The curved jaw profile ensures a press-fit with the spider, eliminating backlash and providing smooth, precise torque transmission.
Applications
Manufacturing Plants – General power transmission
Machinery Repair Shops – Replacement and upgrade parts
Food & Beverage Processing – With stainless steel option for hygienic applications
Construction Machinery – Reliable drives in harsh environments
Energy & Mining – Conveyors, feeders, crushers
Pumps – Centrifugal, gear, screw, and diaphragm pumps
Fans & Blowers – Industrial ventilation, air handling
Packaging Machinery – Reliable, maintenance-friendly drives
Printing Equipment – Smooth, high-speed operation
CNC Machines – Precision motion control
Servo Motors & Stepper Motors – Zero backlash for precise positioning
Why Choose Apex Coupling for ROTEX Jaw Spider Couplings?
| Advantage | Description |
|---|---|
| Factory Direct | Competitive B2B pricing – no middlemen |
| Premium Materials | 304SS, 316SS, 45# steel, or aluminum – choose based on your needs |
| 98ShA PU Spider | High torsional rigidity with excellent damping characteristics |
| Zero Backlash | Precision performance for reversible and servo applications |
| H7 Precision Bore | High concentricity, accurate shaft fit |
| Clamping Screw Design | Secure fastening, easy installation |
| OEM/ODM Support | Custom bores, keyways, materials, and branding |
| CAD Design Support | Engineering drawings available |
| Professional Selection Support | Free sizing assistance |
| ISO9001 & BV Certified | Quality assured for international buyers |
FAQ
Q: What is a ROTEX type jaw spider coupling?
A: It is a flexible coupling (also called a plum coupling or curved jaw coupling) consisting of two metal hubs with curved jaws and an elastomeric spider. The curved jaw profile ensures zero backlash operation.
Q: What does “98ShA” mean?
A: 98ShA refers to the Shore A hardness of the polyurethane spider. 98 Shore A is a medium-hard formulation that provides high torsional rigidity while still offering excellent vibration damping.
Q: What materials are available for the hubs?
A: We offer 304 stainless steel, 316 stainless steel, 45# carbon steel, and aluminum alloy. Choose based on your environment and load requirements.
Q: What is the bore tolerance?
A: Standard bore tolerance is H7 for precision shaft fit and high concentricity.
Q: What is the torque and speed rating?
A: Rated torque is 300 N·m and maximum speed is 5000 RPM. Specific ratings vary by model size.
Q: Does the coupling have backlash?
A: No. The ROTEX type coupling features zero backlash – no rotational clearance, suitable for positive and negative rotation.
Q: Can the coupling compensate for misalignment?
A: Yes. The PU spider compensates for radial, angular, and axial deviations.
Q: Can I get a custom bore size?
A: Yes. We offer OEM and ODM customization – custom bores, keyways, and special designs available.
Q: Do you provide CAD drawings?
A: Yes. We offer CAD design support and can provide engineering drawings upon request.
Q: What is the warranty?
A: 1 Year – quality assured.
Request a Quote
Send us your bore size, material preference, torque, speed, and application details. Our engineers will recommend the optimal model and provide a quotation within 24 hours.
ROTEX coupling
jaw spider coupling
plum coupling
98ShA PU spider
zero backlash coupling
H7 bore coupling
stainless steel jaw coupling
OEM flexible coupling
300 Nm coupling

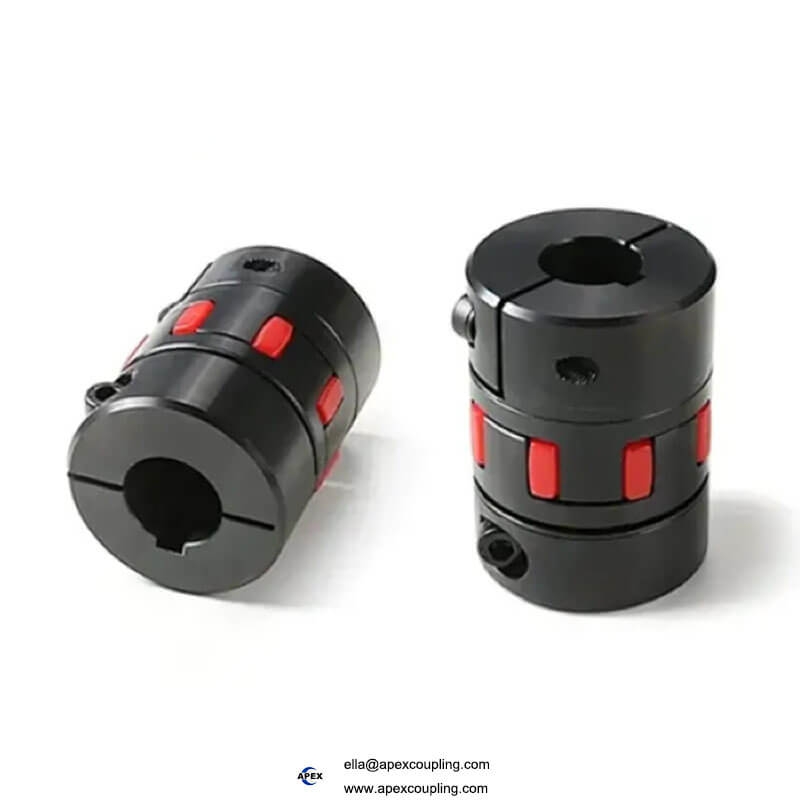

Product Show
