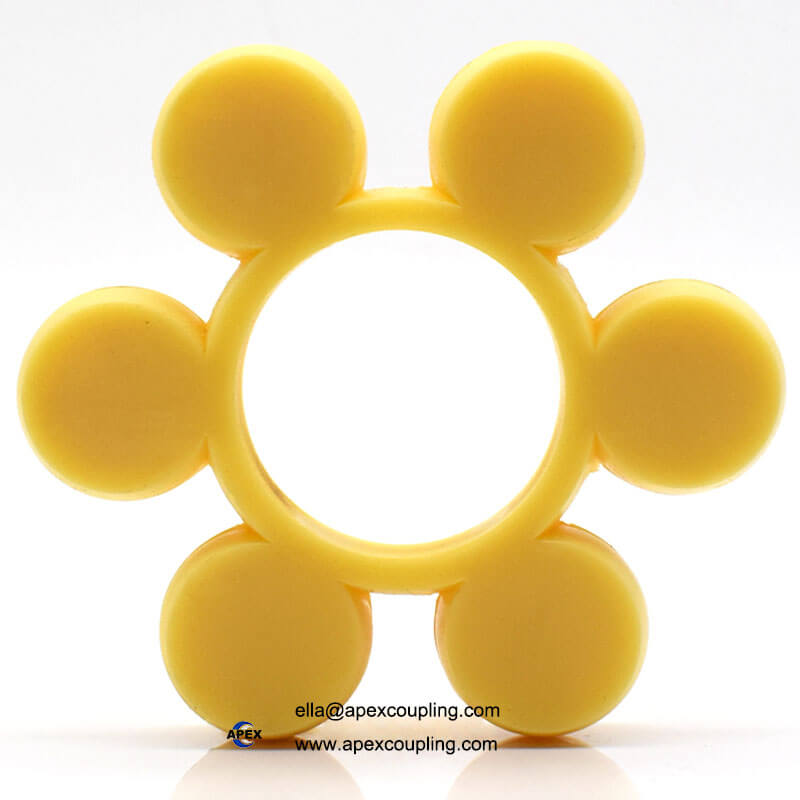

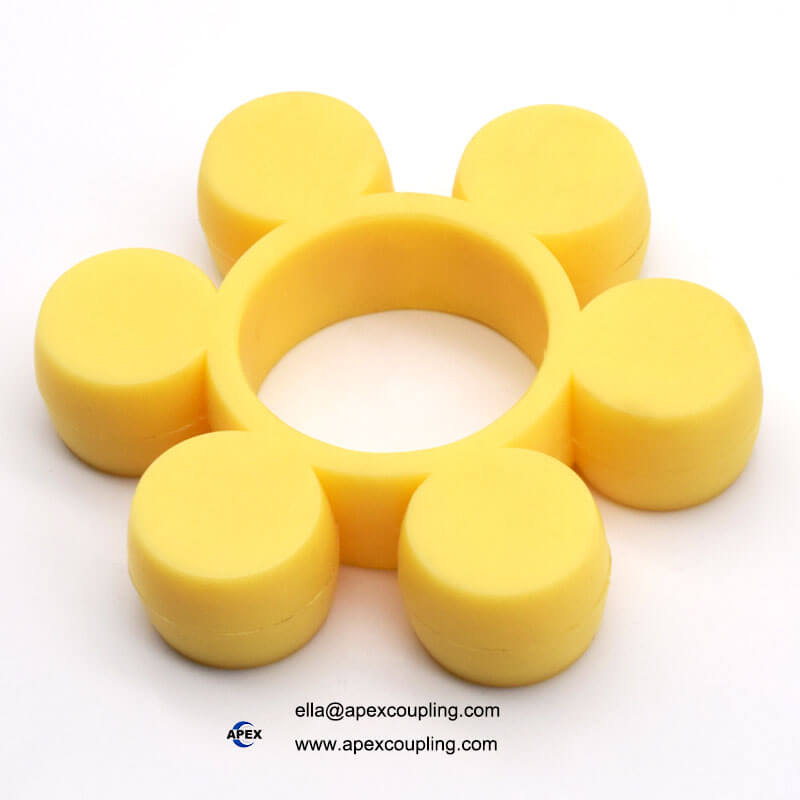

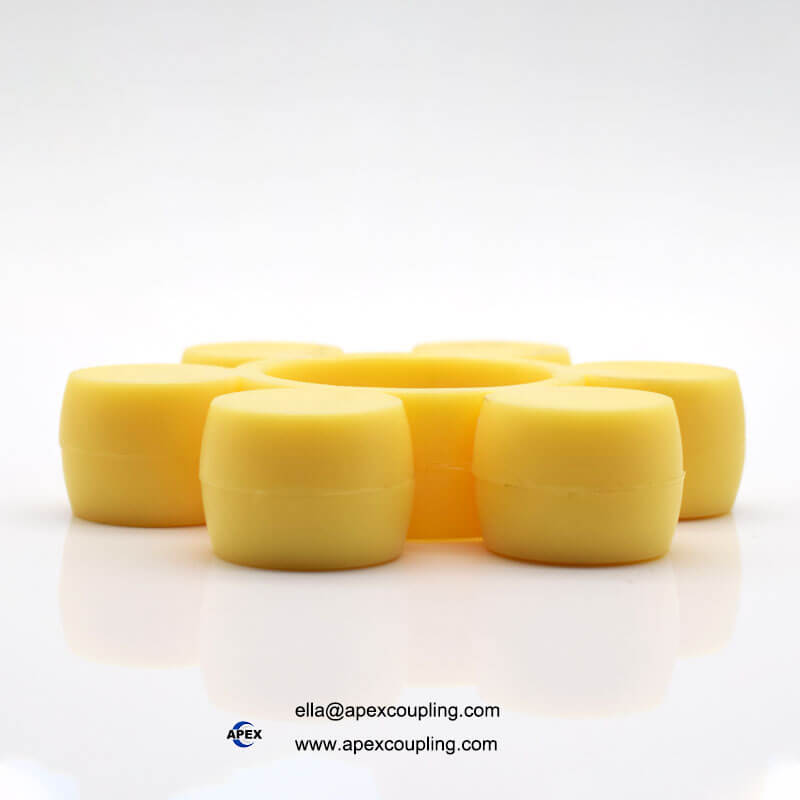

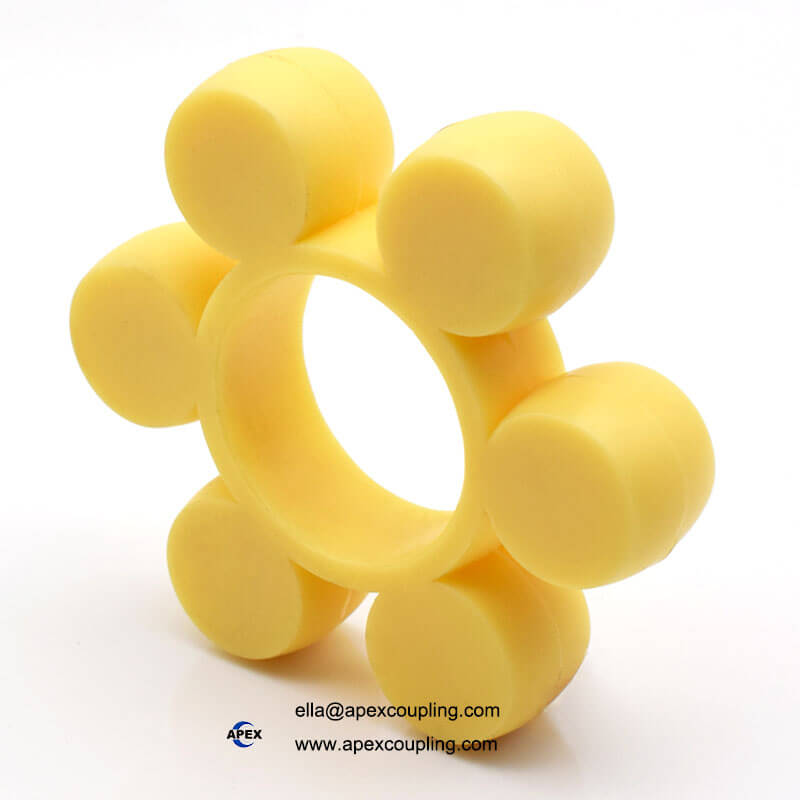

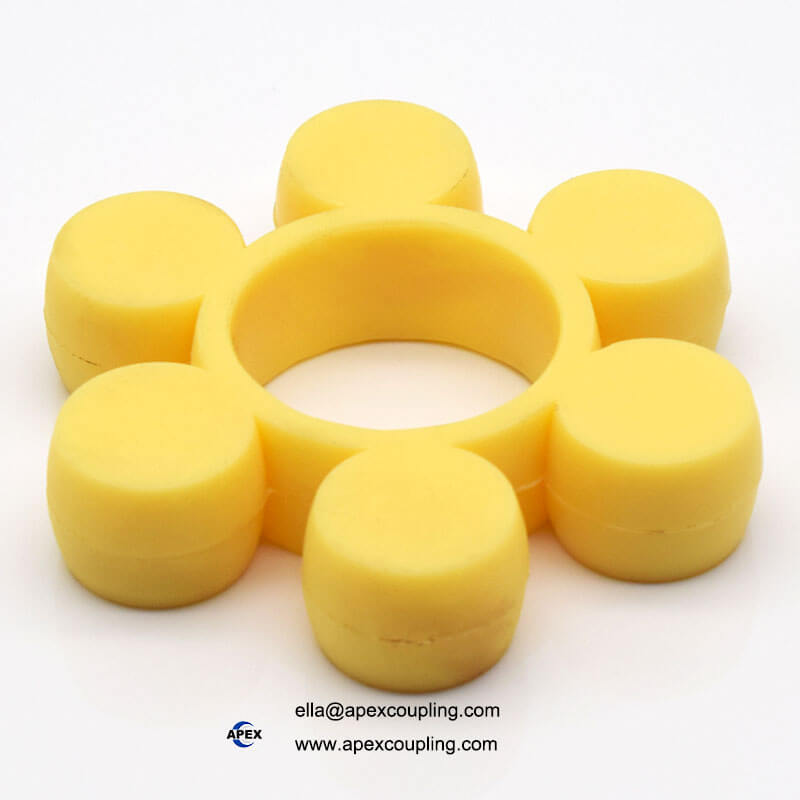

Precision Shock Absorption: High-Precision PU Flexible Coupling Spider

The High-Precision PU Flexible Coupling Spider / Plum Blossom Elastic Cushion  is engineered to serve as the critical dampening heart of industrial jaw-style shaft couplings. In modern machinery setups, transmission components face constant vibration, angular variation, and alignment challenges. This premium polyurethane (PU) elastic cushion is placed between intersecting coupling hubs to isolate mechanical vibration, absorb sudden torque spikes, and manage parallel, axial, and angular misalignments, keeping your drivetrain stable and responsive.

Manufactured in China using advanced high-processing polyurethane technology, these flexible spider elements offer superior material properties compared to traditional NBR rubber. They provide an optimal balance of hardness, elasticity, and wear resistance, maintaining critical structural performance across demanding manufacturing plant applications and heavy-duty machinery setups.

Core Product Advantages

• Advanced High-Processing Polyurethane (PU): Formulated from high-grade polyurethane material that delivers high tensile strength and superior load-bearing capacity compared to low-tier rubber inserts.

• Excellent Shock & Vibration Isolation: The plum blossom cushion effectively dampens structural resonance and buffers start-stop inertia, actively protecting motor bearings and gearbox seals from fatigue.

• Wide Compatibility Footprint: Designed as an exact-fit replacement element for standard industrial coupling profiles, including GS, GR, MT, HRC, H series, as well as non-standard customized hubs.

• High Wear & Abrasion Resistance: The hard, resilient PU formulation minimizes surface wear and resists localized cracking, ensuring long maintenance intervals and stable power transmission.

• Zero-Backlash Elastomeric Geometry: Precision-molded spider arms fit snugly between coupling jaws to ensure precise 1:1 speed tracking and eliminate rotational play in standard motion setups.

• Excellent Oil & Environmental Aging Resistance: Naturally stable against grease, oil exposure, ozone, and typical chemical misting, preventing the premature swelling or crumbling common with low-grade rubber substitutes.

• Direct Manufacturer OEM/ODM Customization: Backed by Apexcoupling’s advanced production plant, we offer extensive customization options, including specialized durometer ratings (shore hardness variations), unique sizing boundaries, and bespoke custom designs tailored to your technical prints.

Technical Specifications Table
