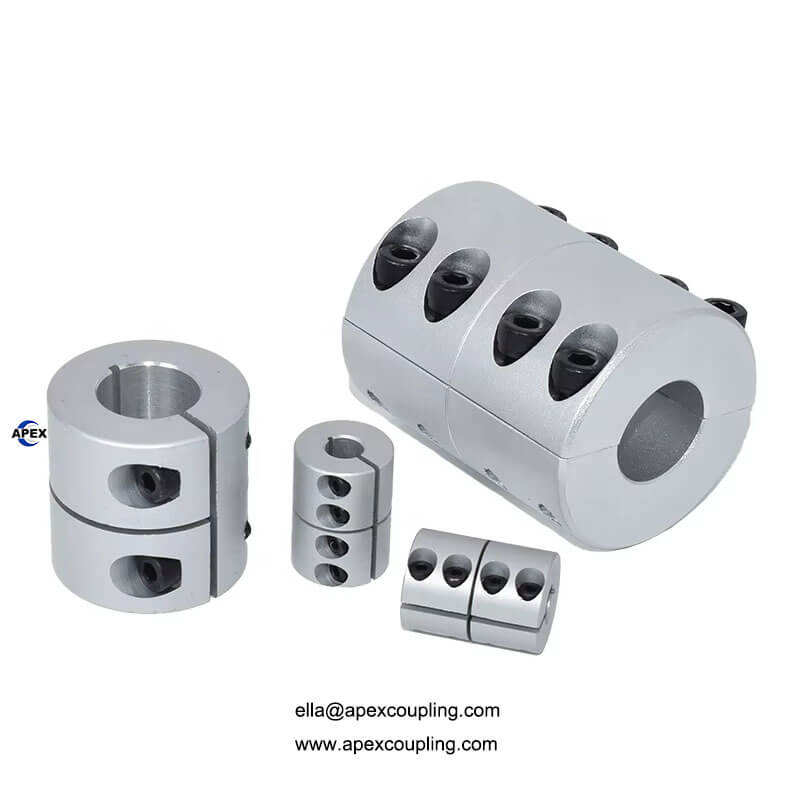

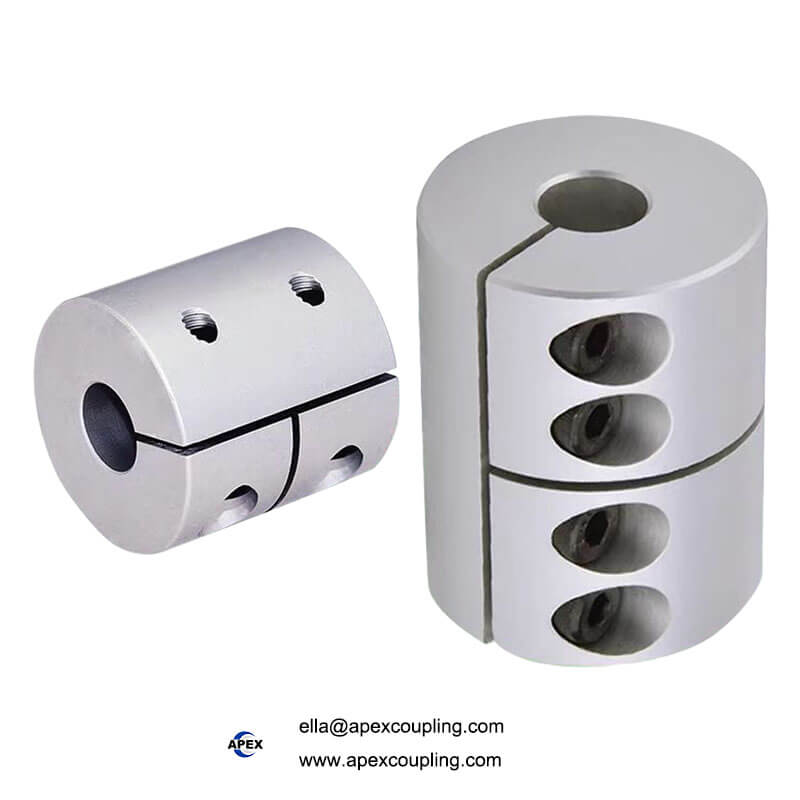

Ultra-High Velocity Rigidity: DNC Series High-Speed Engraving Machine Rigid Clamp Coupling

The DNC Series High-Speed Rigid Clamp Coupling is precision-engineered for high-speed CNC engraving spindles, precision medical instrumentation, and high-frequency automated positioning drives. In high-velocity engraving setups, flexible connectors can introduce tiny amounts of torsional lag or windup, which can lead to micro-chatter, rough surface finishes, or broken tooling. This rigid clamping coupling provides high torsional stiffness and true zero-backlash performance, ensuring absolute rotational accuracy at extreme velocities.

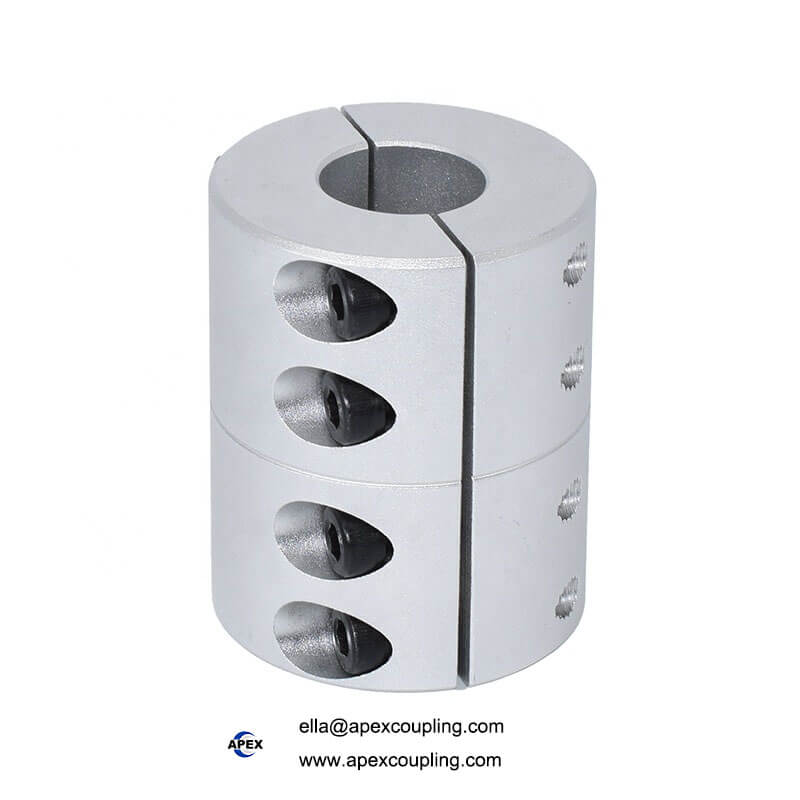

Constructed from premium Alloy Steel or corrosion-resistant Stainless Steel options, the balanced clamping design offers a secure friction grip around the shaft without causing surface damage or deformation. Engineered for extreme performance, this rigid sleeve confidently handles a rated torque of 2000 N·m and supports stable, balanced operation up to an incredible 25,000 RPM.

Core Product Advantages

• Premium Alloy & Stainless Steel Metallurgy: Forged and CNC-machined from high-strength alloy steel or structural stainless steel to provide excellent yield strength, high fatigue resistance, and defense against corrosion.

• Extreme 25,000 RPM Operational Speed: Micro-balanced and precision ground to eliminate vibration, dynamic wobble, and harmonic noise at ultra-high-speed rotation.

• Massive 2000 N·m Torsional Capacity: Built to withstand rapid acceleration, heavy tool loads, and sudden spindle reversals without experiencing slipping or structural deformation.

• True Zero-Backlash Rigidity: The ultra-rigid body delivers direct, 1:1 rotational tracking, maximizing cutting precision and edge detail for fine engraving work.

• Secure Frictional Clamping Mechanism: High-tensile socket clamping screws distribute pressure evenly around the shaft circumference, creating a secure hold without requiring keyways or damaging the shaft surface.

• Precision 30mm Finished Bore: Standard 30mm bore diameter machined to strict tolerances ensures concentric alignment, helping to extend the lifespan of your spindle bearings.

• Direct Manufacturer OEM/ODM Customization: Backed by Apexcoupling’s advanced production plant, we offer complete customization—including custom stepped bores, special lengths, lightweight aluminum options, and tailored torque ratings based on your drawings.

Technical Specifications Table
