Ultra-Compact Synchronous Control: DJM Keyed & ZDJM Taper Single Disc Couplings

The DJM and ZDJM Series 45# Forged Steel Single Diaphragm Couplings are engineered for high-precision, space-restricted industrial power transmission networks. Sculpted from premium 45# solid carbon round steel with zero sand holes or structural impurities, these couplings provide maximum structural hardness, high torque handling, and strict rotational balance. The series offers dual locking adaptations: the DJM variant utilizes a standard precision-broached keyway, while the ZDJM profile integrates an advanced taper bushing  locking assembly. Equipped with imported 304 high-elasticity stainless steel single disc membranes (circular or square), they eliminate torsional backlash and mechanical hysteresis, safeguarding servo motors, ball screws, and main spindle systems from misalignments.

Core Product Advantages

• Zero Backlash & Zero Hysteresis: The specialized pre-loaded metal disc integration allows for direct, instant torque transfer without angular lag, ensuring elite repeatability for multi-axis sub-micron positioning.

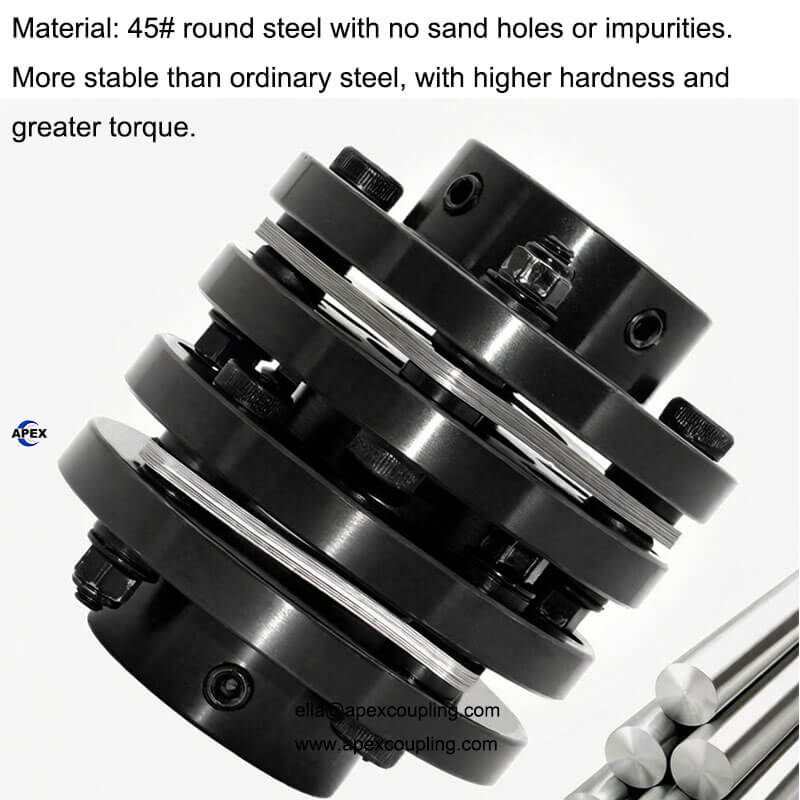

• Flawless 45# Forged Steel Matrix: Machined from solid, premium-grade refined carbon steel bar stock, delivering higher dimensional stability, greater torque boundaries, and longer fatigue limits than cast metal.

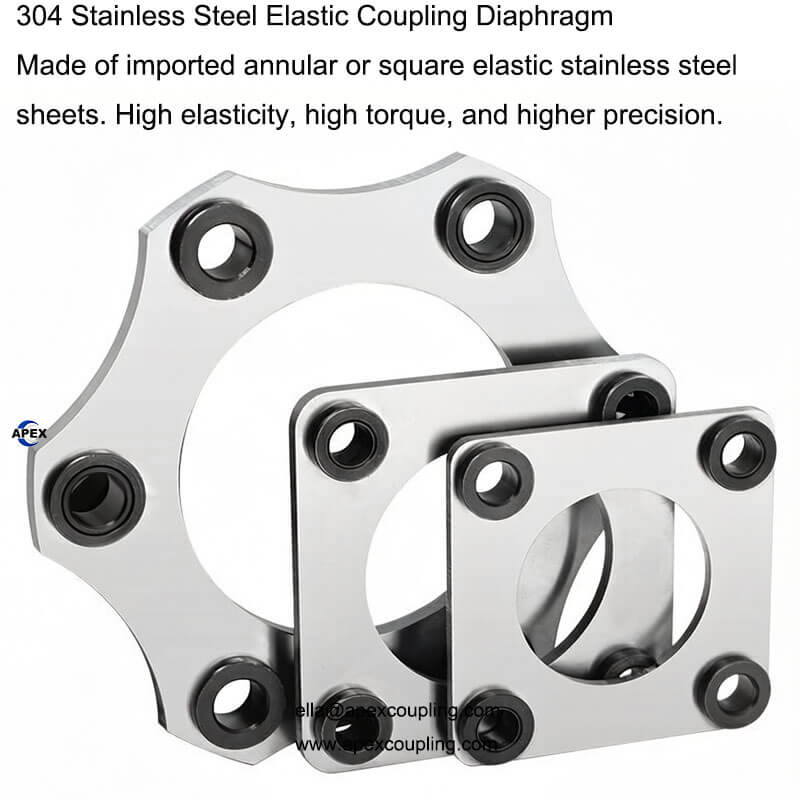

• Premium Imported 304 Disc Webs: Outfitted with top-tier circular or square stainless steel spring sheets that display exceptional elastic memory, anti-corrosion properties, and massive oil resistance.

• Dual Locking Versatility (Keyed / Taper Bushing): Choose the DJM series for compact direct keyway engagement, or the ZDJM taper bushing interface for a highly stable friction lock that ensures high assembly repeatability and fast component swap-outs.

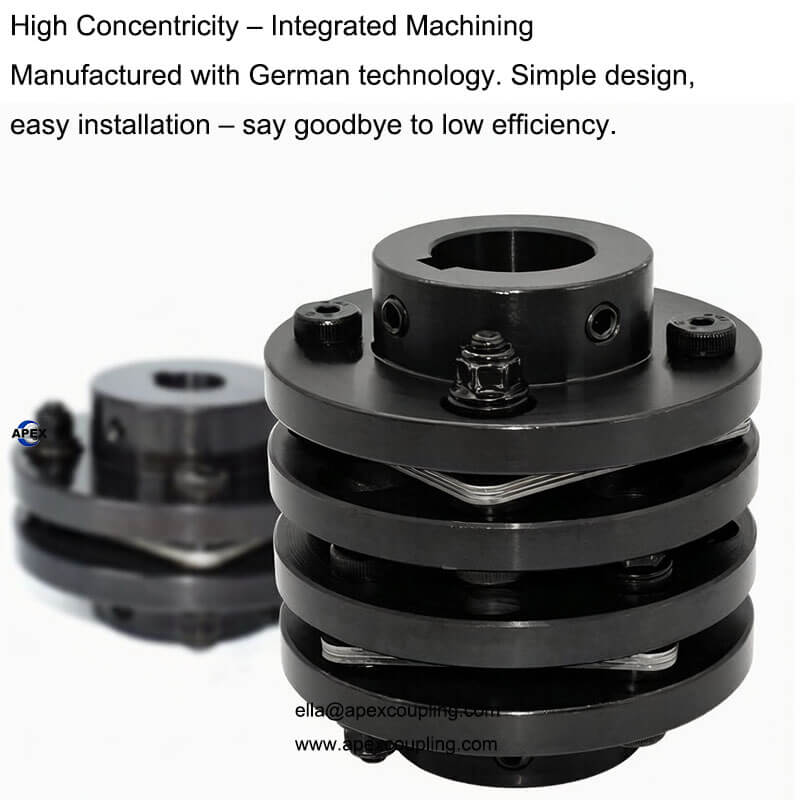

• Integrated Precision Concentricity: Fabricated via German-inspired multi-axis integrated tooling programs to eliminate coaxial runout, reducing excessive dynamic vibration at high operational RPMs.

• Low Energy Loss & Friction-Free: Operates entirely via elastic metal deflection, eliminating sliding friction, rubbing wear, and loud operational noise, resulting in a maintenance-free, lubrication-free service life.

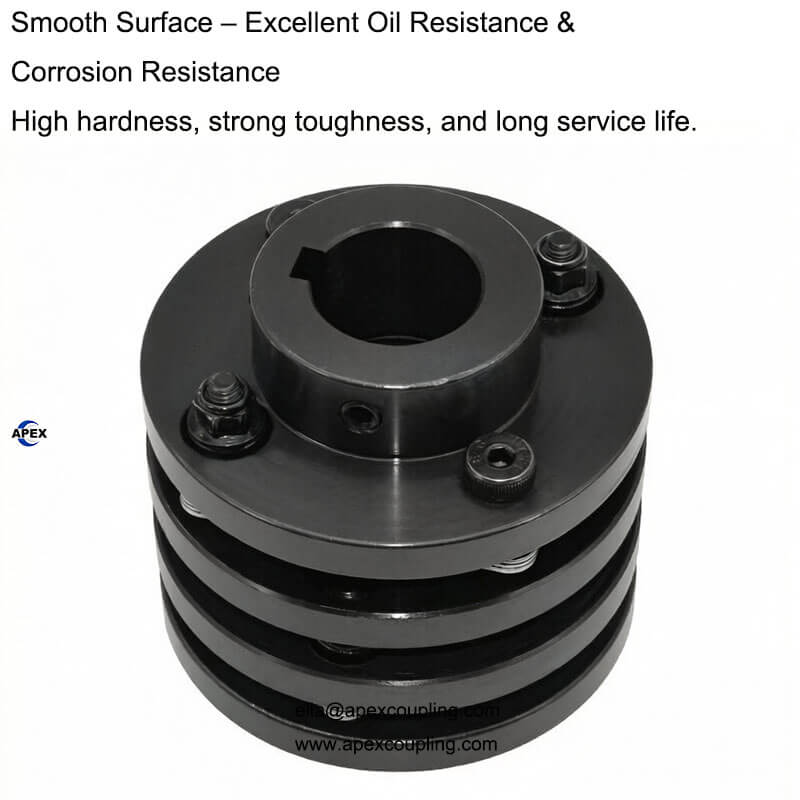

• Severe Operational Environment Shielding: The chemical blackening or polished surface treatment provides long-term resistance against chemical pitting, moisture, and cutting oils in aggressive workshop environments.

Technical Specifications Table
