DI Aluminum Parallel Line Coupling – Zero Backlash Helical Beam Coupling for Encoders & 3D Printers

Factory Direct | High-Strength 7075 Aluminum Alloy | Zero Backlash | Helical (Parallel Line) Cut Design | H7 Precision Bore | Anodized Finish | Clamping Screw Fastening | Maintenance-Free | OEM Customizable

The Apexcoupling DI series is a high-precision aluminum parallel line coupling (also known as a helical beam coupling or slotted coupling) engineered for precision motion control applications. Featuring a one-piece 7075 aluminum construction with parallel helical cuts, this coupling delivers zero backlash torque transmission, excellent misalignment compensation, and effective vibration absorption. The parallel line (helical) design allows the coupling to flex and accommodate angular, radial, and axial misalignment while maintaining high torsional stiffness and low inertia. With H7 precision bore, anodized surface, and clamping screw fastening, the DI series is the ideal solution for encoders, resolvers, 3D printers, stepper motors, servo motors, CNC machines, and miniature drive systems.

✅ Zero backlash – no lost motion for precise positioning. High-strength 7075 aluminum – lightweight and durable. Helical cut design absorbs vibration and compensates misalignment. Anodized finish – corrosion-resistant and professional. Maintenance-free – no lubrication required.

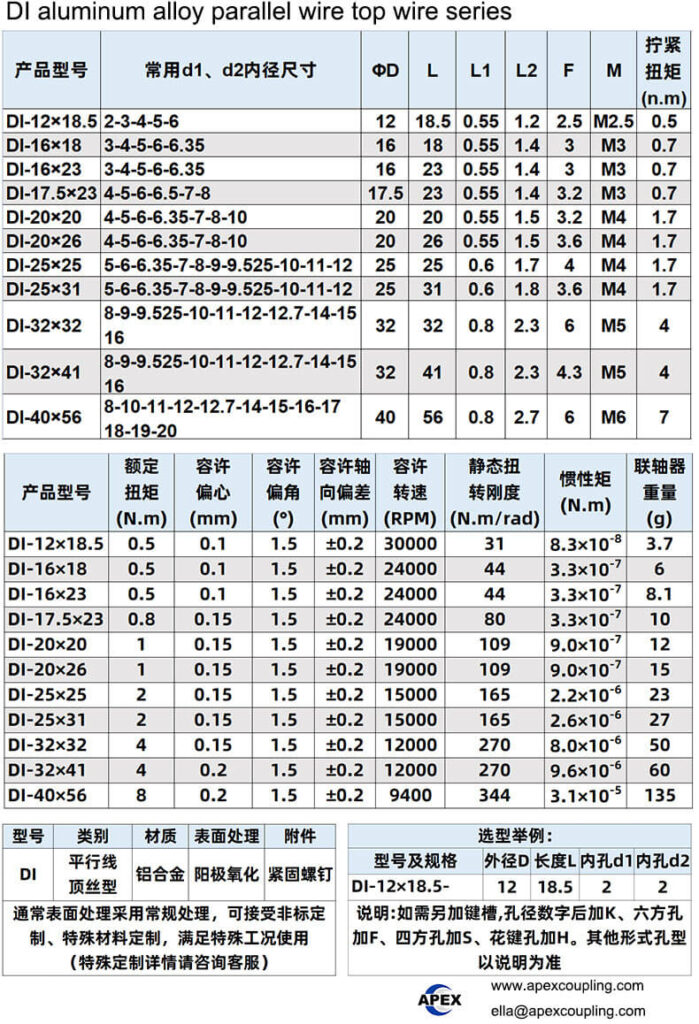

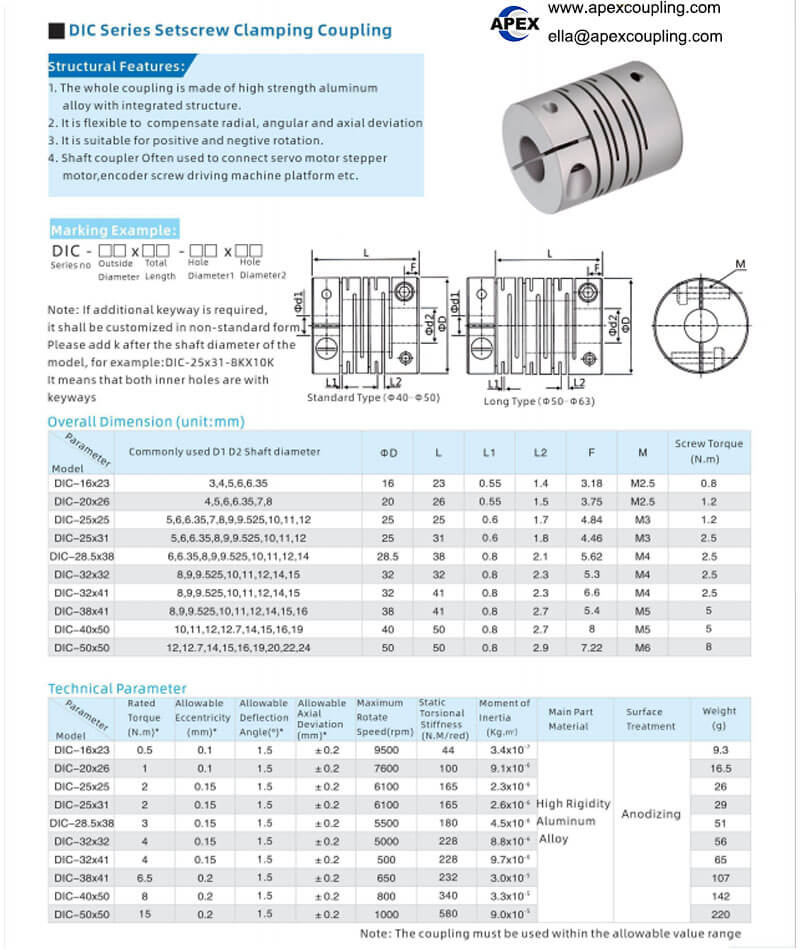

Key Technical Specifications

🔧 Custom bores and special materials available. Contact us with your specifications.

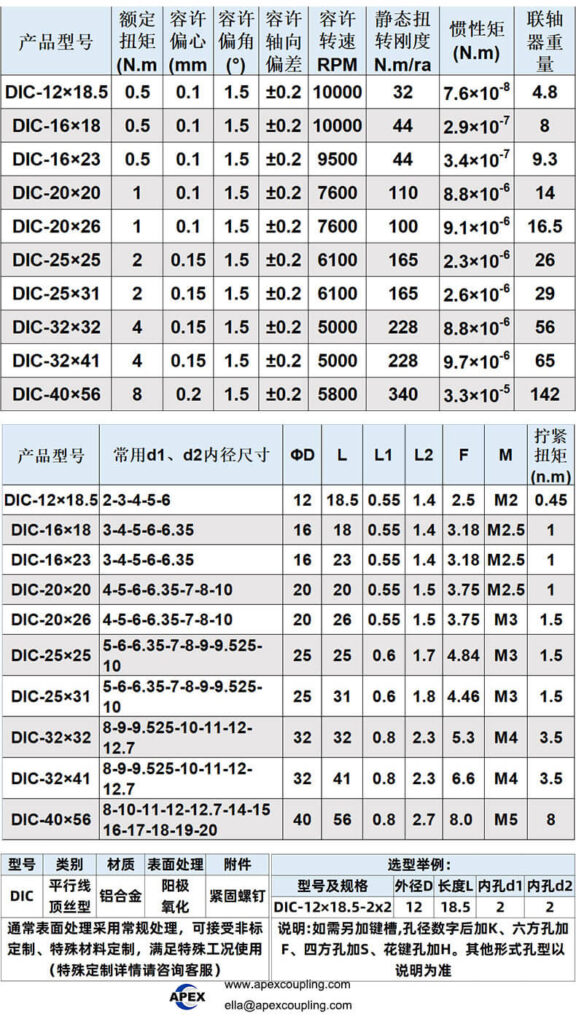

DI Series – Typical Model Range (Reference)

📐 Additional sizes and custom dimensions available upon request. Contact our engineering team for custom sizing.

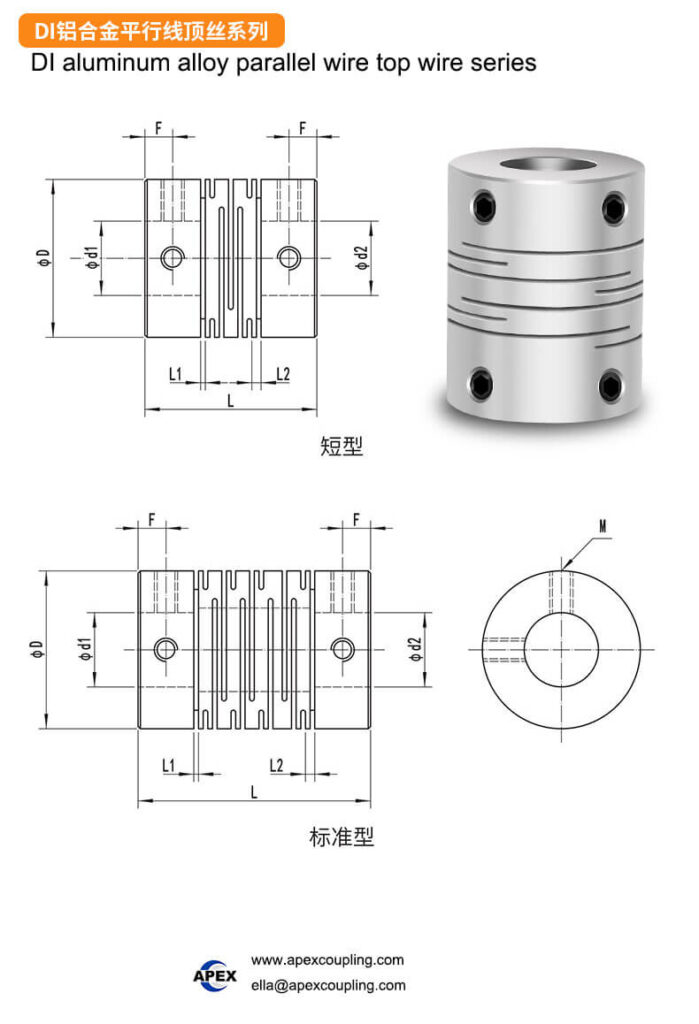

Product Structure

1. One-Piece 7075 Aluminum Body – Precision-machined from high-strength aerospace-grade aluminum alloy.

2. Parallel Helical (Parallel Line) Cuts – Multiple helical slots that provide flexibility and misalignment compensation.

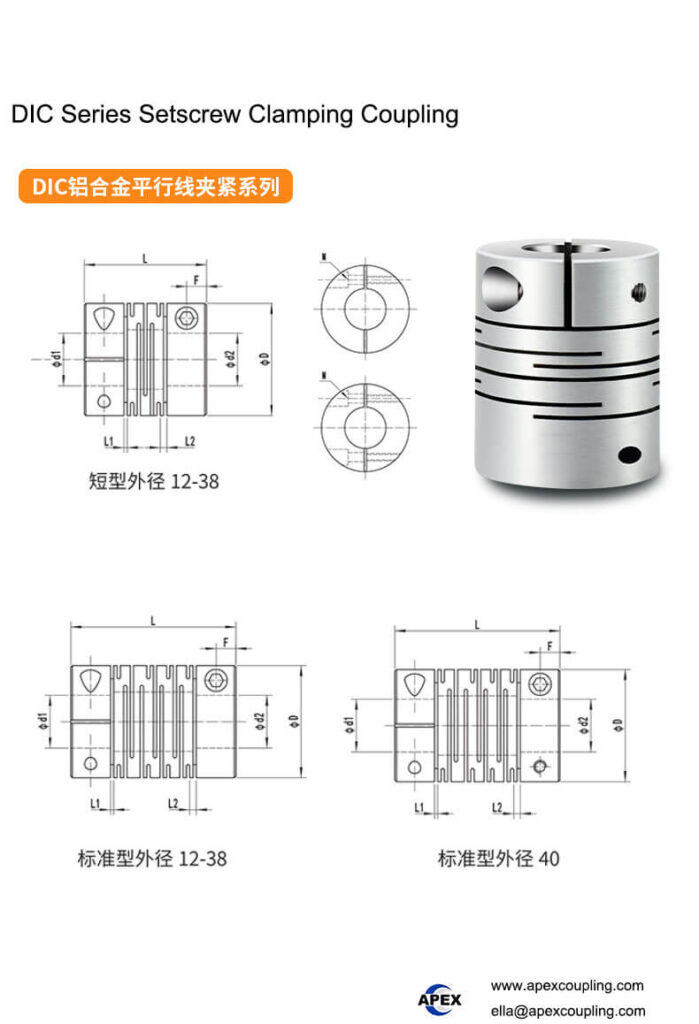

3. Clamping Screw Fastening – Secure shaft fixation with even clamping force.

4. Anodized Surface – Corrosion-resistant and professional appearance.

💡 How it works: The DI coupling features a series of parallel helical cuts machined into a single-piece aluminum body. These cuts create a flexible “spring-like” section that allows the coupling to flex under load. When torque is applied, the helical cuts flex to accommodate angular, radial, and axial misalignment while transmitting torque smoothly. The design provides zero backlash operation, which is crucial for precision control in encoders, servo systems, and automated machinery. The coupling also absorbs vibrations and shocks, protecting connected equipment from damage.

Product Features & Advantages

Why Choose a Helical Beam Coupling?

Helical beam couplings (parallel line couplings) are widely used in precision applications where zero backlash, low inertia, and misalignment compensation are critical. Key advantages include:

• Zero Backlash: Essential for encoders and resolvers where accurate position feedback is required.

• High Misalignment Tolerance: Accommodates angular, radial, and axial misalignment, making them suitable for applications where precision alignment is challenging.

• Low Inertia: The lightweight design makes them ideal for high-speed operation and quick starts/stops.

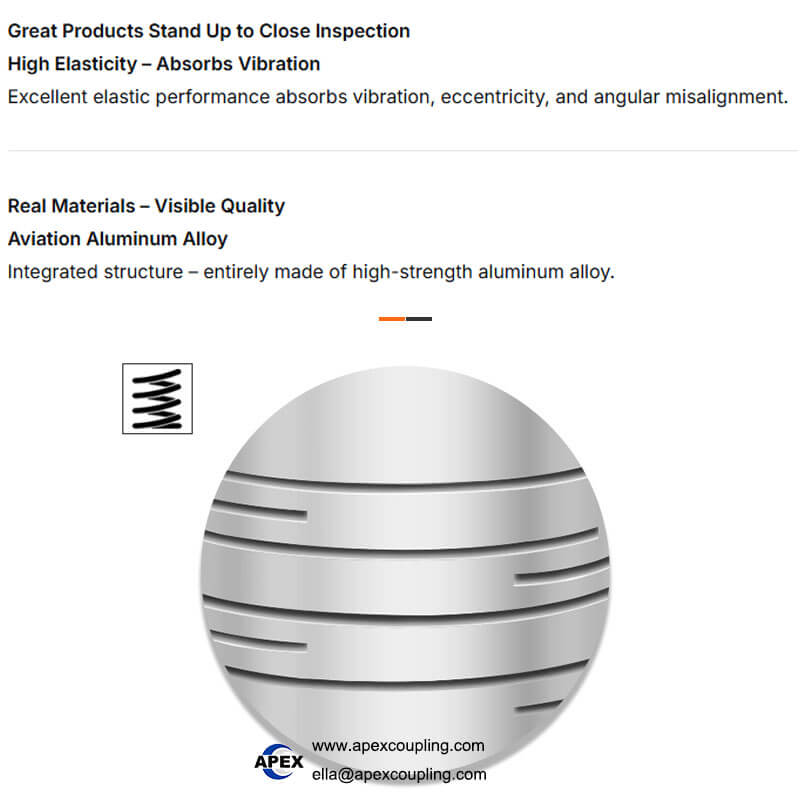

• Vibration Damping: Absorbs vibrations and shocks, protecting sensitive equipment.

• Maintenance-Free: No lubrication required, reducing downtime and maintenance costs.

Applications

• Encoders & Resolvers – Precision position feedback systems

• 3D Printers – Z-axis coupling, filament drive systems

• CNC Machines – Small CNC machines, engraving machines

• Servo Motors – Precision motion control systems

• Stepper Motors – Accurate positioning and step transmission

• Medical Devices – Precision medical equipment

• Robotics – Small robot joint drives

• Automation Equipment – Pick-and-place systems, indexing tables

• Laboratory Equipment – Precision testing and measurement instruments

Why Choose Apex Coupling for DI Parallel Line Couplings?

FAQ

Q: What is a parallel line coupling (helical beam coupling)?
A: A parallel line coupling (also called a helical beam coupling) is a flexible coupling with helical cuts machined into a single-piece metal body. The cuts allow the coupling to flex, accommodating misalignment while transmitting torque with zero backlash.

Q: What is the advantage of the helical (parallel line) design?
A: The helical design provides zero backlash, excellent misalignment compensation (angular, radial, and axial), vibration absorption, and low inertia – making it ideal for precision applications like encoders, 3D printers, and servo motors.

Q: What materials are used?
A: The DI series is manufactured from 7075-T6 high-strength aluminum alloy – an aerospace-grade material that is lightweight, durable, and corrosion-resistant.

Q: Does the coupling have backlash?
A: No. The DI series features zero backlash – no rotational clearance, ensuring precise positioning for encoders and servo motors.

Q: What is the bore tolerance?

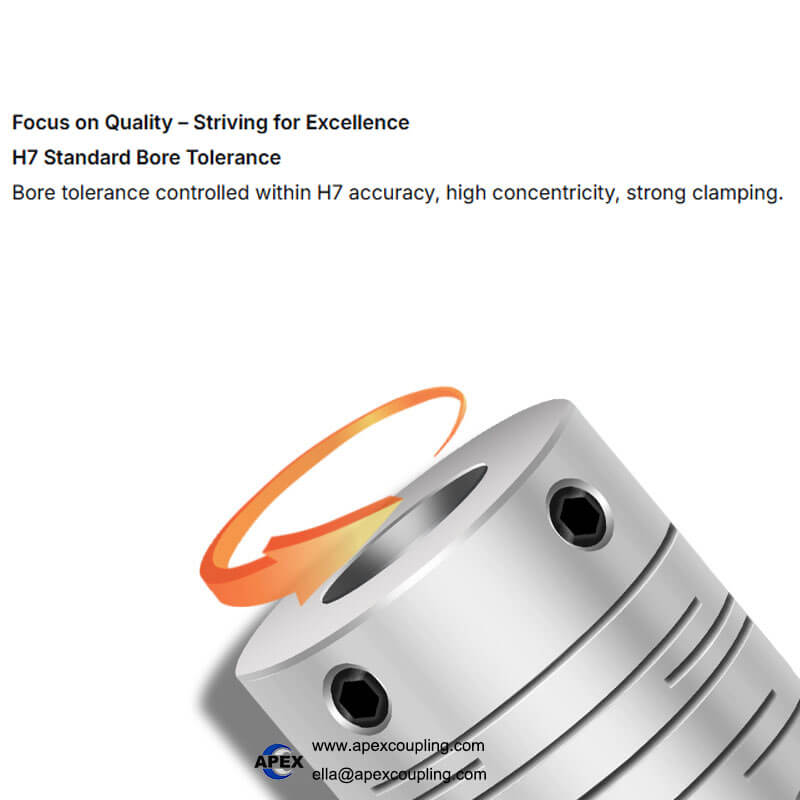

A: Standard bore tolerance is H7 for precision shaft fit and high concentricity.

Q: Is the coupling maintenance-free?
A: Yes. The DI series is maintenance-free – no lubrication required.

Q: What are the common applications?
A: Encoders, resolvers, 3D printers, CNC machines, servo motors, stepper motors, robotics, medical devices, and automation equipment.

Q: Can the coupling compensate for misalignment?
A: Yes. The helical design compensates for angular, radial (parallel), and axial misalignment.

Q: Can I get a custom coupling?
A: Yes. We offer OEM customization – custom bores, lengths, and materials available.

Request a Quote

Send us your bore size, outer diameter, length, and application details. Our engineers will recommend the optimal model and provide a quotation within 24 hours.
