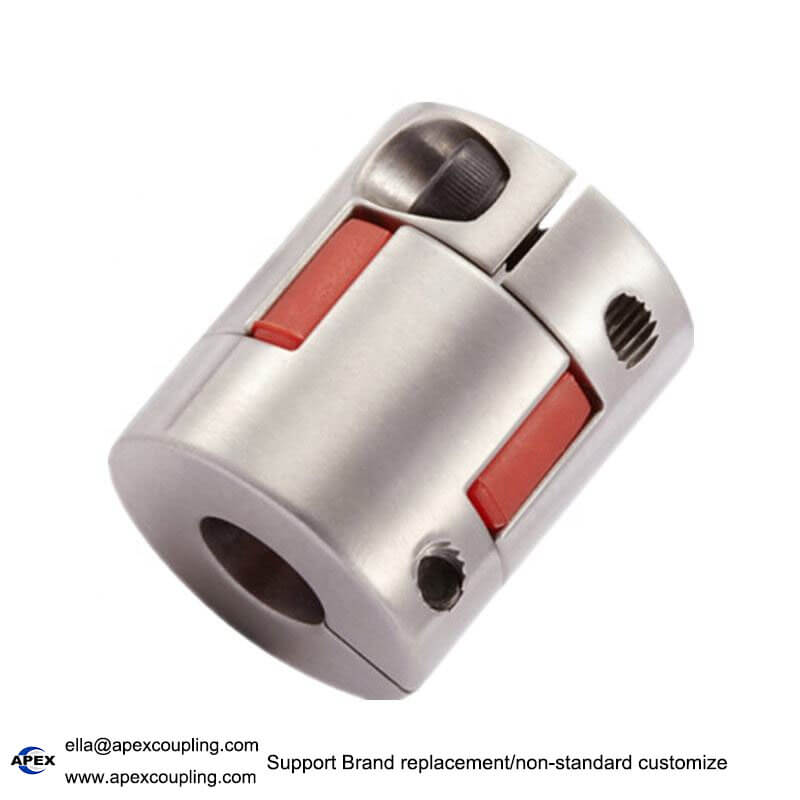

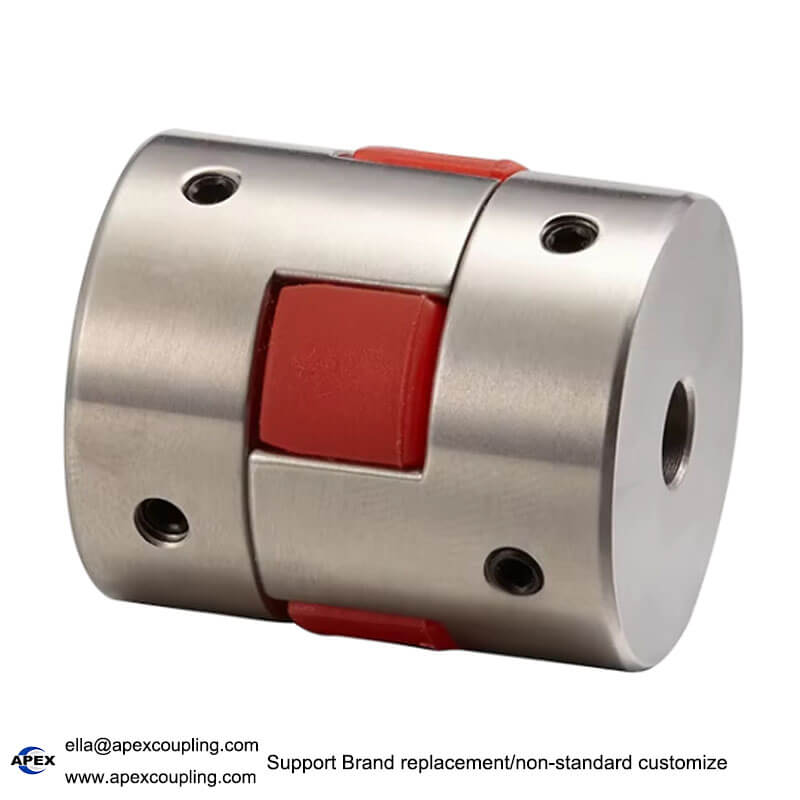

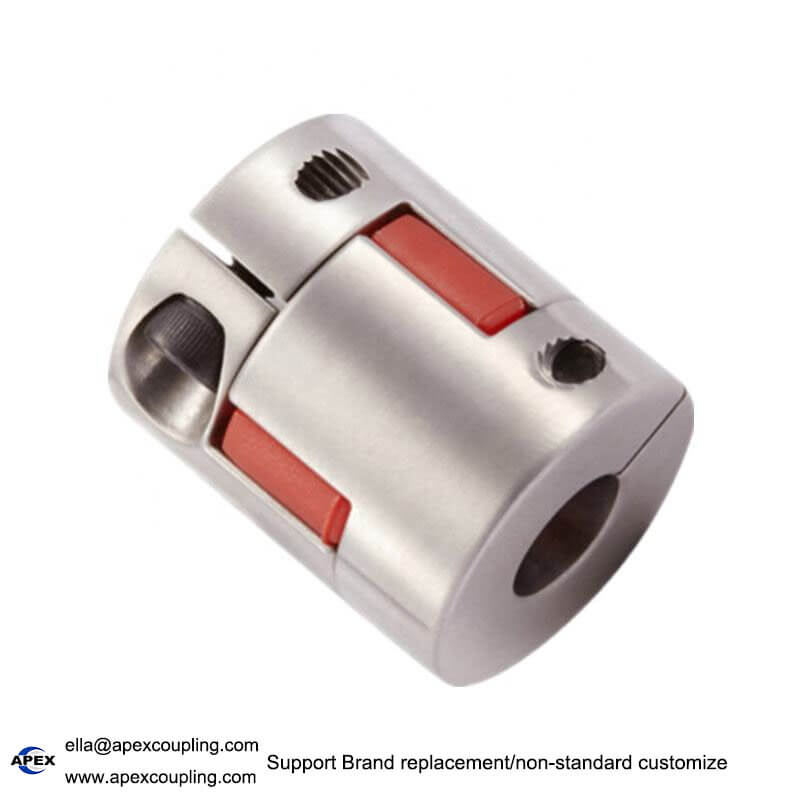

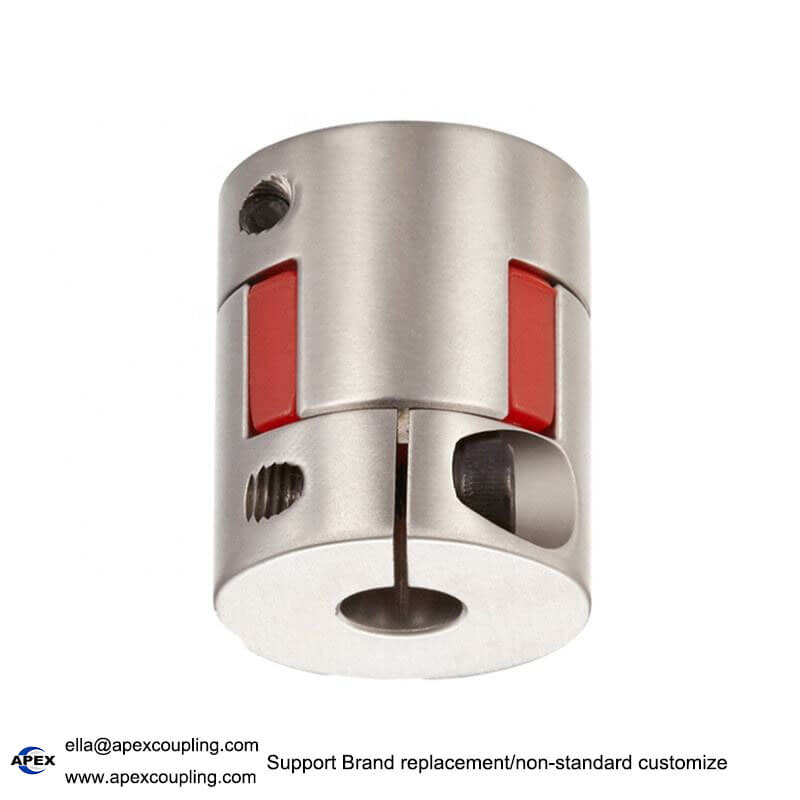

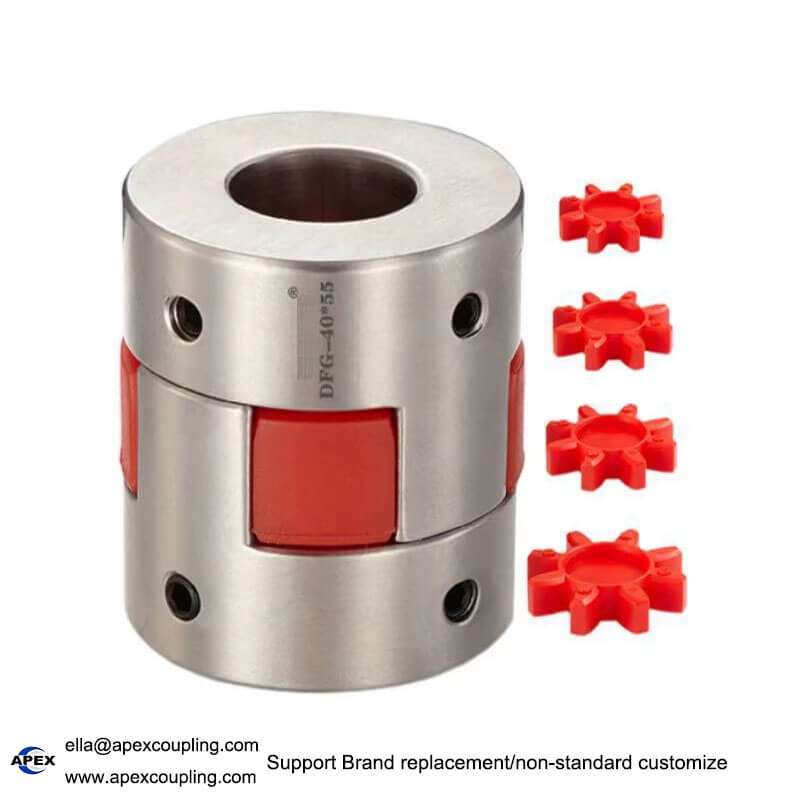

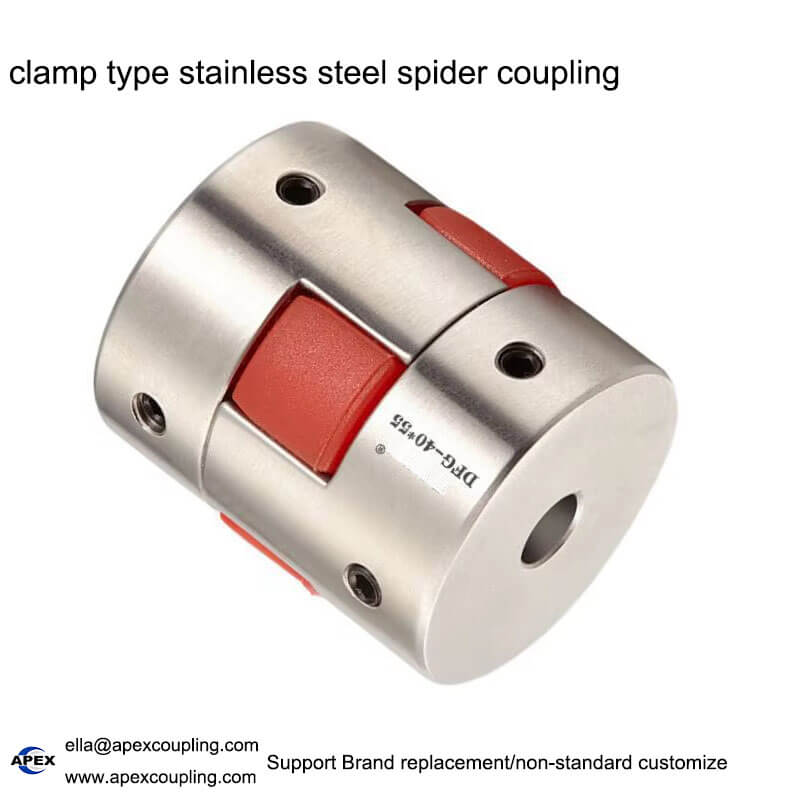

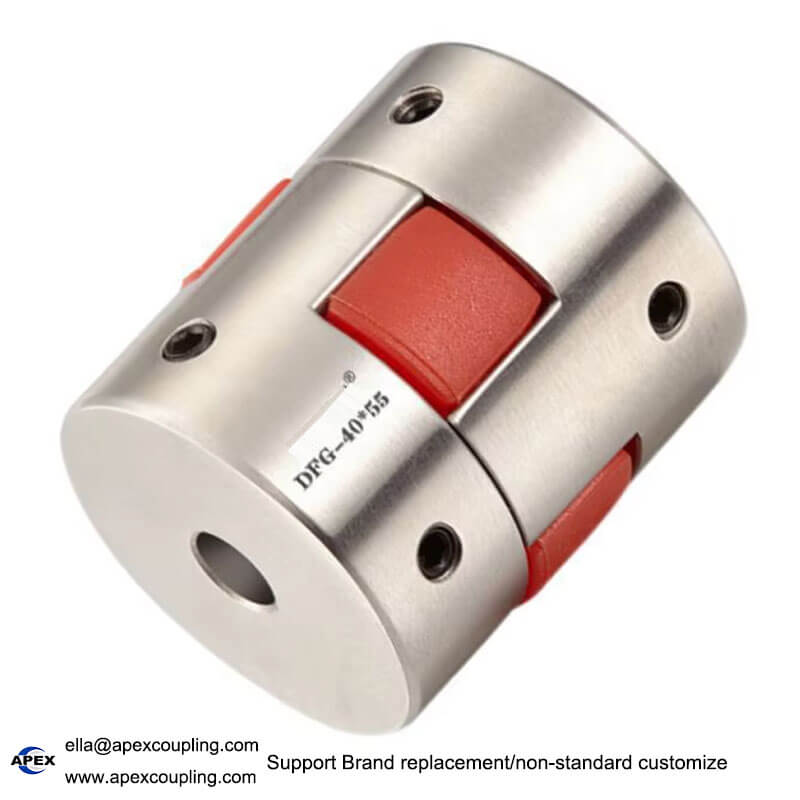

DFCG Stainless Steel High-Precision Flexible Plum Jaw Coupling (Clamp Style)

Zero-Backlash SUS304 Motor Shaft Coupler with Polyurethane / Hytrel Spider Insert

The DFCG Series Stainless Steel Flexible Plum Jaw Coupling is a high-precision, zero-backlash shaft coupling engineered for demanding motion control systems, servo motor drives, and corrosive working environments. Constructed with high-grade SUS304 stainless steel hubs and a premium polyurethane (PU) or Hytrel elastomeric spider insert, this coupling delivers exceptional torsional stiffness, superior vibration damping, and compensation for radial, angular, and axial shaft misalignments. Featuring a clamp-screw fastening mechanism and detachable 3-piece design, the DFCG series ensures secure shaft clamping and effortless installation without damaging precision drive shafts.

Key Advantages & Features

• SUS304 Stainless Steel Hubs: Manufactured from premium SUS304 stainless steel, offering outstanding corrosion resistance, rust prevention, and chemical stability for cleanroom and food-grade environments.
• Zero Rotational Backlash: High-precision jaw geometry ensures zero backlash execution, making it suitable for high-frequency forward and reverse rotation drives.
• High-Damping Polyurethane / Hytrel Spider: High-hardness (98 Shore A) elastic spider pad absorbs operational shock loads, insulates electrical current, and resists oil and mechanical wear.
• Multi-Directional Misalignment Compensation: Efficiently absorbs operational vibration while compensating for parallel, angular, and axial shaft offsets.
• Non-Destructive Clamp Screw Locking: Clamping hub configuration ensures equalized radial clamping force, high concentricity, and simple maintenance.
• Detachable & Maintenance-Free Structure: Split construction allows for fast assembly, easy inspection, and long service life without lubrication.

Technical Specifications

Available Standard DFCG Models

The DFCG series is available across a full range of standard dimensions (Outer Diameter x Total Length):

• DFCG-14*22
• DFCG-20*25 | DFCG-20*30
• DFCG-25*30 | DFCG-25*34
• DFCG-30*35 | DFCG-30*40
• DFCG-40*50 | DFCG-40*55 | DFCG-40*66
• DFCG-55*49 | DFCG-55*78
• DFCG-65*90

Applications & Industries Served

Due to its high corrosion resistance and zero backlash performance, the DFCG stainless steel jaw coupling is widely used across high-precision and sanitary industries, including:

• Food, Beverage & Pharmaceutical Processing: Cleanroom filling machinery, medical inspection equipment, and sanitary conveyors.
• Precision Motion Control: Servo motors, stepping motors, encoders, and linear positioning actuators.
• Semiconductor & Electronics Assembly: PCB equipment, pick-and-place automation, and optical inspection machines.
• Chemical & Packaging Machinery: Chemical metering pumps, labeling equipment, and printing machinery.

Custom Shaft Bore Designation & OEM Services

At ApexCoupling, we provide full custom machining and OEM/ODM manufacturing according to client engineering drawings.

Custom Options Include:

• Custom metric and inch bore combinations (d1 and d2 sizes).
• DIN / JIS standard shaft keyways.
• Alternative spider hardness levels (e.g., 92 Shore A, 98 Shore A, or 64 Shore D Hytrel).
• Private labeling, custom laser marking, and special packaging.

To request a fast quote, please specify your required DFCG model size, shaft bore diameters (d1 & d2), torque requirements, and order quantity.

How to Order / Get a Fast Quote

Looking for reliable DFCG stainless steel flexible couplings or OEM custom motor shaft connectors? Contact our sales engineering team today!

• Email: ella@apexcoupling.com
• WhatsApp / WeChat: +86 13437856962
• Website: www.apexcoupling.com
• MOQ: 1 Piece (Sample, batch, and OEM orders supported)
