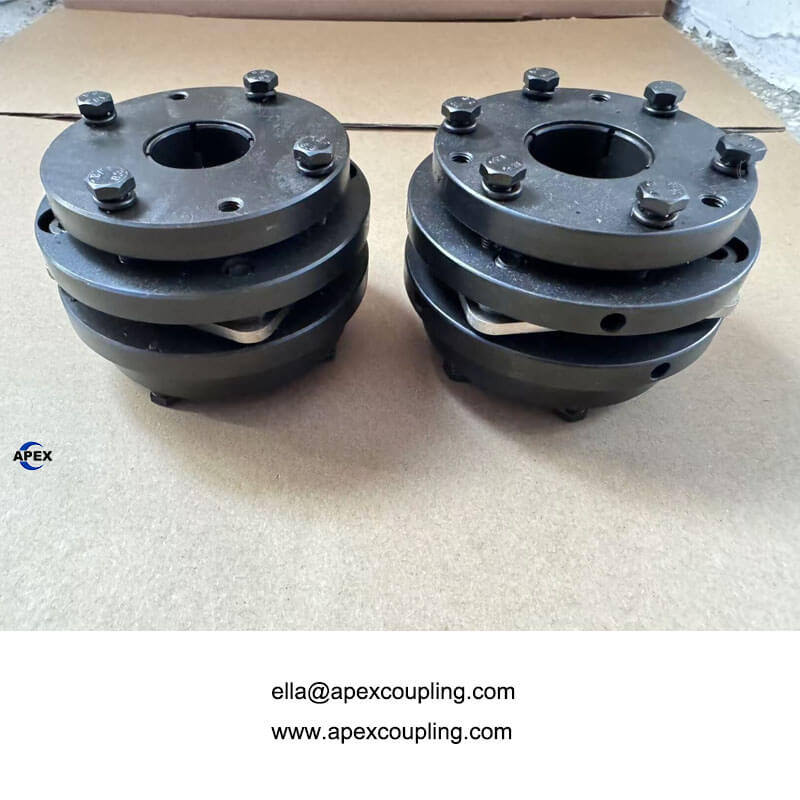

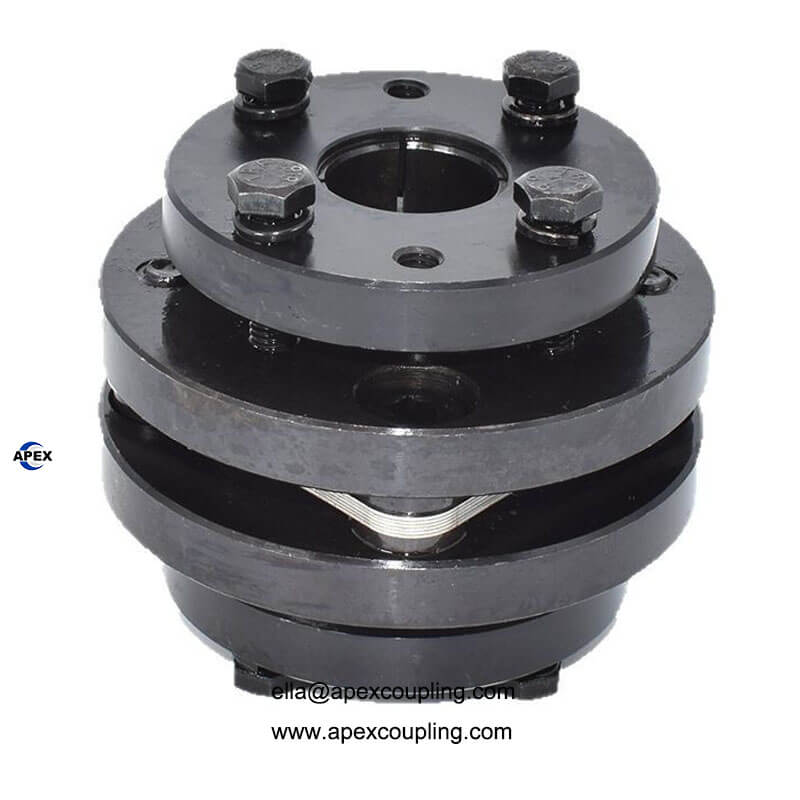

Precision & Rigidity: DBL31 Series Taper Sleeve Diaphragm Couplings

The DBL31 Series is a high-performance single diaphragm coupling engineered for uncompromising precision. Utilizing a keyless taper sleeve (expansion sleeve) connection, it provides a rock-solid, zero-backlash mechanical link between shafts. Designed for high-sensitivity applications, the DBL31 ensures identical rotation characteristics in both clockwise and counter-clockwise directions while compensating for angular and axial misalignments.

Core Product Advantages

• Premium 45# Round Steel Construction: Crafted from high-density round steel to ensure maximum rigidity and high torque capacity while maintaining low inertia for rapid dynamic responses.

• H7 Precision Bore Accuracy: Every unit is machined to strict H7 tolerance standards, ensuring perfect concentricity and a seamless fit with your shafts.

• Imported 304 Stainless Steel Discs: Features high-grade elastic stainless steel diaphragms (available in circular or square profiles) that offer long-term durability and rust resistance.

• Zero Backlash & Silent Performance: The tight, keyless integration eliminates mechanical play, allowing for silent operation even in high-speed environments.

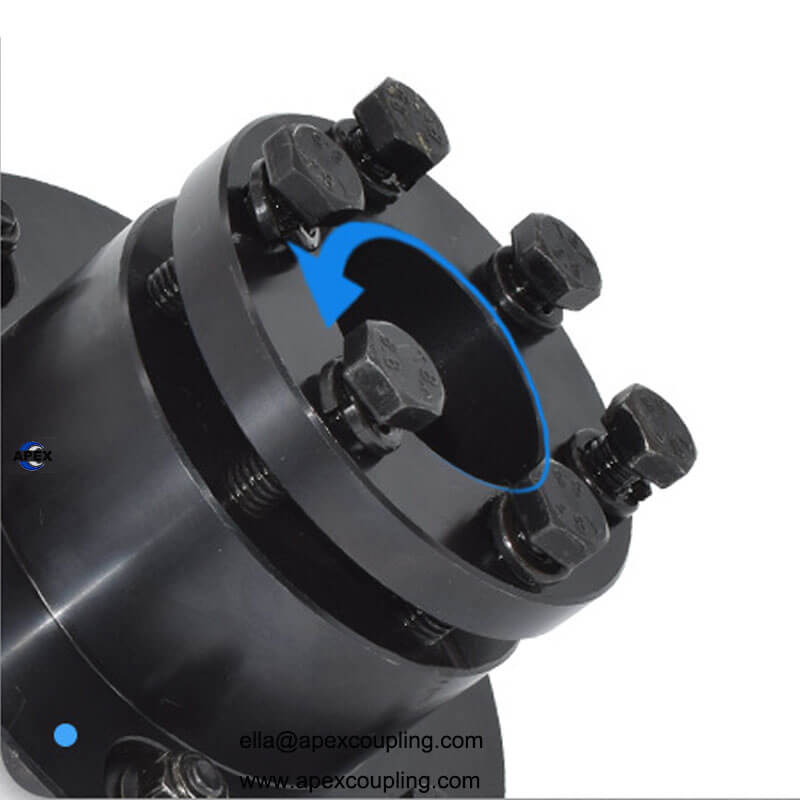

• Efficient Taper Sleeve Design: The expansion sleeve mechanism allows for fast installation and removal without damaging the shaft, significantly reducing maintenance downtime.

• Customization Available: As a direct manufacturer, we offer non-standard customization for lengths, taper styles (clamping, expansion, or conical), and specialized materials.

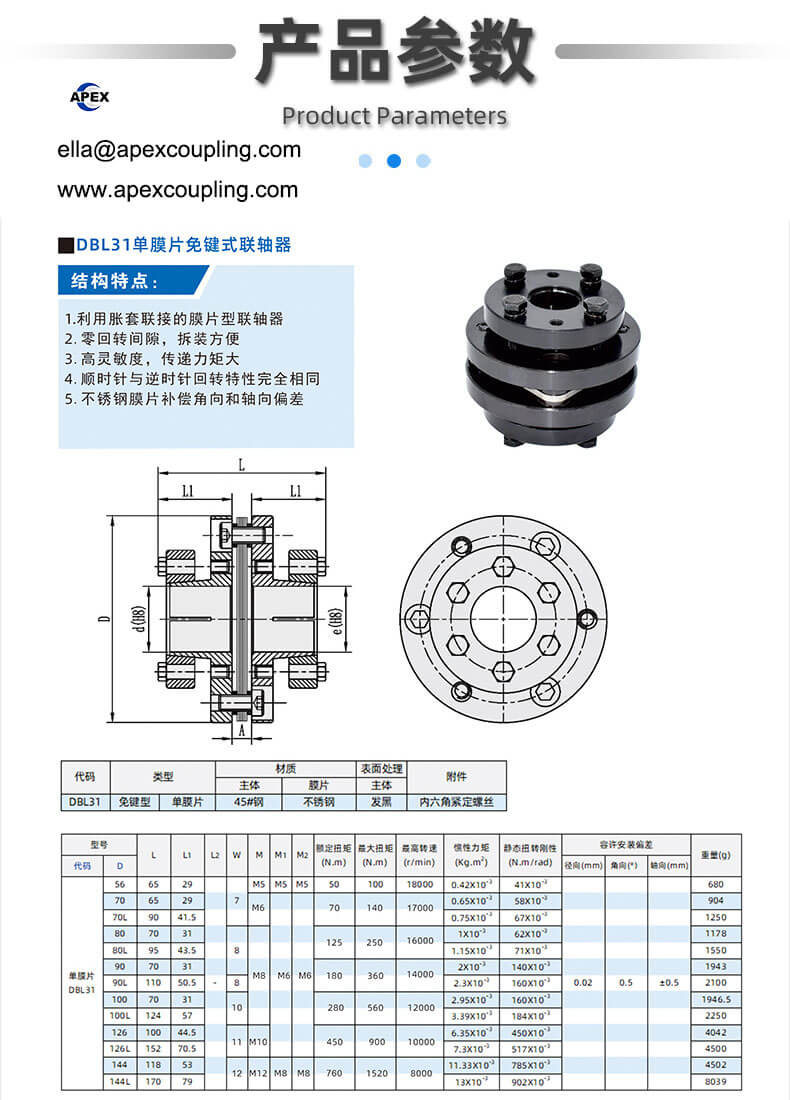

Technical Specifications Table
