CPWR/CPDR & GR/HR Series Quick Locking Precision Universal Joint | PTO Cross Cardan Shaft Coupling

Model Number
Check below, custom

01CPWR/01CPDR
1CPWR/1CPDR
02CPWR/02CPDR
03CPWR/03CPDR
04CPWR/04CPDR
O5CPWR/05CPDR
06CPWR/06CPDR
O7CPWR/07CPDR
08CPWR/08CPDR
09CPWR/09CPDR

Product Description

[Header: Fast Detachable Efficiency & High-Speed Precision: Quick-Locking Universal Joint Series]

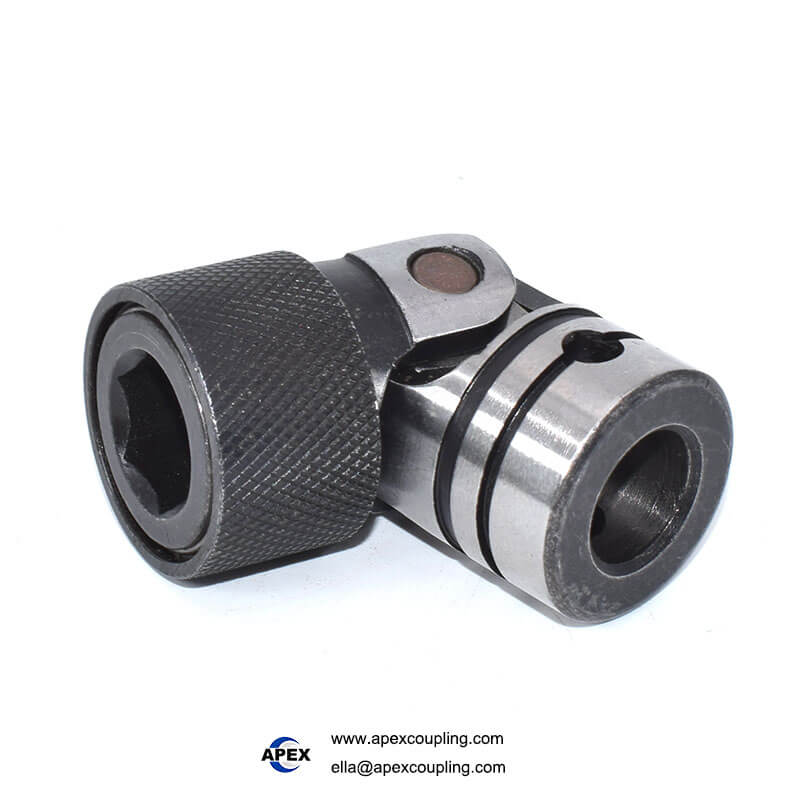

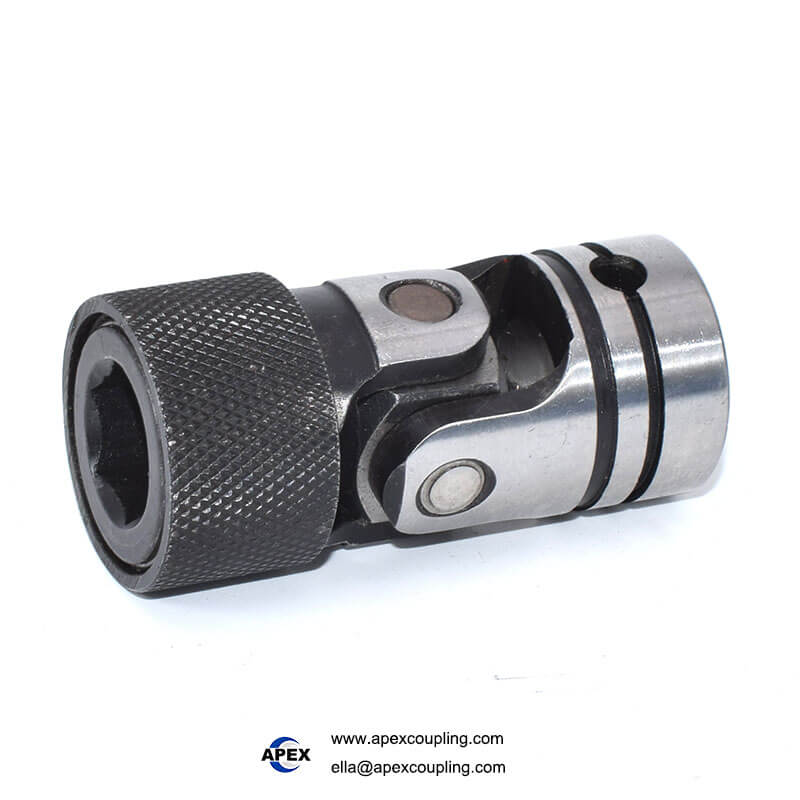

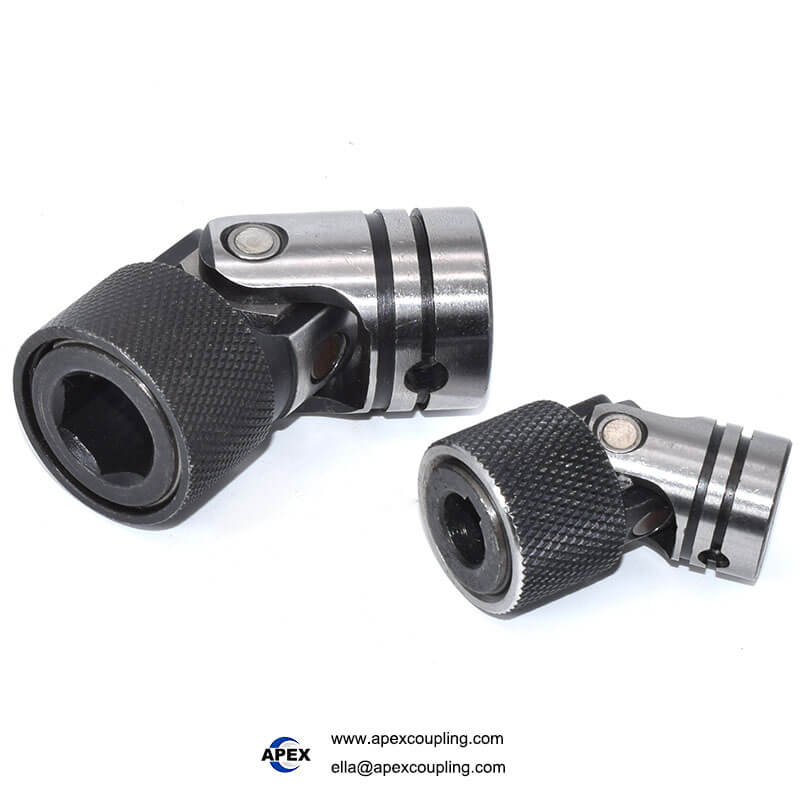

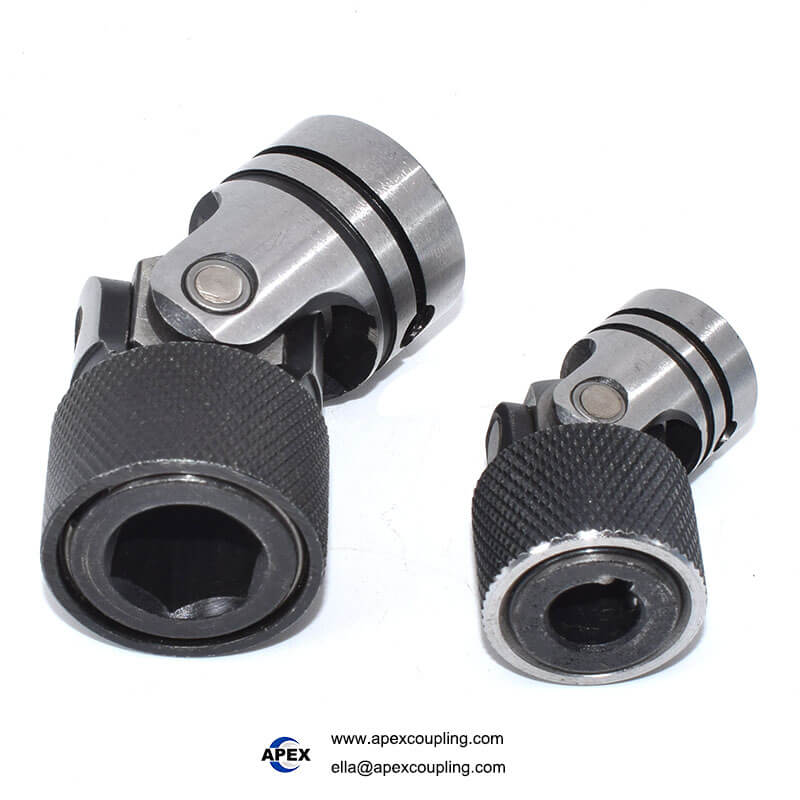

The Apexcoupling CPWR/CPDR & GR/HR Precision Quick-Locking Universal Joint is an engineered cardan coupling designed for fast mounting, easy maintenance, and high rotational precision. Featuring a detachable fast-locking mechanism, these universal joints allow rapid connection and tool-free detachment on drive shafts connected to stepper motors and standard electric motors.

Forged from high-grade 42CrMo steel with a quenching process (and 20Cr cross components), the series is available in both plain bearing designs (GR/CPWR) and high-speed HR needle roller bearing configurations capable of speeds up to 4000 RPM. Operating across deflection angles up to 30° per section (and up to 45° maximum working angle depending on configuration), this range accommodates finished bore diameters from 8 mm to 30 mm (H7 tolerance) with DIN 6885/1 keyway or hexagonal shaft connections.

[Core Product Advantages / Unique Selling Points]

Quick-Lock Detachable Mechanism: Integrated fast-locking collar enables rapid assembly and disassembly without specialized disassembly tools.
High-Speed Needle Roller Bearings (HR Type): HR variants feature precision needle roller bearings rated for speeds up to 4000 RPM.
Quenched 42CrMo Steel Construction: Heat-treated alloy steel body and 20Cr cross spiders deliver outstanding wear resistance and load carrying capacity.
Wide Angular Deflection (30° to 45°): Smoothly transmits power across angular shaft misalignments up to 30° per joint section (and max 45° overall).
Precision Standardized Bores (H7 Tolerance): Finished bore sizes from 8 mm to 30 mm with DIN 6885/1-JS9 keyways or hexagonal (SW) bore profiles.
Broad Torque Capability: Handles dynamic allowable torques from 11.2 N·m up to 550 N·m.
Certified Quality: Fully certified under ISO 9001 and Bureau Veritas (BV) quality systems.
Direct Factory Custom Sourcing: Sourced directly from our Guangdong production hub with full support for OEM, ODM, and OBM orders.

[Technical Specifications Table]

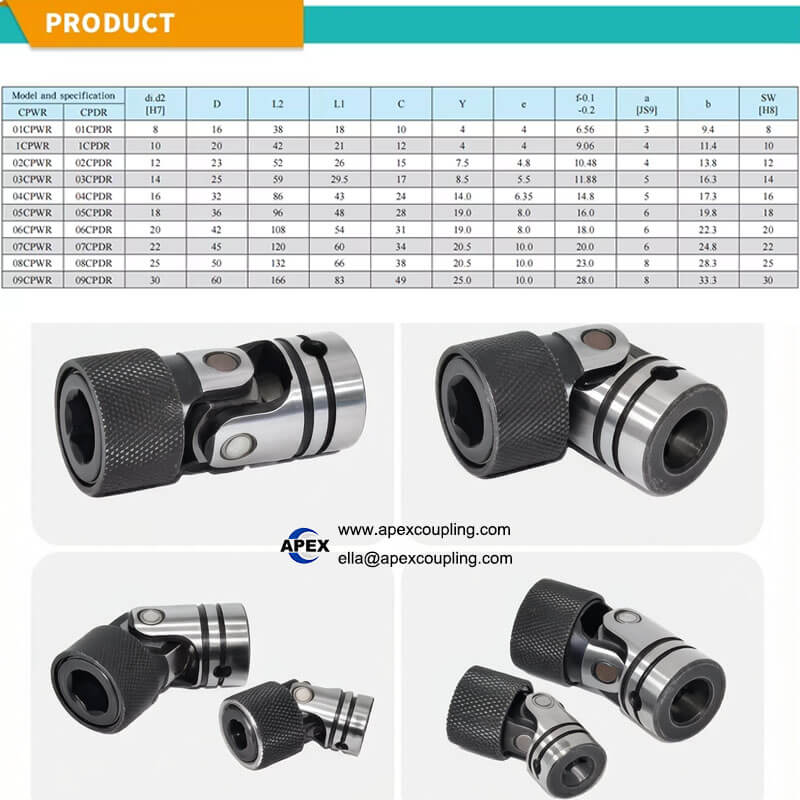

Attribute	Specification Details (As Detailed in 8e00c7be-b33b-4fea-aa0f-276e0ebd2af8.png, image_dadd93.png, & image_dadd3b.jpg)
Product Models	CPWR / CPDR Series & GR / HR Series
Structure Type	Single-Section Quick Locked Universal Joint
Main Material	Steel (42CrMo Quenching Process, 20Cr Cross Spider)
Bearing Types	Plain Bearing (GR/CPWR) / Needle Roller Bearing (HR Type)
Maximum Operational Speed	0–4000 RPM (HR Needle Bearing Type; speeds > 1000 RPM customized)
Operating Angle	Maximum rotation angle 30° per section (Up to 45° max operating angle)
Allowable Torque Range	11.2 N·m to 550 N·m
Bore Size Range ( $d_1, d_2$ )	8 mm to 30 mm (H7 tolerance standard)
Outer Diameters (D)	16 mm to 60 mm
Total Length Options ( $L_2$ )	38 mm to 166 mm (Custom lengths up to 350 mm available)
Shaft Fixing Methods	Pin and keyway (DIN6885/1-JS9) / Hexagonal Bore (SW H8)
Quality & Certification	ISO 9001; Bureau Veritas (BV)
Applicable Equipment	Normal electric motors, stepper motors, packaging & food equipment
