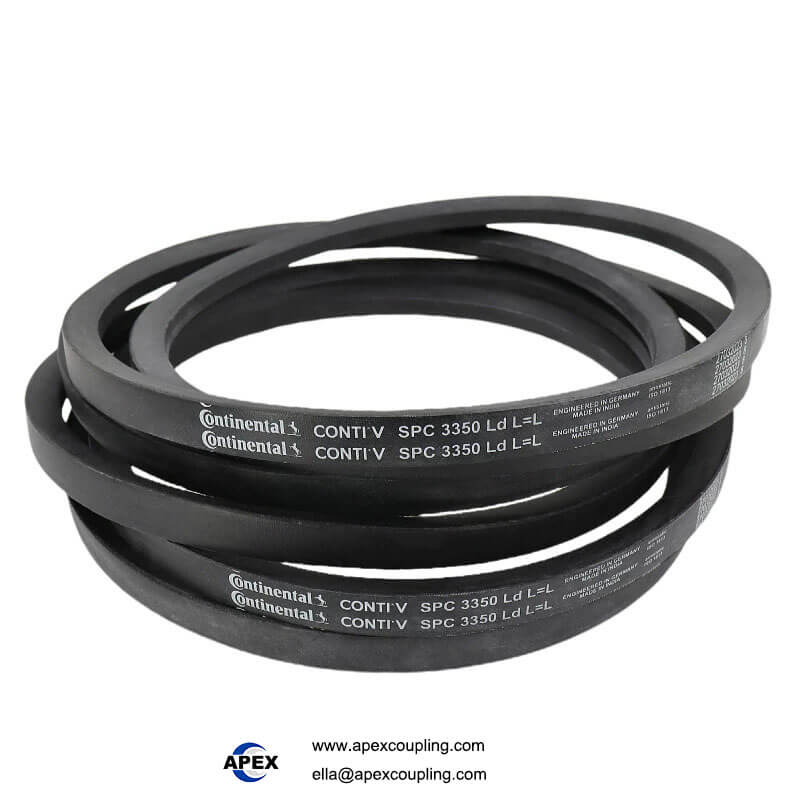

CONTINENTAL CONTITECH SPC Narrow V-Belt – Heavy Duty Wrapped Wedge Belt for High Power Transmission

Factory Direct | Genuine CONTINENTAL CONTITECH | Narrow Section Wrapped Wedge Design | 22mm Top Width × 18mm Height | ISO 1813 Anti-Static | DIN 7753 / ISO 4184 | Heavy Duty Reinforced Construction | OEM Quality | 100% Genuine Guarantee

The Apexcoupling CONTINENTAL CONTITECH SPC Narrow V-Belt is a high-performance heavy-duty wrapped wedge belt engineered for demanding industrial power transmission applications. Featuring a narrow wedge profile with a reinforced rubber compound and low-stretch polyester tension cords, this belt delivers superior power density, higher speed ratios, and stable heavy-load performance in the most challenging operating conditions.

Manufactured by CONTINENTAL CONTITECH – a world leader in power transmission technology – this SPC series belt is built to the highest standards, meeting DIN 7753 and ISO 4184 specifications. The wrapped construction with a durable fabric cover provides excellent protection against abrasion, oil, heat, and debris, ensuring long service life even in harsh industrial environments.

Available in a wide range of standard lengths – SPC3810Ld, SPC3850, SPC3870, SPC3950, SPC3970, and more – with OEM/ODM customization available for special requirements. Ideal for large air compressors, industrial blowers, heavy-duty pumping equipment, mining machinery, cement plants, woodworking equipment, and heavy machinery manufacturing.

✅ 22mm top width × 18mm height – SPC narrow wedge profile. Wrapped heavy-duty construction – reinforced tensile member for maximum power transmission. ISO 1813 anti-static – electrically conductive for safe operation. Temperature range -55°C to +70°C – suitable for extreme environments. Moderately oil-resistant, dust-proof, suitable for tropical climates. 100% genuine CONTINENTAL product – counterfeit guarantee with tenfold compensation. OEM customization available – custom lengths and specifications.

Key Technical Specifications

SPC Series – Standard Model Specifications

📐 Lengths listed are pitch/datum lengths (Ld/Lw) or outside lengths (La) as indicated. Additional sizes from 2185mm to 16500mm available. Custom lengths available upon request.

CONTINENTAL SPC – The Heavy Duty Advantage

The CONTINENTAL CONTITECH SPC narrow V-belt is engineered for applications demanding high speed, high torque, high power, and heavy loads. The narrow wedge profile provides superior power transmission capacity compared to classical V-belts, making it the ideal choice for compact, high-performance drive systems.

Product Structure

1. Reinforced Rubber Compound – Advanced SBR/NR compound with reinforcing fibers for maximum durability and power transmission.

2. High-Strength Polyester Tension Cord – Low-stretch tensile member provides dimensional stability and handles high shock loads.

3. Durable Fabric Wrap – Chloroprene wrapper cloth with high abrasion resistance protects the belt core.

4. Narrow Wedge Profile – 40° angle provides optimal grip and superior power transmission efficiency.

💡 How it works: The SPC narrow V-belt transmits power through friction between the belt’s sidewalls and the pulley grooves. The narrow wedge profile provides a larger contact area with the pulley, enabling higher power transmission in a more compact space. The wrapped construction protects against abrasion and debris, while the low-stretch polyester cords ensure dimensional stability and consistent performance under heavy loads. The belt is electrically conductive, safely dissipating static electricity per ISO 1813.

Applications

• Large Air Compressors – Compressor drive systems

• Industrial Blowers – High-volume air movement equipment

• Heavy-Duty Pumps – Slurry pumps, water pumps, chemical pumps

• Mining Machinery – Crushers, conveyors, feeders

• Cement Industry – Mills, mixers, kiln drives

• Woodworking Machinery – Sawmills, shredders

• Heavy Machinery Manufacturing – General industrial power transmission

• HVAC Systems – Large-scale ventilation and air handling

• Agricultural Equipment – Harvesters, irrigation pumps

• Power Generation – Generator drives

Why Choose Apex Coupling for CONTINENTAL SPC V-Belts?

FAQ

Q: What is an SPC narrow V-belt?
A: SPC is a narrow wedge V-belt profile with a nominal top width of 22mm and a nominal height/thickness of 18mm. It is designed for high-power, space-efficient drives with up to 80% more power capacity than classical V-belts.

Q: What is the difference between SPC and classical V-belts?
A: SPC narrow wedge belts have a deeper, narrower profile that provides significantly higher power transmission capacity in a more compact drive design. They are ideal for applications where space, weight, and power are critical.

Q: Are these belts genuine CONTINENTAL products?
A: Yes. All CONTINENTAL CONTITECH products are guaranteed to be genuine. If any product is found to be counterfeit, we will compensate you tenfold.

Q: What is the operating temperature range?
A: The SPC series operates in temperatures from -55°C to +70°C. CONTI-V® ADVANCE versions operate from -30°C to +80°C.

Q: Is the belt anti-static?
A: Yes. The belt is electrically conductive (anti-static) in accordance with ISO 1813.

Q: Is the belt oil-resistant?
A: Yes. The belt is moderately oil-resistant.

Q: Is the belt dust-proof?
A: Yes. The belt is insensitive to dust and dust-proof.

Q: What are the common applications?
A: Large air compressors, industrial blowers, heavy-duty pumps, mining machinery, cement plants, woodworking equipment, and heavy machinery manufacturing.

Q: What is the minimum pulley diameter?
A: The minimum recommended pulley diameter is 224 mm.

Q: Can the belt be customized?
A: Yes. We offer OEM/ODM customization – custom lengths and specifications available.

Request a Quote

Send us your model (SPC3810Ld, SPC3850, SPC3870, SPC3950, SPC3970, or custom length), quantity, and any special requirements. Our engineers will provide a quotation within 24 hours.
