High-Compensation Alloy Steel Universal Joint | 45-90 Degree Single & Double Cross Joint
Model Number
Check below, custom
- Phone : +86 13431039760
- Wechat : +86 13431039760
- Whatsapp : +86 13431039760
- Email : ella@apexcoupling.com
Product Description
Technical Highlights:
Extreme Flexibility: Engineered for wide operating angles from 45 to 90 degrees.
Material Strength: Forged from high-grade alloy steel with a professional Blacken surface treatment.
Versatile Structure: Available in both Single and Double configurations to fit various shaft offsets.
Certified Quality: Manufactured under ISO9001 and BV certification standards.
Ready to Ship: Large stock available with a low 1pc MOQ.
- Â
4. High-Speed Block and Pin Universal Joint (42crmo Steel)

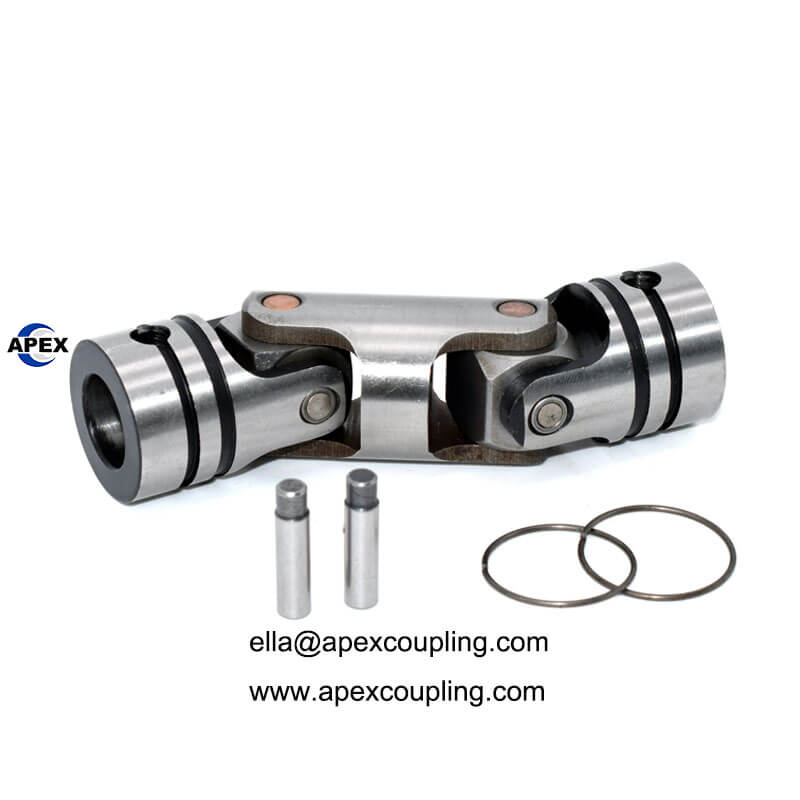

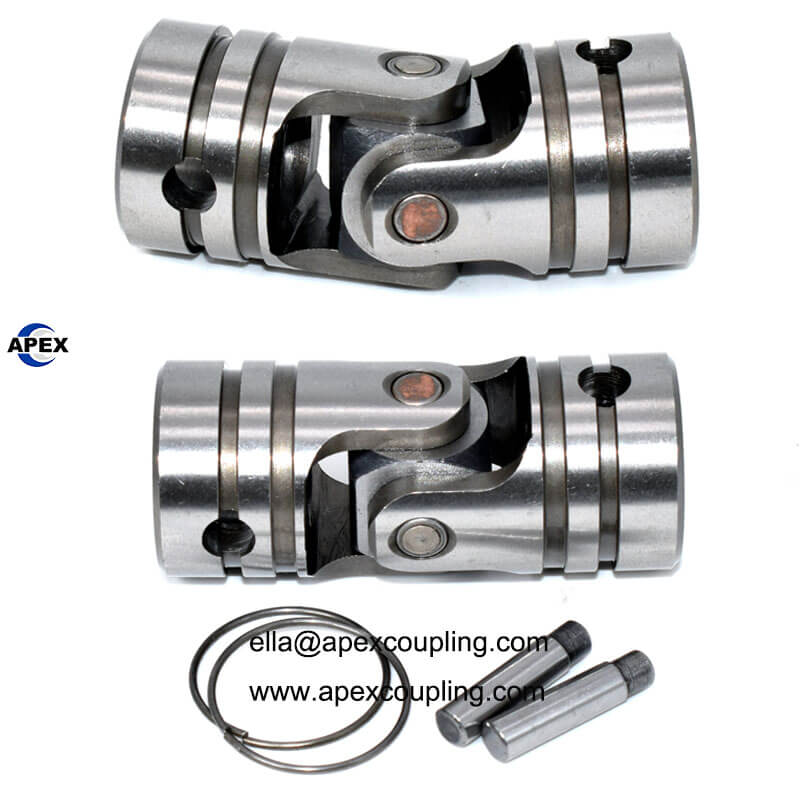

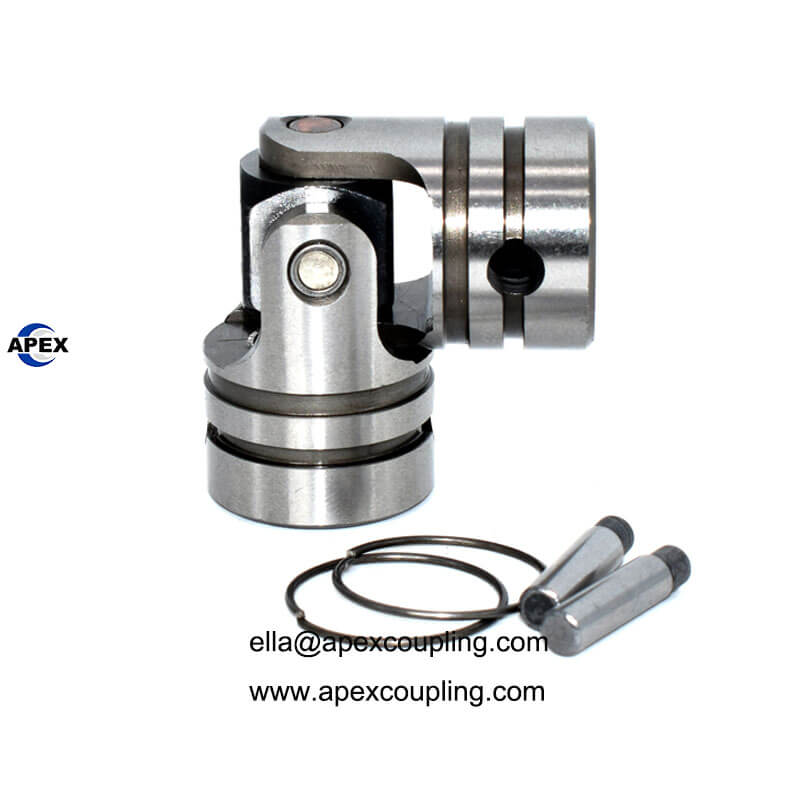

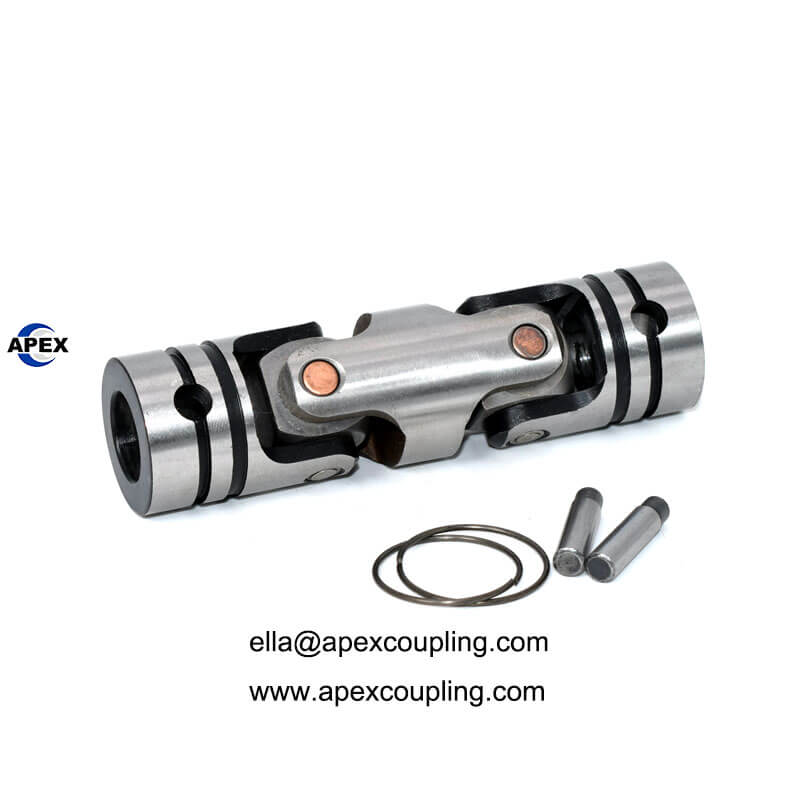

Product Title: High-Speed Block and Pin Universal Joint | 42crmo Quenched Alloy Steel Cross Joint
SEO Meta Title: Precision Block and Pin Universal Joint | 4000 RPM & 1500 N.m | Apex Coupling
SEO Meta Description: High-performance 42crmo alloy steel universal joints. Block and pin structure for high-speed (4000 RPM) and high-torque (1500 N.m) automation. FA standard, ISO9001 certified.
Â

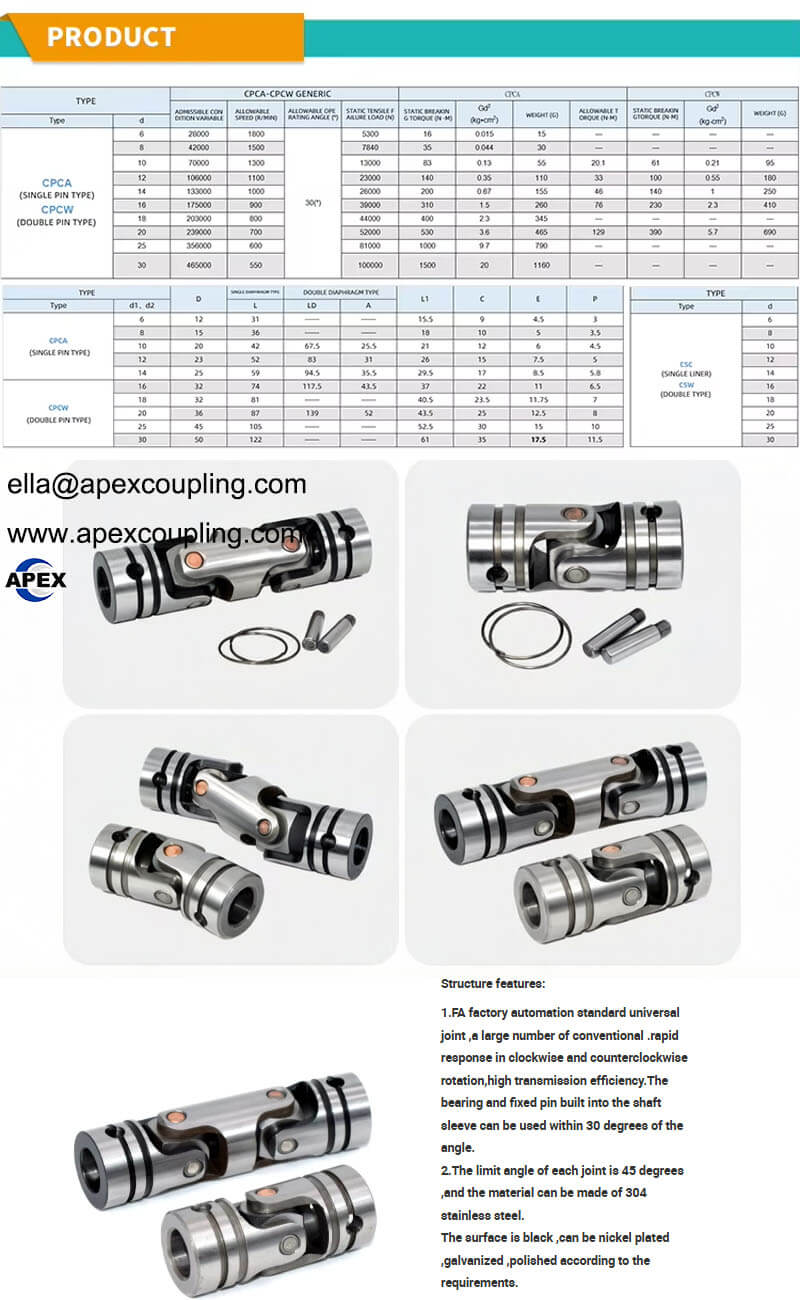

Key Specifications
Structure: Small Block and Pin (Factory Automation Standard)
Material: 42crmo / 40CR Alloy Steel (Quenching Process)
Maximum Speed: 4000 RPM (More than 1000 RPM requires customization)
Allowable Torque: 4.5 to 1500 N.m
Operating Angle: Normal use within 30 degrees (Limit angle 45 degrees)
Surface Treatment: Polishing (Black, Nickel, or Zinc plating available)
Fixing Method: Set screw, Keyway, or Pin
| Attribute | Value |
|---|---|
| System of Measurement | Metric |
| Bore Diameter | – |
| Material | 42crmo alloy steel |
| Length | – |
| Structure | Single and double |
| Customized support | OEM, ODM, OBM |
| Warranty | 1 years |
| Applicable Industries | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, Construction works, Energy & Mining, Precision Engineering |
| Operating Angle | 45 |
| Place of Origin | Guangdong, China |
| Brand Name | apexcoupling |
| Product Name | Universal Joint Cross |
| Surface treatment | Polishing |
| Type | Standard type |
| Certificate | ISO9001; BV certificate |
| MOQ | 1PCS |
| Main material | Steel (42crmo, 40CR Quenching process) |
| Maximum speed (r/min) | 0-4000 (More than 1000 speeds need to be customized) |
| Shaft fixing method | Fixed with set screw and keyway or pin |
| Allowable torque range (N.m) | 4.5-1500N.M |
| usage | normal electric motors, stepper motor |
Product Show
Univerdal joint coupling
