Agricultural Universal Joint Shaft Coupling – Cross Joint for Power Transmission, Single & Double

Factory direct | 42CrMo alloy steel | 45-90° operating angle | Single or double joint | Large stock | OEM/ODM/OBM

The Apexcoupling Agricultural Universal Joint Shaft Coupling is a high‑performance cross joint designed for power transmission in agricultural machines and farm equipment. Built to FA factory automation standards with a large conventional stock, it offers rapid response in both clockwise and counterclockwise rotation with high transmission efficiency. Available in single or double joint configurations, constructed from 42CrMo alloy steel with black oxide finish or 304 stainless steel for corrosion‑resistant applications, this coupling delivers reliable performance in demanding agricultural environments.

✅ Custom finishes: nickel plated, galvanized, or polished.

Key Technical Specifications

🔧 Custom sizes, materials (304SS), and finishes available. Contact us with your specifications.

Product Configurations

💡 Operating range: For continuous operation with bearing & fixed pin, we recommend ≤30°. The absolute limit per joint is 45°.

Product Features & Advantages

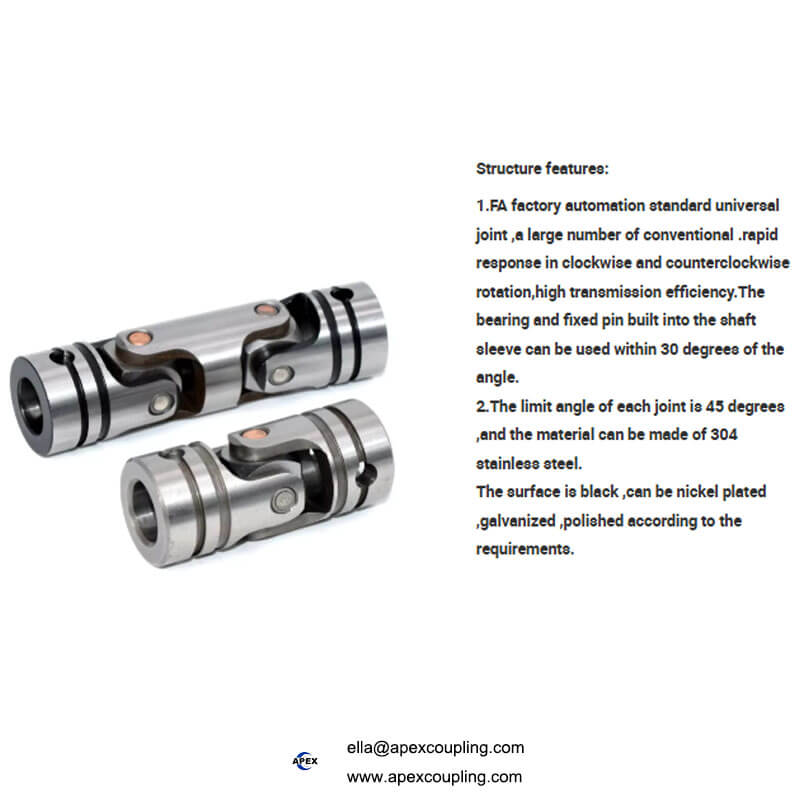

Product Structure

1. Two Yokes (Forks) – Precision‑machined from 42CrMo or 304 stainless steel.

2. Cross Shaft (Cross Joint) – The central component that transmits torque.

3. Built‑in Bearings & Fixed Pins – For smooth operation up to 30°.

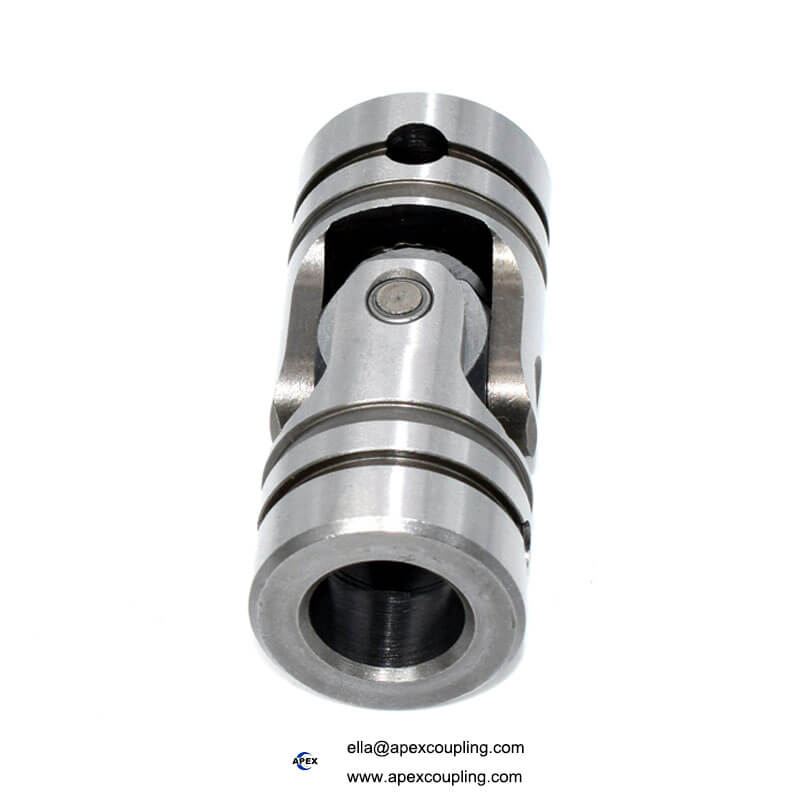

4. Single Joint – One pivot point for angular flexibility.

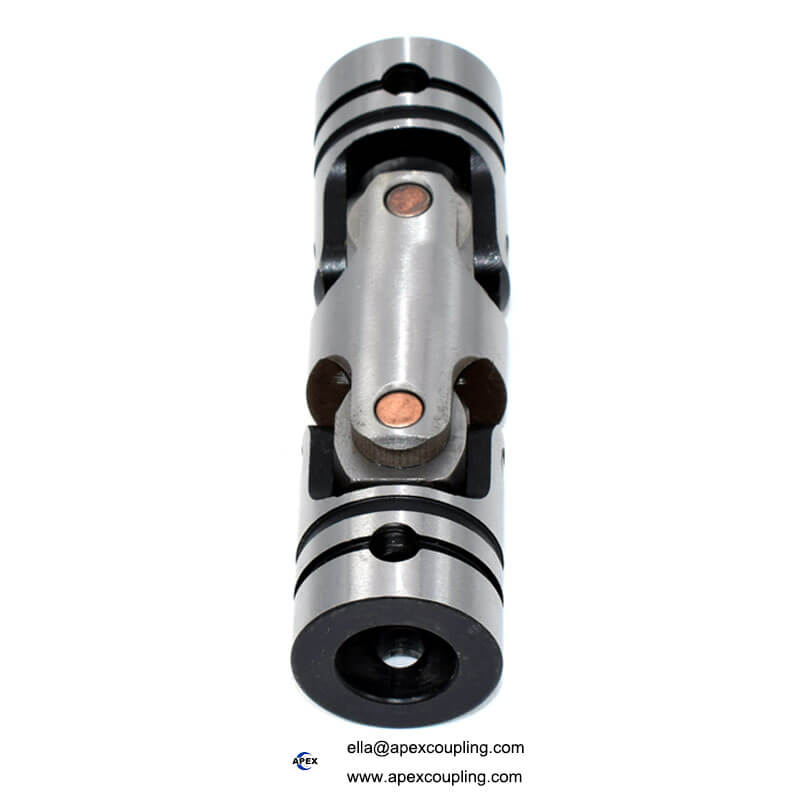

5. Double Joint – Two pivot points for angular + offset flexibility.

Applications

• Agricultural Machinery – Tractors, harvesters, balers, sprayers, seeders

• Farm Equipment – Feed mixers, conveyors, augers, pumps

• PTO Drive Systems – Power take‑off shafts for implements

• Food & Beverage Processing – With 304SS option for hygienic applications

• Industrial Machinery – General power transmission

• Packaging Machinery – Conveyors and wrapping machines

• Construction Equipment – Light to medium‑duty drives

• Home Use & Retail – Small agricultural and workshop equipment

Why Choose Apex Coupling for Agricultural Universal Joints?

FAQ

Q: What is an agricultural universal joint shaft coupling?
A: It is a cross joint coupling designed for power transmission in agricultural machinery. It allows torque to be transmitted between shafts that are not perfectly aligned, with angular flexibility up to 45° per joint.

Q: What is the difference between single and double joint?
A: Single joint provides angular flexibility only (up to 45°). Double joint provides both angular flexibility and parallel offset capability, with total articulation up to 90°.

Q: What is the recommended operating angle?
A: With the built‑in bearing and fixed pin, the coupling is designed for continuous operation up to 30°. The absolute limit per joint is 45°.

Q: What materials are available?
A: Standard is 42CrMo alloy steel for high strength and durability. We also offer 304 stainless steel for corrosion‑resistant applications.

Q: What surface finishes are available?
A: Standard is black oxide. We also offer nickel plated, galvanized, and polished finishes.

Q: Do you have stock available?
A: Yes, we have large stock of standard sizes for immediate shipment.

Q: Can I get a sample before ordering?
A: Yes. Samples are available – please contact us to arrange.

Q: What is the MOQ?
A: 1 piece – we welcome small orders for prototyping and testing.

Request a Quote

Send us your configuration (single/double), material preference, finish, and dimensions. Our engineers will recommend the optimal model and provide a quotation within 24 hours.
