304 Stainless Steel Single Universal Joint Coupling – 6mm Bore, 16mm OD, Corrosion-Resistant

Factory Direct | SUS304 Stainless Steel | Single Joint Design | 6mm H7 Bore | 16mm Outer Diameter | 42mm Overall Length | 5mm Set Screw | Precision Ground | Corrosion-Resistant | OEM Customizable

The Apexcoupling 304 Stainless Steel Single Universal Joint Coupling is a high-precision, corrosion-resistant power transmission component engineered for reliable performance in demanding industrial environments. Manufactured from premium SUS304 stainless steel, this single universal joint (also known as a cardan joint or U-joint) provides excellent resistance to moisture, chemicals, and oxidation, making it ideal for food processing, packaging machinery, medical equipment, and outdoor applications.

Featuring a precision-ground H7 bore for accurate shaft fit, this single joint coupling accommodates angular misalignment up to 45° per joint while transmitting torque smoothly and efficiently. The set screw fastening ensures secure shaft fixation, while the compact design (16mm outer diameter, 42mm length) makes it suitable for space-constrained installations. With full OEM/ODM/OBM customization support, this 304 stainless steel universal joint is the perfect solution for industrial machinery, conveyor systems, automation equipment, and custom drive shaft applications.

✅ Premium 304 stainless steel – excellent corrosion resistance for harsh environments. 6mm H7 precision bore – accurate shaft fit, reduced vibration. 45° angular misalignment capacity – accommodates shaft offset. Set screw fastening – secure and reliable shaft fixation. Compact design – 16mm OD × 42mm length. OEM customization – custom bores, keyways, lengths, and finishes available.

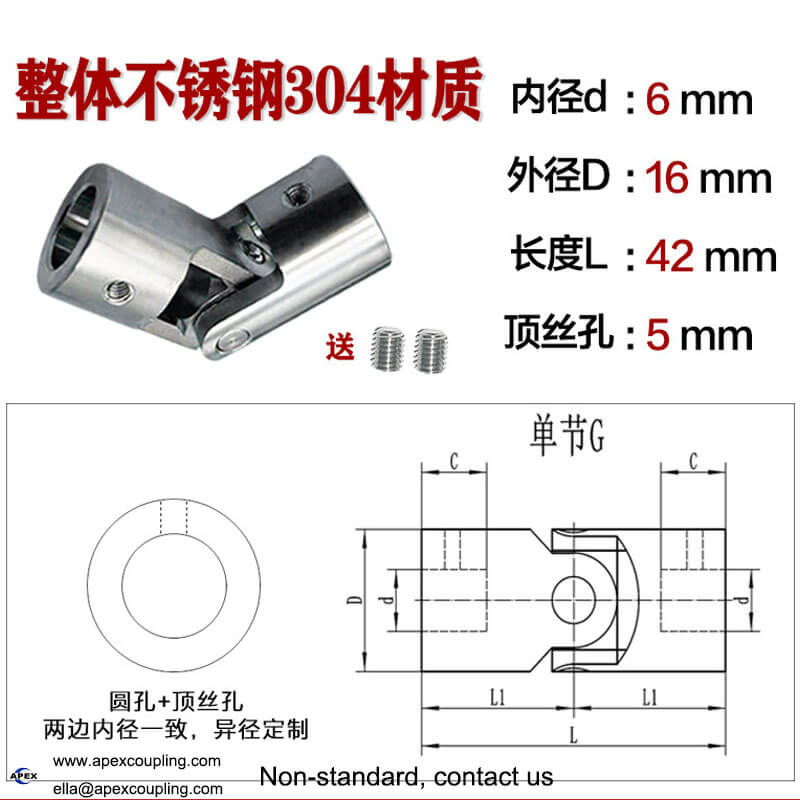

Key Technical Specifications

Product Dimensions

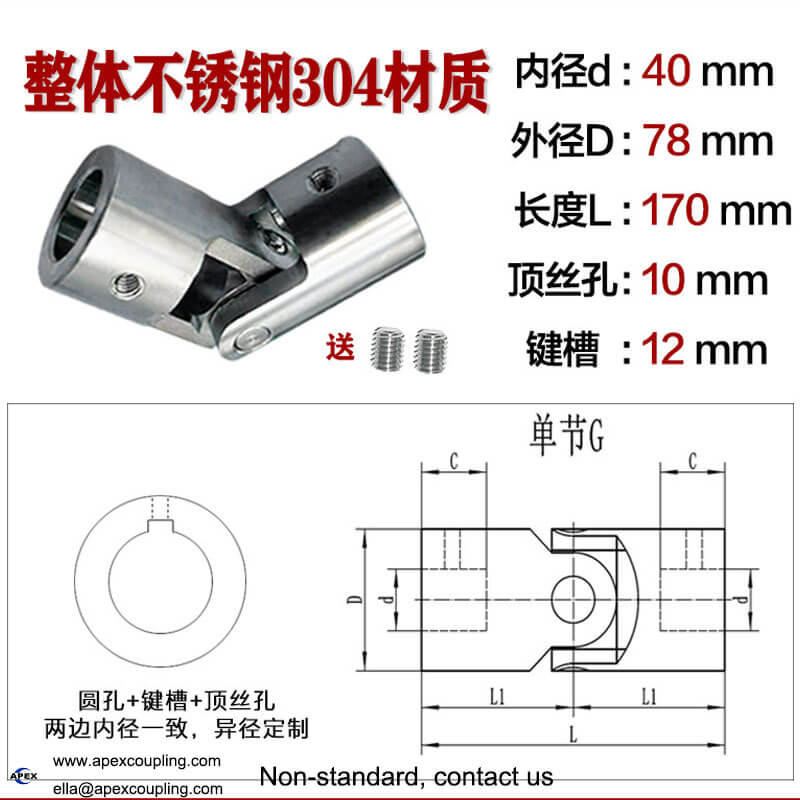

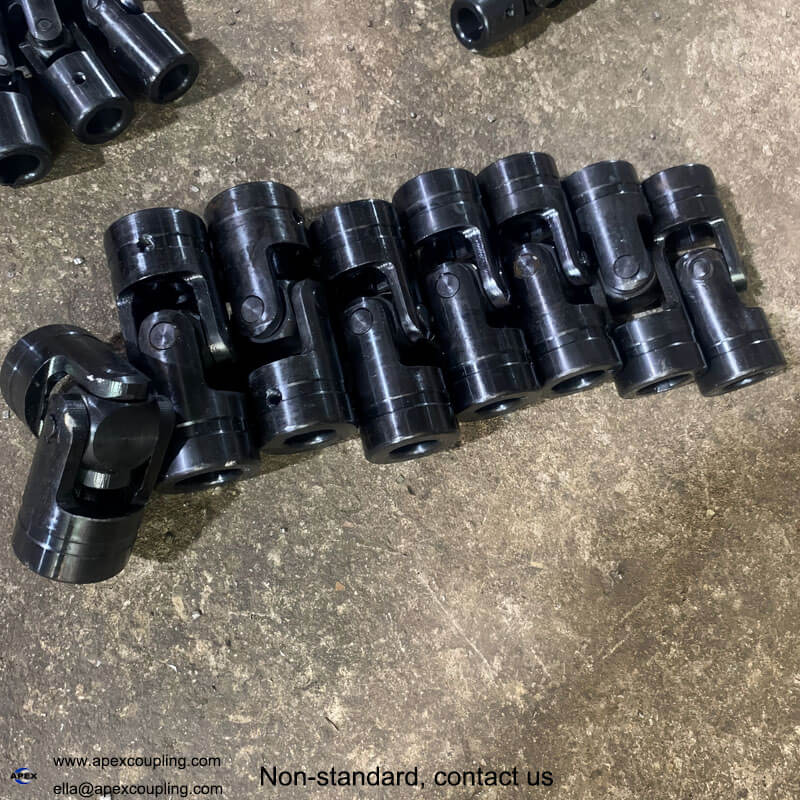

📐 Custom bore sizes (6-30mm), outer diameters (16-58mm), and lengths available upon request. Contact our engineering team for custom sizing.

Product Structure

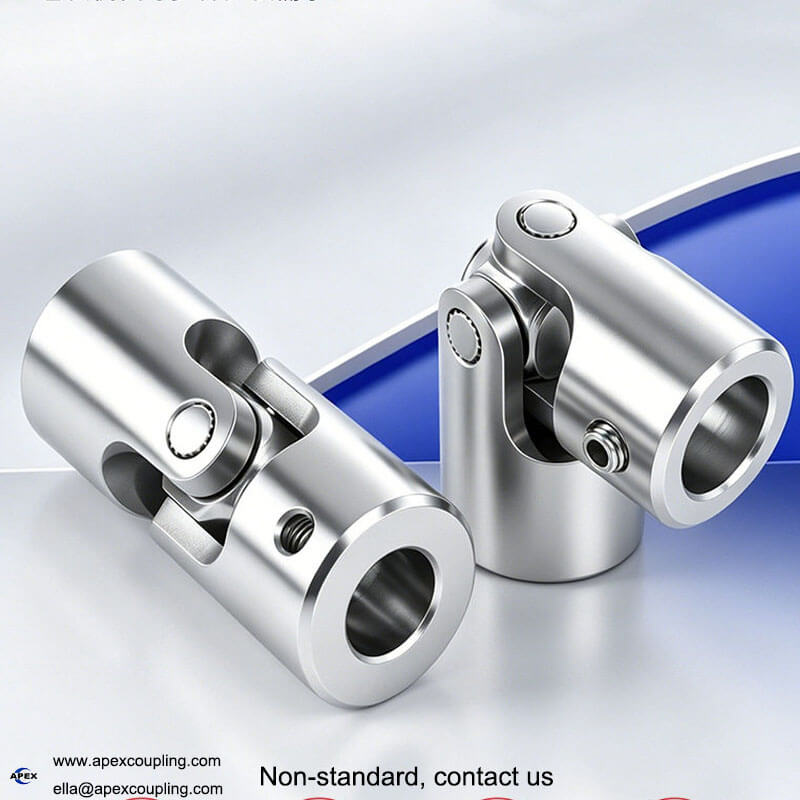

1. 304 Stainless Steel Body – Precision-machined from premium SUS304 stainless steel, providing excellent corrosion resistance, durability, and long service life in harsh environments.

2. Precision H7 Bore – Ground to H7 tolerance for accurate shaft fit, reducing vibration and ensuring smooth power transmission.

3. Set Screw Fastening – M5 set screw provides secure shaft fixation, preventing slippage under load.

4. Single Joint Design – Accommodates angular misalignment up to 45° per joint, ideal for shafts with slight offset.

5. Cross Shaft Assembly – Precision-machined cross shaft with plain bearing or needle roller bearing options for smooth rotation and extended service life.

💡 How it works: The 304 stainless steel single universal joint coupling connects two shafts that are not perfectly aligned. The cross shaft assembly allows angular misalignment up to 45° per joint while transmitting torque and rotational motion. The set screw fastening securely locks the coupling to the shafts, while the H7 precision bore ensures accurate shaft fit and concentricity. The 304 stainless steel construction provides excellent corrosion resistance for demanding environments.

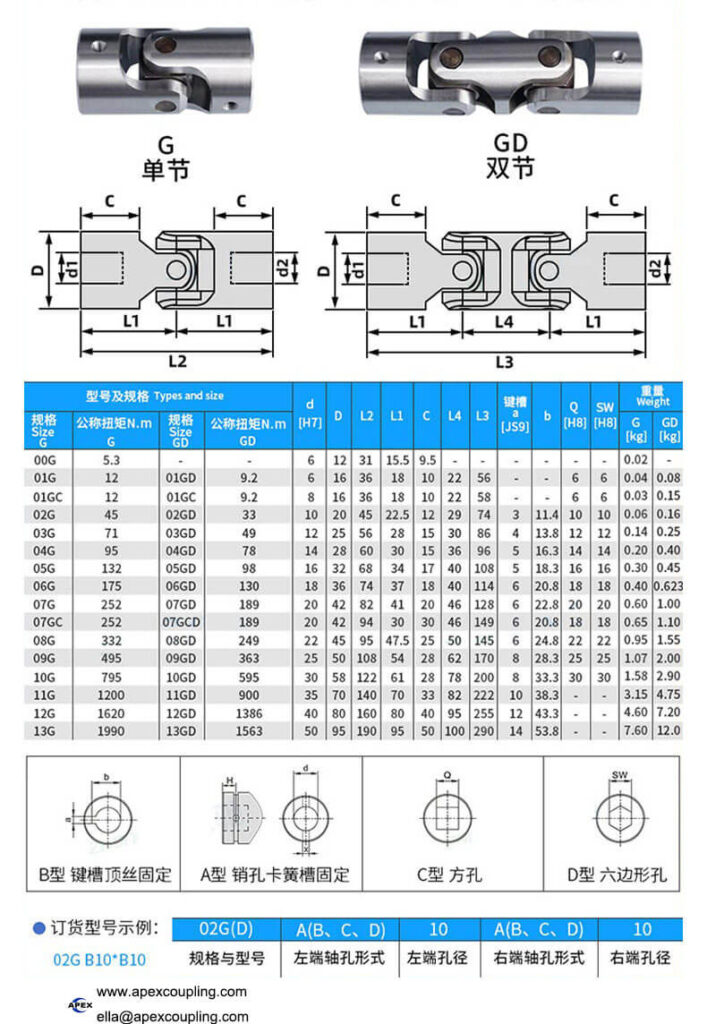

Connection Types – Choose Your Configuration

The 304 stainless steel universal joint coupling is available in multiple connection types to suit your specific application:

✅ Ordering Example: For a Type B (keyway + set screw) single joint with 10mm bores on both ends, specify: 02G(B10) – where 02G is the specification, B is the type, and 10 is the bore diameter.

Product Features & Advantages

Why Choose 304 Stainless Steel?

304 stainless steel (SUS304) is the preferred material for universal joint couplings in demanding environments:

✅ 304 stainless steel offers an optimal balance of corrosion resistance, strength, and cost-effectiveness, making it suitable for most conventional industrial applications.

Applications

The 304 stainless steel single universal joint coupling is widely used across various industries:

• Food & Beverage Processing – Hygienic, corrosion-resistant connections in packaging and processing equipment

• Packaging Machinery – Wrapping machines, carton sealers, labeling equipment

• Industrial Machinery – General power transmission, conveyor drives

• Conveyor Systems – Material handling, assembly lines

• Automation Equipment – Pick-and-place systems, robotics, linear actuators

• Medical Devices – Precision motion systems, diagnostic equipment

• Printing Equipment – Register control, paper feed systems

• Textile Machinery – Spinning, weaving, finishing equipment

• Agricultural Machinery – Farm equipment, irrigation systems

• Outdoor Equipment – Marine, solar tracking, and other weather-exposed applications

Why Choose Apex Coupling for 304 Stainless Steel Universal Joints?

Customization Options

FAQ

Q: What is a universal joint coupling?
A: A universal joint coupling (also called a U-joint or cardan joint) is a mechanical coupling that connects two shafts, allowing them to transmit torque even when they are not perfectly aligned. It accommodates angular misalignment while maintaining smooth power transmission.

Q: What is the advantage of 304 stainless steel?
A: 304 stainless steel offers excellent corrosion resistance, making it ideal for applications exposed to moisture, chemicals, and harsh environments. It also provides good strength, durability, and wear resistance.

Q: What is the maximum operating angle?
A: This single universal joint coupling accommodates up to 45° angular misalignment per joint. Double joint configurations can achieve up to 90° total articulation.

Q: What is the bore tolerance?
A: The standard bore tolerance is H7, providing a precision fit for accurate shaft alignment and reduced vibration.

Q: What connection types are available?
A: We offer Type A (pin hole + circlip slot), Type B (keyway + set screw), Type C (square hole), and Type D (hexagon hole). Choose based on your application requirements.

Q: Is the coupling corrosion-resistant?
A: Yes. Made from 304 stainless steel with oxide finish, this coupling is highly resistant to moisture, chemicals, and oxidation – suitable for food, packaging, and outdoor applications.

Q: What are the common applications?
A: Food & beverage machinery, packaging equipment, conveyor systems, industrial machinery, automation equipment, medical devices, and printing machinery.

Q: Can I get a custom coupling?
A: Yes. We offer OEM, ODM, and OBM customization – custom bores, lengths, keyways, connection types, and finishes available.

Q: What is the warranty?
A: 1 Year – quality assured.

Q: What is the lead time?
A: Stock items ship immediately. Custom orders typically require 7-15 days.

Request a Quote

Send us your required specifications (bore diameter, outer diameter, length, connection type), quantity, and any customization requirements. Our engineers will provide a quotation within 24 hours.
