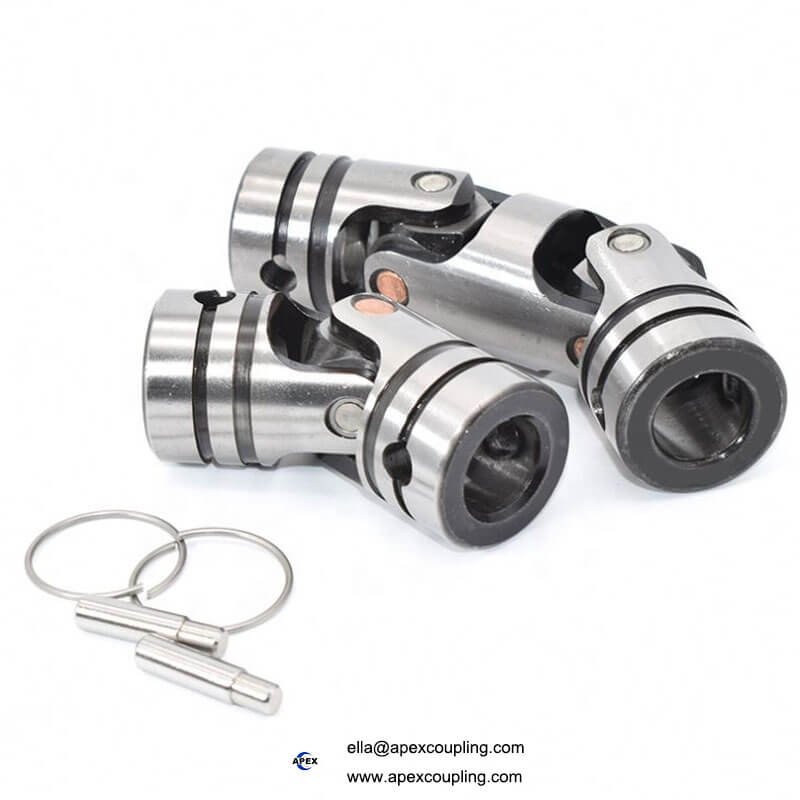

Ultra-Wide Flexibility & Precision Torque: 3/8″ Single Small Universal Joint Accessory

The 3/8 Inch Precision Single Small Universal Joint Series delivers an exceptionally versatile, high-strength, and compact motion transfer solution designed for machine tools, production lines, and heavy-duty hand socket transmission systems. In compact mechanical drives or manual adjustments, navigating tight corners or sharp geometric changes can easily bind up traditional flexible couplers. This single small universal joint line resolves severe layout constraints by utilizing highly precise pivot pins and interlocking yoke construction. It enables steady, low-friction torque transfer across an industry-leading 0 to 90-degree operating angle spectrum—making it an essential component for machine tool linkages, industrial assembly equipment, printing machinery, and manual mechanical adjustments.

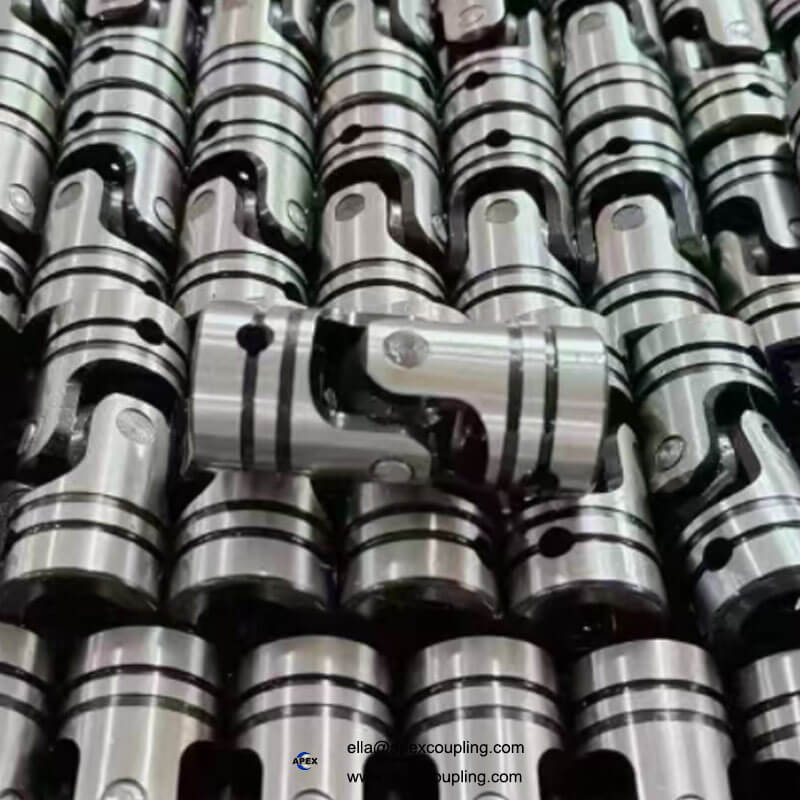

As detailed in the technical profile in universal joint coupling, these precision-crafted industrial connectors are forged from high-grade 42CrMo alloy steel (42 Crmo) for superior structural yield strength and torque endurance. Engineered to meet rigorous manufacturing standards, this compact line features a standard 10 mm bore diameter (3/8 inch equivalent), a 200 mm length, and features internal precision pins and components crafted from high-performance SUS304 stainless steel.

Core Product Advantages / Unique Selling Points

• Extraordinary 0–90° Full Operating Angle: Delivers incredible structural freedom, pivoting effortlessly from straight alignment up to a complete 90-degree maximum working angle.

• Premium 42CrMo Alloy Construction: Engineered using high-density 42CrMo alloy steel to handle intense cyclic fatigue and maximize ultimate torsional yield strength.

• SUS304 Stainless Steel Precision Parts: Internal core components and pivot tracks utilize precision-machined SUS304 stainless steel for smooth rotational tracking and excellent wear protection.

• High-Speed Dynamic Balancing: Designed to maintain continuous rotational balance with a high maximum velocity rating of up to 4000 RPM (N max).

• Wide Torque Capacity Framework: Compact framework safely manages demanding dynamic load thresholds with nominal torque values ranging from 4.5 to 1500 N·m.

• Tailored End-Connection Engineering: Completely supports specialized mounting preferences with available factory customization for a keyway, hexagon hole, or square hole setup.

• Globally Certified Manufacturing: Sourced directly from our state-of-the-art facility in Guangdong, China, under strict compliance with ISO9001, RoHS, and BV quality certifications.

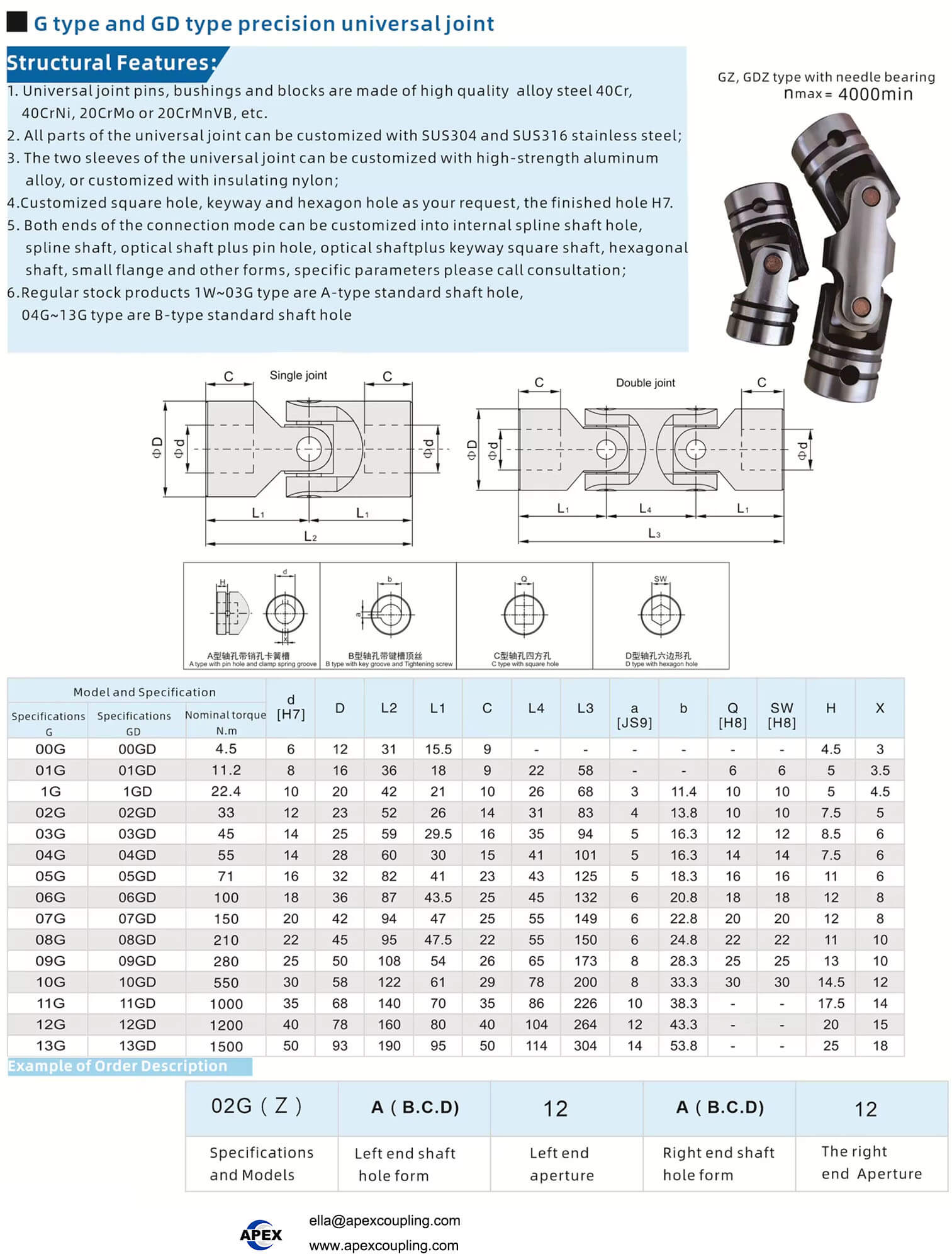

Technical Specifications Table
