Kinematics of Variable-Distance Transmission: Specifying WSP Retractable Small Cross Shaft Universal Couplings

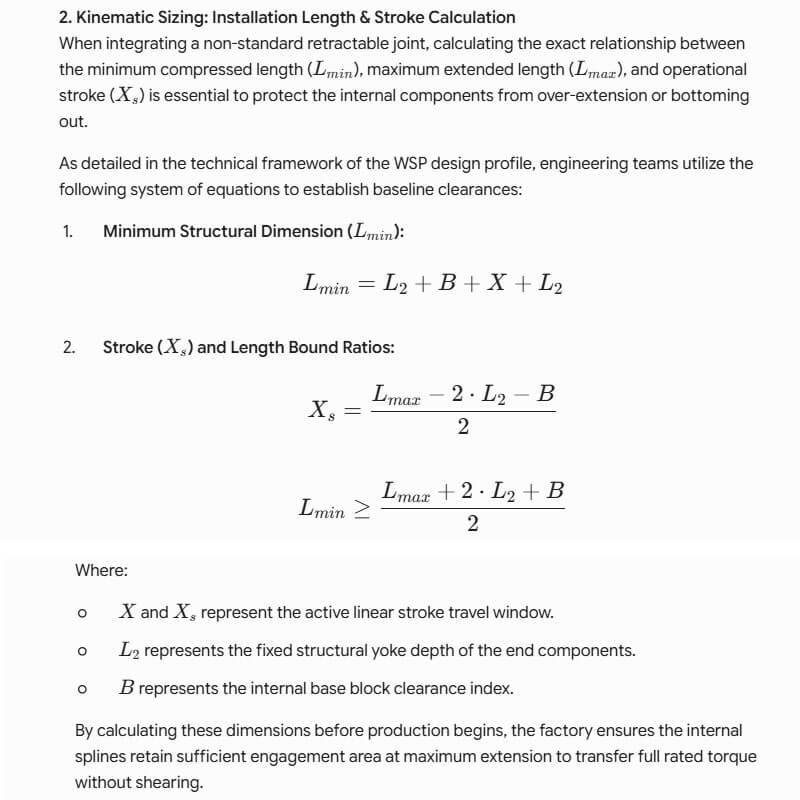

Introduction In advanced drivetrain engineering, linking power sources to output components becomes challenging when the distance between the two shafts shifts dynamically during operation. This variable axis spacing is a common feature in automated production systems, packaging machinery in Food & Beverage Shops, shaking screens in Energy & Mining, and adjustable steering or power links in agricultural setups. Standard fixed-length cardan shafts can bind or undergo structural failure when subjected to axial movement. To safely absorb linear travel without disrupting rotational speed or torque, design engineers specify the WSP Type Retractable Small Cross Shaft Universal Coupling. This article explains the structural traits of small cross-head linkages and details the formulas required to calculate proper installation stroke lengths.
1. Structural Traits of the WSP Series The WSP retractable coupling combines high angular flexibility with a robust telescopic spline sleeve.
High Angular Tracking: The small cross shaft design enables a maximum rotation angle of 45° for each section. This allows smooth, low-vibration power tracking through significant structural bends.
Precision Mechanical Interfaces: To prevent rotational backlash and minimize surface fretting under high cyclic torque loads, the finished shaft bores are machined to a tight H7 tolerance. Depending on the driving shaft profile, the interior bore can be further customized with standard keyways, hexagon holes, or square holes to match the machine’s inputs.
3. Premium 42CrMo Metallurgy and Certified Quality Operating inside busy high-volume production facilities requires extreme material dependability. As shown in the data chart in universal joint coupling the WSP coupling line is forged from premium 42CrMo Alloy Steel (42crmo), providing excellent fatigue strength and wear resistance. This choice of metallurgy allows for compact component sizes, supporting an outer diameter range of 22–150 mm and an inner diameter range of 10–95 mm while maintaining an excellent torque threshold. Manufactured under rigorous ISO9001 and BV certification guidelines, every assembly guarantees long-term material tracing and high-quality construction.
4. Direct Factory Custom Sourcing for Global Equipment Retrofits Because industrial equipment often relies on non-standard interfaces or highly specific space constraints, multi-tier retail channels often struggle to provide matching replacement parts quickly. Partnering directly with an established manufacturer like Apexcoupling simplifies your component sourcing. Operating from our advanced production hub in Guangdong, China, we support comprehensive OEM, ODM, and OBM tracks backed by an agile 1 PC MOQ. This direct pipeline allows engineering teams worldwide to secure precision-machined, non-standard retractable universal couplings built precisely to their mechanical drawings.
Inquiry now:
ella@apexcoupling.com
WSP retractable universal joint calculation, telescopic cardan shaft sizing formula, nonstandard small cross shaft coupling kinematics, H7 tolerance universal joint, 42CrMo food machine drivetrain design, ISO9001 universal coupling factory.
Dynamic Telescopic Travel + 45° Articulation + H7 Precision Bores! Optimize Your Machinery Alignment with the WSP Series ⚙️🍕🏗️
Are changing shaft distances, severe alignment offsets, or non-standard keyway profiles causing installation delays or premature coupling wear on your production lines? Take control of your mechanical power tracking with the WSP Type Retractable Small Cross Shaft Universal Couplings by Apexcoupling!
As shown in our official technical dataset in universal joint, these high-strength telescopic cardan links are precision-forged from premium 42CrMo alloy steel and carry full ISO9001 and BV certification—making them the ideal choice for demanding high-torque applications.
Why industrial design engineers specify the WSP retractable coupling:
✅ Dynamic Linear Stroke: The integrated telescopic slip-shaft extends and retracts smoothly under load, easily linking variable or wide shaft spacing.
✅ Massive 45° Axis Deflection: The precision small cross shaft architecture effortlessly handles extreme angular misalignments up to 45 degrees per section.
✅ H7 Precision Bore Machining: Features a tight, standard finished hole tolerance of H7 to minimize mechanical backlash and eliminate shaft slip.
✅ Bespoke Hub Configurations: We can open custom keyways, hexagon holes, or square holes directly to your specifications for a perfect mechanical match.
✅ Rugged 42CrMo Steel Construction: Built with premium 42crmo metallurgy to supply exceptional yield strengths across compact outer diameters (22–150mm) and inner diameters (10–95mm).
✅ Broad Field Versatility: Extensively field-tested to support continuous operations in Food & Beverage Shops, Machinery Repair, Farms, Construction Works, and Energy & Mining.
✅ Flexible Sourcing with a 1 PC MOQ: We support your custom machinery prototyping, small-batch mockups, and critical field maintenance needs with a 1 PC minimum order quantity.
✅ Direct Factory OEM Engineering: Sourced straight from our advanced manufacturing facility in Guangdong, China, giving you direct access to customized OEM/ODM/OBM services and competitive wholesale pricing.
Stop dealing with long distributor delays and multi-tier retail markups on critical transmission parts. Apexcoupling delivers direct factory pricing, reliable engineering support, and fast international shipping to keep your operation running smoothly. 🌍📦
📩 Planning an equipment upgrade or analyzing a complex drivetrain layout? Send your stroke calculations, desired hub profiles, and technical prints to our engineering team today for a fast quote and print review!
