Introduction In heavy-duty industries, resonance and sudden torque spikes are the primary enemies of drive shafts and gearboxes. The JS Serpentine Spring Coupling (also known as a Grid Coupling) is engineered to act as a mechanical buffer, protecting your investment while maintaining high-efficiency power transfer.

1. The “Variable Stiffness” Secret Unlike rigid couplings, the JS series uses a serpentine spring plate embedded in tooth slots. As the load increases, the contact point between the spring and the tooth profile changes, effectively altering the stiffness of the connection. This dynamic response helps avoid resonance and ensures smooth operation under varying loads.

2. A Safety Fuse for Your Motor Machinery like crushers often encounter sudden jams. The JS coupling is designed with a short-term overload capacity of 200% of its rated torque. This acting “safety fuse” helps absorb the impact, preventing expensive damage to the motor or the reducer.

3. Why 45# Steel and Spring Steel Matter By using 45# steel for the hubs and high-grade spring steel for the elastic elements, this coupling offers significantly better mechanical properties than those using non-metallic components. It is resistant to temperature fluctuations and oil contamination, making it ideal for the “dirty” environments of mining and construction.

4. Simplified Maintenance: The Trapezoidal Advantage Maintenance downtime is costly. The JS coupling’s spring plates are designed with a trapezoidal cross-section that fits perfectly into matching slots. This makes assembly and disassembly much faster than gear or pin-type couplings, allowing your production line to get back to work sooner.

Heavy Duty. High Efficiency. Ultimate Protection. ⚙️💎

Introducing the JS Serpentine Spring Grid Coupling by Apexcoupling—the preferred choice for crushers, reducers, and heavy hoisting machinery.

✅ Vibration Killer: Achieves a 36%+ vibration reduction rate to protect your gearboxes.

✅ Efficiency Pro: Measured at 99.47% transmission efficiency—don’t waste a drop of power.

✅ Overload Guard: Handles 2x rated torque for short-term protection during sudden impacts.

✅ Built Tough: 45# steel body and high-quality spring steel for an extended service life.

✅ Quick Maintenance: Easy axial/radial cover installation and simple spring replacement.

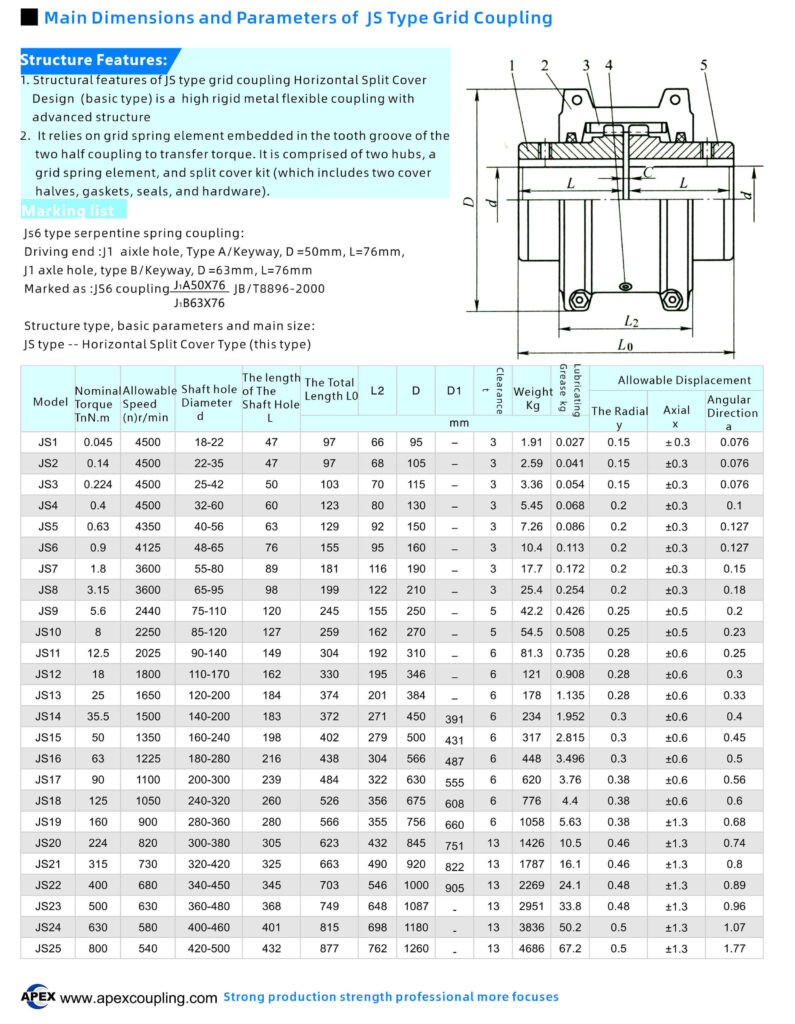

Reference image_46f55d.png and image_46f117.png for detailed model specifications and high-speed encoder compatibility.

Factory-direct pricing and non-standard customization available to fit your specific drawings! 🌍📦

DM us for technical support or a quote today! 📥

Inquiry: www.apexcoupling.com
