Advanced Vibration Damping: JS Series Serpentine Spring Grid Couplings

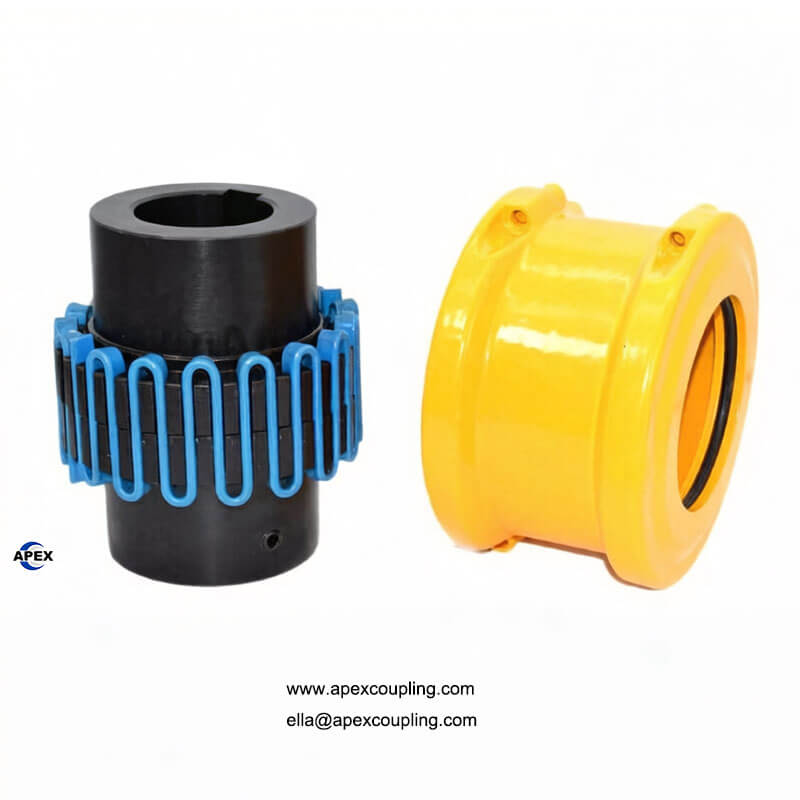

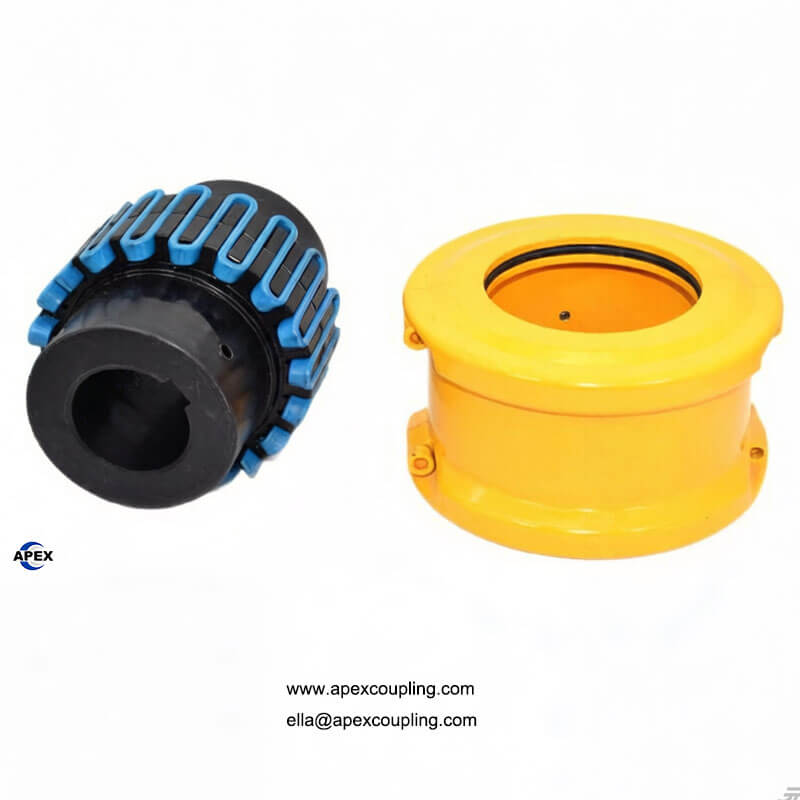

The JS Series Grid Coupling (compliant with JB/T8869-2000) is an advanced metal elastic coupling designed for variable stiffness and high-torque transmission. By embedding high-quality serpentine springs into the tooth slots of two half-couplings, it achieves a secure yet flexible connection that excels in heavy-duty industrial environments like mining, metallurgy, and hoisting.

Core Product Advantages

• Superior 45# Steel Construction: The main body is crafted from premium 45# steel, providing high durability and precision for demanding mechanical systems.

• High Transmission Efficiency: Measured at a remarkable 99.47%, ensuring minimal energy loss during power transfer.

• Exceptional Vibration Reduction: The elastic deformation of the spring plates provides a vibration damping rate of over 36%, significantly reducing mechanical resonance.

• Dual-Torque Overload Protection: Capable of handling short-term overloads up to twice the rated torque, ensuring safe and reliable operation during sudden stress.

• Extended Service Life: High-quality spring steel plates undergo strict processing, outlasting non-metallic elastic couplings in harsh conditions.

• Compact & Easy Maintenance: With fewer parts, a smaller volume, and a lightweight design, the trapezoidal cross-section springs allow for faster installation and maintenance than standard couplings.

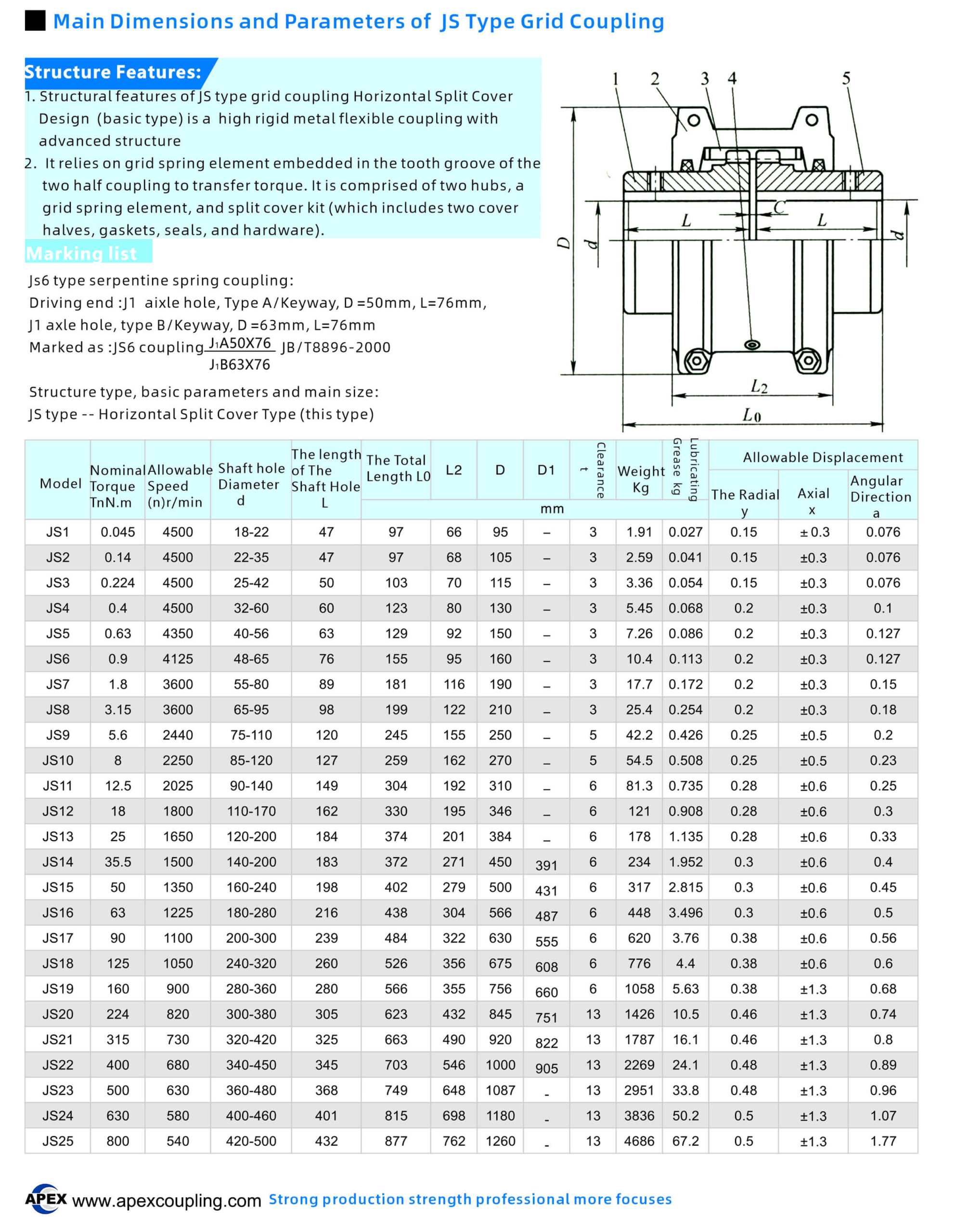

Technical Specifications Table
