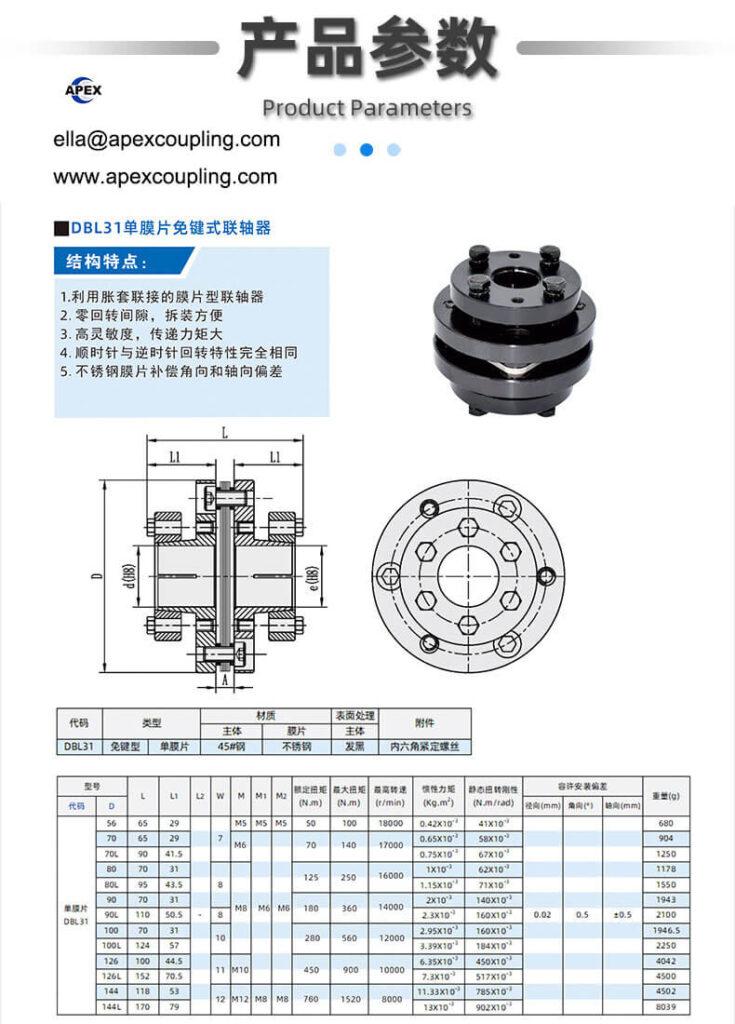

Introduction In precision motion control, the connection between the motor and the load is critical. The DBL31 Single Diaphragm Coupling is designed for engineers who prioritize torsional stiffness and high-speed reliability.

1. The Rigidity of the Single Diaphragm Unlike double-diaphragm models, the single-diaphragm structure of the DBL31 provides superior torsional rigidity. While it is more sensitive to radial misalignment, its ability to maintain perfect timing and synchronization makes it the preferred choice for high-speed encoders, testing rigs, and precision positioning systems.

2. Why H7 Precision and 45# Steel Matter Using inferior materials leads to deformation under high torque. Our DBL31 series is forged from 45# quality steel, offering a high strength-to-weight ratio. Combined with an H7 precision bore, this ensures that vibration is minimized even at speeds reaching 15,000 r/min.

3. The Advantage of Keyless Taper Sleeves Traditional keyway connections can suffer from “fretting corrosion” and backlash during frequent reversals. The taper sleeve (expansion) design of the DBL31 creates a uniform pressure around the shaft. This not only eliminates backlash but also protects the shaft from wear, allowing for precise torque transmission in both directions.

4. Direct Factory Customization Every industrial setup has its quirks. Whether you require a specialized length or a specific taper-to-bore ratio, Apexcoupling provides factory-direct OEM and ODM services. We specialize in non-standard solutions to ensure your coupling fits your exact performance envelope.
