Introduction In high-precision mechanical layouts, standard keyed shafts introduce stress concentration and angular backlash that inevitably worsens over extended start-stop operational runs. Keyless expansion sleeves solve this problem. However, within the realm of keyless locking components, the architectural differences between single-taper and double-taper mechanisms—like the AL-S / MLAP Double Taper Locking Assembly—can profoundly impact your machinery’s positioning accuracy and load capabilities.

1. The Geometric Superiority of Double-Taper Distribution Standard single-taper locking components pull the shaft or hub axially as they scale up their holding pressure, creating subtle micro-shifts that compromise fine-tuned dimensional assemblies. The AL-S series counteracts this by sandwiching a double-taper inner and outer core between two isolated clamping thrust plates. As the locking bolts are torqued, the plates compress symmetrically, generating massive radial holding force with zero relative axial displacement of the central components.

2. Amplified Radial Pressures for Massive Dynamic Loading Engineering stress tests show that at identical tightening torques, the double-wedge configuration creates more localized radial expansion force than basic variants. This increased friction co-efficient allows a relatively compact AL-S element to handle far greater reversing torque limits and sudden shock forces without slipping, making it an excellent match for heavy-duty printing equipment and metal-forming machinery.

3. Strategic Series Mounting for Heavy Transmission Challenges When drive engineers are restricted by narrow shaft dimension envelopes but still need to scale up torque thresholds, custom sizing isn’t the only solution. Because of its uniform straight-through profile, the AL-S sleeve supports cascading installation. By mounting multiple devices in a parallel series, the cumulative friction contact area multiplies, allowing standard catalog parts to solve highly customized heavy-load tasks.

4. Simple Mechanical Release Systems Limit Production Downtime A frequent engineering complaint regarding low-cost locking components is that they become permanently “frozen” onto shafts over long periods of heavy loading. The AL-S design eliminates this issue. By incorporating 2 to 4 specialized jacking screw holes within the front thrust plate, technicians can simply thread standard removal hardware directly into the frame to wedge the taper apart cleanly, preserving the shaft surface for subsequent rebuilds.

Zero Backlash. Higher Radial Pressure. Zero Axial Shift. ⚙️⚡

Frustrated with loose keys and shaft wear in your automated machinery? Upgrade to the AL-S / MLAP Series Double Taper Locking Assemblies by Apexcoupling—the premium keyless friction joint engineered for heavy industrial torque.

Based on the robust Z2 design principles, these expansion sleeves utilize a unique double-wedge configuration to deliver superior holding grip.

✅ Zero Axial Micro-Shifts: Symmetrical thrust plate compression keeps your components perfectly positioned during tightening.

✅ Maximum Force Translation: Double-taper rings create substantially higher radial pressure than single-taper elements.

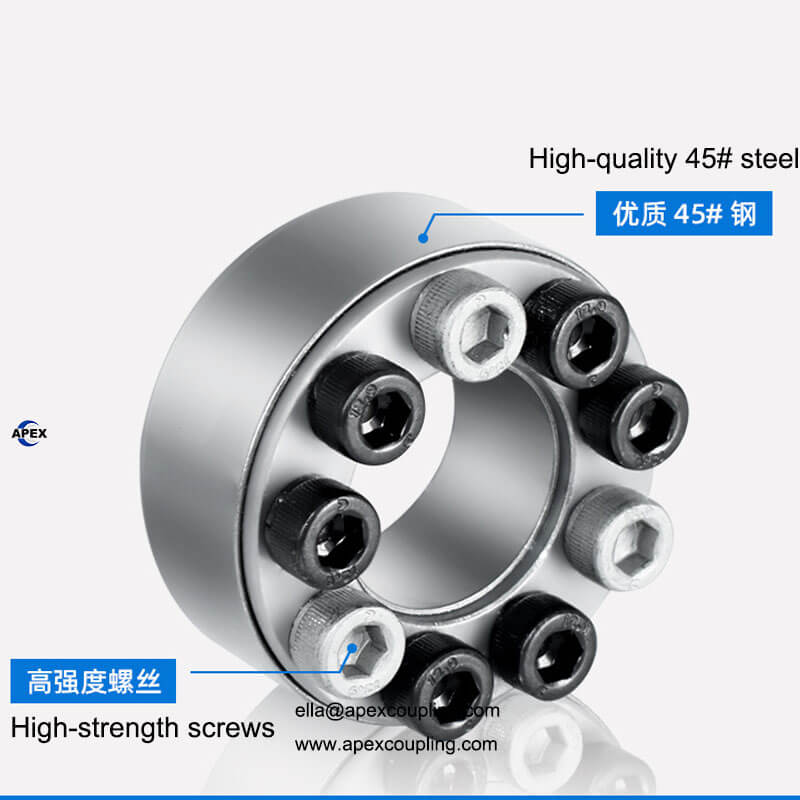

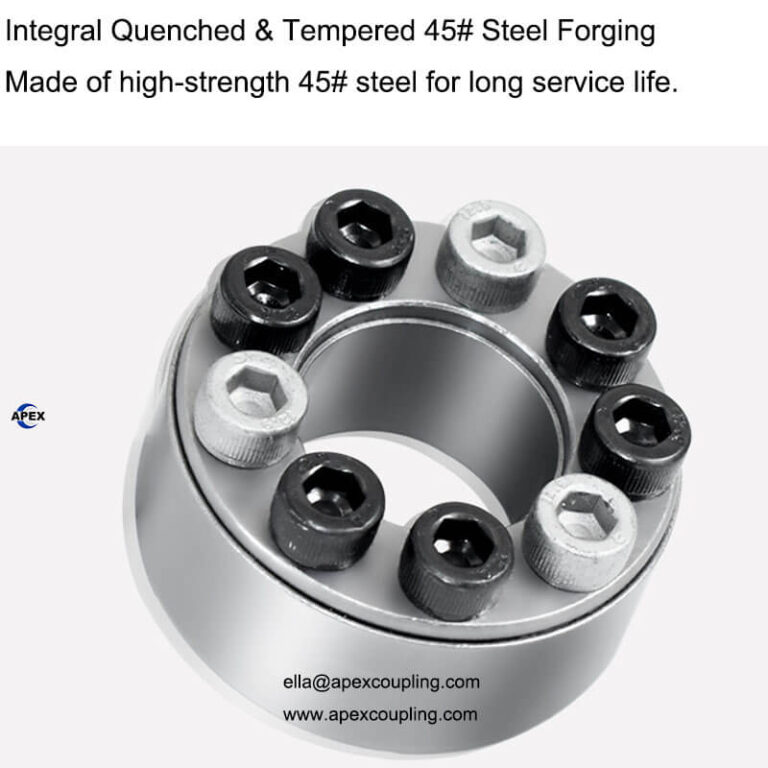

✅ Forged Toughness: Machined from quenched & tempered 45# forged steel with high-tensile hardware.

✅ Cascaded Load Scaling: Can be mounted in series along the shaft path to double or triple your torque capability.

✅ Rapid Disassembly: Integrated jacking release holes allow for quick, non-destructive removal.

Perfect for Precision CNC Spindles, Packaging Automation, Food Processing Gear, and Solar Array Actuators.

Check out image_135990.png to evaluate our precise internal cross-sections. Also available under the MLAP label in premium SUS304/SUS316 Stainless Steel for corrosion defense!

Direct source from our factory floor with comprehensive custom support! 🌍📦

Inquire today for technical parameters or a wholesale pricing quote! 📥

Inquiry: www.apexcoupling.com
