AL-S / MLAP Double Taper Locking Assembly | Keyless Shaft-Hub Expansion Sleeve (Z2 Equivalent)

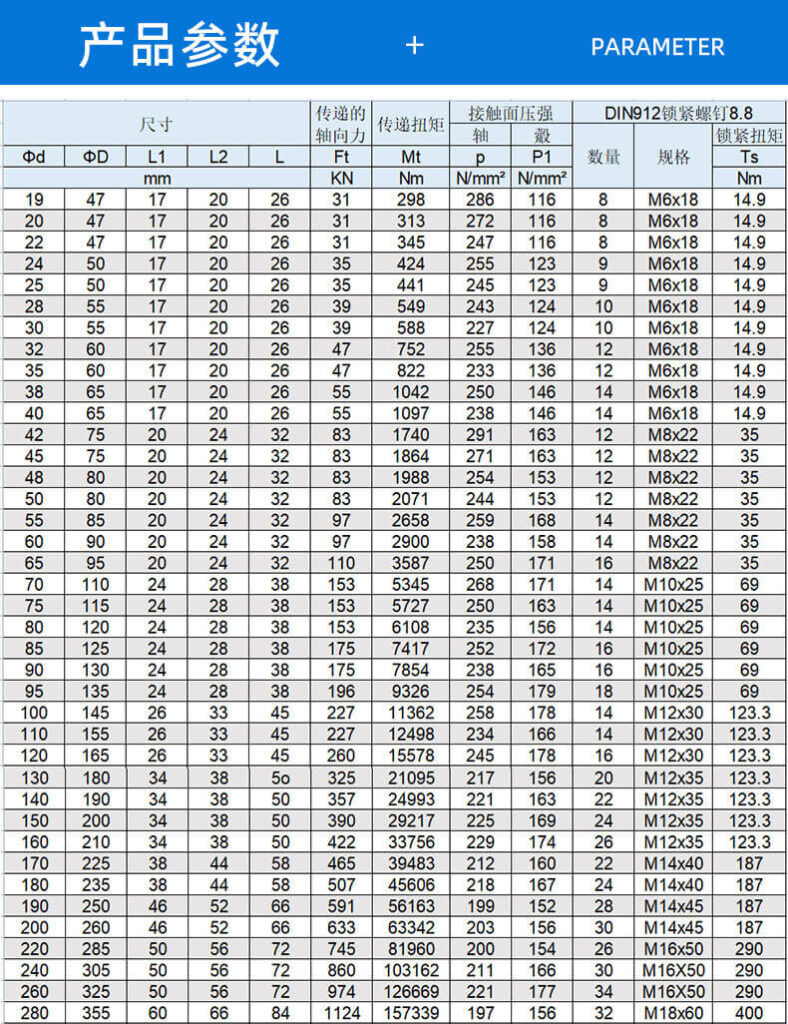

Model Number
Check below, custom
AL-S-19*47
AL-S-20*47
AL-S-22*47
AL-S-24*50
AL-S-25*50
AL-S-28*55
AL-S -30*55
AL-S-32*60
AL-S-35*60
AL-S-38*65
AL-S -40*65
AL-S-42*75
AL-S-45*75
AL-S-50*80
AL-S-55*85
AL-S-60*90
AL-S-65*95
- Phone : +86 13431039760
- Wechat : +86 13431039760
- Whatsapp : +86 13431039760
- Email : ella@apexcoupling.com
Product Description
Advanced Keyless Jointing: AL-S & MLAP Straight-Through Double Taper Locking Devices
Â

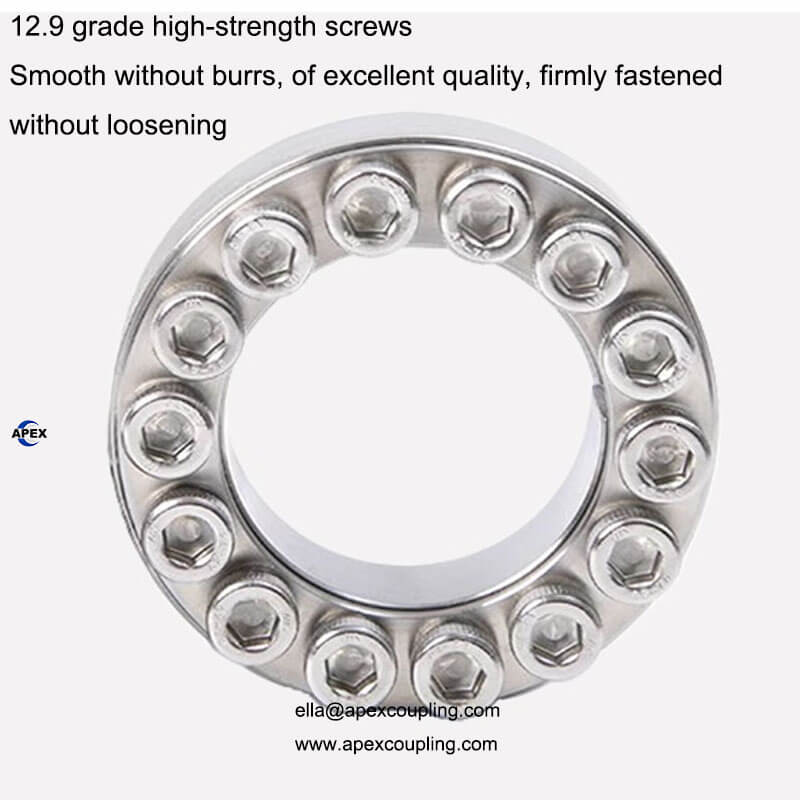

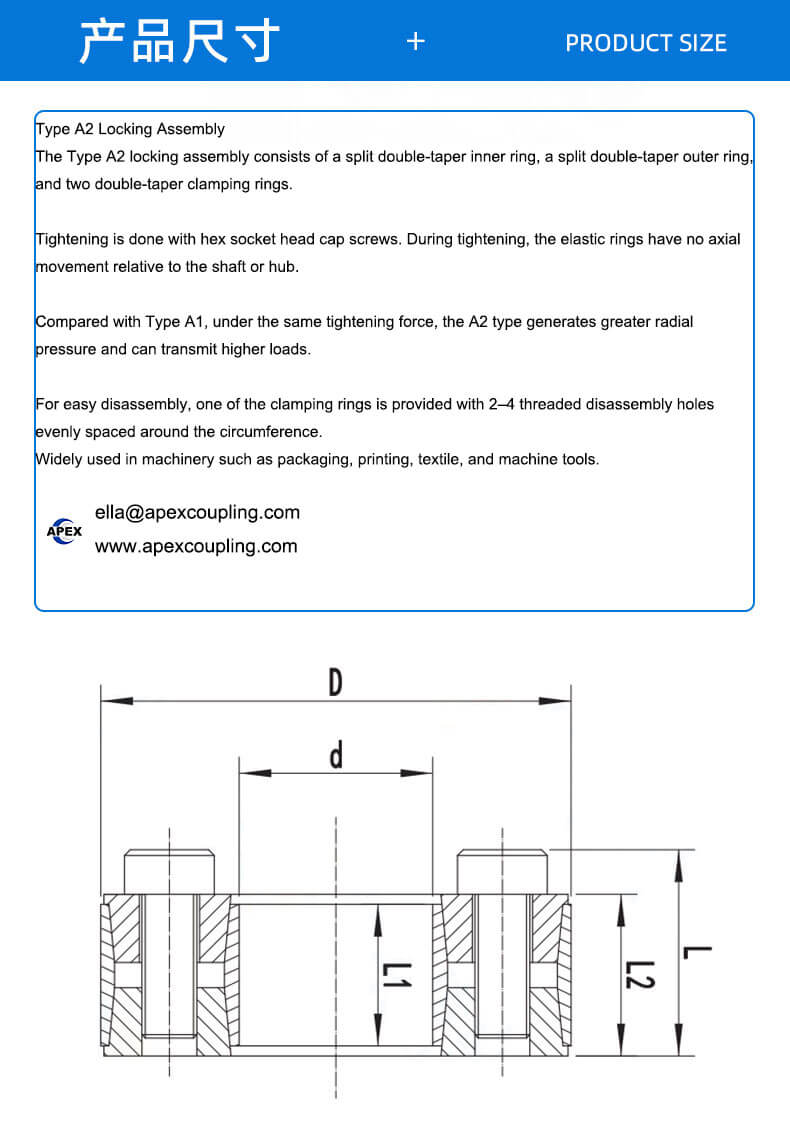

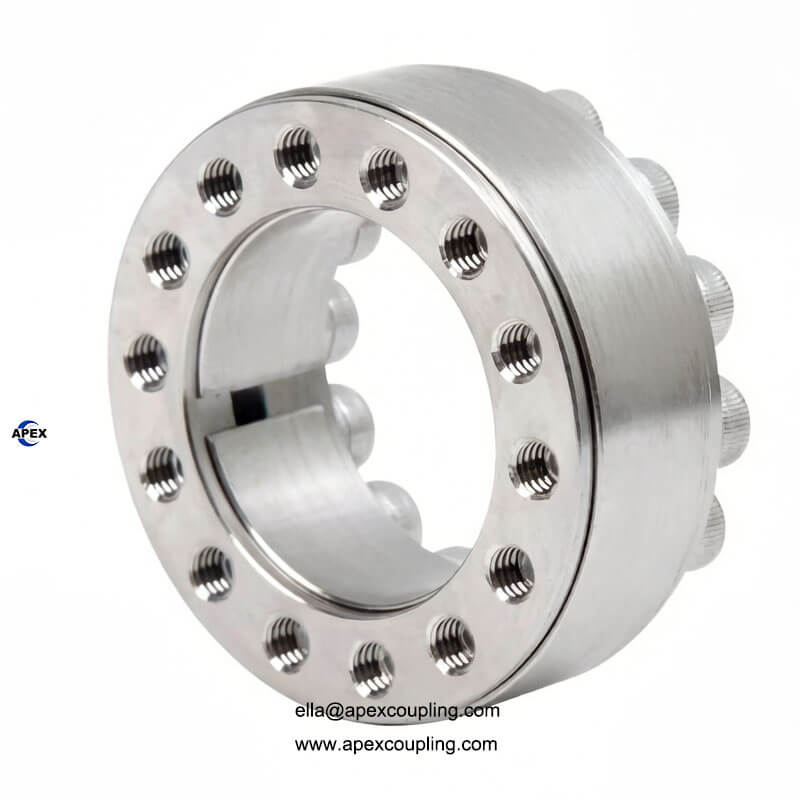

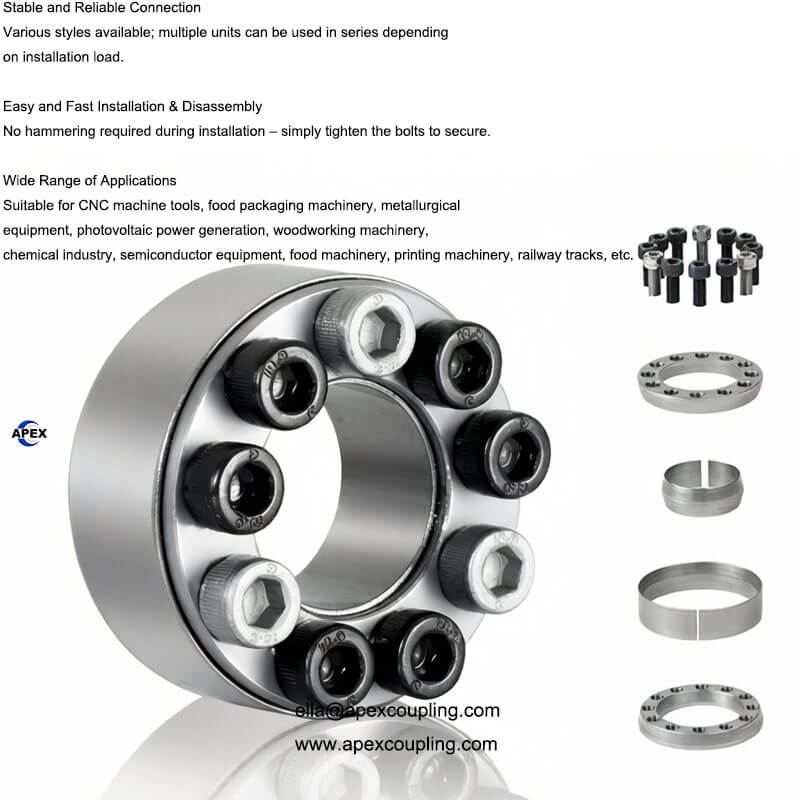

The AL-S and MLAP Series Double Taper Locking Assemblies (commonly referenced as Z2 style connections) represent a premier keyless friction-joint mechanism designed for heavy duty power transmission. Composed of an open double-tapered inner ring, an open double-tapered outer ring, and two matching thrust collars, this assembly utilizes high-strength socket head cap screws to deliver a tight, backlash-free connection. Ideal for packaging, printing, and textile machinery, the AL-S series ensures maximum torque conversion without degrading shaft integrity.
Â
Core Product Advantages
No Axial Shift Displacement: During screw tightening, the precise geometry of the double-taper rings prevents any axial movement of the elastic element relative to the shaft hub, maintaining exact component positioning.
Enhanced Radial Grip Pressure: Compared to single-taper alternative structures (such as standard A1 variants), the unique double-taper configuration converts the identical bolt clamping force into significantly higher radial contact pressure, enabling the transmission of much larger torques and axial loads.

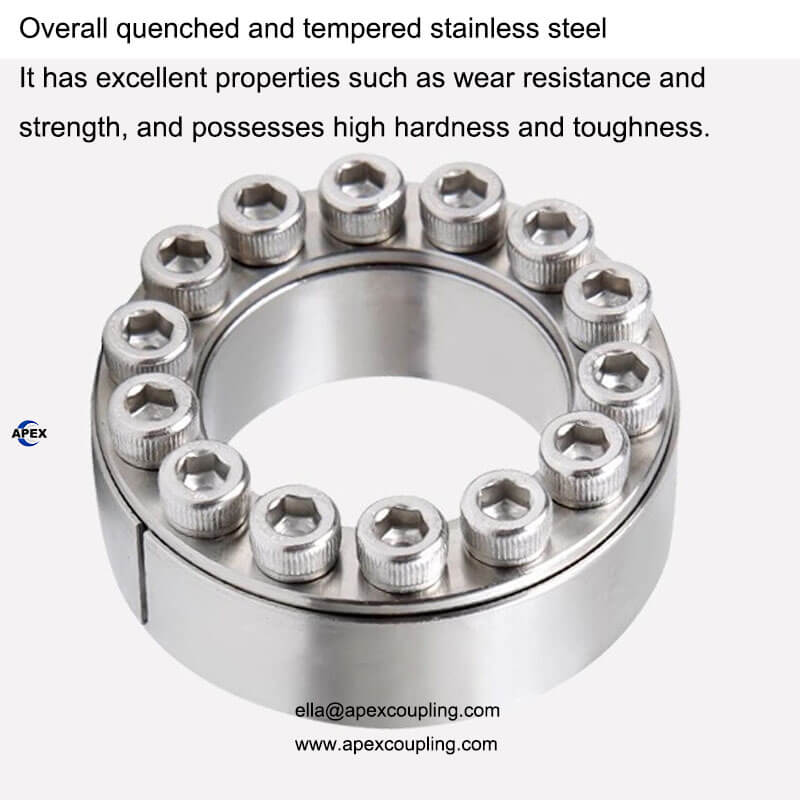

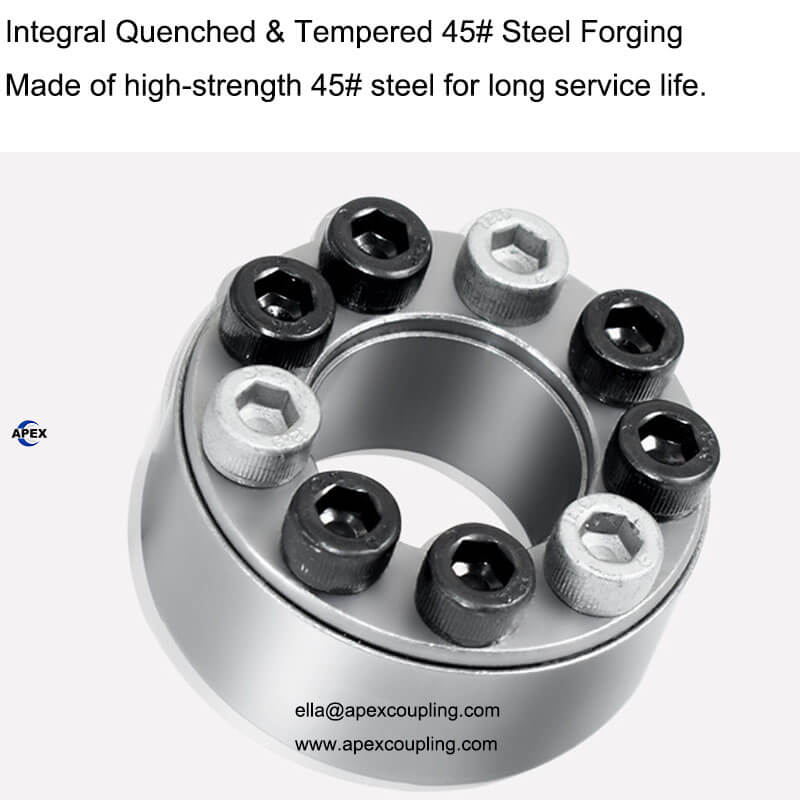

Quenched & Tempered 45# Forgings: Built entirely from high-grade 45# steel forgings subjected to advanced thermal conditioning, removing internal defects and voids to maximize operational lifespan and fatigue limits.
Rapid Inter-Changeable Expansion: Installation requires zero hammer hammering or heating—simply tighten the circular bolts uniformly. For swift removal, integrated release jacking screw holes (2 to 4 locations along the circumference) release the friction lock seamlessly.
Expandable Series Linkage: For applications demanding extreme load ratings, multiple AL-S locking assemblies can be cascaded and mounted in series along the drive path.
Complete Stainless Steel Execution: The MLAP series can be entirely fabricated from premium 304 or 316 stainless steel matched with anti-galling hardware for medical, chemical, and food processing lines.
Â

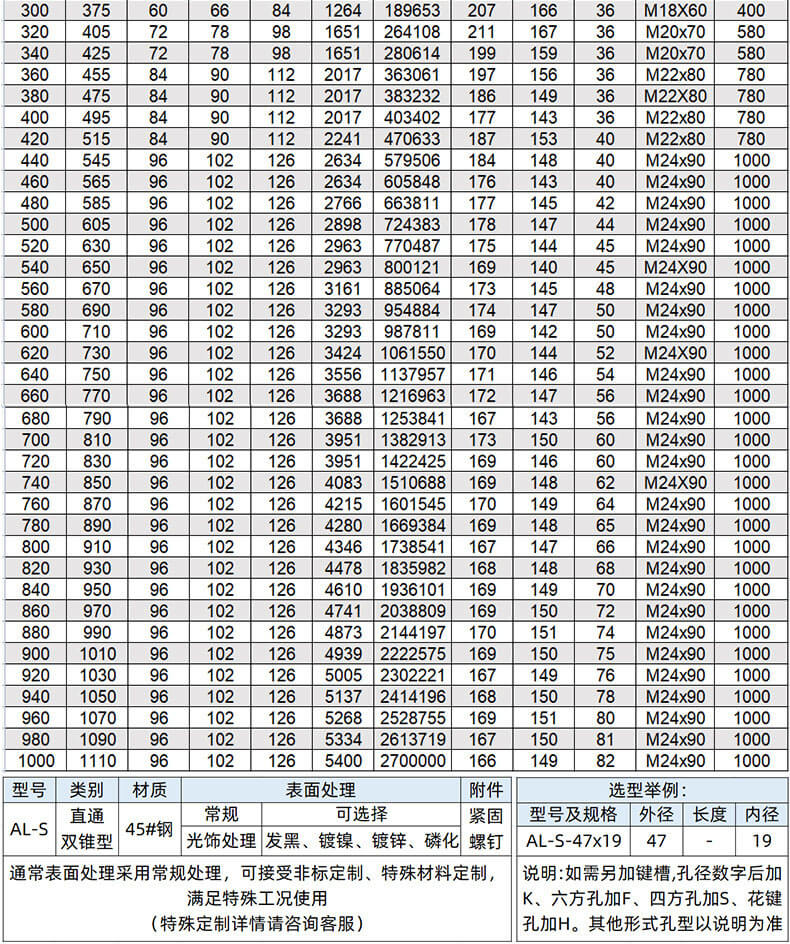

Technical Specifications Table
| Attribute | Specification Details |
| Model Blueprint | AL-S / MLAP Series (Z2 Structure) |
| Body Construction | Quenched & Tempered 45# Forged Steel / SUS304 / SUS316 |
| Hardware Grade | High-Tensile Socket Head Cap Screws |
| Locking Principle | Keyless Friction Expansion |
| Axial Displacement | Zero Relative Axial Movement During Clamping |
| Load Expansion | Supports Cascaded Series Mounting for High Torque |
| Release Mechanism | Integrated 2-4 Jacking Holes for Easy Disassembly |
| Core Applications | CNC Machine Tools, Printing/Packaging Gear, Solar Trackers |
Â
AL-S Locking Assembly, MLAP Expansion Sleeve, Double Taper Locking Device, Keyless Shaft Hub Connector, Z2 Locking Device, Stainless Steel Locking Element.
Product Show

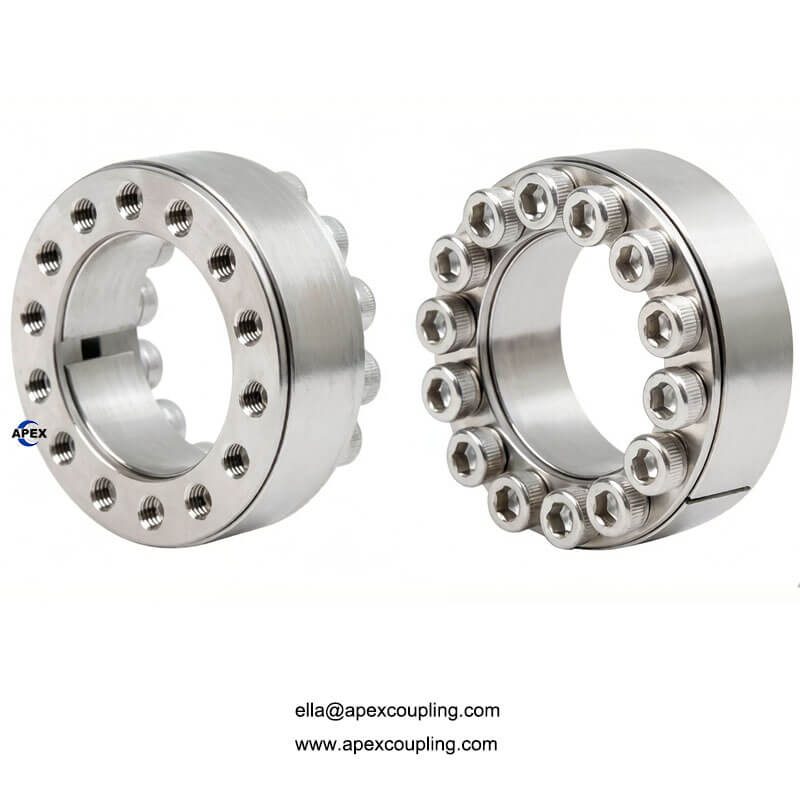

AL-S Locking Assembly
