Introduction In heavy industrial drivetrains—such as primary steel production lines, heavy crushing equipment, and paper mill processing rolls—power transmission systems must bridge substantial physical gaps and manage large working misalignments. For these high-stress setups, the standard flexible element or gear coupling is structurally inadequate. Engineers instead rely on SWC Series Cross-Type Universal Joint Cardan Shafts. Selecting the correct configuration—such as choosing between the BH Type and WF Type flange connections, or choosing a fixed vs. telescopic layout—is essential to ensuring smooth transmission efficiency and preventing premature field failures. This engineering guide highlights the critical material science, balancing standards, and structural designs that define these heavy-duty cardan assemblies.

1. Mounting Geometry: Analyzing BH Type vs. WF Type Configurations The distinction between the SWC BH and WF designations defines how the cardan shaft bolts onto your companion machinery hubs.

• BH Type Configuration: The BH configuration represents the standard end-yoke connection setup. It is optimized for compact layouts where space around the shaft is tight, providing a streamlined profile that transfers high torque within a narrower rotational envelope.

• WF Type Configuration: The WF layout utilizes an expanded, integrated flange mating face. This design spreads the high-tensile bolt circle out across a wider surface area, which reduces localized shear stresses on the fasteners and simplifies installation when mounting directly to massive flywheels, gear flanges, or industrial break discs.

2. Metallurgy and Hardening: The Lifespan of Overall Spline Quenching Telescopic cardan shafts must handle intense sliding friction along their central splines while transferring thousands of Newton-meters of rotational torque. If the spline profiles are left untreated, the constant sliding action will quickly introduce rotational play, causing heavy backlash and severe drivetrain vibration. To prevent this, the raw round bar steel forgings are first refined using a traditional quenching and tempering treatment to maximize core toughness. The sliding spline shaft then undergoes an overall induction hardening process. This increases surface hardness, protecting the spline teeth from premature wear and ensuring smooth telescopic operation over years of continuous service.

3. Needle Bearing Optimization and the Lubrication Mandate At the heart of the SWC universal joint is the cross spider, which carries the full weight of the transmitted load. The SWC series utilizes high-precision multi-row needle roller bearings packed tightly inside the cross-yoke ears. This layout provides a wide load support surface, minimizing internal friction and optimizing transmission efficiency. To safeguard these bearings under harsh continuous loads, the cross assembly features built-in oil injection holes. This allows maintenance teams to pump fresh grease directly into the center of the cross, forcing contaminants out and ensuring the needle bearings stay adequately lubricated.

4. Rotational Vibration Control: The 1500 RPM Dynamic Balancing Rule Because industrial cardan shafts can span long distances between connection points, any minor weight offset along the central seamless tube can introduce substantial centrifugal forces when spinning. If left unchecked, this creates intense high-frequency vibrations that can quickly destroy adjacent motor bearings, split gearbox seals, and fatigue the universal joint itself. To prevent this, every long-shaft configuration is subjected to strict factory dynamic balance testing executed at 1500 RPM. Small, precise balancing weights are welded onto the tube body to bring the component well within standard vibration metrics, ensuring quiet operation at high running speeds up to 1800 RPM.

5. Seamless Factory Direct Sourcing for Global Equipment Builders No two industrial processing facilities or heavy steel mill lines utilize the exact same physical mounting footprints. Off-the-shelf drive shafts rarely align perfectly with custom flange bolt circles or specific length restrictions. Sourcing your components directly from an established integrated manufacturer like Apexcoupling avoids these sizing headaches. Backed by our advanced production facilities and detailed selection prints, our OEM and ODM custom manufacturing services can tailor overall length parameters, flange dimensions, and keyway tolerances to deliver a rugged, high-precision cardan shaft built directly to your design prints.

Forged Carbon Steel. 1500 RPM Dynamic Balance. Complete BH & WF Customization. ⚙️🔥💪

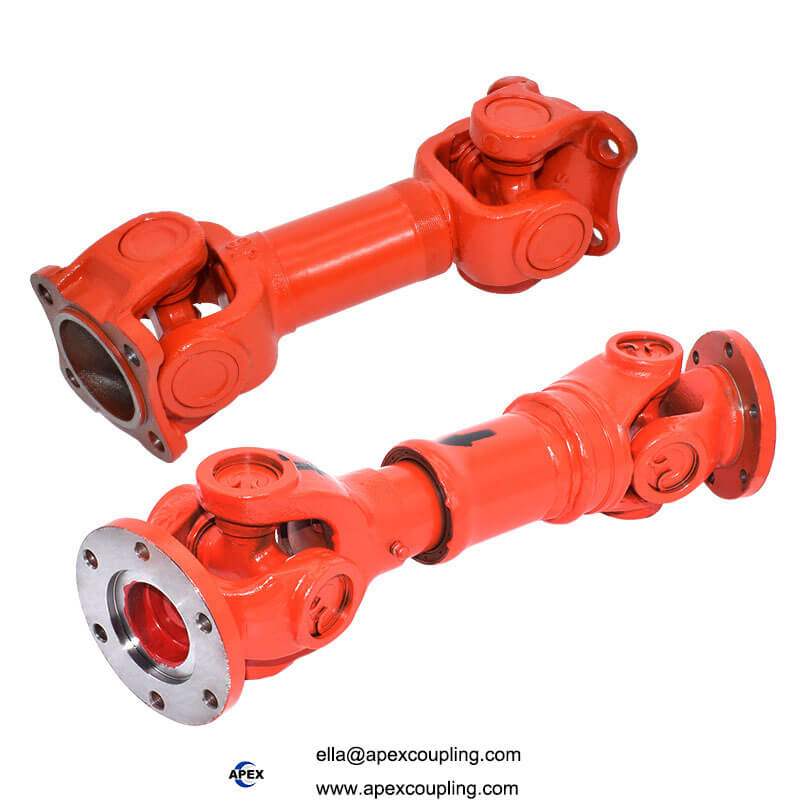

Are high vibration, excessive shaft misalignment, or rapid spline wear causing frequent downtime on your heavy conveyor drives or steel mill machinery? Ensure long-term drivetrain reliability with the SWC Series Cross-Type Universal Joint Cardan Shafts by Apexcoupling!

Engineered specifically for demanding industrial applications, these rugged cross-spider couplings effortlessly handle high working angles and sliding axial movements to keep your heavy machinery running smoothly.

✅ High-Strength Forged Round Steel: Built using premium round steel forgings and cold-drawn seamless tubes to provide exceptional toughness under severe shock loads.

✅ Overall Induction Spline Hardening: The internal sliding splines are fully quenched to provide high wear resistance during continuous telescopic movement.

✅ Multi-Row Needle Cross Bearings: Precision engineered with multi-row needle rollers and convenient oil injection ports for easy maintenance and smooth power delivery.

✅ Flexible BH & WF Mounting Formats: Available in compact BH Type end-yoke layouts or wide-face WF Type flanged configurations to match your machinery footprints. ✅ Strict 1500 RPM Dynamic Balancing: Every long-shaft assembly undergoes rigorous factory dynamic balance testing up to 1500 RPM to eliminate vibration at operating speeds up to 1800 RPM.

✅ Protective Anti-Rust Coating: Coated in an industrial-grade spray paint layer to shield the steel from moisture and harsh chemical vapors.

✅ Direct-Factory Customization Track: Need custom telescopic stroke lengths, unique flange bolt circles, or non-standard metric sizes? Our factory builds hardware tailored exactly to your blueprints.

Optimized for Steel Rolling Machinery, Paper Mill Drive Lines, Heavy Lifting Cranes, Large Fluid Pumping Stations, and Mining Powertrains.

Stop settling for long distributor delays and premium markups on heavy drive components. Apexcoupling provides factory-direct wholesale pricing, available sample options, and complete OEM/ODM custom manufacturing to streamline your global component sourcing. 🌍📦

📩 Ready to optimize your heavy-duty drivetrain connections? Share your required flange patterns, telescopic lengths, and peak operational torque with our engineering team today for a fast quote and print review!
