Introduction In modern manufacturing facilities, packaging centers, and automation cells, power transmission systems frequently need to transfer torque across offset components. While flexible elastomer or disc couplings handle minor misalignments, they cannot manage larger working angles. For applications requiring wide angular displacement—such as multi-axis drilling heads, conveyor drives, or automated steering linkages—designers rely on CSCA and CSCW industrial universal joints. This technical guide examines the functional differences between single and double joint layouts, helping you choose the right configuration for your automation projects.

1. Kinematics Under Angle: Single vs. Double Structural Dynamics Selecting between a single universal joint (CSCA) and a double universal joint (CSCW) depends on your specific alignment requirements and spatial layout.

• The Single Joint Boundary: A single universal joint can manage angular displacement up to 45 degrees. However, as the angle increases, a single joint naturally introduces cyclic speed variations in the output shaft. This configuration is best suited for manual adjustments, low speeds, or systems where minor speed variations do not impact performance.

• The Double Joint Correction: A double universal joint features two joints connected by a central shaft. This configuration cancels out speed fluctuations by mirroring the angular offset across both joints, ensuring smooth 1:1 constant velocity tracking. It also allows the system to bridge parallel shaft offsets that a single joint cannot accommodate.

2. Metallurgy for High-Speed Automation: 42CrMo vs. 304 Stainless Steel Industrial automation systems demand components that can run reliably under continuous cycles without experiencing material fatigue.

• 42CrMo Alloy Steel: This high-strength alloy is ideal for high-torque applications like packaging machinery and construction equipment. When precision machined, it withstands high torque spikes and handles continuous speeds up to 1800 RPM without deformation.

• 304 Stainless Steel: For washdown environments, food processing lines, or chemical processing plants, 304 stainless steel is the preferred choice. It offers excellent corrosion resistance against moisture and chemical cleaners while maintaining smooth power transmission.

3. Surface Integrity Treatments: Choosing Between Zinc, Oxide, and Nickel Raw steel components can quickly develop surface oxidation in damp plant environments, leading to binding and early wear. The CSCA/CSCW series offers multiple surface treatments to prevent this. Standard black oxide provides cost-effective protection for oil-lubricated enclosed environments. Zinc plating offers enhanced moisture protection for general material handling lines. For demanding conditions involving chemical vapors or high friction, nickel plating provides a hard, wear-resistant layer that keeps the joint operating smoothly.

4. Precision Machining Options for Secure Shaft Engagement A universal joint is only as reliable as its connection to the shaft. At high operational speeds up to 1800 RPM, simple friction fits can loosen and slip. To prevent this, the internal bores (ranging from 6mm to 50mm) can be precision machined with custom attachment profiles. Incorporating a standard metric keyway distributes torsional loads across a robust steel key, preventing shaft slippage. For heavy reversing loads or indexing setups, square holes or hexagon profiles offer a positive mechanical lock that completely eliminates rotational play.

5. Sourcing Custom-Length Cardan Joints via Direct OEM Factory Channels Standard catalog sizes don’t always align with the tight spaces or unique shaft dimensions of custom machinery. Sourcing directly from an established manufacturer like Apexcoupling simplifies this process. Backed by our ISO 9001 certified plant, we support complete OEM, ODM, and OBM custom manufacturing tracks. Whether you need custom overall lengths up to 350mm, stepped bore configurations, or specialized materials, our production facility can quickly deliver precision-engineered, drop-in universal joints built exactly to your technical blueprints.

Bi-Directional Precision. High-Strength 42CrMo Steel. Complete Sizing Customization. ⚙️🔄⚡

Are loose connections, shaft slippage, or premature wear on your automation lines and machinery linkages causing frequent maintenance downtime? Keep your drivetrains running smoothly with the CSCA & CSCW Industrial Universal Joints by Apexcoupling!

Engineered to meet strict factory automation standard specifications, these universal joints deliver quick response times and high efficiency under continuous clockwise and counterclockwise rotations.

✅ High-Strength Material Selection: Available in rugged 42CrMo alloy steel for high torque demands, or 304 stainless steel for corrosion protection in washdown environments.

✅ Flexible Single & Double Layouts: Sourced as single joints (CSCA) for angular alignment, or double joints (CSCW) to manage parallel offsets and maintain constant velocity.

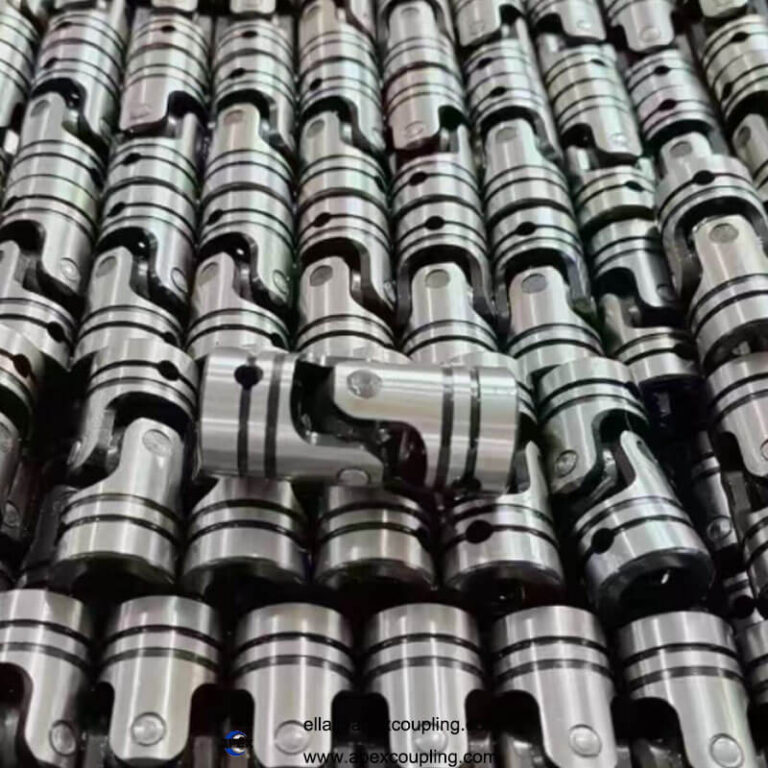

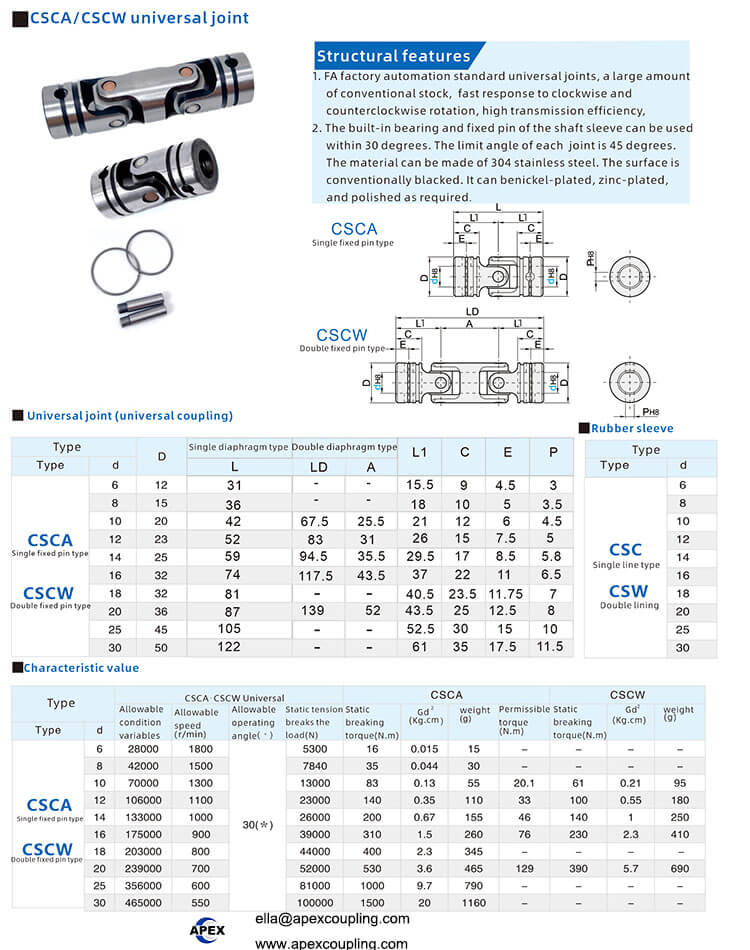

✅ Generous Working Angles: Built-in bearing sleeve accommodates a 30° working spectrum, with a maximum mechanical joint limit angle of 45 degrees. ✅ Dynamic High-Speed Capacity: Balanced to sustain smooth, continuous high-velocity applications running up to 1800 RPM. ✅ Tailored Shaft Mounting Options: Bores from 6mm to 50mm can be custom machined with keyways, square holes, hex shapes, or plain profiles.
