ROTEX Jaw Coupling Selection Guide – PU 98ShA, Zero Backlash, H7 Bore
ROTEX type jaw spider couplings (also known as plum couplings or curved jaw couplings) are among the most versatile and widely used flexible couplings in industrial power transmission. With a simple three-piece construction – two metal hubs and an elastomeric spider – they offer an excellent balance of torque capacity, misalignment compensation, and shock absorption.
This guide explains how to select the right ROTEX jaw coupling for your application, using the PU 98ShA series as a practical example.
1. What Is a ROTEX Jaw Spider Coupling?
A ROTEX jaw spider coupling consists of:
Two metal hubs with curved jaws – available in 304SS, 316SS, 45# steel, or aluminum
An elastomeric spider – 98ShA polyurethane for high torsional rigidity
The spider transmits torque while absorbing shock and compensating for misalignment. The curved jaw design provides a press-fit with the spider, eliminating backlash.
2. Why 98ShA PU Spider?
The 98 Shore A polyurethane spider offers the perfect balance of properties:
| Property | Benefit |
|---|---|
| High torsional rigidity | Precise torque transmission with minimal angular deflection |
| Excellent damping | Reduces vibration and protects connected equipment |
| Oil and water resistance | Suitable for harsh industrial environments |
| High abrasion resistance | Long service life |
| Zero backlash | Press-fit with curved jaws eliminates rotational clearance |
3. Material Selection – Hubs
| Material | Torque Capacity | Corrosion Resistance | Weight | Best For |
|---|---|---|---|---|
| 304 Stainless Steel | High | Excellent | Medium | Food & beverage, chemical |
| 316 Stainless Steel | High | Superior | Medium | Marine, pharmaceutical |
| 45# Carbon Steel | Very High | Moderate | High | Heavy industry, high torque |
| Aluminum Alloy | Moderate | Good | Low | High speed, low inertia |
Recommendation:
Choose stainless steel for corrosive or hygienic environments.
Choose 45# steel for heavy-duty, high-torque applications.
Choose aluminum for high-speed, precision applications.
4. Zero Backlash – Why It Matters
Zero backlash is critical for:
Servo motors – Precise positioning and speed control
Stepper motors – No lost steps
CNC machines – Surface finish accuracy
Robotics – Repeatable motion
Reversible drives – No lost motion
5. H7 Bore Precision – High Concentricity
The H7 bore tolerance ensures:
High concentricity – Reduced vibration
Accurate shaft fit – No wobble or fretting
Longer equipment life – Reduced bearing wear
6. Clamping Screw Fastening – Secure Connection
The ROTEX coupling uses clamping screw fastening:
Secure shaft locking – Even clamping force
Easy installation – No special tools required
Easy adjustment – Simple screw tightening
7. Misalignment Compensation – Protecting Your Equipment
The PU spider compensates for three types of misalignment:
| Misalignment Type | Description |
|---|---|
| Radial | Shafts are offset laterally |
| Angular | Shafts are at an angle to each other |
| Axial | Shafts have end-play or thermal expansion |
By absorbing these deviations, the coupling reduces stress on bearings, seals, and other components – extending equipment life.
8. Applications Across Industries
| Industry | Application | Recommended Material |
|---|---|---|
| Food & Beverage | Processing equipment, conveyors | 304/316 Stainless Steel |
| Manufacturing | General power transmission | 45# Steel or Aluminum |
| Energy & Mining | Conveyors, feeders, crushers | 45# Steel |
| Construction | Mixers, hoists | 45# Steel |
| Printing | Presses, finishing equipment | Aluminum |
| Packaging | Wrapping machines, conveyors | Aluminum or 45# Steel |
9. Real‑World Example – Food Processing Plant Upgrade
A food processing plant was using standard steel couplings that corroded from frequent washdowns, causing frequent failures and downtime. They switched to Apex Coupling ROTEX jaw spider couplings (316 stainless steel, 98ShA PU spider, H7 bore, zero backlash). Results:
Corrosion eliminated – 316SS withstood daily washdown
Zero backlash maintained – Precision positioning improved
Service life extended – No rust or degradation
Hygiene compliance – Stainless steel meets food industry standards
10. Installation & Maintenance Tips
Clean shaft and bore – Remove oil, grease, and debris
Check alignment – Even with misalignment compensation, keep within recommended limits
Tighten clamping screws evenly – Use a torque wrench to specification (star pattern)
No lubrication required – PU spider is self-lubricating
Inspect spider periodically – Replace if cracked or worn
Retighten after first operating hours – Normal bedding-in process
11. Selection Checklist
Material: 304SS, 316SS, 45# steel, or Aluminum
Spider: 98ShA PU for high torsional rigidity
Backlash: Zero backlash for precision applications
Bore tolerance: H7 for precision shaft fit
Torque: 300 N·m – select based on your requirement
Speed: 5000 RPM – match your motor speed
Fastening: Clamping screw for secure connection

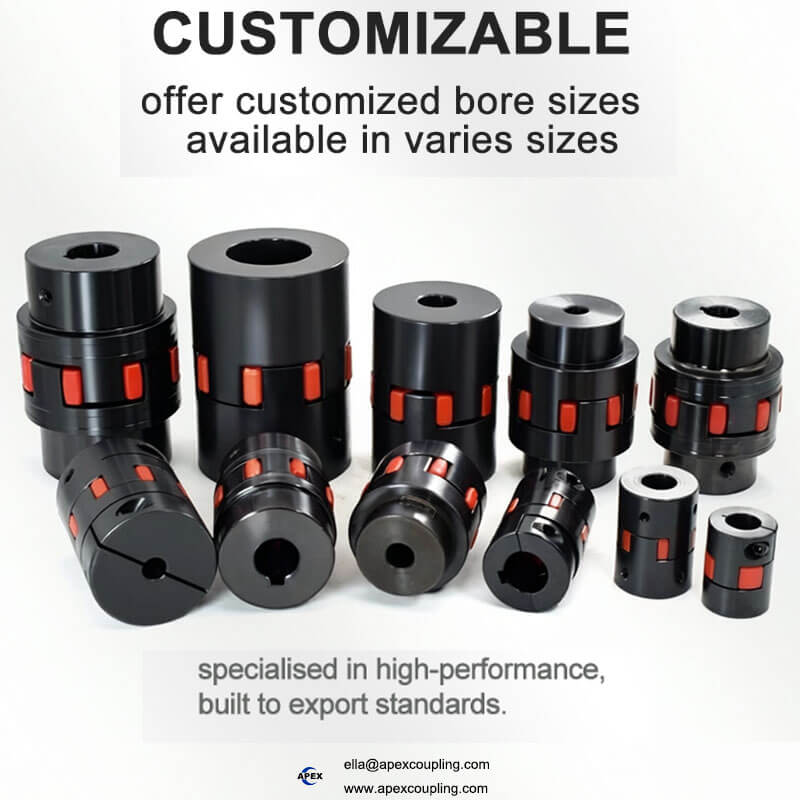

Customization: OEM bores, keyways, and materials available
12. Conclusion
The ROTEX jaw spider coupling with PU 98ShA spider from Apex Coupling offers the perfect combination of zero backlash performance, high torsional rigidity, and material flexibility for a wide range of industrial applications. With 304/316 stainless steel, 45# steel, or aluminum hub options, H7 bore precision, and clamping screw fastening, it delivers reliable, long-lasting performance in demanding environments.
👉 Need a ROTEX jaw coupling for your application? Contact us with your material, torque, speed, and bore requirements.
