SWP-B Short Telescopic Universal Joint Coupling – 16-1250 kN·m, ≤10° Angle, Split Bearing Housing

Factory Direct | JB/T3241-1991 Standard | Short Telescopic Design | Split Bearing Housing | 16-1250 kN·m Torque | ≤10° Axis Angle | 160-640 mm Rotating Diameter | High Transmission Efficiency | Maintenance-Friendly | OEM Customizable

The Apexcoupling SWP-B series is a high-performance short telescopic universal joint coupling (cardan shaft) engineered for heavy-duty industrial applications where axial space is limited but the need for angular misalignment compensation and axial displacement remains critical. Featuring a split bearing housing (剖分式轴承座) design that allows for easy bearing replacement without disassembling connected equipment, the SWP-B delivers exceptional reliability and reduced downtime. With a compact short-body design, it achieves the same torque ratings as the SWP-A in a shorter overall length. Manufactured from high-grade steel and bronze, the SWP-B series is the ideal solution for mining conveyors, crusher drives, metallurgical equipment, shipbuilding, petroleum machinery, and other heavy industrial applications.

✅ Short telescopic design – saves space in compact drivetrains. Split bearing housing – easy bearing replacement without disassembling shafts. 16-1250 kN·m torque – handles heavy loads. ≤10° axis angle – accommodates significant misalignment. High transmission efficiency – up to 98.6%. Smooth operation – minimal vibration. JB/T3241-1991 standard – quality assured.

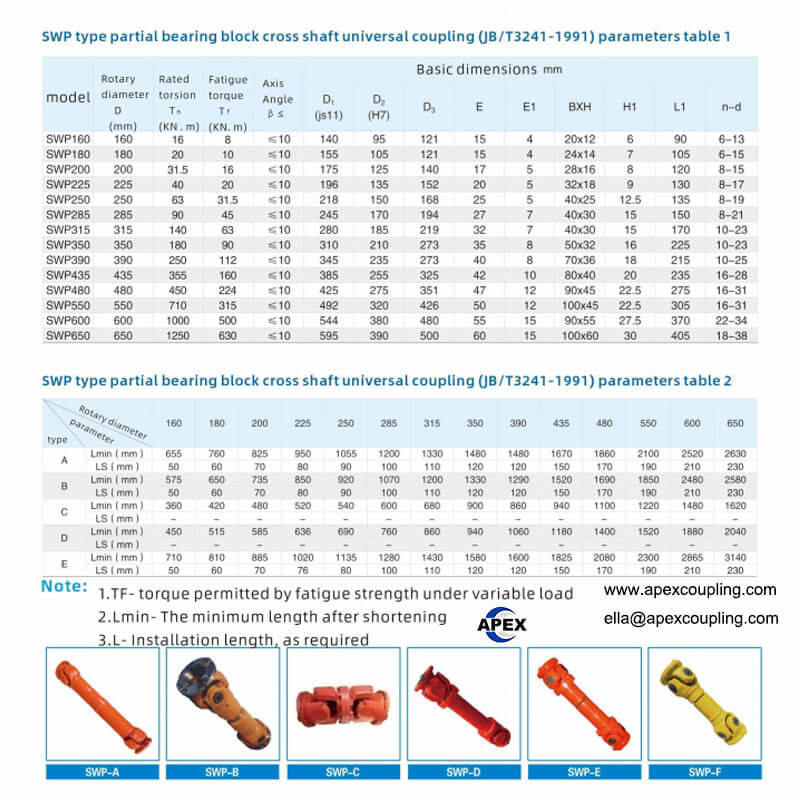

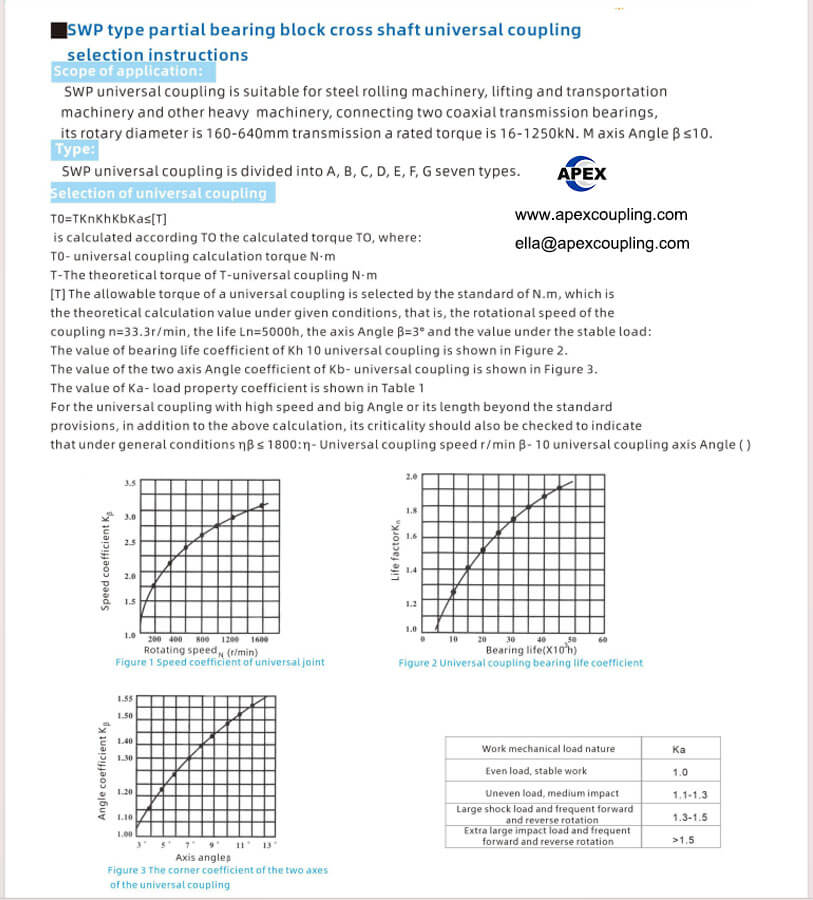

Key Technical Specifications (JB/T3241-1991 / JB/T3241-2005)

📐 Lmin dimensions are for reference. Additional sizes and custom lengths available upon request. Contact our engineering team for custom sizing.

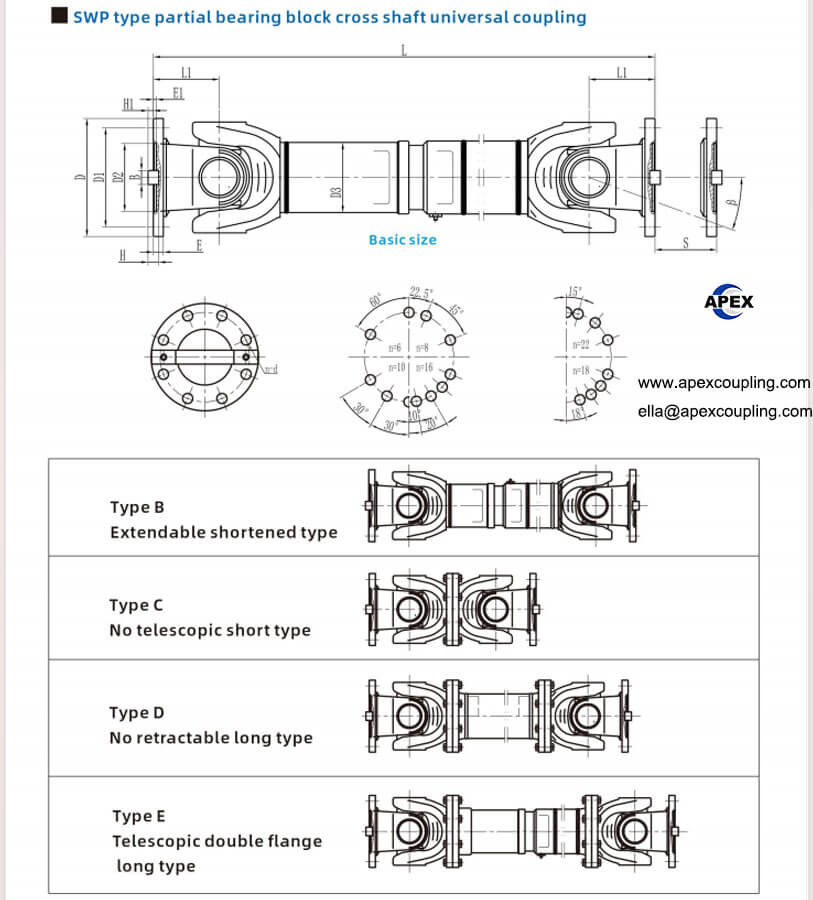

Product Structure

1. Two Flanged Yokes – Precision-forged and machined from high-grade alloy steel.

2. Cross Shaft (Spider) – Precision-ground cross-spider transmits torque through angular offsets.

3. Split Bearing Housing – The signature feature of the SWP-B series; the two-part housing allows the spider to be replaced with connected shafts left in place.

4. Telescopic Spline Shaft – Provides axial length adjustment with standard stroke S (50-230 mm).

5. High-Strength Bolts – Connect the coupling to other mechanical parts.

💡 How it works: The SWP-B short telescopic universal joint coupling operates on the Hooke’s (universal) joint principle: a pair of flanged yokes joined by a precision-ground cross-spider carries high torque through shaft angular offsets of ≤10°. The split bearing housing is the defining feature – the two-part housing splits radially, so the spider can be changed with the connected shafts left in place. Where mining and mineral processing layouts leave little room to work, that means faster repairs and less time spent in confined spaces. The short telescopic design provides axial adjustment while maintaining a compact overall length.

SWP-B vs SWP-A – Why Choose the Short Version?

Split Bearing Housing – The Maintenance Advantage

The split bearing housing (剖分式轴承座) is the defining feature of the SWP-B series:

Product Features & Advantages

Applications

• Mining – Underground conveyors, crusher drives, mineral processing plants

• Metallurgical Equipment – Rolling mills, continuous casting lines

• Heavy Machinery – Engineering and construction equipment

• Petroleum Machinery – Oil and gas equipment

• Shipbuilding – Marine propulsion auxiliary systems

• Paper Machinery – Paper production equipment

• Coal Processing – Coal wash plants, material handling

• Aggregate Processing – Crushing and screening lines

• Cranes & Hoists – Lifting and transport machinery

Why Choose Apex Coupling for SWP-B Universal Joints?

FAQ

Q: What is the SWP-B universal joint coupling?
A: The SWP-B is a short telescopic universal joint coupling (cardan shaft) with a split bearing housing design. It is manufactured to JB/T3241-1991 standard and is designed for heavy-duty industrial applications where axial space is limited but angular misalignment and axial displacement compensation are required.

Q: What is the advantage of the short telescopic design?
A: The SWP-B achieves the same torque ratings as the SWP-A in a shorter overall length – making it ideal for compact drivetrains where axial space is at a premium.

Q: What is the split bearing housing?
A: The split bearing housing (剖分式轴承座) is the signature feature of the SWP-B series. It allows the spider to be replaced without disassembling the connected shafts – significantly reducing maintenance downtime.

Q: What is the torque and speed range?
A: Nominal torque ranges from 16 kN·m to 1250 kN·m. Maximum speed varies by model – consult specifications for details.

Q: What is the maximum operating angle?
A: The maximum axis angle is ≤10°.

Q: What is the transmission efficiency?
A: The SWP-B delivers high transmission efficiency up to 98.6% – minimizing power loss.

Q: What materials are used?
A: The coupling is manufactured from high-grade steel and bronze – ensuring durability and long service life.

Q: What are the common applications?
A: Mining conveyors, crusher drives, metallurgical equipment, shipbuilding, petroleum machinery, paper machinery, and heavy industrial equipment.

Q: What models are available?
A: 14 standard models from SWP160B to SWP640B – covering rotating diameters from 160 mm to 640 mm.

Q: Can I get a custom coupling?
A: Yes. We offer OEM customization – custom lengths and special materials available.

Request a Quote

Send us your model (e.g., SWP250B), rotating diameter, torque, speed, and application details. Our engineers will recommend the optimal model and provide a quotation within 24 hours.
