SWC65BH Standard Telescopic Welding Cardan Shaft – Integral Fork Head, 0.25 kN·m, 0-4000 RPM
Model Number
Check below, custom
SWC65BH
- Phone : +86 13431039760
- Wechat : +86 13431039760
- Whatsapp : +86 13431039760
- Email : ella@apexcoupling.com
Product Description
Key Technical Specifications (JB/T5513-1991 / JB/T5513-2006)
| Parameter | Value |
|---|---|
| Model | SWC65BH |
| Type | BH – Standard Telescopic Welding Type |
| Rotating Diameter (D) | 65 mm |
| Nominal Torque (Tn) | 0.25 kN·m |
| Fatigue Torque (Tf) | 0.125 kN·m |
| Maximum Axis Angle | ≤22° – 25° |
| Telescopic Stroke (Ls) | 40 mm |
| Minimum Length (Lmin) | 360 mm |
| Flange Outer Diameter (D1) | 52 mm (js11) |
| Spigot Diameter (D2) | 35 mm (H7) |
| Tube Outer Diameter (D3) | 42 mm |
| Spigot Depth (Lm) | 40 mm |
| Bolt Holes (n-d) | 4-6 mm (4 holes evenly distributed) |
| Flange Thickness (k) | 4.5 mm |
| Groove Depth (t) | 1.7 mm |
| Maximum Speed | 0 – 4000 RPM (customizable) |
| Allowable Torque Range | 1.25 – 1000 N·m (custom higher available) |
| Body Material | 42CrMo alloy steel / 20Cr (quenching process) |
| Weight | Approx. 3.0 kg |
| Moment of Inertia | 0.29 kg·m² |
| Standard | JB/T5513-1991 / JB/T5513-2006 |
| Surface Treatment | Painting (yellow, orange, black, white available) |
| Customization | OEM – custom lengths, flange interfaces, and finishes |
| Place of Origin | Guangdong, China |
📐 Custom lengths and telescopic strokes available. Contact our engineering team for custom sizing.
Product Structure & Components
Integral Forged Fork Head – One-piece construction without bolt connections – eliminates bolt loosening and breakage, the most common failure point in traditional universal joints.
Cross Shaft Assembly (Spider) – Precision cross shaft with needle roller bearings and grease fittings for smooth rotation and extended service life.
Telescopic Welded Shaft – Standard telescopic design with 40mm stroke compensates for axial displacement.
Flange Connection – 52mm outer diameter flange with 4 holes evenly distributed at 6mm diameter for secure mounting.
Alloy Steel Construction – 42CrMo or 20Cr with quenching process – high strength and durability.
💡 How it works: The SWC65BH cardan shaft uses an integral fork head design that eliminates the weak link of bolt compression bearing seats, completely avoiding common malignant damage caused by bolt loosening or breaking. The service life is 30-50% longer than other types. Torque is transmitted through the cross shaft, while the telescopic shaft accommodates axial displacement. The flange connection provides secure mounting to driven equipment.
SWC65BH vs Other SWC Types – Quick Comparison
| Type | Description | Best For |
|---|---|---|
| BH | Standard Telescopic Welding | General industrial, most common type |
| BF | Standard Telescopic Flange | Quick assembly/disassembly, regular maintenance |
| DH | Short Telescopic Welding | Space-constrained installations |
| CH | Long Telescopic Welding | Large axial displacement requirements |
| WH | Non-Telescopic Welding | Fixed-length applications |
| WF | Non-Telescopic Flange | Fixed-length with flange connection |
💡 BH (Standard Telescopic Welding) is the most commonly used type in the SWC series, offering the best balance of performance, reliability, and versatility for general industrial applications.
Key Features & Advantages
| Advantage | Benefit |
|---|---|
| Integral Fork Head Design | No bolt connections – eliminates bolt loosening and breakage. 30-50% longer service life than other types |
| 15-25° Angle Compensation | Greater than SWP types (~10°) – accommodates significant misalignment |
| High Transmission Efficiency | 98-99.8% – energy-saving operation for high-power transmission |
| Low Noise Operation | 30-40 dB(A) – smooth, quiet operation |
| High Load Capacity | Transmits greater torque than other couplings with same rotating diameter |
| Telescopic Welded Design | 40mm standard stroke – accommodates axial displacement |
| Compact & Reliable | Stable transmission, easy assembly and disassembly |
| Needle Roller Bearings | High dynamic load capacity, small bearing clearance – up to 4000 RPM |
| Customizable | Lengths, telescopic strokes, flange interfaces – fully customizable |
| Durable Coating | Painting finish – corrosion-resistant (yellow, orange, black, white) |
Applications
Rolling Mills – Steel and metal processing
Mining Equipment – Conveyors, crushers, feeders
Conveyor Systems – Material handling and transport
Paper Machinery – Paper production and finishing
Ship Drives – Marine propulsion auxiliary systems
Crushers & Straighteners – Heavy machinery drives
Test Benches – Power transmission testing
Pump Equipment – Water and industrial pumps
Construction Machinery – Heavy equipment drives
Agricultural Machinery – Farm equipment and harvesters
Why Choose Apex Coupling for SWC65BH Cardan Shafts?
| Advantage | Description |
|---|---|
| Factory Direct | Competitive B2B pricing – no middlemen |
| Premium Materials | 42CrMo / 20Cr alloy steel – high strength and durability |
| Integral Fork Head | No bolt connections – superior reliability and longer service life |
| Large Angle Compensation | 15-25° – accommodates significant misalignment |
| High Efficiency | 98-99.8% – energy-saving operation |
| Customization | Lengths, telescopic strokes, flange interfaces – fully customizable |
| JB/T5513 Standard | Manufactured to established Chinese national standard |
| Ample Stock | Semi-finished stock available – fast delivery |
| Low Noise | 30-40 dB(A) – smooth, quiet operation |
Customization Options
| Customization | Options |
|---|---|
| Total Length | Custom lengths available – specify your required Lmin/Lmax |
| Telescopic Stroke | Standard 40mm – custom strokes available |
| Flange Interface | Flange outer diameter, spigot diameter, bolt hole pattern – customizable |
| Material | 42CrMo, 20Cr, or customer-specified alloys |
| Surface Treatment | Painting – yellow, orange, black, white, or custom |
| Balancing | Dynamic balancing available for high-speed applications |
FAQ
Q: What is an SWC65BH cardan shaft?
A: The SWC65BH is a standard telescopic welding type universal joint drive shaft with an integral fork head design. It transmits torque between shafts that are not collinear, with angle compensation up to 25°.
Q: What is the advantage of the integral fork head design?
A: The integral fork head eliminates bolt connections, which are a common failure point in traditional universal joints. This significantly improves structural strength, reliability, and service life by 30-50%.
Q: What is the maximum operating angle?
A: The SWC65BH offers 15-25° axis angle compensation – significantly larger than the SWP type (~10°).
Q: What is the transmission efficiency?
A: The transmission efficiency reaches 98-99.8% – providing significant energy savings for high-power transmission applications.
Q: What materials are used?
A: The coupling is manufactured from 42CrMo alloy steel or 20Cr with a quenching process for high strength and durability.
Q: What is the torque and speed range?
A: Nominal torque is 0.25 kN·m, with allowable torque range from 1.25 to 1000 N·m. Maximum speed is up to 4000 RPM.
Q: What industries is this coupling suitable for?
A: Rolling mills, mining, conveyors, paper machinery, ship drives, crushers, test benches, pump equipment, construction machinery, and general industrial applications.
Q: Does the coupling require balancing?
A: For high-speed applications (above normal operating speeds), dynamic balancing is recommended. Please specify when ordering.
Q: Can I get a custom coupling?
A: Yes. We offer OEM customization – custom lengths, telescopic strokes, flange interfaces, materials, and finishes.
Q: What is the warranty?
A: 1 Year – quality assured.
Request a Quote
Send us your required specifications (length, flange interface, telescopic stroke), quantity, and any customization requirements. Our engineers will provide a quotation within 24 hours.
SWC65BH cardan shaft
standard telescopic welding cardan shaft
integral fork head universal joint
SWC65BH drive shaft
cardan shaft for rolling mills
SWC65BH universal joint
heavy duty cardan shaft
industrial drive shaft
Product Show

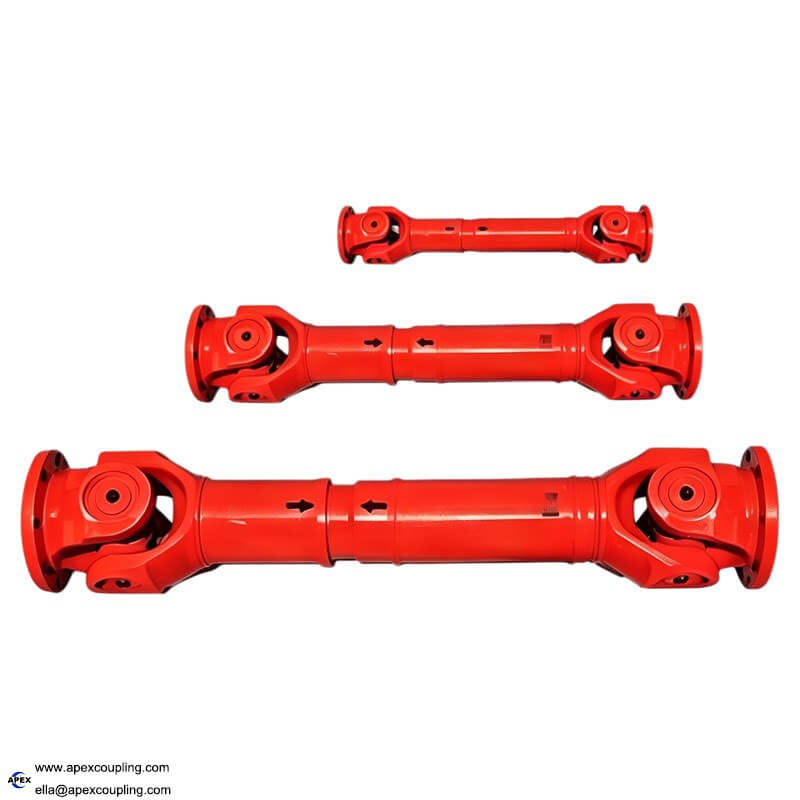

SWC65BH cardan shaft
