SWC390BH Heavy Duty Universal Joint Shaft | Industrial Flange Mount Cardan Coupling Assembly (320 kN · m)
Model Number
Check below, custom
SWC390BH
- Phone : +86 13431039760
- Wechat : +86 13431039760
- Whatsapp : +86 13431039760
- Email : ella@apexcoupling.com
Product Description
High-Torque Drivetrain Engineering: SWC390BH Industrial Cardan Shaft Assembly
The Apexcoupling SWC390BH Heavy Duty Universal Joint Coupling is designed for severeindustrial drive applications requiring high torsional strength and continuous multi-angle powertransmission. Engineered with a 390 mm rotation diameter (D) and delivering a nominaltorque capacity of 320 kN . m, this heavy-duty cardan assembly serves as a primary drive linkin steel rolling mills, paper manufacturing machinery, heavy cranes, mining crushers, and
metallurgical machinery.
Forged from premium structural steel with ISO certified precision machining, the SWC390BH
integrates a high-capacity journal cross journal assembly fitted with multi-row needle rollerbearings. Integrated grease lubrication ports ensure low-friction operation, extended wear life,
and minimal maintenance during heavy duty continuous operation.
Core Product Advantages & Features
Forged Steel Hubs & Yokes: Crafted from high-strength forged steel blanks with heat-treatment passivation, providing dynamic resistance against impact loads and high-torque fatigue.
Multi-Row Needle Bearing Journal Cross: Journal cross journal assemblies utilize multi-row needle bearings and built-in lubrication grease nipples for efficient heat dissipation and low friction.
ISO Certified Precision Manufacturing: Built to strict tolerance standards, reducing vibration and mechanical play under heavy directional rotation.
Flange Connection Versatility: Supports multiple end-connection profiles, including standard round flanges, square flanges, face-gear/end-tooth connections, and key-way clamping interfaces.
Industrial Spray Paint Passivation: Coated with corrosion-resistant spray paint (standard Safety Orange or Matte Black) to withstand harsh atmospheric conditions and outdoor industrial sites.
Multiple Structural Layouts: Available in standard telescopic (BF, CH), short telescopic (DH), and non-telescopic (WH, WF, WD) configurations to match exact machinery footprint requirements.
SWC390BH universal joint, heavy duty cardan coupling, industrial flange drive shaft, SWC series cardan shaft, high torque cross universal joint, steel mill cardan assembly.
Product Show

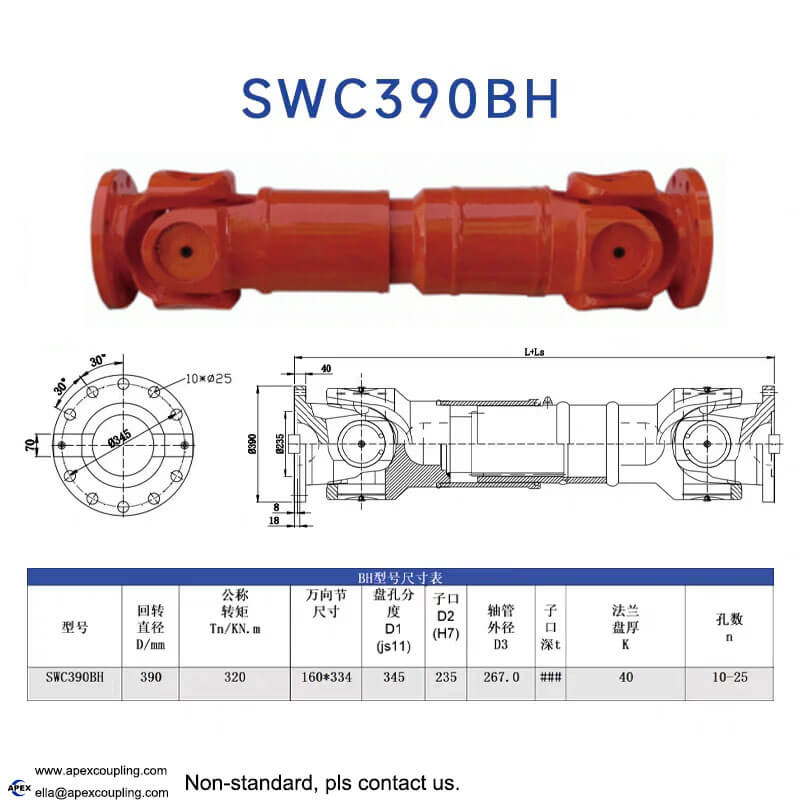

SWC390BH universal joint
