SWC315BH Face-Tooth Flange Cardan Shaft – 60-Tooth Face Connection, 160 kN·m, Heavy-Duty
Model Number
Check below, custom
SWC315BH
- Phone : +86 13431039760
- Wechat : +86 13431039760
- Whatsapp : +86 13431039760
- Email : ella@apexcoupling.com
Product Description
SWC315BH Face-Tooth Flange Cardan Shaft – 60-Tooth Face Connection, 160 kN·m, Heavy-Duty
Factory Direct | 42CrMo / 40Cr Alloy Steel | Integral Forged Fork Head | 160 kN·m Nominal Torque | 15-25° Axis Angle | Telescopic Welding Type | 60-Tooth Face Flange Connection | 12-Bolt Flange | Painting Finish | OEM Customizable
The Apexcoupling SWC315BH is a high-capacity standard telescopic welding type cardan shaft engineered for the most demanding heavy industrial power transmission applications. Featuring a robust integral forged fork head without bolt connections, this coupling delivers superior structural strength, reliability, and extended service life. With 15-25° angle compensation capability, high transmission efficiency (98-99.8%), and premium alloy steel construction (42CrMo / 40Cr), the SWC315BH is the definitive solution for steel rolling mills, heavy mining equipment, ship propulsion systems, and crane main drives.
The 60-tooth face flange connection provides superior torque transmission stability and impact resistance. The precisely machined interlocking teeth ensure accurate alignment and secure power transfer under severe shock loads and frequent reversing operations.
✅ Integral forged fork head – eliminates bolt loosening and breakage. 60-tooth face flange – superior torque transmission and impact resistance. 160 kN·m torque capacity – handles the heaviest loads. 15-25° axis angle compensation – accommodates significant misalignment. 98-99.8% transmission efficiency – energy-saving operation. 12-bolt flange – secure and reliable mounting. JB/T5513-1991 / JB/T5513-2006 compliant.

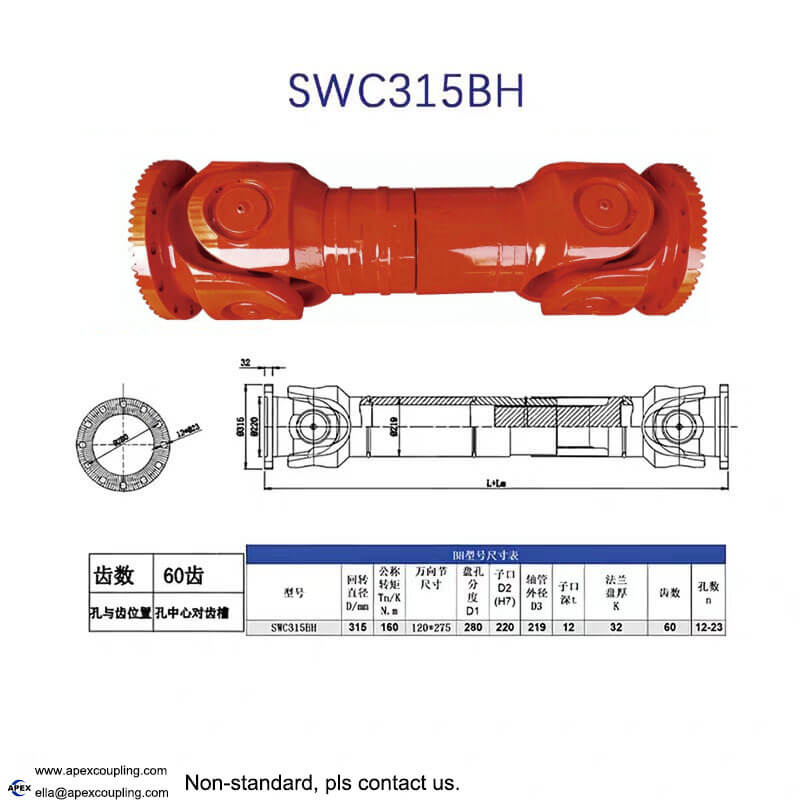

Key Technical Specifications (JB/T5513-1991 / JB/T5513-2006)
| Parameter | Value |
|---|---|
| Model | SWC315BH |
| Type | BH – Standard Telescopic Welding Type |
| Rotating Diameter (D) | 315 mm |
| Nominal Torque (Tn) | 160 kN·m (approx. 160,000 N·m) |
| Maximum Axis Angle | 15-25° (≤25°) |
| Telescopic Stroke (Ls) | 140 mm |
| Minimum Length (Lmin) | 1315 mm |
| Flange Outer Diameter | 315 mm |
| Bolt Circle Diameter (D1) | 280 mm |
| Spigot Diameter (D2) | 220 mm (H7) |
| Tube Outer Diameter (D3) | 219 mm |
| Spigot Depth (t) | 12 mm |
| Flange Thickness (K) | 32 mm |
| Number of Face Teeth (z) | 60 |
| Bolt Holes (n-d) | 12-23 mm (12 holes evenly distributed) |
| Maximum Speed | 0 – 4000 RPM (customizable) |
| Body Material | 42CrMo / 40Cr alloy steel (quenching process) |
| Standard | JB/T5513-1991 / JB/T5513-2006 |
| Surface Treatment | Painting (yellow, orange, black, white available) |
| Customization | OEM – custom lengths, flange interfaces, and finishes |
| Place of Origin | Guangdong, China |
📐 Custom lengths and telescopic strokes available. Contact our engineering team for custom sizing.
60-Tooth Face Flange – Key Features
| Feature | Specification |
|---|---|
| Number of Teeth | 60 |
| Flange Outer Diameter | 315 mm |
| Bolt Circle Diameter | 280 mm |
| Number of Bolt Holes | 12 |
| Bolt Hole Diameter | 23 mm |
| Spigot Diameter (H7) | 220 mm |
| Spigot Depth | 12 mm |
| Flange Thickness | 32 mm |
📐 The 60-tooth face flange provides exceptional alignment and superior torque transmission under the most severe heavy loads. The 12-bolt pattern ensures secure and reliable flange connection.
Product Structure & Components
Integral Forged Fork Head – One-piece construction without bolt connections – eliminates the most common failure point in traditional universal joints. The SWC series uses an integral fork structure where bearings are fixed without bolts, avoiding loose bolt breakage and simplifying maintenance.
Cross Shaft Assembly (Spider) – Precision cross shaft with multi-row needle roller bearings for high wear resistance and strength. Equipped with grease fittings for easy lubrication. Cross shaft dimensions: 120×275mm.
Telescopic Welded Shaft – Standard telescopic design with 140mm stroke compensates for axial displacement.
60-Tooth Face Flange Connection – Features precisely machined interlocking teeth on the flange face (60 teeth) for accurate alignment and secure torque transmission under severe shock loads and reversing operations.
Alloy Steel Construction – 42CrMo or 40Cr with quenching process – high strength and durability. Raw blanks are refined via quenching and tempering, while spline shafts undergo intensive induction hardening.
💡 How it works: The SWC315BH cardan shaft uses an integral fork head design that eliminates the weak link of bolt compression bearing seats, completely avoiding common malignant damage caused by bolt loosening or breaking. Torque is transmitted through the cross shaft, while the telescopic shaft accommodates axial displacement. The 60-tooth face flange connection provides superior alignment and torque transmission under heavy loads. The integral fork design provides 30-50% longer service life than bolt-connected designs.
Face-Tooth Flange Connection – Technical Advantages
The SWC315BH features a 60-tooth face flange, which offers several critical advantages over standard bolted flanges for heavy-duty applications:
| Feature | Face-Tooth Flange (SWC315BH) | Standard Bolt Flange |
|---|---|---|
| Torque Transmission | Through interlocking teeth – positive drive | Through bolt preload – friction-dependent |
| Alignment Accuracy | Superior – teeth ensure precise centering | Moderate – relies on bolt fit |
| Impact Resistance | Excellent – teeth absorb shock loads | Limited – bolts can loosen under shock |
| Reversing Operation | Stable – no backlash in tooth engagement | Can experience bolt loosening |
| Maintenance | Reduced – no frequent bolt re-torquing | Frequent bolt inspection required |
| Load Capacity | Higher – uniform load distribution | Lower – concentrated at bolt points |
✅ The 60-tooth face flange with 12-bolt pattern is the preferred connection for the most demanding heavy-load applications such as large rolling mills, ship propulsion systems, and heavy crane main drives.
Key Features & Advantages
| Advantage | Benefit |
|---|---|
| Integral Fork Head Design | No bolt connections – eliminates bolt loosening and breakage. Enhanced reliability and service life |
| 15-25° Angle Compensation | Greater than SWP types (~10°) – accommodates significant misalignment |
| High Transmission Efficiency | 98-99.8% – energy-saving operation for high-power transmission |
| High Load Capacity | 160 kN·m torque – handles the heaviest industrial loads |
| 60-Tooth Face Flange Connection | Superior alignment, impact resistance, and torque transmission under heavy loads |
| 12-Bolt Flange Pattern | Secure and reliable mounting for extreme conditions |
| Telescopic Welded Design | 140mm standard stroke – accommodates axial displacement |
| Enhanced Materials | 42CrMo / 40Cr alloy steel – high strength and wear resistance |
| Needle Roller Bearings | Multi-row needle bearings – high dynamic load capacity, wear resistance |
| Grease Fittings | Equipped with注油孔 – easy lubrication and maintenance |
| Heat Treatment | Quenching and tempering of blanks, induction hardening of spline shafts |
| Dynamic Balancing | Optional balancing – minimizes vibration at high speeds |
| Corrosion Protection | Industrial-grade anti-rust spray paint – seals against moisture and harsh environments |
| Customizable | Lengths, telescopic strokes, flange interfaces – fully customizable |
| JB/T5513 Standard | Manufactured to established Chinese national standard |
Applications
The SWC315BH face-tooth flange cardan shaft is the preferred choice for the most demanding heavy industrial sectors:
Steel Rolling Mills – Large-section rolling mills, main drive and auxiliary transmissions
Ship Propulsion Systems – Marine main and auxiliary drives
Mining Equipment – Heavy-duty crushers, conveyors, feeders
Crane Main Drives – Ultra-heavy lifting and material handling
Metallurgical Equipment – Continuous casting lines, straighteners
Paper Machinery – Heavy-duty paper production lines
Construction Machinery – Large-scale heavy equipment drives
Why Choose Apex Coupling for SWC315BH Cardan Shafts?
| Advantage | Description |
|---|---|
| Factory Direct | Competitive B2B pricing – no middlemen |
| Premium Materials | 42CrMo / 40Cr alloy steel – high strength and durability |
| Integral Fork Head | No bolt connections – superior reliability and longer service life |
| Large Angle Compensation | 15-25° – accommodates significant misalignment |
| High Efficiency | 98-99.8% – energy-saving operation |
| 60-Tooth Face Flange | Superior alignment and impact resistance for the heaviest loads |
| 12-Bolt Flange | Secure mounting for extreme heavy-duty applications |
| Customization | Lengths, telescopic strokes, flange interfaces – fully customizable |
| JB/T5513 Standard | Manufactured to established Chinese national standard |
| Ample Stock | Semi-finished stock available – fast delivery |
| Enhanced Bearings | Multi-row needle roller bearings with grease fittings – wear resistance |
| Heat Treatment | Quenching, tempering, and induction hardening – maximum durability |
Customization Options
| Customization | Options |
|---|---|
| Total Length | Custom lengths available – specify your required Lmin/Lmax |
| Telescopic Stroke | Standard 140mm – custom strokes available |
| Flange Interface | Flange outer diameter, spigot diameter, bolt hole pattern – customizable |
| Flange Type | Face-tooth, claw, standard bolt, key-type – choose according to your application |
| Material | 42CrMo, 40Cr, or customer-specified alloys |
| Surface Treatment | Painting – yellow, orange, black, white, or custom |
| Balancing | Dynamic balancing available for high-speed applications |
FAQ
Q: What is a face-tooth flange connection?
A: A face-tooth flange connection uses precisely machined interlocking teeth on the flange faces to transmit torque. The SWC315BH features 60 teeth, providing superior alignment, high torque transmission efficiency, and excellent impact resistance compared to standard bolted flanges.
Q: What is the advantage of the integral fork head design?
A: The integral fork head eliminates bolt connections, which are a common failure point in traditional universal joints. This significantly improves structural strength, reliability, and service life by approximately 30%.
Q: What is the maximum operating angle?
A: The SWC315BH offers 15-25° axis angle compensation – significantly larger than the SWP type (~10°).
Q: What is the transmission efficiency?
A: The transmission efficiency reaches 98-99.8% – providing significant energy savings for high-power transmission applications.
Q: What is the torque capacity?
A: Nominal torque is 160 kN·m (approx. 160,000 N·m), making it suitable for the most demanding heavy industrial applications.
Q: What are the flange specifications?
A: 60-tooth face flange, 315mm outer diameter, 280mm bolt circle, 12×23mm bolt holes, 220mm spigot (H7).
Q: What industries is this coupling suitable for?
A: Large rolling mills, ship propulsion, heavy mining equipment, ultra-heavy cranes, metallurgical equipment, and heavy industrial applications.
Q: Can I get a custom coupling?
A: Yes. We offer OEM customization – custom lengths, telescopic strokes, flange interfaces, materials, and finishes.
Q: What is the warranty?
A: 1 Year – quality assured.
Request a Quote
Send us your required specifications (length, flange interface type, telescopic stroke), quantity, and any customization requirements. Our engineers will provide a quotation within 24 hours.
