SWC315BH Face-Gear Flange Cardan Shaft Assembly | Hirth Serration Universal Joint Coupling (160 kN m)

Model Number
Check below, custom

SWC315BH

Product Description

[Header: High-Torque Face-Gear Transmission: SWC315BH Serrated Flange Cardan Shaft
Assembly]

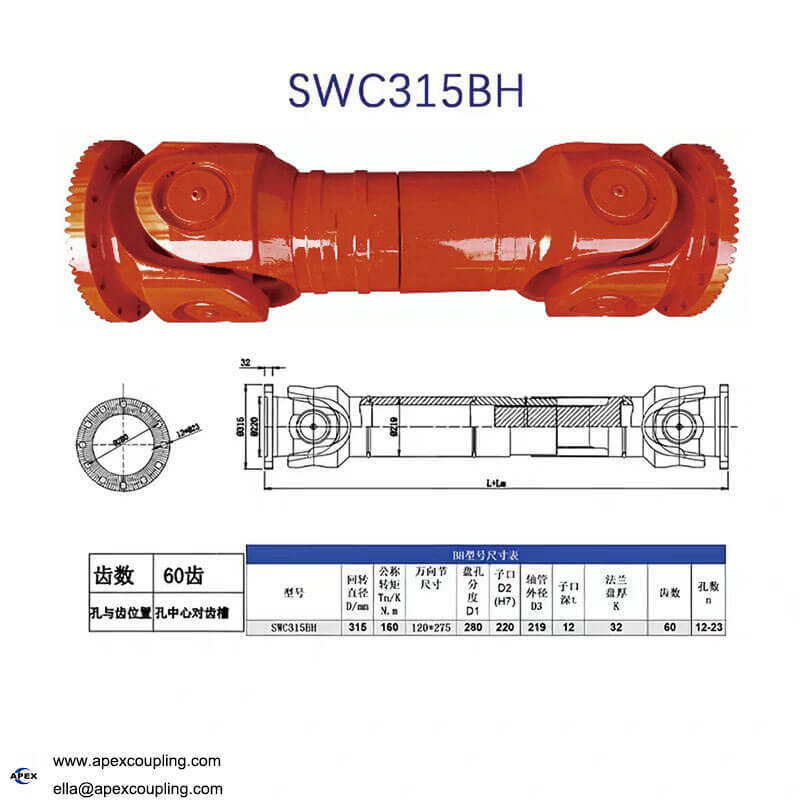

The Apexcoupling SWC315BH Face-Gear Flange Universal Joint Assembly is engineered forhigh-load industrial machinery where standard frictional flange joints risk slippage underdynamic torque shocks. Featuring a 315 mm swing diameter (D) and a nominal torque ratingof 160 kN m, this heavy-duty cardan coupling integrates a precision-machined 60-tooth faceserration (Hirth tooth connection) on its mounting flanges.

By transmitting torque through interlocking mechanical geometry rather than surface friction alone, the SWC315BH ensures positive, zero-slip drive delivery across steel rolling mills, heavy paper machinery, mining crushers, and continuous casting systems. Forged from high-tensile alloy steel with ISO-certified heat treatment, the central journal cross features multi-row needle bearings and dedicated lubrication ports for long service life under high radial loads.

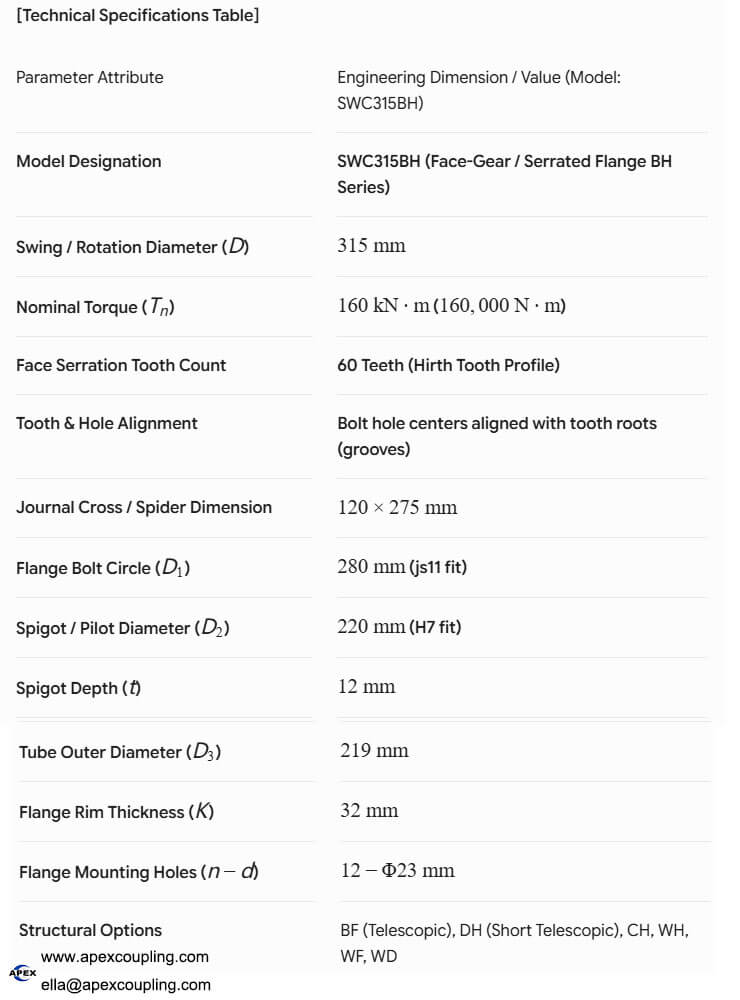

[Core Product Advantages / Unique Selling Points]

60-Tooth Precision Face Serration: Interlocking Hirth-style teeth provide rigid mechanical locking, eliminating shear stress on flange bolts and preventing angular slippage under reversing torque shock loads.
160 kN·m High Torque Capacity: Heavy-duty forged construction enables reliable power delivery across intense industrial drives.
Multi-Row Needle Bearing Journal Cross: Central spider journal assembly ( $120 \times 275\text{ mm}$ ) employs needle bearings with grease nipples for effective thermal dissipation and smooth rotation.
Dynamic Balance & Low Vibration: Precision-turned components reduce operating chatter, protecting connected gearboxes and drive motors.
Rugged Surface Passivation: Sandblasted and coated with industrial anti-corrosion spray paint (standard Safety Orange or Matte Black) for severe plant environments.
Multiple Structural Options: Available in standard telescopic (BF, CH), short welded telescopic (DH), and fixed non-telescopic (WH, WF, WD) configurations.
Direct OEM Factory Sourcing: Manufactured to strict engineering tolerances with custom length and custom tooth profile options available directly from www.apexcoupling.com.

SWC315BH face gear shaft, serrated flange cardan coupling, Hirth tooth universal joint, 60 teeth face serration drive shaft, SWC315 heavy duty cardan assembly, face serrated universal joint.
