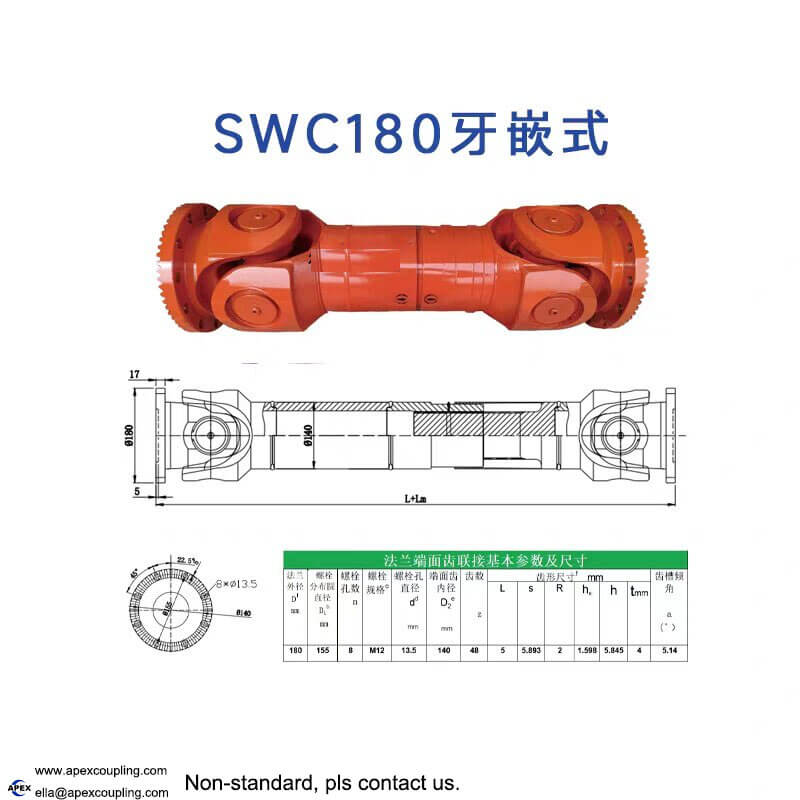

SWC180 Toothed/Claw Flange Cardan Shaft – Integral Fork Head, 12.5 kN·m, Heavy-Duty
Model Number
Check below, custom
SWC180
- Phone : +86 13431039760
- Wechat : +86 13431039760
- Whatsapp : +86 13431039760
- Email : ella@apexcoupling.com
Product Description
SWC180 Toothed/Claw Flange Cardan Shaft – Integral Fork Head, 12.5 kN·m, Heavy-Duty
Factory Direct | 42CrMo / 40Cr Alloy Steel | Integral Forged Fork Head | 12.5 kN·m Nominal Torque | 0-4000 RPM | 15-25° Axis Angle | Telescopic Welding Type | Toothed/Claw Flange Connection | Painting Finish | OEM Customizable
The Apexcoupling SWC180 Toothed/Claw Flange Cardan Shaft is a standard telescopic welding type universal joint drive shaft designed for reliable power transmission in heavy industrial applications. Featuring an integral forged fork head without bolt connections, this coupling delivers superior structural strength, reliability, and extended service life. With 15-25° angle compensation capability, high transmission efficiency (98-99.8%), and robust alloy steel construction (42CrMo / 40Cr), the SWC180 is the ideal solution for steel rolling mills, mining equipment, conveyors, paper machinery, crushers, ship drives, and general industrial drives.
The toothed/claw flange connection provides a higher level of torque transmission stability and impact resistance compared to standard bolted flanges. The precisely machined interlocking teeth (face teeth) ensure accurate alignment and secure power transfer under heavy shock loads and reversing operations, making it the preferred choice for ship propulsion systems, medium-section steel rolling mills, and crane main drives.
✅ Integral forged fork head – no bolt connections, eliminates bolt loosening and breakage. 15-25° axis angle compensation – accommodates significant misalignment. 98-99.8% transmission efficiency – energy-saving operation. Toothed/claw flange connection – superior alignment, impact resistance, and torque transmission. Compact & reliable – stable transmission, easy assembly and disassembly. JB/T5513-1991 / JB/T5513-2006 compliant. Premium forged steel construction – superior strength and durability.
Key Technical Specifications (JB/T5513-1991 / JB/T5513-2006)
| Parameter | Value |
|---|---|
| Model | SWC180 |
| Type | BH – Standard Telescopic Welding Type |
| Rotating Diameter (D) | 180 mm |
| Nominal Torque (Tn) | 12.5 kN·m (approx. 12,500 N·m) |
| Fatigue Torque (Tf) | 6.3 kN·m |
| Maximum Axis Angle | 15-25° (≤25°) |
| Telescopic Stroke (Ls) | 100 mm |
| Minimum Length (Lmin) | 810 mm |
| Flange Outer Diameter (D1) | 155 mm (js11) |
| Spigot Diameter (D2) | 105 mm (H7) |
| Tube Outer Diameter (D3) | 114 mm |
| Spigot Depth (Lm) | 110 mm |
| Bolt Holes (n-d) | 8-17 mm (8 holes evenly distributed) |
| Flange Thickness (k) | 17 mm |
| Toothed Flange Parameters | D1: 155mm, D2: 135mm, k: 20mm, T: 10mm, Z: 40 teeth, n-d: 4-13 |
| Cross Shaft Dimensions | 72 × 154 mm |
| Maximum Speed | 0 – 4000 RPM (customizable) |
| Body Material | 42CrMo / 40Cr alloy steel (quenching process) |
| Standard | JB/T5513-1991 / JB/T5513-2006 |
| Surface Treatment | Painting (yellow, orange, black, white available) |
| Customization | OEM – custom lengths, flange interfaces, and finishes |
| Place of Origin | Guangdong, China |
📐 Custom lengths and telescopic strokes available. Contact our engineering team for custom sizing.
Product Structure & Components
Integral Forged Fork Head – One-piece construction without bolt connections – eliminates bolt loosening and breakage, the most common failure point in traditional universal joints. The SWC series uses an integral fork structure where bearings are fixed without bolts, avoiding loose bolt breakage and simplifying maintenance.
Cross Shaft Assembly (Spider) – Precision cross shaft with multi-row needle roller bearings for high wear resistance and strength. Equipped with grease fittings (注油孔) for easy lubrication. Cross shaft dimensions: 72×154mm.
Telescopic Welded Shaft – Standard telescopic design with 100mm stroke compensates for axial displacement.
Toothed/Claw Flange Connection – Features precisely machined interlocking teeth (face teeth) on the flange face for accurate alignment and secure torque transmission under heavy shock loads and reversing operations.
Alloy Steel Construction – 42CrMo or 40Cr with quenching process – high strength and durability. Raw blanks are refined via quenching and tempering, while spline shafts undergo intensive induction hardening.
💡 How it works: The SWC180 cardan shaft uses an integral fork head design that eliminates the weak link of bolt compression bearing seats, completely avoiding common malignant damage caused by bolt loosening or breaking. Torque is transmitted through the cross shaft, while the telescopic shaft accommodates axial displacement. The toothed/claw flange connection provides superior alignment and torque transmission under heavy loads. The integral fork design provides 30-50% longer service life than bolt-connected designs. The SWC type offers greater angle compensation capability (15-25°) compared to SWP type (~10°).
Flange Connection Types – Choose the Right One
The SWC180 supports multiple flange connection types. The toothed/claw flange is specifically designed for heavy-duty applications:
| Connection Type | Features | Best For |
|---|---|---|
| Toothed/Claw Flange | Interlocking teeth on flange face provide precise alignment, high torque transmission, and excellent impact resistance | Heavy shock loads, frequent reversing operations, ship drives, rolling mills |
| Face-Tooth Flange | Precision-machined teeth ensure centering and torque transmission without relying solely on bolts | Heavy-duty applications requiring high positioning accuracy |
| Standard Bolt Flange | Torque transmitted through bolt preload | Light to medium loads, smooth operation |
| Key-Type Flange | Keys and keyways provide positive torque transmission | Medium-duty applications |
✅ The toothed/claw flange is the preferred choice for heavy-load applications such as ship propulsion systems, medium-section steel rolling mills, and crane main drives, effectively preventing connection loosening under impact loads.
Key Features & Advantages
| Advantage | Benefit |
|---|---|
| Integral Fork Head Design | No bolt connections – eliminates bolt loosening and breakage. Enhanced reliability and service life |
| 15-25° Angle Compensation | Greater than SWP types (~10°) – accommodates significant misalignment |
| High Transmission Efficiency | 98-99.8% – energy-saving operation for high-power transmission |
| High Load Capacity | 12.5 kN·m torque – transmits greater torque than other couplings with same rotating diameter |
| Toothed/Claw Flange Connection | Superior alignment, impact resistance, and torque transmission under heavy loads |
| Telescopic Welded Design | 100mm standard stroke – accommodates axial displacement |
| Enhanced Materials | 42CrMo / 40Cr alloy steel – high strength and wear resistance |
| Needle Roller Bearings | Multi-row needle bearings – high dynamic load capacity, wear resistance |
| Grease Fittings | Equipped with注油孔 – easy lubrication and maintenance |
| Heat Treatment | Quenching and tempering of blanks, induction hardening of spline shafts |
| Dynamic Balancing | Optional balancing – minimizes vibration at high speeds |
| Corrosion Protection | Industrial-grade anti-rust spray paint – seals against moisture and harsh environments |
| Customizable | Lengths, telescopic strokes, flange interfaces – fully customizable |
| JB/T5513 Standard | Manufactured to established Chinese national standard |
Applications
The SWC180 toothed/claw flange cardan shaft is widely used across heavy industrial sectors:
Steel Rolling Mills – Medium-section rolling mills, main drive and auxiliary transmissions
Mining Equipment – Conveyors, crushers, feeders
Paper Machinery – Paper production and finishing
Ship Drives – Marine propulsion auxiliary systems, ship propulsion systems
Crane Main Drives – Heavy-duty lifting and material handling
Construction Machinery – Heavy equipment drives
Metallurgical Equipment – Continuous casting lines
Agricultural Machinery – Farm equipment and harvesters
Petroleum Equipment – Oil and gas machinery
Pump Equipment – Large-scale industrial fluid pumps
Rubber Machinery – Rubber processing equipment
Heavy-Duty Conveyor Systems – Material handling in demanding environments
Why Choose Apex Coupling for SWC180 Toothed/Claw Flange Cardan Shafts?
| Advantage | Description |
|---|---|
| Factory Direct | Competitive B2B pricing – no middlemen |
| Premium Materials | 42CrMo / 40Cr alloy steel – high strength and durability |
| Integral Fork Head | No bolt connections – superior reliability and longer service life |
| Large Angle Compensation | 15-25° – accommodates significant misalignment |
| High Efficiency | 98-99.8% – energy-saving operation |
| Toothed/Claw Flange | Superior alignment and impact resistance for heavy loads |
| Customization | Lengths, telescopic strokes, flange interfaces – fully customizable |
| JB/T5513 Standard | Manufactured to established Chinese national standard |
| Ample Stock | Semi-finished stock available – fast delivery |
| Enhanced Bearings | Multi-row needle roller bearings with grease fittings – wear resistance |
| Heat Treatment | Quenching, tempering, and induction hardening – maximum durability |
| Dynamic Balancing | Optional – minimizes vibration at high speeds |
Customization Options
| Customization | Options |
|---|---|
| Total Length | Custom lengths available – specify your required Lmin/Lmax |
| Telescopic Stroke | Standard 100mm – custom strokes available |
| Flange Interface | Flange outer diameter, spigot diameter, bolt hole pattern – customizable |
| Flange Type | Toothed/claw, face-tooth, standard bolt, key-type – choose according to your application |
| Material | 42CrMo, 40Cr, or customer-specified alloys |
| Surface Treatment | Painting – yellow, orange, black, white, or custom |
| Balancing | Dynamic balancing available for high-speed applications |
FAQ
Q: What is a toothed/claw flange connection?
A: A toothed/claw flange connection uses precisely machined interlocking teeth (face teeth) on the flange faces to transmit torque. This provides superior alignment, high torque transmission efficiency, and excellent impact resistance compared to standard bolted flanges, making it ideal for heavy shock loads and reversing operations.
Q: What is the advantage of the integral fork head design?
A: The integral fork head eliminates bolt connections, which are a common failure point in traditional universal joints. This significantly improves structural strength, reliability, and service life by approximately 30%.
Q: What is the maximum operating angle?
A: The SWC180 offers 15-25° axis angle compensation – significantly larger than the SWP type (~10°).
Q: What is the transmission efficiency?
A: The transmission efficiency reaches 98-99.8% – providing significant energy savings for high-power transmission applications.
Q: What materials are used?
A: The coupling is manufactured from 42CrMo or 40Cr alloy steel with a quenching process for high strength and durability. All blanks undergo quenching and tempering, with spline shafts induction-hardened.
Q: What is the torque and speed range?
A: Nominal torque is 12.5 kN·m (approx. 12,500 N·m). Maximum speed is up to 4000 RPM. Speeds above 1000 RPM require dynamic balancing.
Q: What is the telescopic stroke?
A: The standard telescopic stroke is 100mm.
Q: What are the toothed flange specifications?
A: Flange outer diameter: 155mm (js11), spigot diameter: 135mm (H7), 4×M13 bolt holes, 40 teeth.
Q: What industries is this coupling suitable for?
A: Steel rolling mills, mining, conveyors, paper machinery, ship drives, crushers, construction machinery, agricultural equipment, petroleum machinery, and general industrial applications.
Q: Does the coupling require balancing?
A: For high-speed applications (above normal operating speeds), dynamic balancing is recommended. Please specify when ordering.
Q: Can I get a custom coupling?
A: Yes. We offer OEM customization – custom lengths, telescopic strokes, flange interfaces, materials, and finishes.
Q: What is the warranty?
A: 1 Year – quality assured.
Request a Quote
Send us your required specifications (length, flange interface type, telescopic stroke), quantity, and any customization requirements. Our engineers will provide a quotation within 24 hours.
