Steel Timing Belt Pulley with Taper Lock Bush – HTD/8YU/RPP/AT Series, OEM Custom
Model Number
Check below, custom
RPP8M-60Z，
Stainless Steel timing belt pulley
- Phone : +86 13431039760
- Wechat : +86 13431039760
- Whatsapp : +86 13431039760
- Email : ella@apexcoupling.com
Product Description
Steel Timing Belt Pulley with Taper Lock Bush – HTD/8YU/RPP/AT/T/XL/L/H/XH/XXH Series
Factory Direct | 45# Steel / Stainless Steel / Cast Iron | Taper Lock Mounting | HTD 8M, RPP8M, 8YU, AT10, T10, T20, XL, L, H, XH, XXH | Precision CNC Hobbed | H7 Bore Tolerance | Concentricity ≤0.05mm | OEM/ODM | No MOQ | 24-Hour Drawing Service
The Apexcoupling Steel Timing Belt Pulley series offers a comprehensive range of high-precision synchronous pulleys designed for reliable power transmission in demanding industrial applications. Featuring taper lock (taper bushing) mounting for quick and easy installation, these pulleys are manufactured from high-grade 45# steel, stainless steel, or cast iron with precision CNC hobbing for superior tooth accuracy. Available in a wide range of pitch profiles – HTD 8M, RPP8M, 8YU, 3M, 5M, H, XH, XXH, L, XL, T10, AT10, T20, AT20, and 20M – these pulleys deliver accurate, slip-free synchronous transmission with constant rotation rate.
With H7 bore tolerance, concentricity within 0.05mm, and fully customizable dimensions (bore diameter, pitch diameter, number of teeth, belt width, outside diameter), the Apexcoupling timing pulley series is the ideal solution for packaging machinery, printing equipment, conveyor systems, textile machinery, factory automation, CNC machines, and heavy industrial applications. OEM/ODM customization is fully supported – free samples available, no MOQ, 24-hour design drawing service.
✅ Taper lock mounting – quick installation, secure shaft fixation, easy removal [4†L5-L7][0†L15-L19]. Precision CNC hobbing – superior tooth accuracy, smooth engagement. H7 bore tolerance & concentricity ≤0.05mm – precise shaft fit, minimal runout. Wide pitch range – HTD 8M, RPP8M, 8YU, 3M, 5M, AT10, T10, XL, L, H, XH, XXH, 20M. Multiple materials – 45# steel, stainless steel (SUS304), cast iron, aluminum. OEM/ODM customization – custom bore, teeth, width, surface treatment. No MOQ – sample orders welcome. 24-hour design drawing service.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Brand | Apexcoupling |
| Product Name | Steel Timing Belt Pulley / Synchronous Pulley |
| Mounting Type | Taper lock (taper bush) – quick installation and removal [4†L5-L7] |
| Material Options | 45# steel (S45C), stainless steel (SUS304), cast iron, aluminum alloy [6†L20-L21] |
| Surface Treatment | Black oxide, natural anodized, hard anodized, nickel plating, phosphating [6†L19-L20] |
| Pitch Profiles | HTD 8M, RPP8M, 8YU, 3M, 5M, H, XH, XXH, L, XL, T10, AT10, T20, AT20, 20M [0†L7-L9][6†L15-L18] |
| Bore Tolerance | H7 |
| Concentricity | ≤0.05mm |
| Bore Diameter | Customizable |
| Pitch Diameter | Customizable |
| Number of Teeth | Customizable |
| Belt Width | Customizable (standard: 15mm, 20mm, 25mm, 30mm, 50mm, 60mm, 85mm) [3†L5-L6][7†L8-L9] |
| Outside Diameter | Customizable |
| Manufacturing Process | CNC hobbing, CNC turning, gear hobbing, gear shaping, gear grinding [6†L25-L27] |
| Shape | Type A, B, D, E, F, K [6†L18-L19] |
| Customization | OEM, ODM – custom bore, teeth, width, surface treatment |
| MOQ | None – sample orders welcome |
| Design Service | 24-hour CAD drawing service |
| Applicable Industries | Packaging machinery, printing equipment, conveyor systems, textile machinery, factory automation, CNC machines, robotics, medical devices, construction, advertising |
| Place of Origin | Guangdong, China |
Pitch Profile Overview – Choose the Right Pulley
| Pitch Code | Pitch (mm) | Tooth Profile | Type | Typical Applications |
|---|---|---|---|---|
| HTD 8M | 8 | Curvilinear (HTD) | High torque | General industrial, conveyors, packaging [7†L7] |
| RPP8M | 8 | Curvilinear (RPP) | High torque | High precision, automation, robotics [4†L8-L9] |
| 8YU | 8 | Curvilinear (YU) | High torque, high precision | Positioning, high-accuracy drives [3†L16-L17] |
| 3M / 5M | 3 / 5 | Curvilinear (HTD) | Light to medium torque | Light-duty conveying, small machinery |
| H | 12.7 (0.5″) | Trapezoidal (inch) | Medium-heavy | Machine tools, printing [0†L18-L19] |
| XH | 22.225 (0.875″) | Trapezoidal (inch) | Heavy | Crushers, large machinery [0†L18-L19] |
| XXH | 31.75 (1.25″) | Trapezoidal (inch) | Extreme heavy | Steel mills, mining [0†L18-L19] |
| L | 9.525 (0.375″) | Trapezoidal (inch) | Medium | General industrial conveying [0†L18-L19] |
| XL | 5.08 (0.2″) | Trapezoidal (inch) | Light | Light-duty conveying, office equipment [0†L18-L19] |
| T10 / AT10 | 10 | Trapezoidal / Reinforced | Medium to heavy | Packaging, conveying, heavy load [0†L13-L14] |
| T20 / AT20 | 20 | Trapezoidal / Reinforced | Heavy | Heavy-duty conveying, large machinery [0†L13-L14] |
| 20M | 20 | Curvilinear (HTD) | Extreme heavy | Steel mills, heavy industry |
💡 Selection tip: Choose HTD 8M / RPP8M / 8YU for high-torque, precision applications. Choose T10 / AT10 / T20 / AT20 for general conveying and packaging. Choose XL / L / H / XH / XXH for inch-based machinery and heavy-duty applications.
Taper Lock Mounting – Quick Installation & Secure Fixation
The taper lock (taper bushing) mounting system offers several key advantages over traditional set screw or keyway mounting:
| Feature | Taper Lock Mounting | Traditional Keyway / Set Screw |
|---|---|---|
| Installation | Quick – simple bolt tightening | Time-consuming – key fitting |
| Removal | Easy – remove bolts, tap release | Difficult – may require pullers |
| Shaft Fixation | Secure – friction lock + keyway | Moderate – set screw point contact |
| Axial Locking | Yes – prevents shaft displacement [4†L5-L7] | No |
| Concentricity | Excellent – precision taper fit | Moderate |
| Reusability | Yes – multiple installations | Limited – keyway wear |
| Best for | High torque, frequent maintenance | General applications |
✅ Choose taper lock mounting for applications requiring quick installation, secure shaft fixation, and easy removal for maintenance [4†L5-L7].
Product Structure
Timing Pulley Body – Precision-machined from 45# steel, stainless steel, or cast iron with CNC hobbed teeth.
Taper Lock Bushing (Taper Bush) – Split tapered bushing that provides secure shaft fixation and easy removal [4†L5-L7].
Tooth Profile – Precision-formed teeth matching the belt pitch (HTD, RPP, 8YU, trapezoidal, etc.).
Keyway – Standard keyway for positive torque transmission.
Flanges (Optional) – Guide flanges for belt tracking.
💡 How it works: The timing pulley is mounted on the shaft using a taper lock bushing. The bushing has a tapered outer surface that matches a tapered bore in the pulley. When the mounting bolts are tightened, the bushing is drawn into the pulley bore, creating a secure friction lock on the shaft with a keyway for positive torque transmission [4†L5-L7]. This provides quick installation, secure fixation, and easy removal for maintenance.
Product Features & Advantages
| Advantage | Benefit |
|---|---|
| Taper Lock Mounting | Quick installation, secure shaft fixation, easy removal [4†L5-L7] |
| Precision CNC Hobbing | Superior tooth accuracy, smooth engagement, reduced noise [6†L25-L27] |
| H7 Bore Tolerance | Precise shaft fit, minimal runout, accurate positioning |
| Concentricity ≤0.05mm | High precision, smooth operation, reduced vibration |
| Multiple Materials | 45# steel, stainless steel, cast iron, aluminum – choose for your environment [6†L20-L21] |
| Wide Pitch Range | HTD 8M, RPP8M, 8YU, 3M, 5M, AT10, T10, XL, L, H, XH, XXH, 20M |
| Multiple Surface Treatments | Black oxide, anodized, nickel plating, phosphating – corrosion resistance [6†L19-L20] |
| OEM Customization | Custom bore, teeth, width, surface treatment – fully customizable [1†L7-L8] |
| No MOQ | Sample orders welcome – test before bulk purchase |
| 24-Hour Design Service | CAD drawings within 24 hours |
| Accurate Transmission | No slip – constant rotation rate during operation |
| Wide Application Range | Conveyors, packaging, printing, automation, CNC, heavy industry |
Applications
Conveyor Systems – Material handling, assembly lines, product transport [5†L21-L22]
Packaging Machinery – Wrapping machines, carton sealers, labeling equipment [5†L4-L7]
Printing Equipment – Paper feed, register control, screen printing [5†L4-L7]
Textile Machinery – Spinning, weaving, finishing equipment [5†L27-L28]
Factory Automation – Linear drives, pick-and-place systems, robotics [5†L16-L17]
CNC Machines – Precision positioning, feed drives [5†L17]
Heavy Industry – Crushers, steel mills, mining equipment (XH/XXH series)
Medical Devices – Precision imaging, diagnostic equipment [5†L12-L13]
Construction Equipment – Bending machines, material handling [5†L28-L29]
Advertising Equipment – Signage, labeling machines
Why Choose Apex Coupling for Steel Timing Pulleys?
| Advantage | Description |
|---|---|
| Factory Direct | Competitive B2B pricing – no middlemen |
| Precision Manufacturing | CNC hobbing, H7 bore, concentricity ≤0.05mm |
| Taper Lock Mounting | Quick installation, secure fixation, easy removal [4†L5-L7] |
| Wide Pitch Range | HTD 8M to XXH – covers all industrial needs |
| Multiple Materials | 45# steel, stainless steel, cast iron, aluminum [6†L20-L21] |
| OEM Customization | Custom bore, teeth, width, surface treatment |
| No MOQ | Sample orders welcome |
| 24-Hour Design Service | CAD drawings within 24 hours |
| Fast Delivery | Stocked items available for quick shipment |
FAQ
Q: What is a taper lock timing pulley?
A: A taper lock timing pulley is a synchronous pulley that uses a tapered bushing (taper bush) for mounting on a shaft. The taper lock system provides quick installation, secure shaft fixation, and easy removal for maintenance [4†L5-L7].
Q: What pitch profiles are available?
A: Available pitch profiles include HTD 8M, RPP8M, 8YU, 3M, 5M, H, XH, XXH, L, XL, T10, AT10, T20, AT20, and 20M [0†L7-L9][6†L15-L18].
Q: What materials are available?
A: Materials include 45# steel (S45C), stainless steel (SUS304), cast iron, and aluminum alloy [6†L20-L21].
Q: What surface treatments are available?
A: Surface treatments include black oxide, natural anodized, hard anodized, nickel plating, and phosphating [6†L19-L20].
Q: What is the bore tolerance?
A: Standard bore tolerance is H7 with concentricity ≤0.05mm.
Q: Can the pulley be customized?
A: Yes. We offer OEM/ODM customization – custom bore diameter, number of teeth, belt width, pitch diameter, outside diameter, and surface treatment.
Q: Is there a minimum order quantity?
A: No. Sample orders are welcome – no MOQ.
Q: What is the design service?
A: We offer 24-hour CAD drawing service – provide your specifications and we will create a drawing within 24 hours.
Q: What are the common applications?
A: Conveyor systems, packaging machinery, printing equipment, textile machinery, factory automation, CNC machines, and heavy industry [5†L4-L7][5†L16-L17].
Q: What is the difference between HTD 8M and RPP8M?
A: Both have an 8mm pitch with curvilinear tooth profiles. HTD 8M is the standard high-torque drive profile. RPP8M is an enhanced round profile with improved load distribution and smoother operation [4†L8-L9].
Request a Quote
Send us your pitch profile, number of teeth, belt width, bore diameter, material preference, and any customization requirements. Our engineers will provide a CAD drawing and quotation within 24 hours.
steel timing belt pulley
taper lock timing pulley
HTD 8M pulley
RPP8M timing pulley
8YU timing pulley
timing pulley with taper bushing
AT10 timing pulley
T10 timing pulley
XL L H XH XXH timing pulley
OEM timing pulley
taper lock bushing pulley
steel synchronous pulley

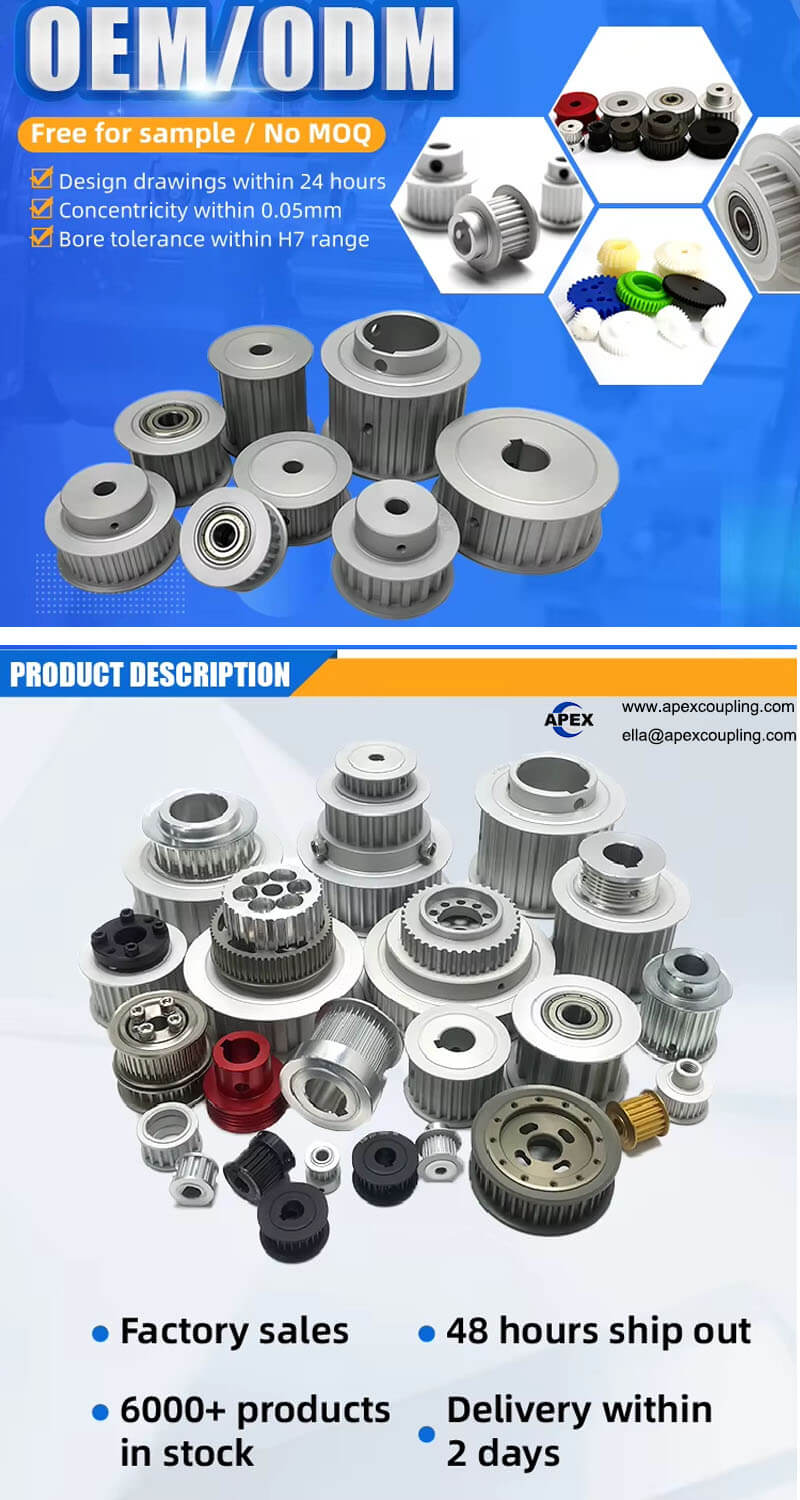

Product Show
