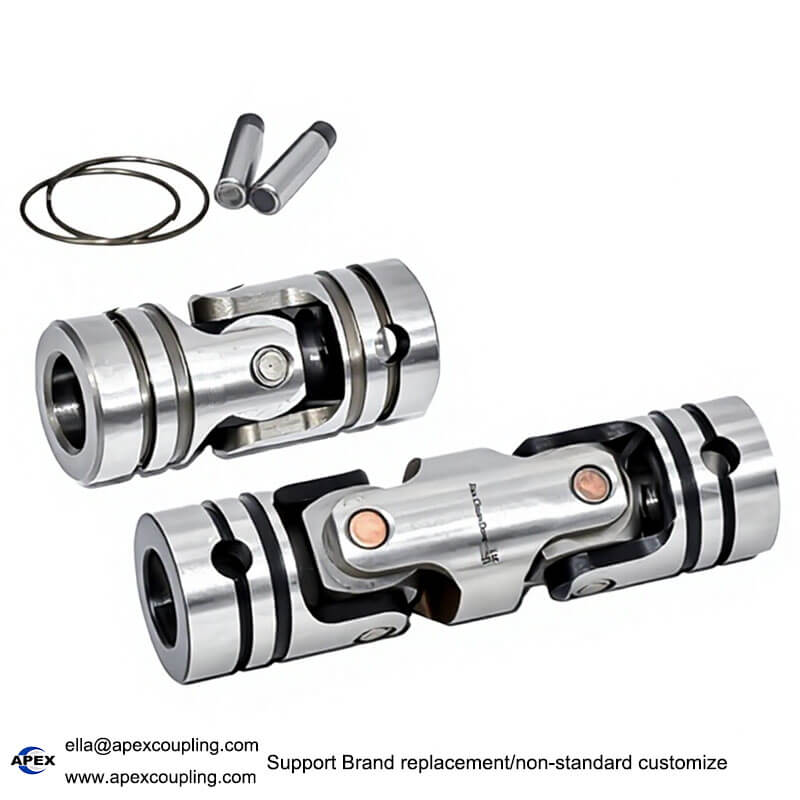

GD/G Type Cross Universal Joint Coupling – Single / Double Section, 42CrMo Alloy Steel, 30mm Bore
Factory Direct from Guangdong, China | 42CrMo Alloy Steel | Single & Double Section | H7 Precision Bore | High Torque | Low Clearance | FA Factory Automation Standard | Custom Sizes Available
Product Overview
The GD/G Type Cross Universal Joint Coupling from Apexcoupling is a high-performance power transmission component designed for angular misalignment compensation and reliable torque transfer. As a CPCA/CPCW universal joint type, this coupling is manufactured in Dongguan, Guangdong, China, and is widely used in factory automation, CNC machinery, packaging equipment, and general industrial drive systems.
The coupling is made from 42CrMo alloy steel – a high-strength material known for excellent toughness, superior wear resistance, weldability, high-temperature resistance, and corrosion resistance. The H7 precision inner bore is ground for high concentricity, minimal clearance, and reduced noise during high-speed operation. All bores are precision-machined on imported machining centers to ensure tight tolerances and superior accuracy.

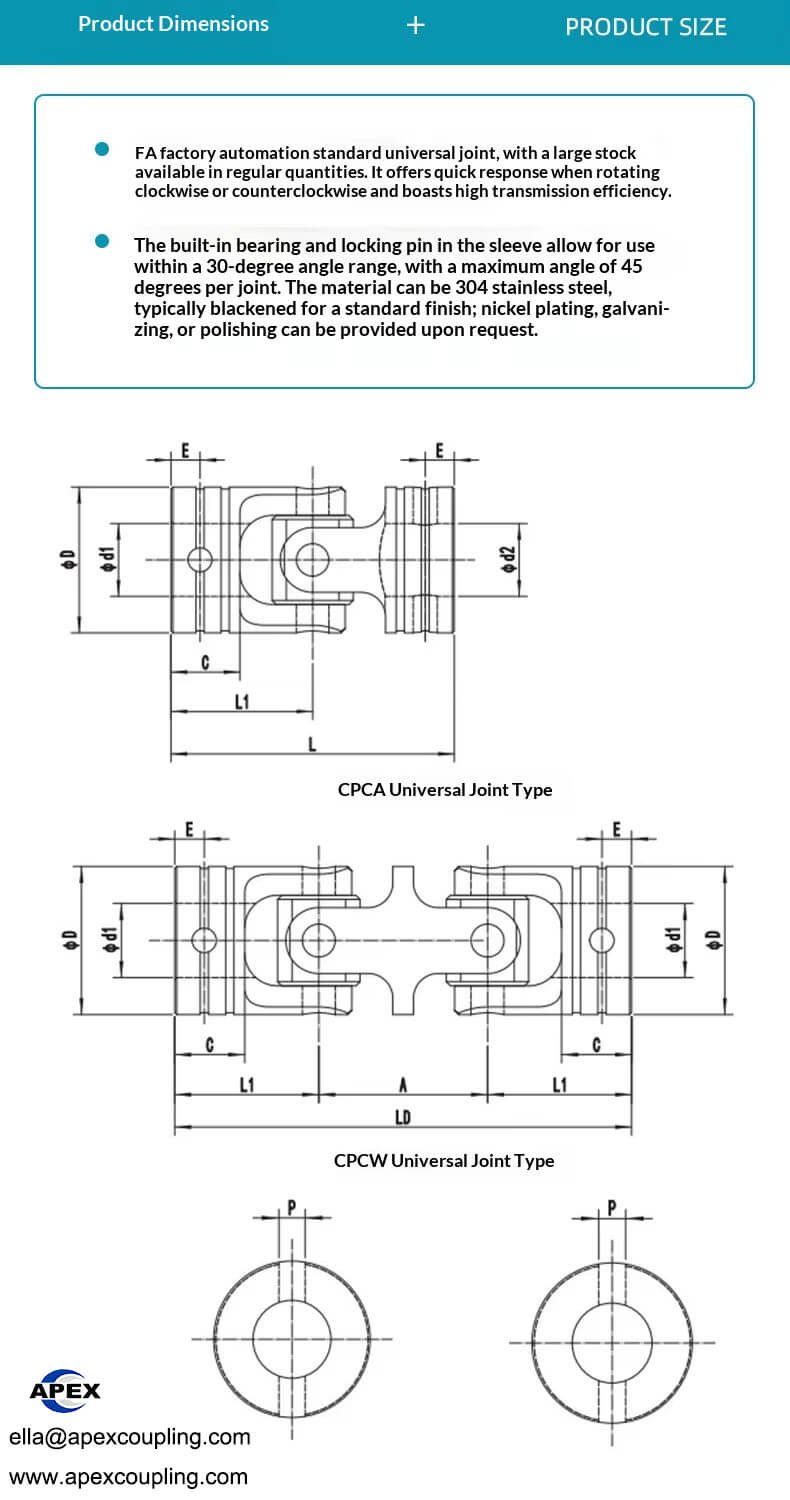

The GD/G series is available in single-section (G) and double-section (GD) configurations. The built-in bearing and locking pin in the sleeve allow for continuous operation within a 30° angle, with a maximum angle of 45° per joint. The material can also be 304 stainless steel, typically blackened for a standard finish, with optional nickel plating, galvanizing, or polishing upon request.
As a FA factory automation standard universal joint, this coupling is kept in large stock for fast delivery. It offers quick response when rotating clockwise or counterclockwise and boasts high transmission efficiency. Custom sizes and configurations are available upon request.
📧 Get a Quote: ella@apexcoupling.com | WhatsApp/WeChat: +86 13431039760
Key Attributes
Key Features

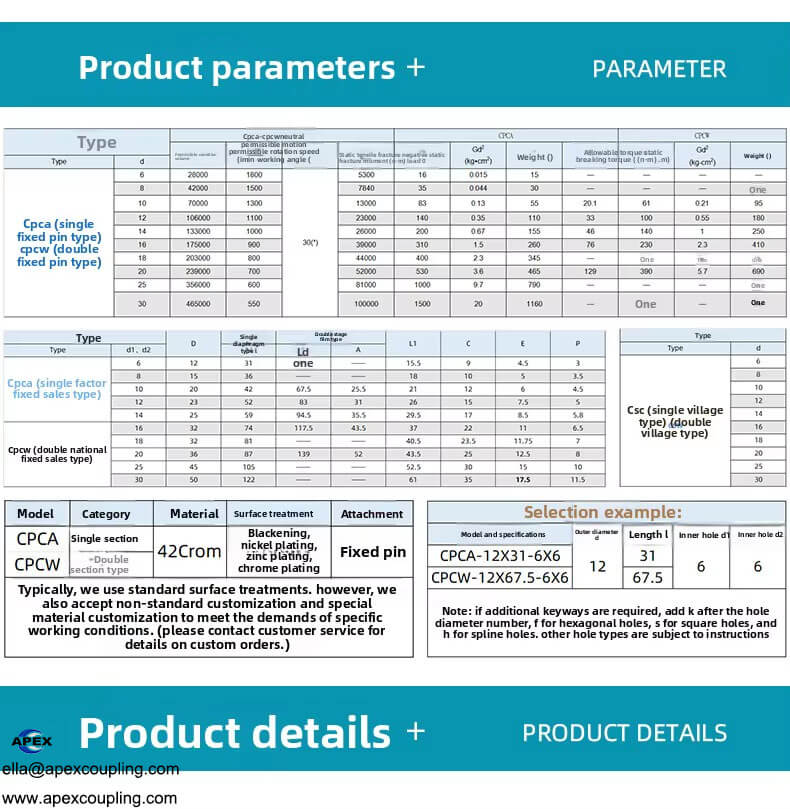

Technical Specifications
Product Details
01. High-Intensity 42CrMo Alloy Steel
42CrMo boasts high strength, excellent toughness, superior wear resistance, excellent weldability, high-temperature resistance, and corrosion resistance – ideal for demanding industrial applications.

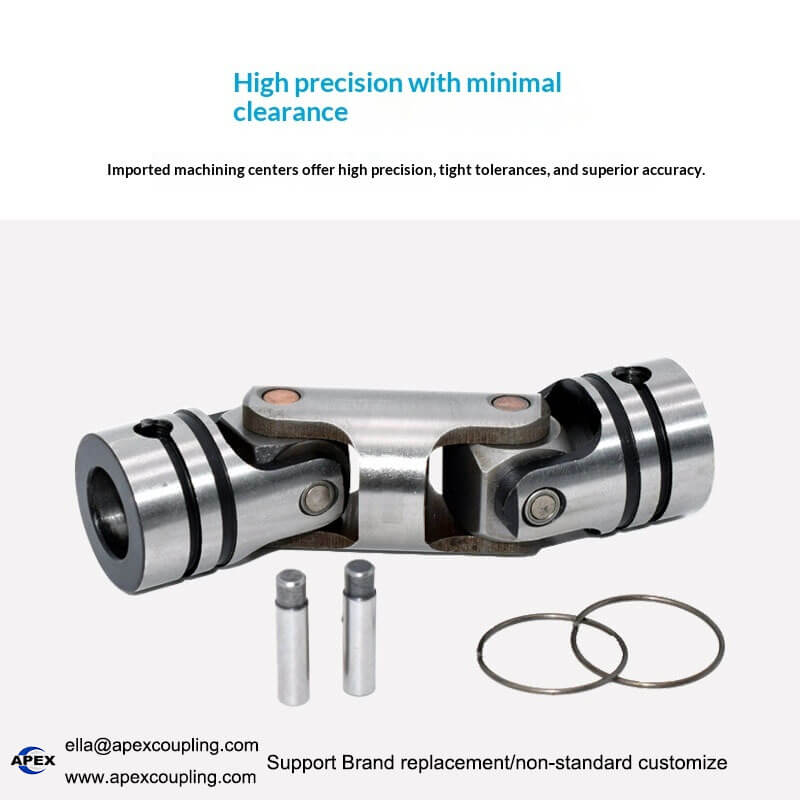

02. High Precision with Minimal Clearance
Imported machining centers offer high precision, tight tolerances, and superior accuracy. All inner bores are ground for reduced noise during high-speed operation.
03. FA Factory Automation Standard
FA factory automation standard universal joint with a large stock available in regular quantities. It offers quick response when rotating clockwise or counterclockwise and boasts high transmission efficiency.
04. Built-in Bearing & Locking Pin
The built-in bearing and locking pin in the sleeve allow for use within a 30-degree angle range, with a maximum angle of 45 degrees per joint.
05. Material & Surface Options
The material can be 304 stainless steel, typically blackened for a standard finish. Nickel plating, galvanizing, or polishing can be provided upon request.
06. Precise Transmission Performance & Excellent Flexibility
The universal joint coupling features a large connection clearance and high fault tolerance, enabling rotational motion in multiple directions.
Applications
The GD/G Type cross universal joint coupling is widely used in:
Factory Automation (FA) – Standard automation equipment, robotic arms, conveyors
CNC Machine Tools – Milling, drilling, tapping, and engraving machines
Packaging Machinery – High-speed packaging and filling lines
Printing Machinery – Registration and tension control systems
Textile Machinery – Spinning, weaving, and finishing equipment
Medical Equipment – Diagnostic and surgical positioning devices
Semiconductor Equipment – Wafer handling and precision stages
Food Machinery – Hygienic and reliable drive connections
Woodworking Machinery – Routers, saws, and edge banding machines
General Industrial Drives – Where angular misalignment and reliable torque transfer are required
Customization Options
Apexcoupling offers extensive customization for GD/G universal joint couplings:
Custom series: G (single), GD (double), and custom configurations
Custom bore diameters and lengths
Keyway, hexagon, square, and spline bores
Alternative materials: 42CrMo, 304 stainless steel, alloy steel
Surface treatments: black oxide, nickel plating, galvanizing, polishing
Drawing-based production
OEM / ODM / OBM with your branding
📧 Send your drawing or requirements to: ella@apexcoupling.com
Why Choose Apexcoupling?
🏭 Factory Direct in Dongguan, China – Integrated manufacturing and trading, competitive pricing
🔩 Premium 42CrMo Alloy Steel – High strength, toughness, and wear resistance
⚙️ H7 Precision Bore – High concentricity and low noise at high speed
📐 FA Standard & Large Stock – Fast delivery and quick CW/CCW response
🔧 Single & Double Section – Covers a wide range of angular compensation needs
🧾 Custom-Made Support – Bores, lengths, and configurations available
✅ ISO Certified – Quality assurance and international interchangeability
📦 Fast Delivery – Factory stock and efficient production for urgent orders
💬 Expert Technical Support – We help you select the correct coupling for your application
Get a Quote Today
Ready to order or need more information? Contact us directly:
📧 Email: ella@apexcoupling.com
📱 WhatsApp / WeChat: +86 13431039760
🌐 Website: www.apexcoupling.com
We reply within 24 hours with pricing, availability, and technical recommendations.
Product Tags: GD/G cross universal joint coupling, single double universal joint, 42CrMo universal joint coupling, cross universal joint, 30mm bore universal joint, high torque universal joint, FA standard universal joint, H7 precision universal joint, custom universal joint coupling, Apexcoupling
